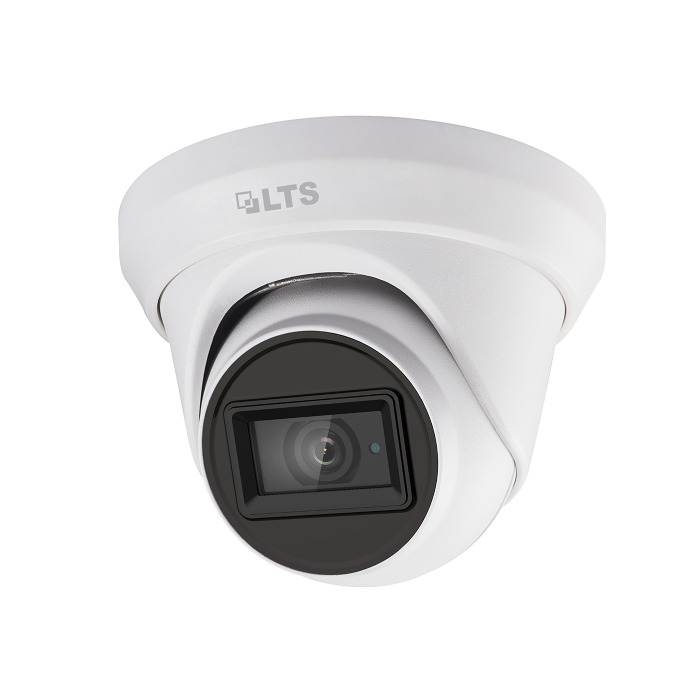

CMHT1752WE-28F Lts CCTV Camera

Description

CMHT1752WE-28F Lts CCTV Camera

Platinum 5 MP Turret HD-TVI


This listing includes:

  • ¬†(1) ANALOG CAMERA:¬†CMHT1752WE-28F


CMHT1752WE-28F  view data sheet

Platinum 5 MP Turret HD-TVI Camera


Ultra-Low Light 5 MP High Performance CMOS, 2560 ? 1944 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR Range, 3D DNR, 130 dB True WDR, 4-Signals-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

  • 5 MP high performance CMOS
  • 2560 ? 1944 resolution
  • 2.8 mm fixed lens
  • Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR range
  • 3D DNR, 130 dB true WDR
  • 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
  • IP67
  • OSD Menu via UTC technology with Platinum DVR


CMHT1752WE-28F Lts CCTV Camera

Product form

Free pickup in our shop(s)

SKU: 853964712077-EN1

$81.61 $76.99

10 in stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      CMHT1752WE-28F Lts CCTV Camera

      Platinum 5 MP Turret HD-TVI


      This listing includes:

      • ¬†(1) ANALOG CAMERA:¬†CMHT1752WE-28F


      CMHT1752WE-28F  view data sheet

      Platinum 5 MP Turret HD-TVI Camera


      Ultra-Low Light 5 MP High Performance CMOS, 2560 ? 1944 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR Range, 3D DNR, 130 dB True WDR, 4-Signals-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

      • 5 MP high performance CMOS
      • 2560 ? 1944 resolution
      • 2.8 mm fixed lens
      • Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR range
      • 3D DNR, 130 dB true WDR
      • 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
      • IP67
      • OSD Menu via UTC technology with Platinum DVR


      Data sheet PDF

      Product Description

      Platinum 5 MP Turret HD-TVI Camera


      Ultra-Low Light 5 MP High Performance CMOS, 2560 ? 1944 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR Range, 3D DNR, 130 dB True WDR, 4-Signals-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

      • 5 MP high performance CMOS
      • 2560 ? 1944 resolution
      • 2.8 mm fixed lens
      • Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR range
      • 3D DNR, 130 dB true WDR
      • 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
      • IP67
      • OSD Menu via UTC technology with Platinum DVR
      SPECIFICATIONS

      Camera

      Image Sensor

      5 MP progressive scan CMOS

      Signal System

      PAL / NTSC

      Resolution

      2560 (H) ? 1944 (V)

      Min. Illumination

      Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR


      Frame Rates

      TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps

      AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps

      CVI: 4 MP @ 25 fps, 4 MP @ 30 fps CVBS: PAL, NTSC

      Shutter Speed

      PAL: 1/25 to 1/50,000 sec.

      NTSC: 1/30 to 1/50,000 sec.

      Lens

      2.8 mm fixed lens

      Horizontal Field of View

      98? (2.8 mm)

      Lens Mount

      M12

      Day & Night

      IR cut filter

      Angle Adjustment (Bracket)

      Pan: 0? to 360?, Tilt: 0? to 75?, Rotate: 0? to 360?

      Synchronization

      Internal synchronization

      Wide Dynamic Range (WDR)

      ? 130 dB

      Menu

      AGC

      Yes

      Day / Night Mode

      Auto / Color / Black and White

      White Balance

      Auto / Manual

      Backlight Compensation
      (BLC)

      Yes

      WDR

      Yes

      3D DNR

      Levels 1 to 9

      Privacy Mask

      4 programmable privacy masks

      Motion Detection

      4 programmable areas

      Language

      English

      Functions

      Brightness, Sharpness, 3D DNR, Mirror, Smart IR

      Interface

      Video Output

      1 x HD analog output

      Output Signals

      TVI / AHD / CVI / CVBS

      General

      Operating Conditions

      -40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensation)

      Power Supply

      12 VDC ? 25%

      Power Consumption

      Max. 5.8 W

      Protection Level

      IP67

      Material

      Enclosure: Plastic Main body: Metal

      IR Range

      Up to 197 ft (60 m)

      Communication

      Up the coax, TVI output

      Dimensions

      ? 4.32 ? 3.6" (? 109.82 ? 91.03 mm)

      Weight

      Approx. 0.68 lb ( 310 g)

      SKU LTCMHT1752WE-28F
      CAMERA TECHNOLOGY HD-TVI
      CAMERA SERIES Platinum Series
      CAMERA HOUSING Turret
      CAMERA RESOLUTION 5MP
