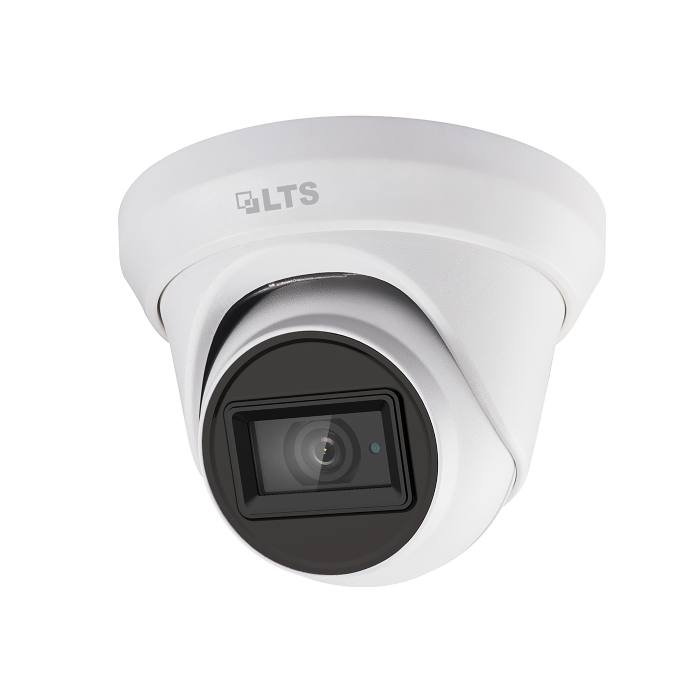

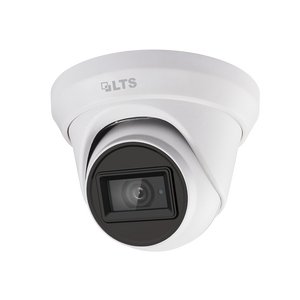

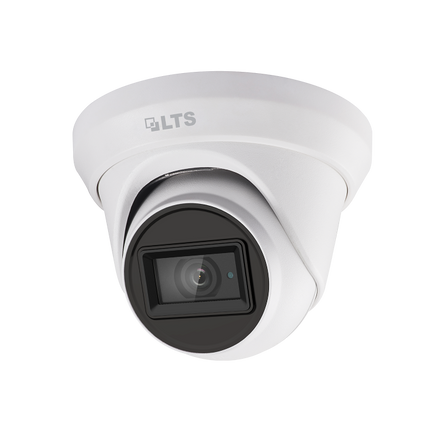

CMHT1752WE-28F Lts CCTV Camera

Description

CMHT1752WE-28F Lts CCTV Camera

Platinum 5 MP Turret HD-TVI


This listing includes:

  • ¬†(1) ANALOG CAMERA:¬†CMHT1752WE-28F


CMHT1752WE-28F  view data sheet

Platinum 5 MP Turret HD-TVI Camera


Ultra-Low Light 5 MP High Performance CMOS, 2560 ? 1944 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR Range, 3D DNR, 130 dB True WDR, 4-Signals-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

  • 5 MP high performance CMOS
  • 2560 ? 1944 resolution
  • 2.8 mm fixed lens
  • Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR range
  • 3D DNR, 130 dB true WDR
  • 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
  • IP67
  • OSD Menu via UTC technology with Platinum DVR


CMHT1752WE-28F Lts CCTV Camera

Product form

Free pickup in our shop(s)

SKU: 853964712077-EN1

$81.61 $76.99

10 in stock

  • Shipped today? Order within: Aug 25, 2025 15:00:00 -0400
    • Guaranteed secure & safe checkout.

      paypal

    Description

    CMHT1752WE-28F Lts CCTV Camera

    Platinum 5 MP Turret HD-TVI


    This listing includes:

    • ¬†(1) ANALOG CAMERA:¬†CMHT1752WE-28F


    CMHT1752WE-28F  view data sheet

    Platinum 5 MP Turret HD-TVI Camera


    Ultra-Low Light 5 MP High Performance CMOS, 2560 ? 1944 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR Range, 3D DNR, 130 dB True WDR, 4-Signals-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

    • 5 MP high performance CMOS
    • 2560 ? 1944 resolution
    • 2.8 mm fixed lens
    • Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR range
    • 3D DNR, 130 dB true WDR
    • 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
    • IP67
    • OSD Menu via UTC technology with Platinum DVR


    Data sheet PDF

    Product Description

    Platinum 5 MP Turret HD-TVI Camera


    Ultra-Low Light 5 MP High Performance CMOS, 2560 ? 1944 Resolution, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR Range, 3D DNR, 130 dB True WDR, 4-Signals-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

    • 5 MP high performance CMOS
    • 2560 ? 1944 resolution
    • 2.8 mm fixed lens
    • Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR range
    • 3D DNR, 130 dB true WDR
    • 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
    • IP67
    • OSD Menu via UTC technology with Platinum DVR
    SPECIFICATIONS

    Camera

    Image Sensor

    5 MP progressive scan CMOS

    Signal System

    PAL / NTSC

    Resolution

    2560 (H) ? 1944 (V)

    Min. Illumination

    Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR


    Frame Rates

    TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps

    AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps

    CVI: 4 MP @ 25 fps, 4 MP @ 30 fps CVBS: PAL, NTSC

    Shutter Speed

    PAL: 1/25 to 1/50,000 sec.

    NTSC: 1/30 to 1/50,000 sec.

    Lens

    2.8 mm fixed lens

    Horizontal Field of View

    98? (2.8 mm)

    Lens Mount

    M12

    Day & Night

    IR cut filter

    Angle Adjustment (Bracket)

    Pan: 0? to 360?, Tilt: 0? to 75?, Rotate: 0? to 360?

    Synchronization

    Internal synchronization

    Wide Dynamic Range (WDR)

    ? 130 dB

    Menu

    AGC

    Yes

    Day / Night Mode

    Auto / Color / Black and White

    White Balance

    Auto / Manual

    Backlight Compensation
    (BLC)

    Yes

    WDR

    Yes

    3D DNR

    Levels 1 to 9

    Privacy Mask

    4 programmable privacy masks

    Motion Detection

    4 programmable areas

    Language

    English

    Functions

    Brightness, Sharpness, 3D DNR, Mirror, Smart IR

    Interface

    Video Output

    1 x HD analog output

    Output Signals

    TVI / AHD / CVI / CVBS

    General

    Operating Conditions

    -40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensation)

    Power Supply

    12 VDC ? 25%

    Power Consumption

    Max. 5.8 W

    Protection Level

    IP67

    Material

    Enclosure: Plastic Main body: Metal

    IR Range

    Up to 197 ft (60 m)

    Communication

    Up the coax, TVI output

    Dimensions

    ? 4.32 ? 3.6" (? 109.82 ? 91.03 mm)

    Weight

    Approx. 0.68 lb ( 310 g)
