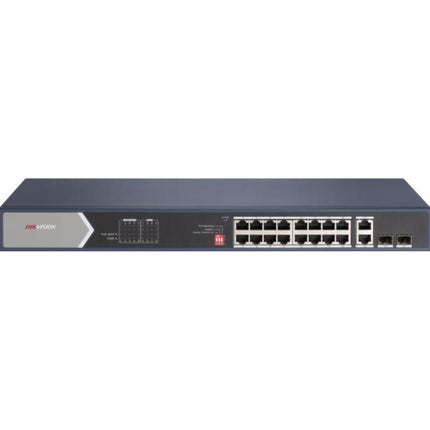

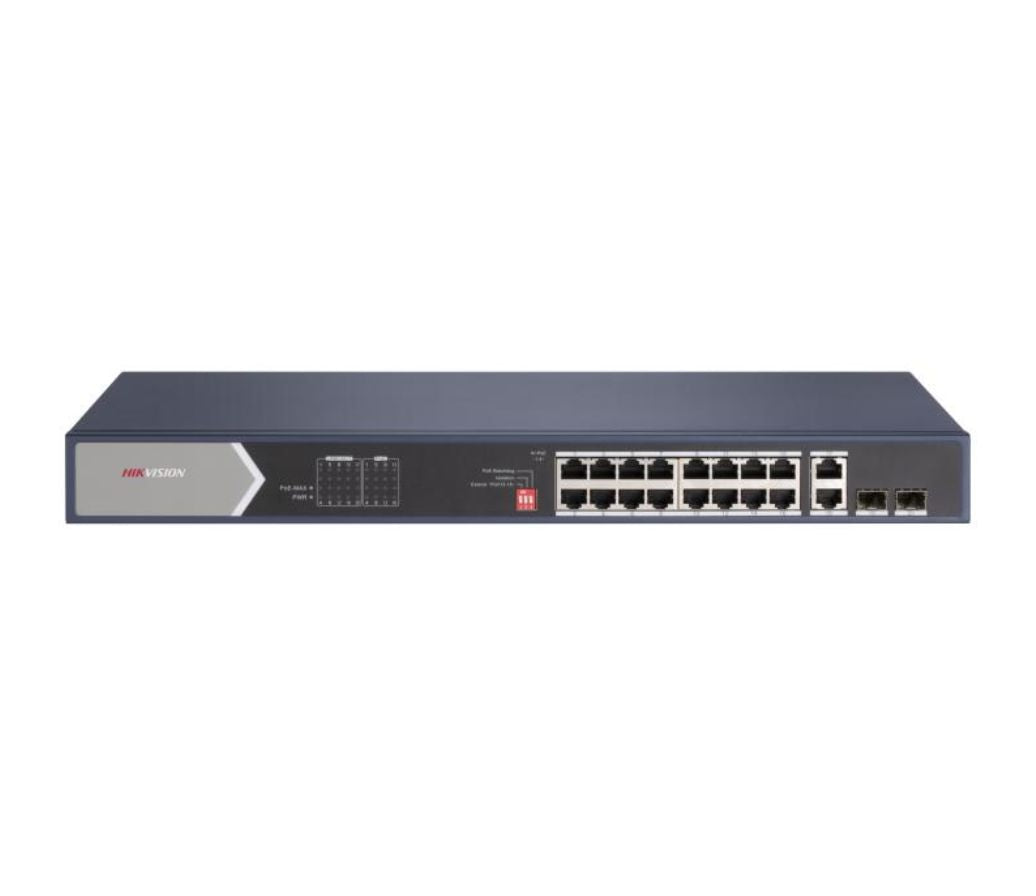

DS-3E052HP-E Hikvision 16 Port Gigabit Unmanaged POE Switch
DS-3E052HP-E Hikvision 16 Port Gigabit Unmanaged POE Switch
Out of stock
Description
Description
DS-3E052HP-E Hikvision 16 Port Gigabit Unmanaged POE Switch
This listing includes:
-  (1) ACCESSORIES: DS-3E052HP-E
DS-3E052HP-E  view data sheet
16 Port Gigabit Unmanaged POE Switch
- 12 ? gigabit PoE ports, 4 ? gigabit Hi-PoE ports, 2 ? gigabit RJ45 ports, and 2 ? gigabit fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Gigabit network access design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
16 Port Gigabit Unmanaged POE Switch
- 12 ? gigabit PoE ports, 4 ? gigabit Hi-PoE ports, 2 ? gigabit RJ45 ports, and 2 ? gigabit fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Gigabit network access design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
Specification
- Network Parameters
- Ports12 ? Gigabit PoE ports, 4 ? Gigabit Hi-PoE ports, 2 ? Gigabit RJ45 ports, and 2 ? Gigabit fiber optical ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Working ModeStandard mode (default), Extend mode Isolation mode, PoE watchdog mode
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
- Forwarding ModeStore-and-forward switching
- MAC Address Table8 K
- Switching Capacity40 Gbps
- Packet Forwarding Rate29.76 Mpps
- Internal Cache4.1 Mbits
- Ports For Long-Distance TransmissionPorts 13 to 16
- PoE Power Supply
- PoE Standard
Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 5 to 16: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin
Ports 1 to 4 and 13 to 16: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Ports 5 to 12: End-span: 1/2(-), 3/6(+)
- PoE PortPorts 1 to 16
- Max. Port Power
Ports 1 to 4: 90 W
Ports 5 to 16: 30 W
- PoE Power Budget225 W
- Dialing Function
- Long RangePorts 13 and 16: up to 300 m.
- Port IsolationPorts 1 to 16: port isolation mode to improve network security.
- PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
- General
- Dimensions (W ? H ? D)440 mm ? 220.8 mm ? 44 mm (17.32? ? 8.69? ? 1.73?)
- ShellMetal material
- Gross Weight3.800 kg (8.38 lb)
- Net Weight2.79 kg (6.15 lb)
- Operating Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature-40 ?C to 85 ?C (-40 ?F to 185 ?F)
- Storage Humidity5% to 95% (no condensation)
- Power Supply100 to 240 VAC, 50/60Hz, Max. 4 A
- Power Consumption In Idle< 25 W
- Max. Power Consumption250 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
