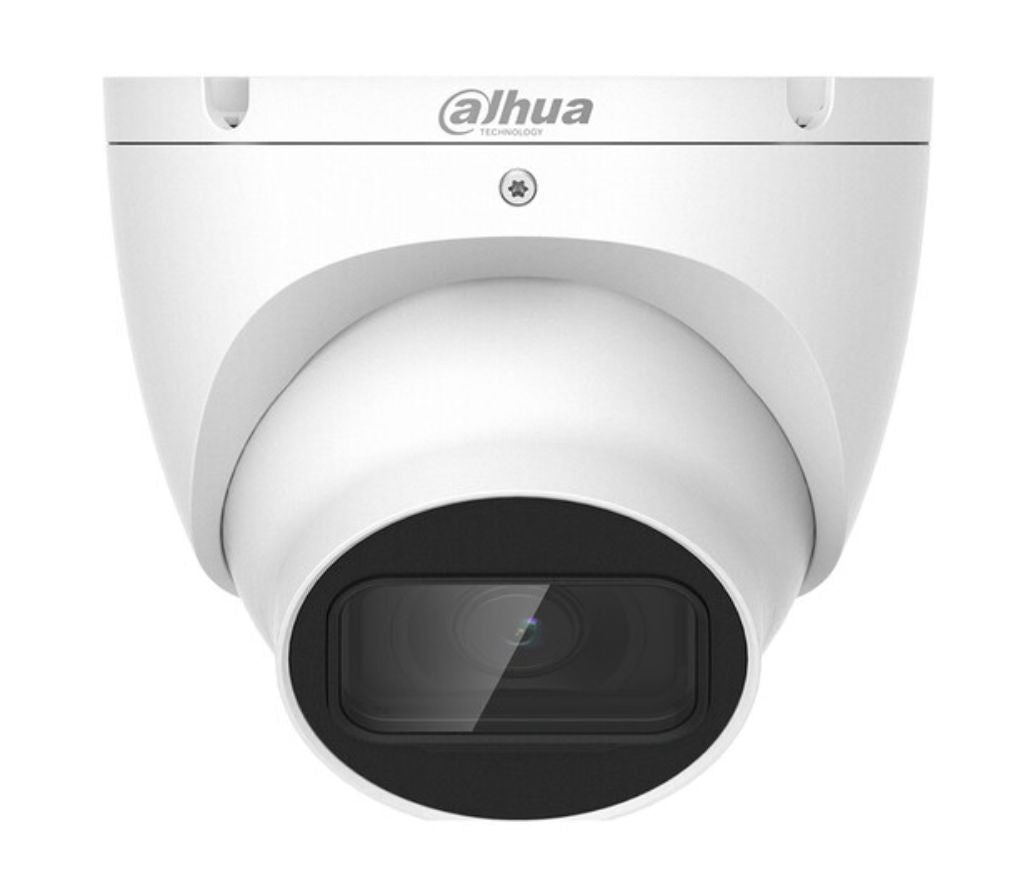

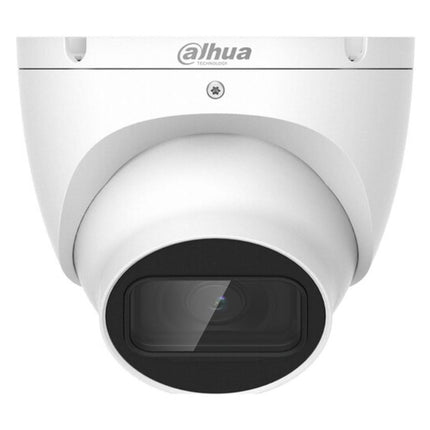

A51BJ02 Dahua CCTV Camera Technology 5MP Outdoor HD-CVI Turret w/ Night

Description

A51BJ02 Dahua CCTV Camera Technology 5MP Outdoor HD-CVI Turret w/ Night


This listing includes:

  • ¬†(1) ANALOG CAMERA:¬†A51BJ02


A51BJ02  view data sheet

5MP HDCVI Fixed Eyeball Camera

IR Camera with 16:9 Aspect Ratio

? 1/2.7-in. 5MP Progressive-scan CMOS Sensor

? 5MP (2880 x 1620) at 25 fps Maximum Resolution

? 16:9 Aspect Ratio for no Image Stretching

? 2.8 mm Fixed Lens

? HDCVI, AHD, TVI, or CVBS Output, Switchable

? Maximum IR Length 30 m (98.43 ft), Smart IR

? ArcticPro Series Camera - Operational down to ?40? C (?40? F)

? IP67 Ingress Protection

? Five-year Warranty


A51BJ02 Dahua CCTV Camera Technology 5MP Outdoor HD-CVI Turret w/ Night

Product form

SKU: 257553934508-EN1

$77.75 $71.99

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      A51BJ02 Dahua CCTV Camera Technology 5MP Outdoor HD-CVI Turret w/ Night


      This listing includes:

      • ¬†(1) ANALOG CAMERA:¬†A51BJ02


      A51BJ02  view data sheet

      5MP HDCVI Fixed Eyeball Camera

      IR Camera with 16:9 Aspect Ratio

      ? 1/2.7-in. 5MP Progressive-scan CMOS Sensor

      ? 5MP (2880 x 1620) at 25 fps Maximum Resolution

      ? 16:9 Aspect Ratio for no Image Stretching

      ? 2.8 mm Fixed Lens

      ? HDCVI, AHD, TVI, or CVBS Output, Switchable

      ? Maximum IR Length 30 m (98.43 ft), Smart IR

      ? ArcticPro Series Camera - Operational down to ?40? C (?40? F)

      ? IP67 Ingress Protection

      ? Five-year Warranty


      Data sheet PDF

      Product Description

      5MP HDCVI Fixed Eyeball Camera

      IR Camera with 16:9 Aspect Ratio

      ? 1/2.7-in. 5MP Progressive-scan CMOS Sensor

      ? 5MP (2880 x 1620) at 25 fps Maximum Resolution

      ? 16:9 Aspect Ratio for no Image Stretching

      ? 2.8 mm Fixed Lens

      ? HDCVI, AHD, TVI, or CVBS Output, Switchable

      ? Maximum IR Length 30 m (98.43 ft), Smart IR

      ? ArcticPro Series Camera - Operational down to ?40? C (?40? F)

      ? IP67 Ingress Protection

      ? Five-year Warranty

      Specification Camera Image Sensor 1/2.7-in. CMOS Sensor Effective Pixels 2880 (H) x 1620 (V), 5MP Aspect Ratio? 16:9 Scanning System Progressive Electronic Shutter Speed 1/30 s to 1/100,000 s Minimum Illumination Color: 0.01 lux at F1.6, 30 IRE 0 lux with IR on S/N Ratio More than 65 dB IR Distance Up to 30.0 m (98.43 ft) IR On/Off Control Auto, Manual IR LEDs One (1) Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm Maximum Aperture F1.6 Angle of View Horizontal: 111? Vertical: 58? Diagonal: 132? Close Focus Distance 900.0 mm (35.43 in.) Installation Angle Range Pan: 0? to 360? Tilt: 0? to 78? Rotation: 0? to 360? DORI Distances? Detect (8 ppf) Observe (19 ppf) Recognize (38 ppf) Identify (76 ppf) 63.60 m (208.70 ft) 25.40 m (83.30 ft) 12.701 m (41.70 ft) 6.40 m (21.0 ft) 1. To view the 16:9 video output on a Dahua HDCVI DVR you must update the DVR to the latest firmware. Obtain the latest firmware on the Dahua Wiki at https://dahuawiki.com/Recorders. 2. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 3. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures. Certifications Safety UL60950-1 CAN/CSA C22.2 No.60950-1 Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014, EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017 Electrical Power Supply 12 VDC ? 30% Power Consumption Maximum 3.2 W (12 VDC, IR on) Environmental Operating Conditions ?40? C to +60? C (?40? F to +140? F) Less than 95% RH Storage Conditions ?40? C to +60? C (?40? F to +140? F) Less than 95% RH Ingress Protection IP67 Construction Casing Metal Dimensions ?94.0 mm x 85.60 mm (?3.70 in. x 3.37 in.) Net Weight 0.31 kg (0.68 lb) Gross Weight 0.44 kg (0.97 lb)
