Description

ADI PRO 0E-CAT6RWHP Cat6+ Riser Cable – What Makes It Stand Out

If you're tired of underperforming cables slowing your network, this ADI PRO Cat6+ Riser Cable is engineered to deliver reliability and high-speed performance in demanding environments. Perfect for riser runs between floors where fire safety, signal integrity, and long lengths matter.

Key Benefits

  • High-frequency performance up to ~550-600 MHz – Exceeds standard Cat6 concerns so you get margin for future-proofing.
  • Solid 23 AWG bare annealed copper conductors – Ensures strong, low-resistance signal paths and better handling over long runs.
  • Riser / FT4) rated jacket – Meets safety codes for vertical pathways between floors. Flame retardant and RoHS compliant. :contentReference[oaicite:2]{index=2}

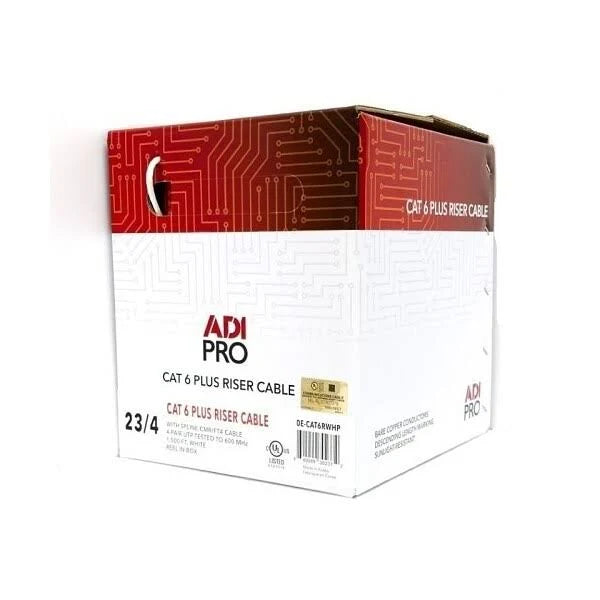

  • Long 1000-foot reel box – Less joins, fewer weak points; good for large jobs. :contentReference[oaicite:3]{index=3}
  • Warranty & certifications – UL/ETL tested, compliant with ANSI/TIA-568.2-D, plus a 30-year limited warranty for peace of mind. :contentReference[oaicite:4]{index=4}

Technical Specifications

Spec Details
Part Number 0E-CAT6RWHP
Length 1000 ft (≈ 304.8 m)

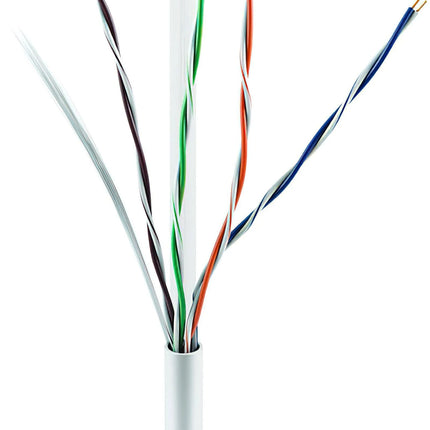

Conductor 23 AWG, solid bare annealed copper (4 pairs, UTP)
Jacket Rating CMR / FT4 – Riser
Nominal Diameter 0.232 in
Weight (per 1000 ft) 27.60 lbs
Max Pulling Force 25 lbs
Min Bend Radius 1.0 in
Operating Temp −4°F to +167°F
Installation Temp +32°F to +140°F
Tested Frequency ~550-600 MHz (ANSI/TIA-568.2-D compliant) :contentReference[oaicite:5]{index=5}


Why Choose This Cable?

For installers or network designers, this cable minimizes signal loss, supports high data rates (including PoE), and ensures compliance with safety standards—so you can pull long runs without compromising on performance or code. For building managers, it's a resilient, UL/ETL certified option that stands up to riser-fire code demands. And because you're getting a full 1000 ft reel, you cut down on waste and install headaches.



ADI PRO 0E-CAT6RWHP Cat6+ 23AWG Riser Cable 1000ft ‒ UL/ETL 550-600MHz White Reel

Product form
Condition: New 30-Day Free Returns 3-Year Warranty

SKU: 9644


Free pickup in our shop(s)

4 in stock

$189.99

      • Guaranteed secure & safe checkout.

        paypal

      Description

      ADI PRO 0E-CAT6RWHP Cat6+ Riser Cable – What Makes It Stand Out

      If you're tired of underperforming cables slowing your network, this ADI PRO Cat6+ Riser Cable is engineered to deliver reliability and high-speed performance in demanding environments. Perfect for riser runs between floors where fire safety, signal integrity, and long lengths matter.

      Key Benefits

      • High-frequency performance up to ~550-600 MHz – Exceeds standard Cat6 concerns so you get margin for future-proofing.
      • Solid 23 AWG bare annealed copper conductors – Ensures strong, low-resistance signal paths and better handling over long runs.
      • Riser / FT4) rated jacket – Meets safety codes for vertical pathways between floors. Flame retardant and RoHS compliant. :contentReference[oaicite:2]{index=2}
      • Long 1000-foot reel box – Less joins, fewer weak points; good for large jobs. :contentReference[oaicite:3]{index=3}
      • Warranty & certifications – UL/ETL tested, compliant with ANSI/TIA-568.2-D, plus a 30-year limited warranty for peace of mind. :contentReference[oaicite:4]{index=4}

      Technical Specifications

      Spec Details
      Part Number 0E-CAT6RWHP
      Length 1000 ft (≈ 304.8 m)
      Conductor 23 AWG, solid bare annealed copper (4 pairs, UTP)
      Jacket Rating CMR / FT4 – Riser
      Nominal Diameter 0.232 in
      Weight (per 1000 ft) 27.60 lbs
      Max Pulling Force 25 lbs
      Min Bend Radius 1.0 in
      Operating Temp −4°F to +167°F
      Installation Temp +32°F to +140°F
      Tested Frequency ~550-600 MHz (ANSI/TIA-568.2-D compliant) :contentReference[oaicite:5]{index=5}


      Why Choose This Cable?

      For installers or network designers, this cable minimizes signal loss, supports high data rates (including PoE), and ensures compliance with safety standards—so you can pull long runs without compromising on performance or code. For building managers, it's a resilient, UL/ETL certified option that stands up to riser-fire code demands. And because you're getting a full 1000 ft reel, you cut down on waste and install headaches.
