CMHT2152-28LFA

Description

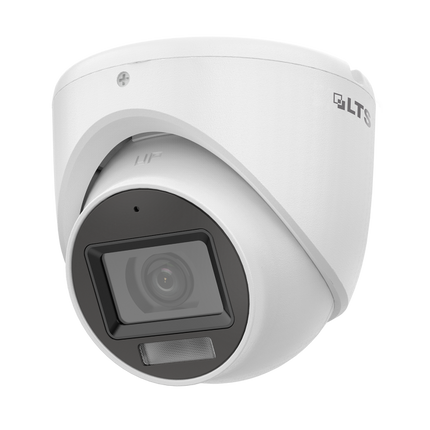

Platinum 5 MP Dual-Light Turret HD-TVI Camera


Platinum, 5 MP, TVI, Dual-Light, Fixed Lens, Turret, 2.8 mm, Up to 100 ft (30 m) IR Range for Bright Night Imaging, 4-Signals-in-1 (TVI / CVI / AHD / CVBS), IP67

  • High quality imaging with 5 MP, 2960 x 1665 resolution
  • 2.8 mm fixed lens
  • Up to 98 ft (30 m) IR distance for bright night imaging
  • Up to 66 ft (20 m) supplemental white light range for a bright night imaging
  • One switchable port for four signals - TVI / AHD / CVI / CVBS
  • Water and dust resistant (IP67)
  • Event triggered white light at night




CMHT2152-28LFA

Product form

SKU: 636064714508-EN1

$87.47 $80.99

Out of stock

This item is available for pre-order!
Ships as soon as stock arrives.
    • Guaranteed secure & safe checkout.

      paypal

    Description

    Platinum 5 MP Dual-Light Turret HD-TVI Camera


    Platinum, 5 MP, TVI, Dual-Light, Fixed Lens, Turret, 2.8 mm, Up to 100 ft (30 m) IR Range for Bright Night Imaging, 4-Signals-in-1 (TVI / CVI / AHD / CVBS), IP67

    • High quality imaging with 5 MP, 2960 x 1665 resolution
    • 2.8 mm fixed lens
    • Up to 98 ft (30 m) IR distance for bright night imaging
    • Up to 66 ft (20 m) supplemental white light range for a bright night imaging
    • One switchable port for four signals - TVI / AHD / CVI / CVBS
    • Water and dust resistant (IP67)
    • Event triggered white light at night




    Data sheet PDF

    Product Description

    Platinum 5 MP Dual-Light Turret HD-TVI Camera


    Platinum, 5 MP, TVI, Dual-Light, Fixed Lens, Turret, 2.8 mm, Up to 100 ft (30 m) IR Range for Bright Night Imaging, 4-Signals-in-1 (TVI / CVI / AHD / CVBS), IP67

    • High quality imaging with 5 MP, 2960 x 1665 resolution
    • 2.8 mm fixed lens
    • Up to 98 ft (30 m) IR distance for bright night imaging
    • Up to 66 ft (20 m) supplemental white light range for a bright night imaging
    • One switchable port for four signals - TVI / AHD / CVI / CVBS
    • Water and dust resistant (IP67)
    • Event triggered white light at night




      Specifications
      Camera
      Image Sensor 3K CMOS
      Max. Resolution 2960 (H) ? 1665 (V)
      Min. Illumination 0.01 Lux @ (F1.2, AGC on), 0 Lux with IR
      Shutter Time PAL: 1/25 to 1/50,000 sec.; NTSC: 1/30 to 1/50,000 sec.
      Day & Night ICR
      Angle Adjustment Pan: 0 to 360?, Tilt: 0 to 75?, Rotation: 0 to 360?
      Signal System PAL / NTSC
      Lens
      Lens Type 2.8 mm fixed focal lens
      Focal Length & Field of View 2.8 mm: Horizontal: 107?, vertical: 64?, diagonal: 129?
      Lens Mount M12
      Illuminator
      Supplemental Light Type White Light, IR
      Supplemental Light Range
      IR: Up to 98 ft (30 m)
      White Light: Up to 66 ft (20
      Imaging m)
      Image Settings Brightness, Sharpness, Smart IR
      Frame Rates
      TVI: 5 MP @ 20 fps, 4 MP @ 25 fps / 30 fps, 1080p @ 25 fps / 30 fps
      AHD: 5 MP @ 20 fps, 4 MP @ 25 fps / 30 fps
      CVI: 4 MP @ 25 fps / 30 fps
      CVBS: PAL / NTSC
      Day / Night Mode IR / White Light
      Wide Dynamic Range (WDR) Digital WDR
      Image Enhancement Yes
      White Balance Auto / Manual
      AGC Yes
      Interface
      Video Output Switchable TVI / AHD / CVI / CVBS
      Audio Microphone built-in, audio over coax cable
      General
      Materials Metal
      Dimensions 3.1 ? ? 3.4 in. (80 ? ? 85.1 mm)
      Weight Approx. 0.66 lbs (300 g)
      Operating Conditions -40? to 140? F (-40? to 60? C); humidity: 90% or less (non-condensation)
      Language English
      Power Supply
      12 VDC ? 25%
      *LTS recommends using one power adapter for each camera.
      Consumption Max. 2.9 W
      Certfications
      Protection IP67
