Product Description

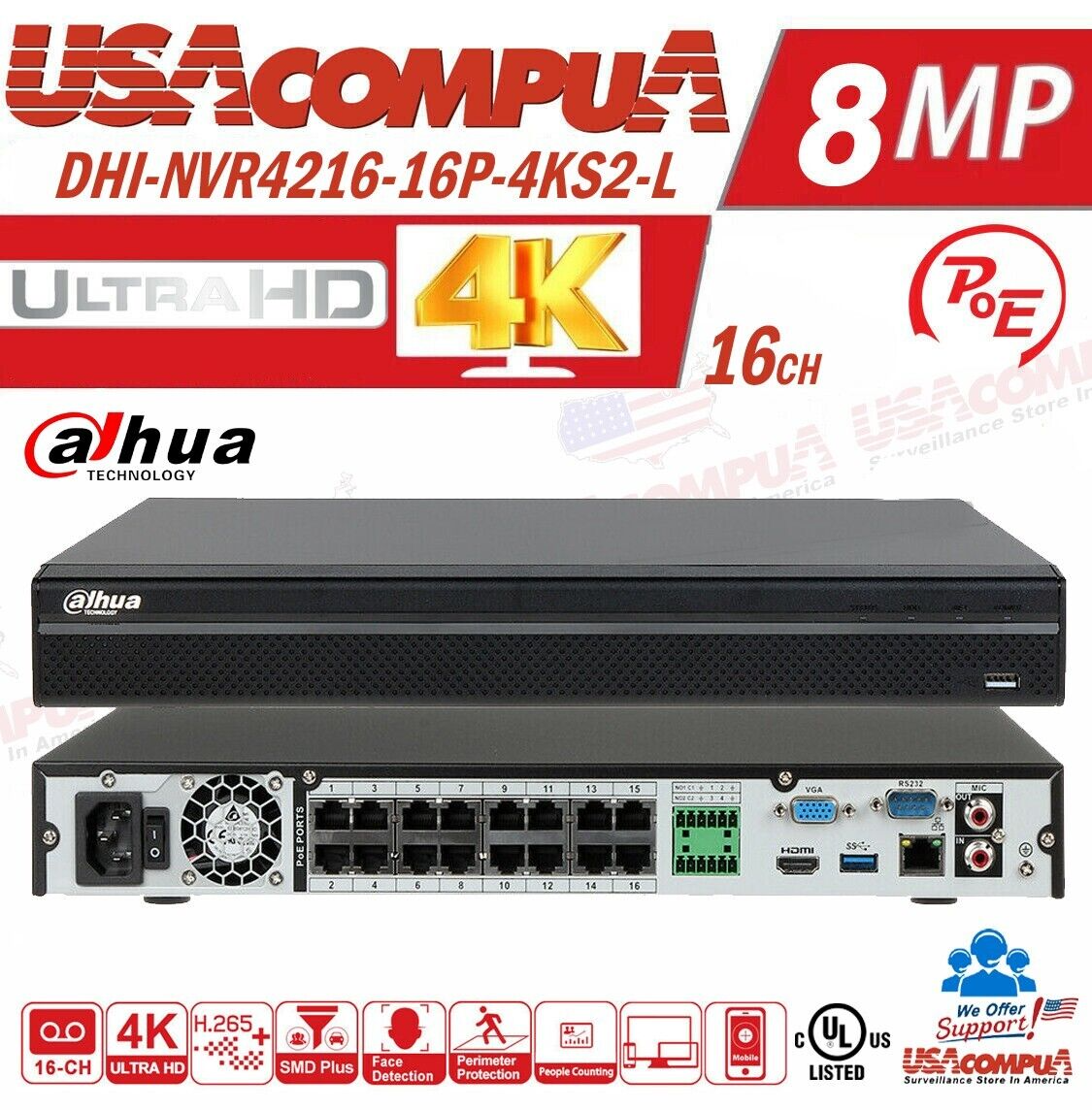

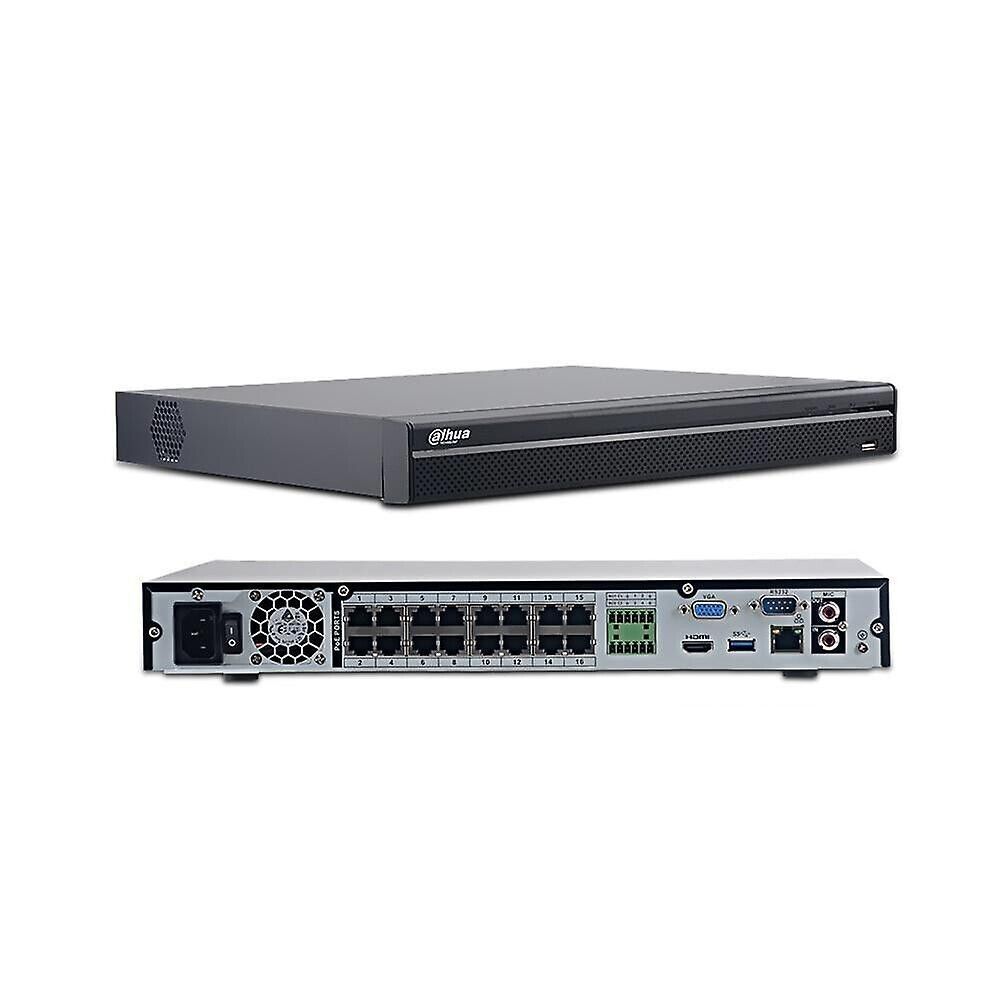

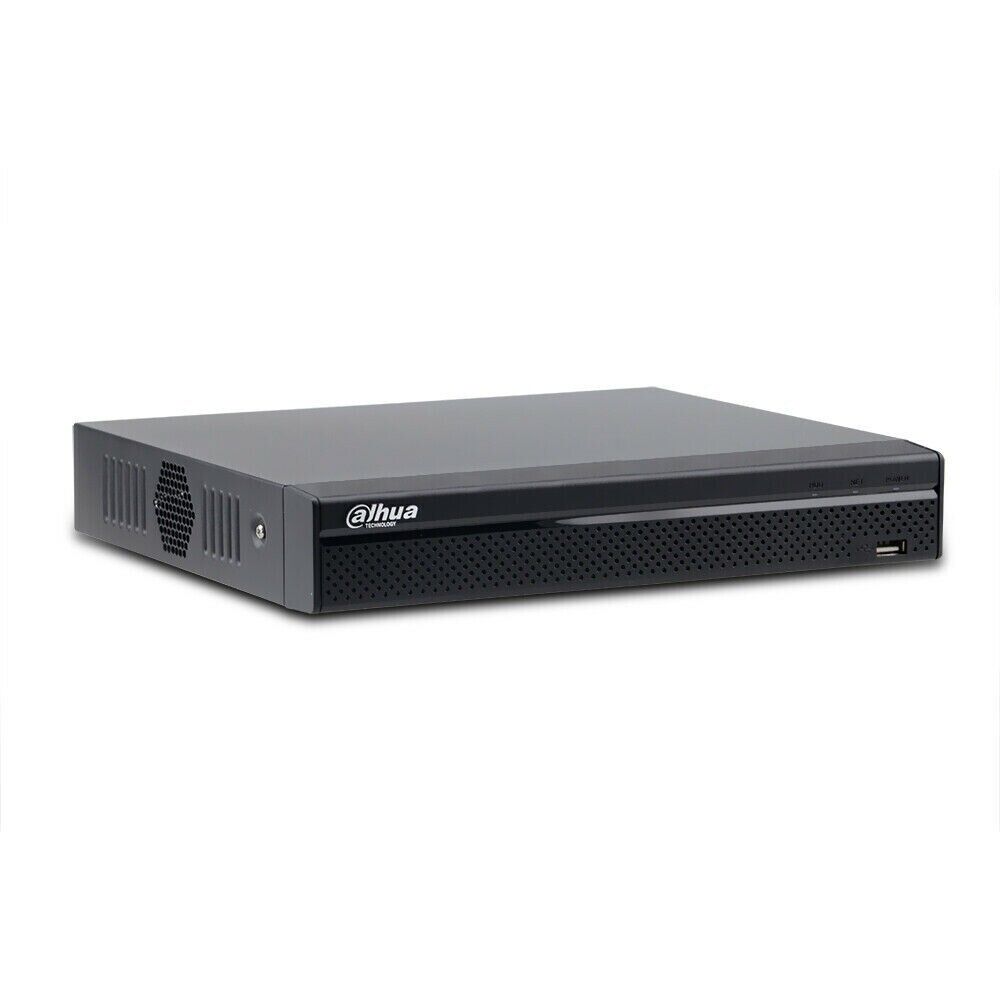

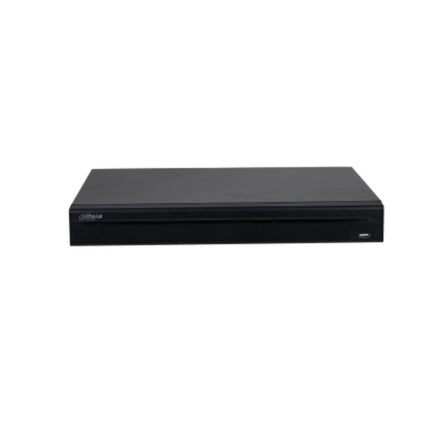

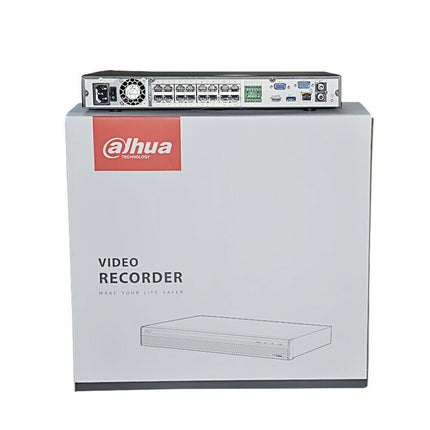

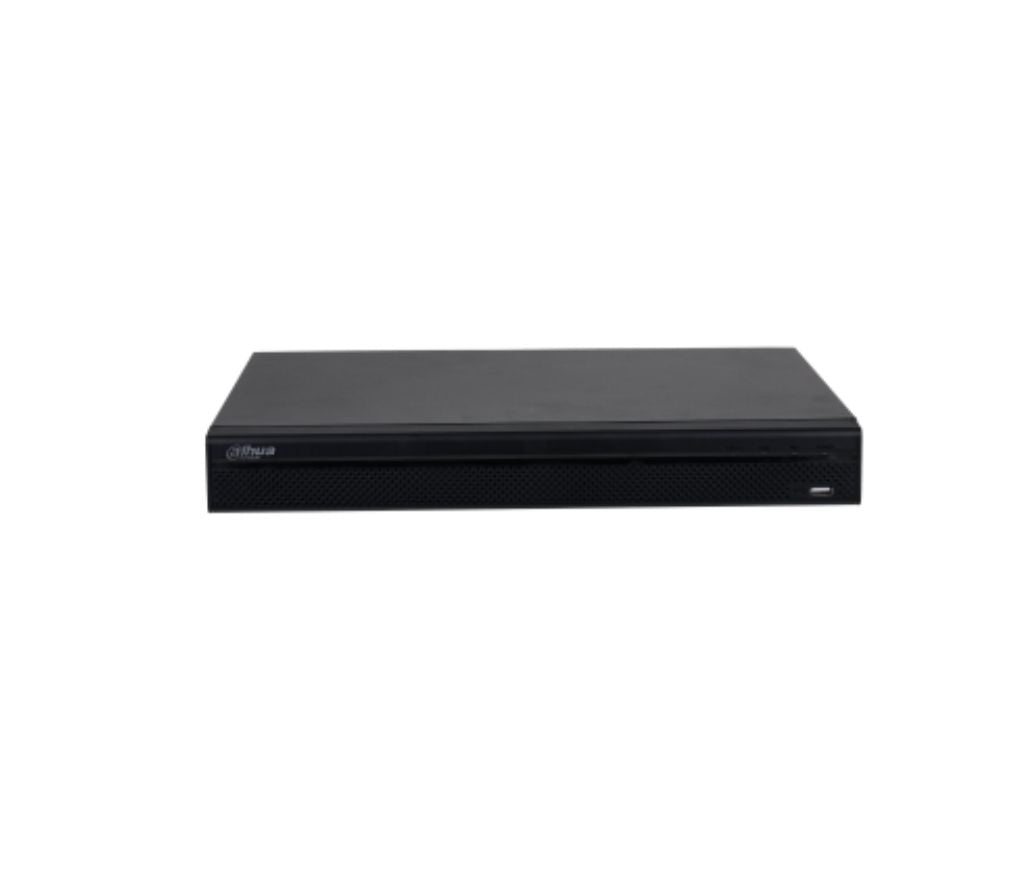

NVR4216-4KS2/L
16 Channel 1U 2HDDs Network Video Recorder
> New 4.0 user interface, Security baseline 2.1
> H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
> Max. decoding capability: 8 ? 1080p@30 fps. Supports adaptive decoding
> Supports mainstream cameras of ONVIF and RTSP protocols
> P2P remote surveillance, video play on mobile device
> VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
> AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
> Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches
Technical Specification
System
Main Processor Industrial-grade embedded processor
OS Embedded Linux
Operation Interface Web/operating in local GUI
Perimeter Protection by Camera
Performance 8 channels
AI Search Search for pictures by channel, time and event type
Face Detection by Camera
Performance 4 channels
Face Attributes 6 attributes: Gender, age, glasses, expression, mouth
mask, and beard
AI Search Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance 12 channels
AI Search Search by target classification (human, vehicle)
Video
Access Channel 16
Network Bandwidth Access: 160 Mbps; Storage: 160 Mbps; Forward: 64
Mbps
Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability 8 ? 1080p@30 fps
Video Output 1 ? VGA output, 1 ? HDMI output, supports
simultaneous video sources output for VGA and HDMI
Multi-screen Display 1 , 4, 8, 9, 16 views
Third-party Camera
Access ONVIF; RTSP
Compression
Video Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio PCM/G711A/G711U/G726/AAC
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm
Server; IP Search (Support Dahua IP camera; DVR; NVS;
etc.); P2P; auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF(profile T/S/G); CGI; SDK
Browser Chrome; IE9 or later; firefox
Record Playback
Multi-channel Playback Up to 16 channels for playback
Record Mode Manual record; alarm recording; SMD recording; smart
recording
Storage Local HDD; network
Backup USB storage device
Playback Function
1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in,
and audio on/off
Storage
Disk Group Yes
Alarm
General Alarm Motion detection, privacy masking, video loss, scene
changing, PIR alarm, IPC external alarm
Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict,
MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm
Face detection, perimeter protection (intrusion and
tripwire), IVS, people counting, heat map, and SMD
alarms
Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and
email
External Port
Audio Input 1 ? RCA input
Audio Output 1 ? RCA output
HDD
2 SATA III ports, up to 10 TB for a single HDD. The
maximum HDD capacity varies with environment
temperature
Alarm Input 4
Alarm Output 2
USB 2 (1 ? front USB2.0; 1 ? back USB2.0)
HDMI 1 (supports up to 4K resolution output)
VGA 1
Network 1 ? RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
General Parameter
Power Supply 12 V DC, 4 A
Power Consumption < 10 W (HDD not included, idling)
Net Weight 1.51 kg (3.33 lb)
Gross Weight 2.76 kg (6.08 lb)
Product Dimensions 375 mm ? 282.4 mm ? 53 mm (14.76" ? 11.12" ? 2.09")
(W ? L ? H)
Package Dimensions 141 mm ? 433 mm ? 366 mm (5.55" ? 17.05" ? 14.41")
(W ? L ? H)
Operating Conditions ?10 ?C to +55 ?C (+10 ?F to +131 ?F)
Storage Conditions 0 ?C to +40 ?C (32 ?F to 104 ?F)
Operating Humidity 10?~93?
Storage Humidity 30%~85%
Operating Altitude 3000 m (9842.52 ft)
Installation Desktop mounted
Certifications
CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-
3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
