Product Description

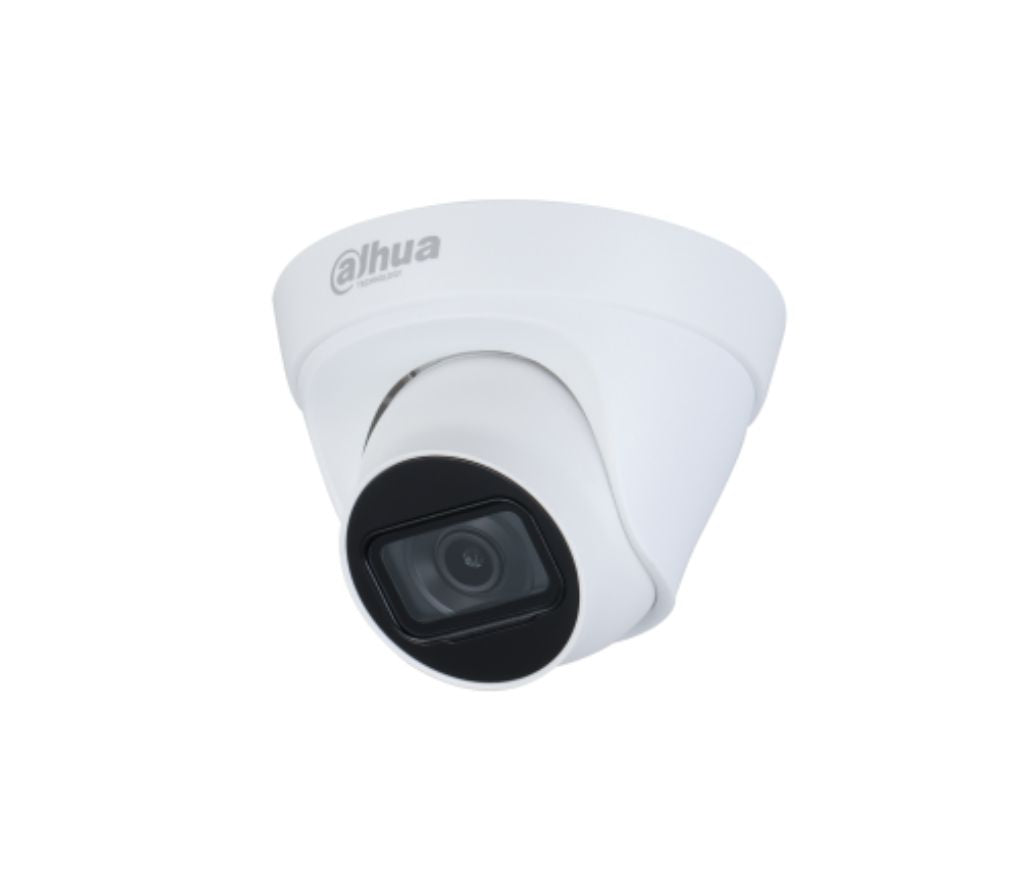

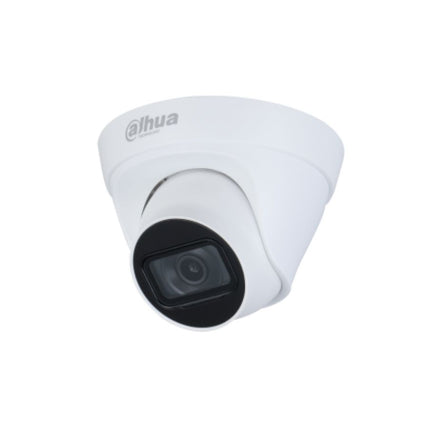

4MP Entry IR Fixed-focal Eyeball Netwok Camera
IPC-HDW1431T1-S4
> 4MP, 1/3? CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 ? 1440) @25/30 fps, and supports max. 4MP (2688 ? 1520) @20 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max. IR distance: 30 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Image Rotation, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
> 12V DC/PoE power support
> IP67, protection
Specifications
Camera | |||||
Image Sensor | 1/3?4Megapixel progressive CMOS | ||||
Max. Resolution | 2688 (H) ?1520 (V) | ||||
ROM | 128 MB | ||||
RAM | 128 MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual 1/3 s?1/100000 s | ||||
S/N Ratio | > 56 dB | ||||
Min. Illumination | 0.03 Lux @ F2.0 | ||||
Illumination Distance | 30 m (98.4 ft) | ||||
Illuminator On/Off Control | Auto/Manual | ||||
Illuminator Number | 1(IR LED) | ||||
Pan/Tilt/Rotation Range | Pan: 0??355? | ||||
Lens | |||||
Lens Type | Fixed-focal | ||||
Mount Type | M12 | ||||
Focal Length | 2.8 mm | ||||
Max. Aperture | F2.0 | ||||
Field of View | 2.8 mm: | ||||
Iris Type | Fixed | ||||
Close Focus Distance | 2.8 mm: 0.8 m (2.6 ft) | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8mm | 50.0 m (183.7 ft) | 22.4 m (73.5 ft) | 11.2 m (36.7 ft) | 15.1 m (18.4 ft) | |
3.6mm | 80.0 m (262.5 ft) | 32.0 m (105.0 ft) | 16.0 m (52.5 ft) | 8.0 m (26.2 ft) | |
Video | |||||
Video Compression | H.265; H.264; H.264B; MJPEG(only supported by sub stream) | ||||
Smart Codec | Smart H.265+/ Smart H.264+ | ||||
Video Frame Rate | Main Stream: | ||||
Stream Capability | 2 streams | ||||
Resolution | 2688 ? 1520 (2688 ? 1520); 2560 ? 1440 (2560 ? 1440); 2304 ? 1296 (2304 ? 1296); 1080p (1920 ? 1080); 1.3M (1280 ? 960); 720p (1280 ? 720); D1 (704 ? 576/704 ? 480); VGA (640 ? 480); CIF (352 ? 288/352 ?240) | ||||
Bit Rate Control | CBR; VBR | ||||
Video Bit Rate | H.264: 32 kbps?6144 kbps | ||||
Day/Night | Auto(ICR)/Color/B/W | ||||
BLC | Yes | ||||
HLC | Yes | ||||
WDR | 120 dB | ||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
Gain Control | Manual/Auto | ||||
Noise Reduction | 3D NR | ||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||
Region of Interest(RoI) | Yes (4 areas) | ||||
Smart Illumination | Yes | ||||
Image Rotation | 0?/90?/180?/270? (Support 90?/270? with 2688 ? 1520 resolution and lower.) | ||||
Mirror | Yes | ||||
Privacy Masking | 4 areas | ||||
Alarm | |||||
Alarm Event | Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception | ||||
Network | |||||
Network | RJ-45 (10/100 Base-T) | ||||
SDK and API | Yes | ||||
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P | ||||
User/Host | 20 | ||||
Storage | FTP; SFTP; NAS | ||||
Browser | IE | ||||
Management Software | Smart PSS; DSS; DMSS | ||||
Mobile Phone | IOS; Android | ||||
Certification | |||||
Certifications | CE-LVD: EN62368-1 | ||||
Power | |||||
Power Supply | 12V DC/POE (802.3af) | ||||
Power Consumption | < 5.1W | ||||
Environment | |||||
Operating Conditions | -40?C to +55?C (-40?F to +131?F) /less than?95% | ||||
Strorage Conditions | -40?C to +60?C (-40?F to +140?F) | ||||
Protection | IP67 | ||||
Structure | |||||
Casing | Inner core:metal+ plastic; cover:plastic | ||||
Dimensions | 85.5 mm ? ?109 mm (3.4" ? ?4.3") | ||||
Net Weight | 0.25 kg (0.6 lb) | ||||
Gross Weight | 0.37 kg (0.8 lb) |
Data sheet PDF
Product Description

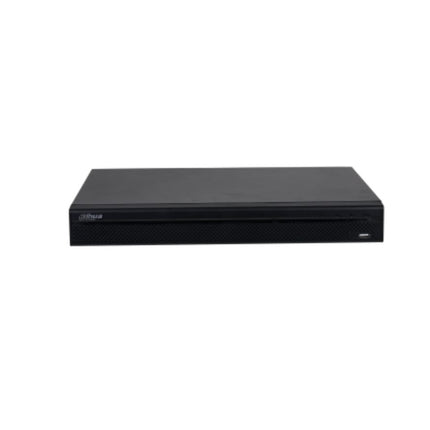

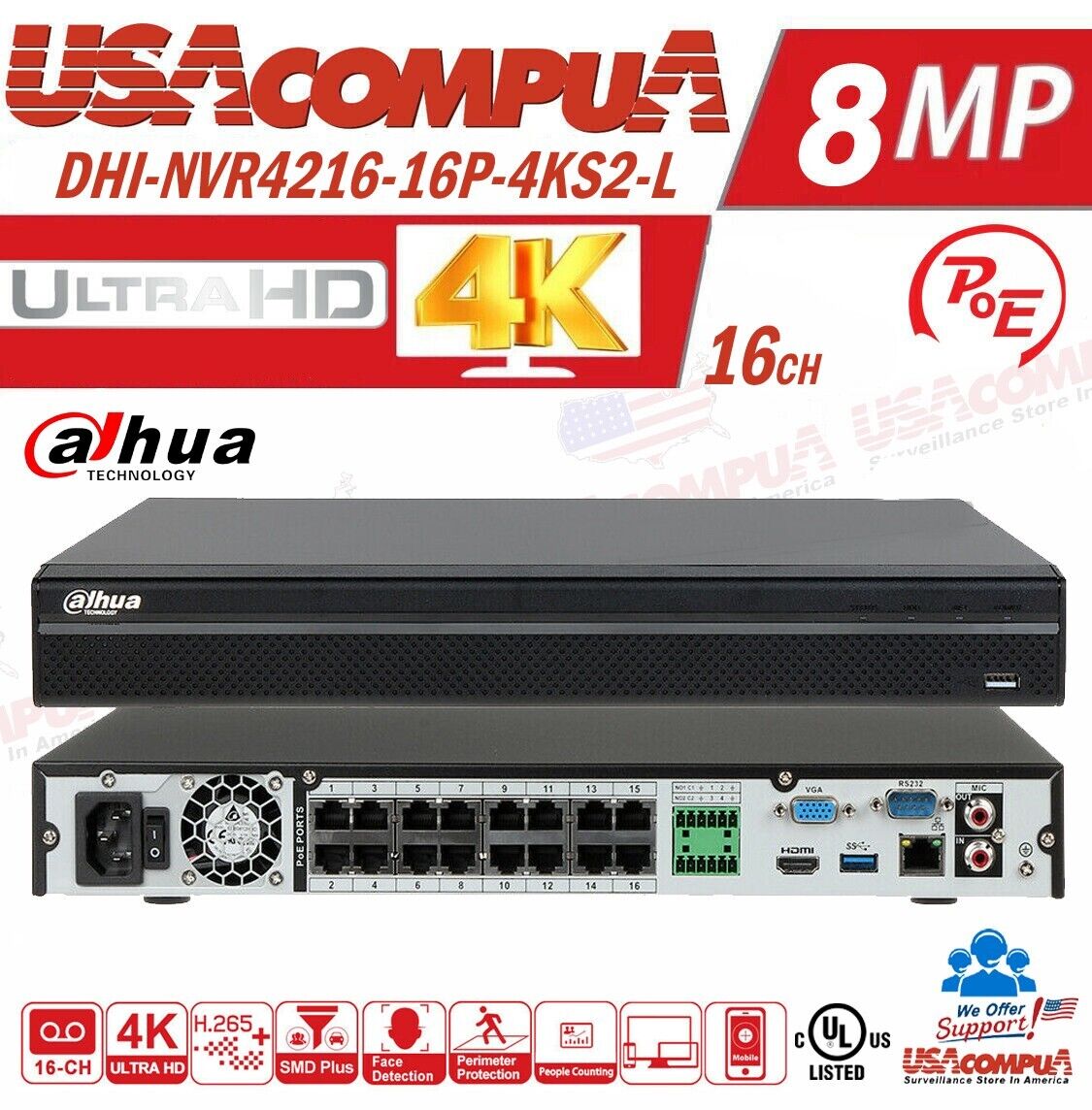

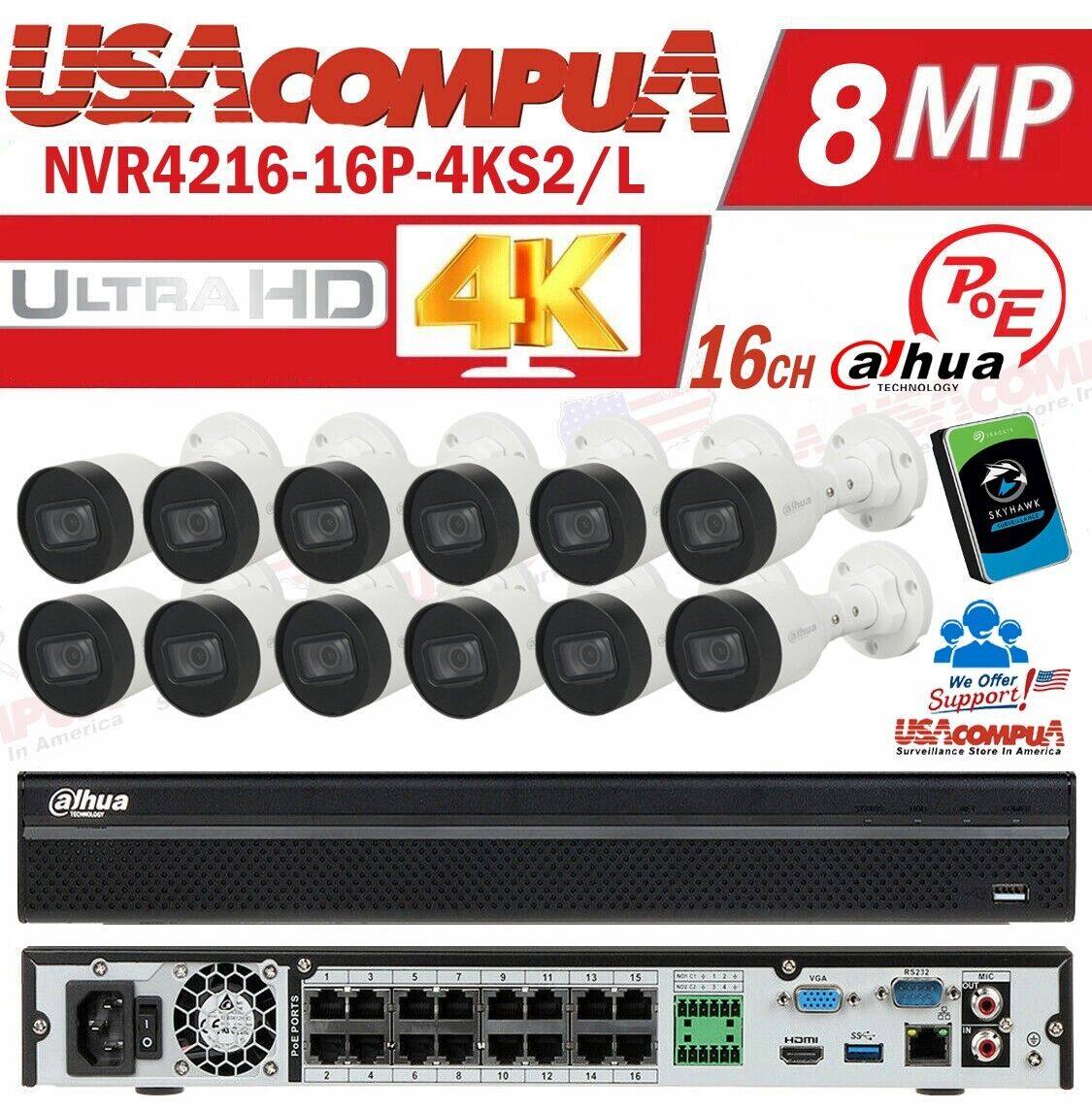

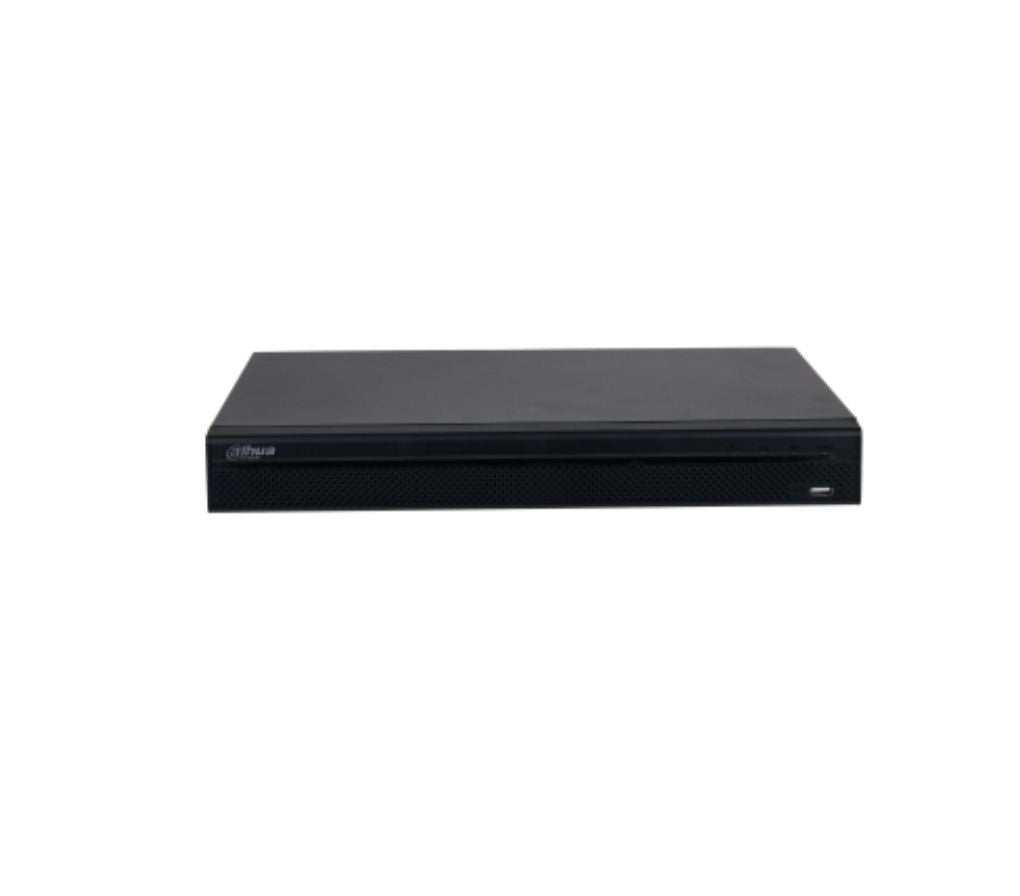

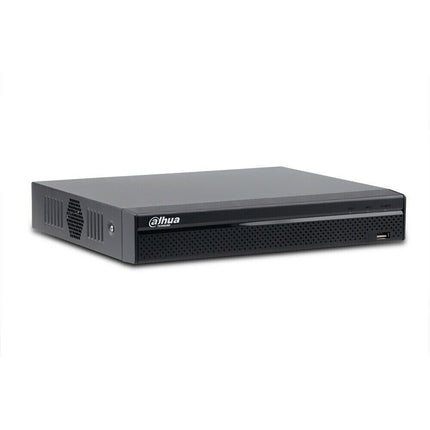

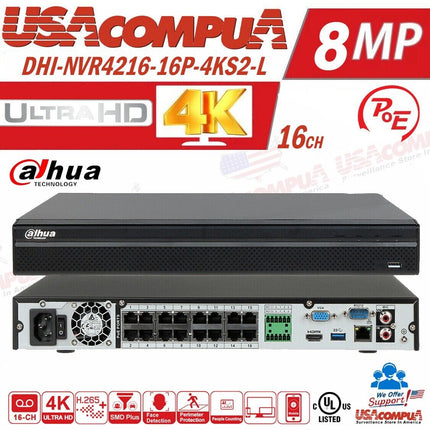

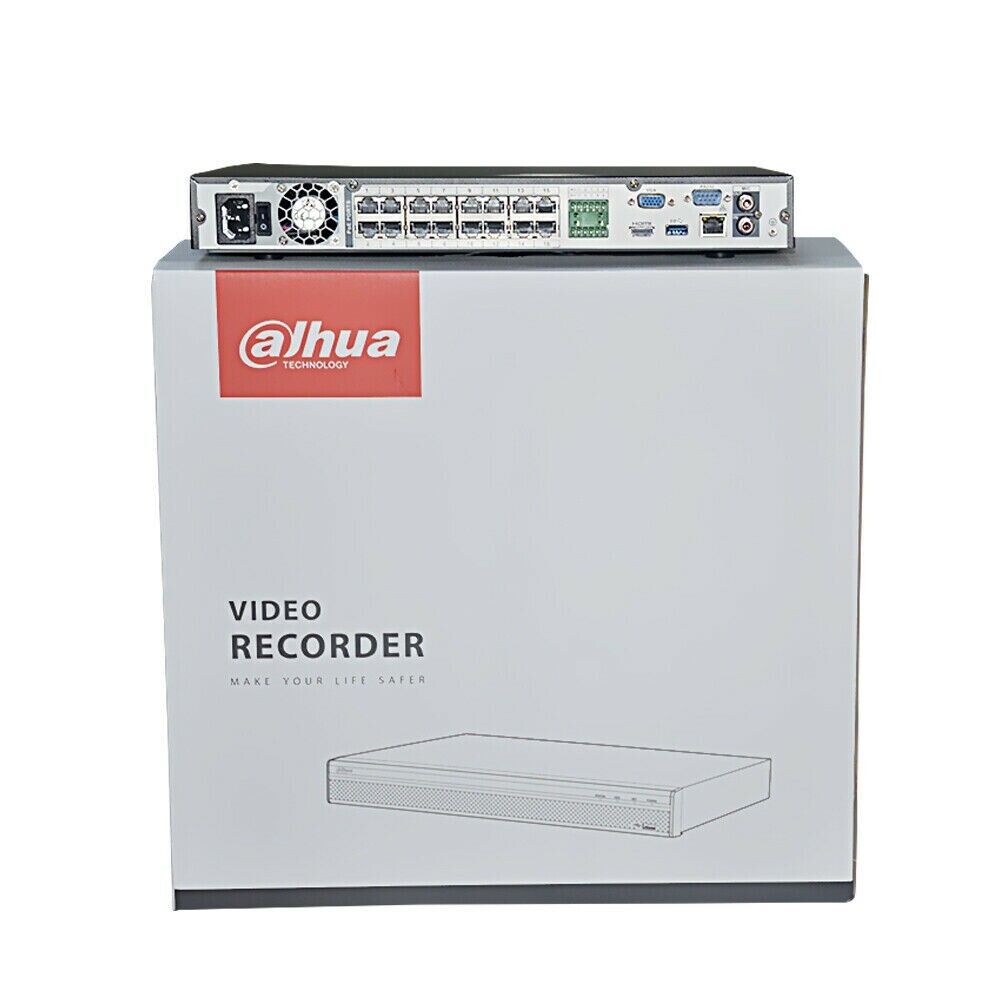

NVR4216-4KS2/L
16 Channel 1U 2HDDs Network Video Recorder
> New 4.0 user interface, Security baseline 2.1
> H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
> Max. decoding capability: 8 ? 1080p@30 fps. Supports adaptive decoding
> Supports mainstream cameras of ONVIF and RTSP protocols
> P2P remote surveillance, video play on mobile device
> VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
> AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
> Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches
Technical Specification
System
Main Processor Industrial-grade embedded processor
OS Embedded Linux
Operation Interface Web/operating in local GUI
Perimeter Protection by Camera
Performance 8 channels
AI Search Search for pictures by channel, time and event type
Face Detection by Camera
Performance 4 channels
Face Attributes 6 attributes: Gender, age, glasses, expression, mouth
mask, and beard
AI Search Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance 12 channels
AI Search Search by target classification (human, vehicle)
Video
Access Channel 16
Network Bandwidth Access: 160 Mbps; Storage: 160 Mbps; Forward: 64
Mbps
Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability 8 ? 1080p@30 fps
Video Output 1 ? VGA output, 1 ? HDMI output, supports
simultaneous video sources output for VGA and HDMI
Multi-screen Display 1 , 4, 8, 9, 16 views
Third-party Camera
Access ONVIF; RTSP
Compression
Video Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio PCM/G711A/G711U/G726/AAC
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm
Server; IP Search (Support Dahua IP camera; DVR; NVS;
etc.); P2P; auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF(profile T/S/G); CGI; SDK
Browser Chrome; IE9 or later; firefox
Record Playback
Multi-channel Playback Up to 16 channels for playback
Record Mode Manual record; alarm recording; SMD recording; smart
recording
Storage Local HDD; network
Backup USB storage device
Playback Function
1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in,
and audio on/off
Storage
Disk Group Yes
Alarm
General Alarm Motion detection, privacy masking, video loss, scene
changing, PIR alarm, IPC external alarm
Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict,
MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm
Face detection, perimeter protection (intrusion and
tripwire), IVS, people counting, heat map, and SMD
alarms
Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and
email
External Port
Audio Input 1 ? RCA input
Audio Output 1 ? RCA output
HDD
2 SATA III ports, up to 10 TB for a single HDD. The
maximum HDD capacity varies with environment
temperature
Alarm Input 4
Alarm Output 2
USB 2 (1 ? front USB2.0; 1 ? back USB2.0)
HDMI 1 (supports up to 4K resolution output)
VGA 1
Network 1 ? RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
General Parameter
Power Supply 12 V DC, 4 A
Power Consumption < 10 W (HDD not included, idling)
Net Weight 1.51 kg (3.33 lb)
Gross Weight 2.76 kg (6.08 lb)
Product Dimensions 375 mm ? 282.4 mm ? 53 mm (14.76" ? 11.12" ? 2.09")
(W ? L ? H)
Package Dimensions 141 mm ? 433 mm ? 366 mm (5.55" ? 17.05" ? 14.41")
(W ? L ? H)
Operating Conditions ?10 ?C to +55 ?C (+10 ?F to +131 ?F)
Storage Conditions 0 ?C to +40 ?C (32 ?F to 104 ?F)
Operating Humidity 10?~93?
Storage Humidity 30%~85%
Operating Altitude 3000 m (9842.52 ft)
Installation Desktop mounted
Certifications
CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-
3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
