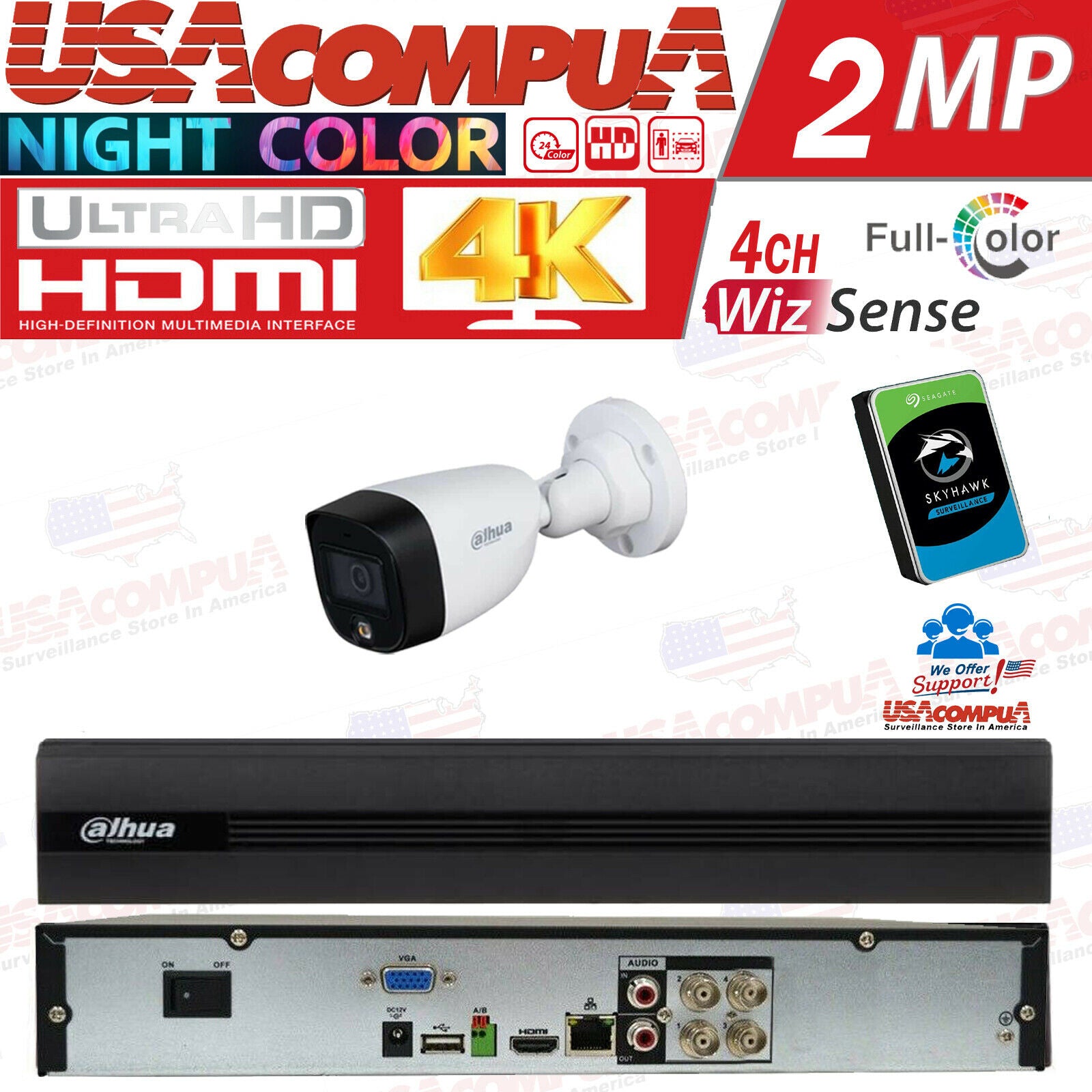

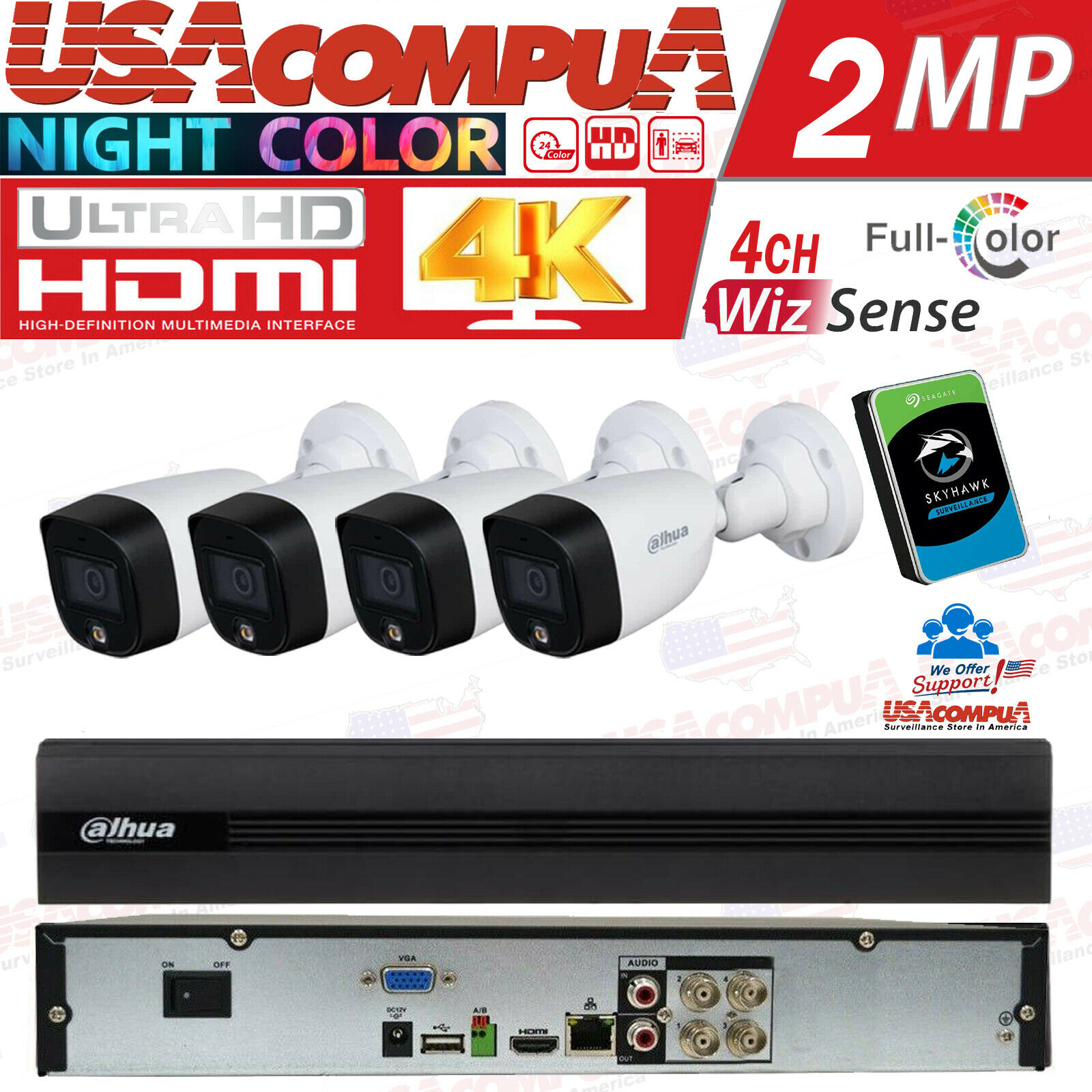

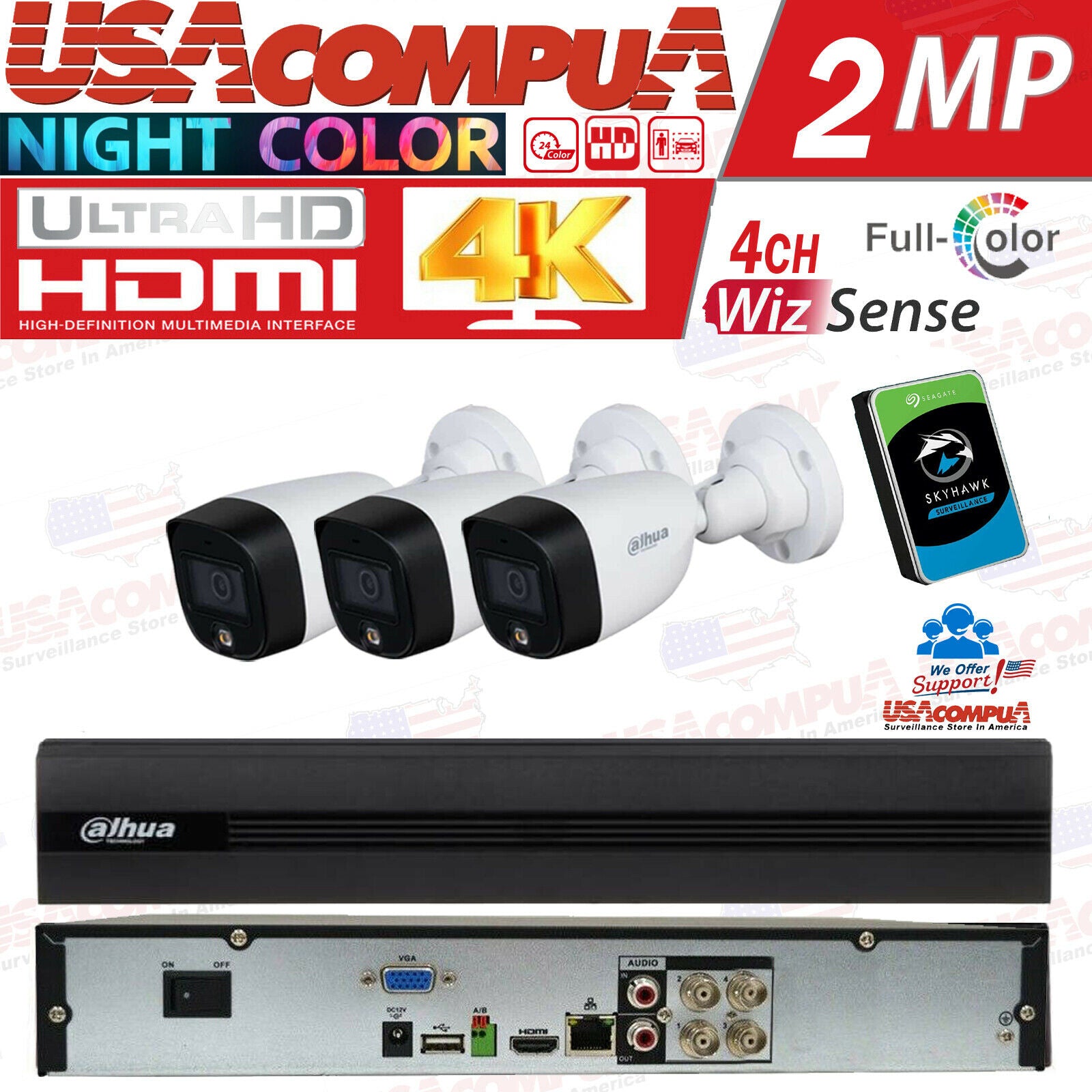

Dahua Security Camera System HD Kit 4CH Turbo 2MP Bullet Full Color (W /HDD )
Dahua Security Camera System HD Kit 4CH Turbo 2MP Bullet Full Color (W /HDD )
24/7 Color
Out of stock
Description
Description
Dahua Security Camera System HD Kit 4CH Turbo 2MP Bullet Full Color (W /HDD )
This listing includes:
- CAMERA QUANTITY (DH-HAC-HFW1209CN-LED): 1;2;3;4
- HARD DRIVE OPTION FOR RECORDER DH-XVR1A04: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
DH-HAC-HFW1209CN-LED view data sheet

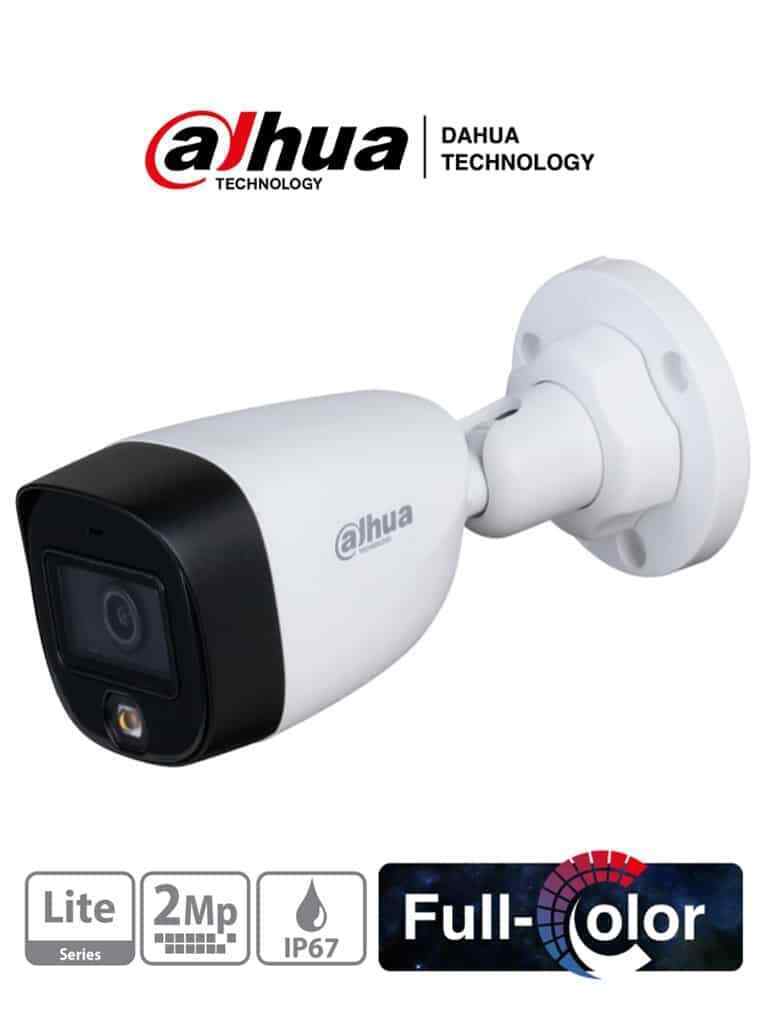

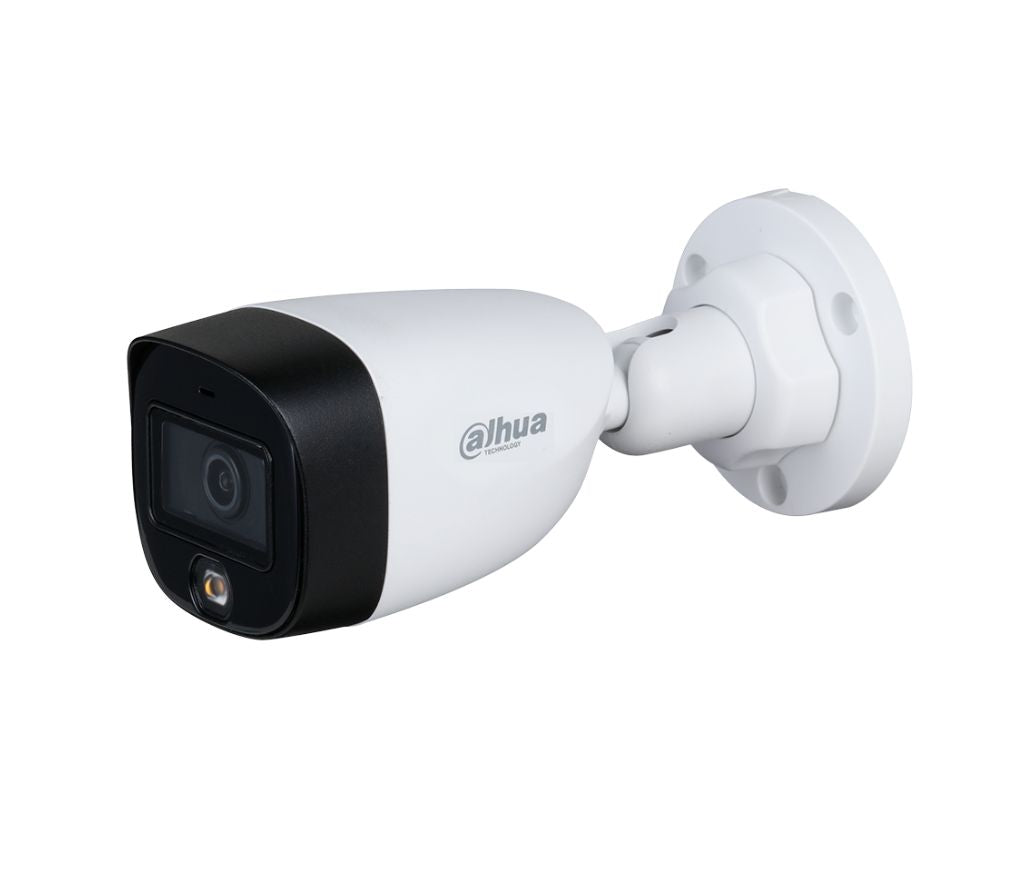

DH-HAC-HFW1209C-LED
2MP Full-color HDCVI Bullet Camera
� 24/7 color imaging
� 20 m illumination distance
� Max. 30 fps@1080p
� CVI/CVBS/AHD/TVI switchable
� Fixed lens (2.8 mm; 3.6 mm optional)
� IP67, 12V�30% DC

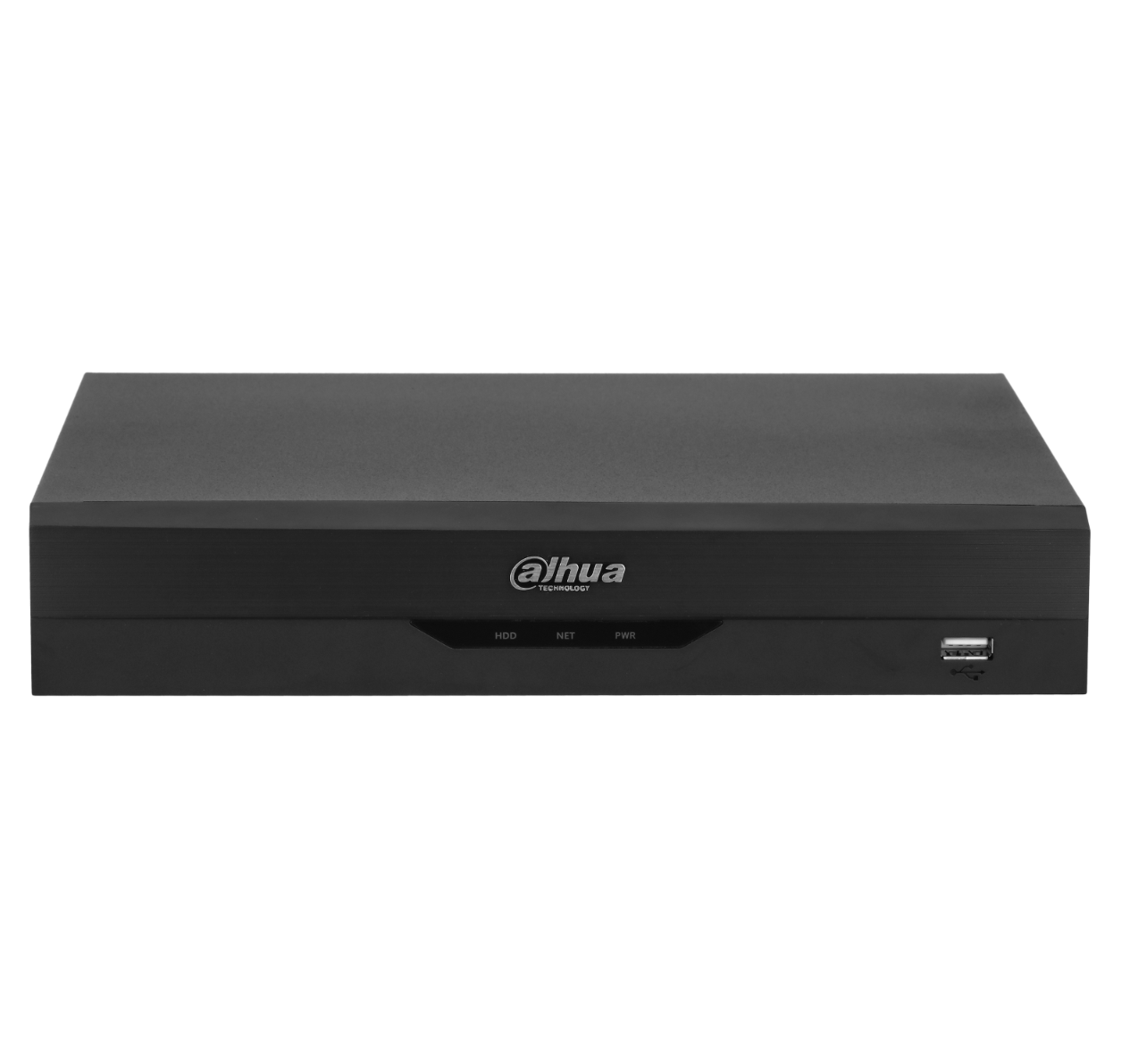

DH-XVR1A04 view data sheet

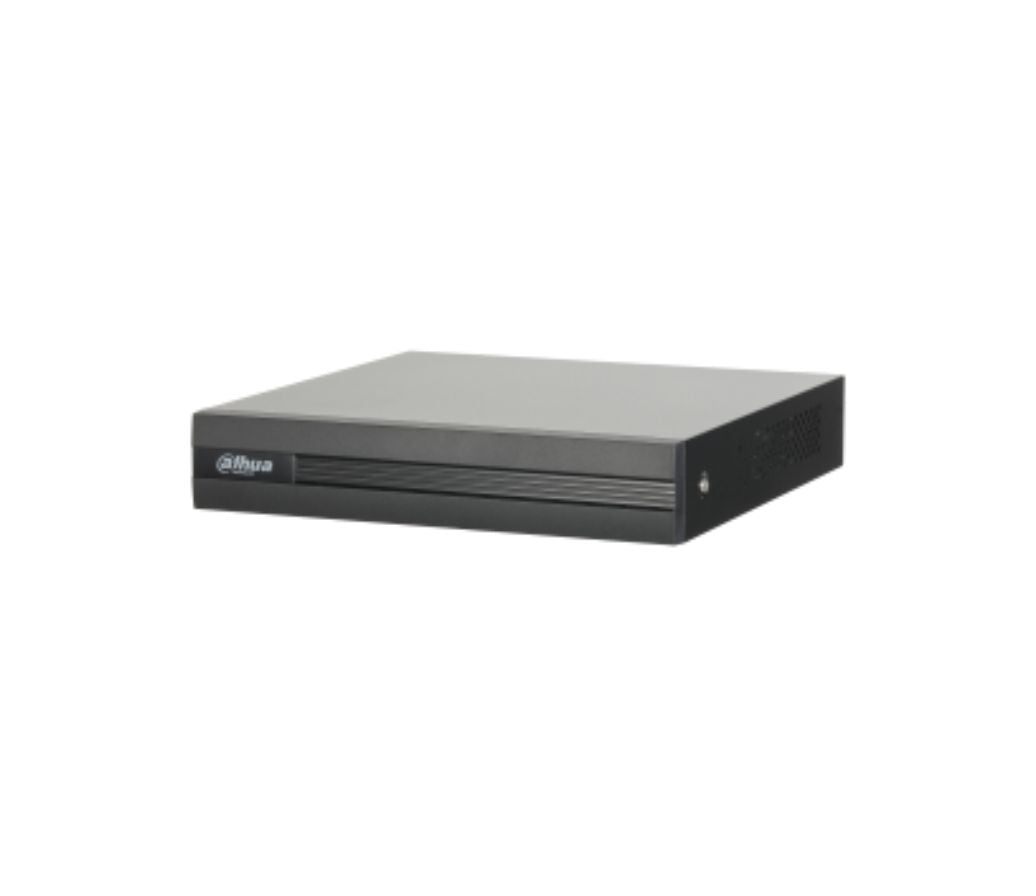

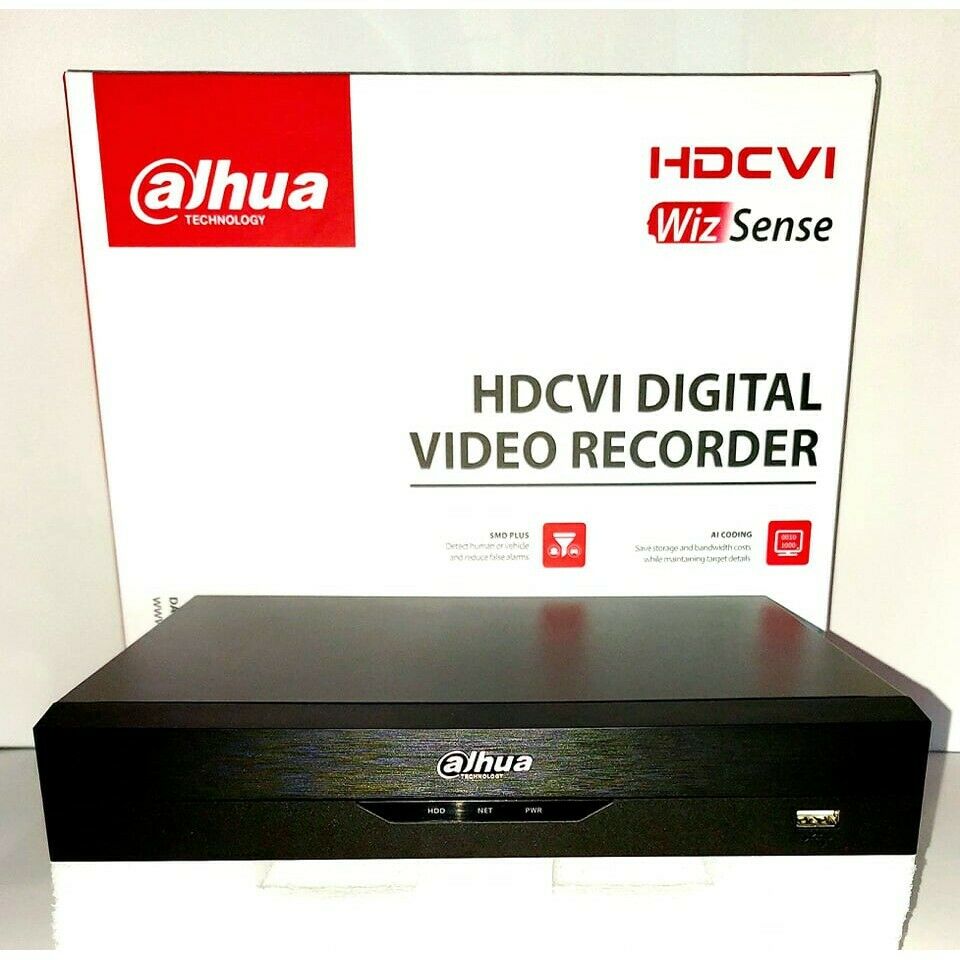

XVR1A04/08
4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder
> H.264 video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5/10 channels IP camera inputs, each channel up to 2MP/5MP; Max 20/40Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input
4/8 Channel, BNC
HDCVI Camera
1080P@25/30fps, 720P@25/30fps
AHD Camera
1080P@25/30, 720P@25/30fps
TVI Camera
1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
4CH: 4+1, each channel up to 2MP
8CH: 8+2, each channel up to 5MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Video Compression
H.264
Resolution
1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main Stream:
4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)
8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)
Sub control:
4CH: CIF/QCIF (1~15fps)
8CH: CIF/QCIF (1~7fps)
Video Bit Rate
32Kbps ~ 4096Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression
G.711A, G.711U, PCM
Audio Sample Rate
8KHz, 16 bit Per Channel
Audio Bit Rate
64Kbps Per Channel
Display
Interface
1 HDMI ,1 VGA
Resolution
1920�1080, 1280�1024, 1280�720, 1024x768
Multi-screen Display
When IP extension mode not enabled:
4CH: 1/4
8CH: 1/4/8/9
When IP extension mode enabled:
4CH: 1/4/6
8CH: 1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface
1 RJ-45 Port (100M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 � 18), Video Loss, Tampering and Diagnosis
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Playback
4CH: 1/4
8CH: 1/4/9
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
1 SATA Port, up to 6TB capacity
eSATA
N/A
Auxiliary Interface
USB
2 USB 2.0
RS232
N/A
RS485
N/A
Electrical
Power Supply
DC12V/1.5A
Power Consumption
(Without HDD)
<10W
Construction
Dimensions
Cooper 1U, 197mm�192mm�41mm (7.8��7.6��1.6�)
Net Weight
(without HDD)
0.55kg (1.2lb)
Gross Weight
1kg (2.2lb)
Installation
Desktop installation
Environmental
Operating Conditions
-10�C ~ +45�C (+14�F ~ +113�F), 10~ 90% RH
Storage Conditions
-20�C ~ +70�C (-4�F ~ +158�F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
DH-HAC-HFW1209C-LED
2MP Full-color HDCVI Bullet Camera
? 24/7 color imaging
? 20 m illumination distance
? Max. 30 fps@1080p
? CVI/CVBS/AHD/TVI switchable
? Fixed lens (2.8 mm; 3.6 mm optional)
? IP67, 12V?30% DC
Specification
Camera Image Sensor 1/2.8 inch CMOS Effective Pixels 1920 (H) ? 1080 (V), 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s?1/100000 s NTSC: 1/30 s?1/100000 s S/N Ratio > 65 dB Minimum Illumination 0.01 Lux/F1.6, 0 Lux white light on Illumination Distance Distance up to 20 m (65.61 ft) Illuminator On/Off Control Auto; manual Illuminator Number 1 Pan/Tilt/Rotation Range Pan: 0??360? Tilt: 0??90? Rotation: 0??360? Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.6 Field of View 2.8 mm: 126.2? ? 106? ? 56.5? (diagonal ? horizontal ? vertical); 3.6 mm: 103.6? ? 86.9? ? 46.3? (diagonal ? horizontal ? vertical) Iris Type Fixed iris Close Focus Distance 2.8 mm: 0.7 m (2.29 ft); 3.6 mm: 1.2 m (3.94 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 43.9 m (144.02 ft) 17.5 m (57.41 ft) 8.8 m (28.87 ft) 4.4 m (14.43 ft) 3.6 mm 55.2 m (181.1 ft) 22.1 m (72.5 ft) 11.0 m (36.1 ft) 5.5 m (18.0 ft) Video Frame Rate CVI: PAL: 1080p@25 fps; 720p@25 fps; NTSC: 1080p@30 fps; 720p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps CVBS: PAL: 960H; NTSC: 960H Resolution 1080p (1920 ? 1080); 720p (1280 ? 720); 960H (960 ? 576/960 ? 480) BLC BLC/DWDR WDR DWDR White Balance Auto; manual Gain Control Auto; manual
Data sheet PDF
Product Description
XVR1A04/08
4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder
> H.264 video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5/10 channels IP camera inputs, each channel up to 2MP/5MP; Max 20/40Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input
4/8 Channel, BNC
HDCVI Camera
1080P@25/30fps, 720P@25/30fps
AHD Camera
1080P@25/30, 720P@25/30fps
TVI Camera
1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
4CH: 4+1, each channel up to 2MP
8CH: 8+2, each channel up to 5MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Video Compression
H.264
Resolution
1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main Stream:
4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)
8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)
Sub control:
4CH: CIF/QCIF (1~15fps)
8CH: CIF/QCIF (1~7fps)
Video Bit Rate
32Kbps ~ 4096Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression
G.711A, G.711U, PCM
Audio Sample Rate
8KHz, 16 bit Per Channel
Audio Bit Rate
64Kbps Per Channel
Display
Interface
1 HDMI ,1 VGA
Resolution
1920?1080, 1280?1024, 1280?720, 1024x768
Multi-screen Display
When IP extension mode not enabled:
4CH: 1/4
8CH: 1/4/8/9
When IP extension mode enabled:
4CH: 1/4/6
8CH: 1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface
1 RJ-45 Port (100M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 ? 18), Video Loss, Tampering and Diagnosis
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Playback
4CH: 1/4
8CH: 1/4/9
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
1 SATA Port, up to 6TB capacity
eSATA
N/A
Auxiliary Interface
USB
2 USB 2.0
RS232
N/A
RS485
N/A
Electrical
Power Supply
DC12V/1.5A
Power Consumption
(Without HDD)
<10W
Construction
Dimensions
Cooper 1U, 197mm?192mm?41mm (7.8??7.6??1.6?)
Net Weight
(without HDD)
0.55kg (1.2lb)
Gross Weight
1kg (2.2lb)
Installation
Desktop installation
Environmental
Operating Conditions
-10?C ~ +45?C (+14?F ~ +113?F), 10~ 90% RH
Storage Conditions
-20?C ~ +70?C (-4?F ~ +158?F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
Technical Specification
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 4/8 Channel, BNC
HDCVI Camera 1080P@25/30fps, 720P@25/30fps
AHD Camera 1080P@25/30, 720P@25/30fps
TVI Camera 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 4CH: 4+1, each channel up to 2MP
8CH: 8+2, each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Video Compression H.264
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main Stream:
4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/
QCIF(1~25/30fps)
8CH: the 1st channel 1080N/720P(1~25/30fps), others
1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/
QCIF(1~25/30fps)
Sub steram:
4CH: CIF/QCIF (1~15fps)
8CH: CIF/QCIF (1~7fps)
Video Bit Rate 32Kbps ~ 4096Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Audio Compression G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
