SKU: 267553932077-EN1
$68.24 $64.99
Guaranteed secure & safe checkout.
Data sheet PDF
Product Description
XVR501H-04-4KL-I3 || Diamond, DVR, 8MP, 4CH, 1X SATA PORT
? Max Recording Resolution: 8MP
? Channels: 4CH
? LAN Ports: 1
? SATA: 1X SATA PORT
? Video Outputs: HDMI / VGA
? NDAA Compliant: No
? Hardware Features: Audio in, Audio out
SPECIFICATIONS
4 Channel Penta-brid 5MP 1U Digital Video Recorder Features:
This 4 Channel Penta-brid 5MP 1U Digital Video Recorder in Diamond Series high recommend works with:
Diamond HD Analog and Coaxial Cameras
| Weight | 3.9 lbs |
|---|---|
| Dimensions | 6 ? 6 ? 6 in |
Product Specifications
ENS Diamond Series | XVR501H-04-4KL-I3
System
Main Processor Embedded processor
Operating System Embedded LINUX
Perimeter Protection
Performance 1 Channels, 10 IVS for each channel
Object classification Human/Vehicle secondary recognition for tripwire
and intrusion
AI Search Search by target classification (Human, Vehicle)
Face Recognition
Performance
Max 8 face pictures/sec processing
1 channel video stream face recognition, only
support analog camera
Stranger Mode Detect strangers? faces (not in device?s face database).
Similarity threshold can be set manually
AI Search
Up to 8 target face images search at same time,
similarity threshold can be set for each target
face image
Database Management
10 face databases
20,000 total face images
Name, gender, birthday, address, certificate type,
cerificate No., countries&regions and state can be
added to each face picture
Database Application Each database can be applied to video channels
independently
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Record-
ing, Alarm Out, PTZ Activation, etc.
SMD+
Performance 4 channels
AI Search Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input 4 channels, BNC
HDCVI Camera Input 4K/6MP/5MP/4MP/1080P @ 25/30 fps
720P @ 50/60 fps, 720P @ 25/30 fps
AHD Camera Input 4K/5MP/4MP/3MP/1080P @ 25/30 fps
720P @ 25/30 fps
TVI Camera Input 4K/5MP/4MP/3MP/1080P @ 25/30 fps
720P @ 25/30 fps
CVBS Camera Input PAL/NTSC
IP Camera Input 4+4 channels, each channel up to 8MP
Recording
Compression AI Coding / H.265+ / H.265 / H.264+ / H.264
Resolution 4K/6MP/5MP/4MP/3MP/4M-N/1080p/720p/960H/
D1/CIF
Record Rate
Main stream: All channel 4K (1 fps?7 fps); 6MP
(1 fps?10 fps); 5MP (1 fps?12 fps); 4MP/3MP (1
fps?15 fps); 4M-N/1080p/720p/960H/D1/CIF (1
fps?25/30 fps); Sub steram: 960H (1 fps?15 fps);
D1/CIF (1 fps?25/30 fps)
Video Bit Rate 32 kbps ~ 6144 kbps per channel
Record Mode
Manual; Schedule (General, Continuous); MD (Video
detection: Motion Detection, Video Loss, Tampering); Alarm;
Stop
Record Interval 1 min? 60 min (default: 60 min),
Pre-record: 1 s ~ 30 s, Post-record: 10 s ~ 300 s
Audio Compression G.711A; G.711U; PCM
Audio Sample Rate 8 KHz, 16 bit per channel
Audio Bit Rate 64 Kbps per channel
Display
Interface 1 HDMI ,1 VGA
Resolution
HDMI: 3840?2160, 1920?1080, 1280?1024,
1280?720
VGA: 1920 ? 1080, 1280 ? 1024, 1280 ? 720
Multi-screen Display
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/8/9
OSD Camera title; Time; Video loss; Camera lock; Motion
detection; Recording
Network and Interface
Interface 1 RJ-45 port (10/100 Mbps)
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G;
SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS;
IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP
Search (Supports Diamond IP camera, DVR, NVS, etc.)
Network Max. Users 128
Mobile IOS, Android
Network Interoperability ONVIF 16.12, CGI Conformant
Audio Input 1-channel, RCA
Audio Output 1-channel, RCA
Two-way Talk Yes
USB 2 ? USB 2.0 port
RS232 N/A
RS485 1, for PTZ control
Internal HDD 1 SATA port, up to 10 TB capacity
eSATA N/A
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP,
Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 ? 18), Video
Loss, Tampering and Diagnosis
Alarm Input N/A
Relay Output N/A
Playback and Backup
Playback 1/4
Search Mode Time/Date, Alarm, MD, Exact Search (accurate to second)
Playback Function
Play; Pause; Stop; Rewind; Fast play; Slow Play;
Next File; Previous File; Next Camera; Previous
Camera; FullScreen; Repeat; Shuffle; Backup
Selection; Digital Zoom
www.enssecurity.com
ENS Diamond Series | XVR501H-04-4KL-I3
Plainview, NY
50 Commercial St., Plainview, NY 11803
Tel: 516-870-3779
Downtown LA, CA
1113 Venice Blvd., Los Angeles, CA 90015
Tel: 213-218-2260
Miami, FL
1604 NW 84 Ave., Doral, FL 33126
Tel: 786-410-6777
College Point, NY
129-04 14th Ave., College Point, NY 11356
Tel: 718-939-2710
San Francisco, CA
41324 Christy St., San Francisco, CA 94538
Tel: 510-584-9007
Chicago, IL
873 Cambridge Dr., Elk Grove Village, IL 60007
Tel: 847-584-2227
Brooklyn, NY
9017 5th Ave., Brooklyn, NY 11209
Tel: 347-507-5533
Houston, TX
1720 Townhurst Dr., Houston, TX 77043
Tel: 430-702-0999
City of Industry, CA
525 Parriott Pl., City of Industry, CA 91745
Tel: 626-961-8999
Dallas, TX
12901 Valley Branch Ln., Farmers Branch, TX 75234
Tel: 972-996-1600
Backup Mode USB device / Network
General
Power Supply 12 V DC / 2 A
Power Consumption, NVR < 7 W
Operating Conditions -10?C ~ 55?C (14?F ~ 131?F) / Less than 90% RH
Storage Conditions -20?C ~ 70?C (-4?F ~ 158?F) / Less than 90% RH
Dimensions (W ? D ? H) Mini 1U, 325.0 mm ? 256.6 mm ? 55.0 mm
(12.80? ? 10.10? ? 2.17?)
Net Weight 1300 g (2.87 lb)
Gross Weight 1760 g (3.88 lb)
Installation Desktop installation
Third-party Support
Diamond, Arecont Vision, AXIS, Bosch, Brickcom,
Canon,CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek,
and more
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN
55032; EN 50130; EN 55024
Product Dimensions ( mm [inch] )
Rear Panel
Video In RS485 Interface
Audio In, RCA Connector USB Interface
Audio Out, RCA Connector 12 V DC Power Input
HDMI Interface VGA Interface
Network Interface Power Switch
Scroll to Explore key features.

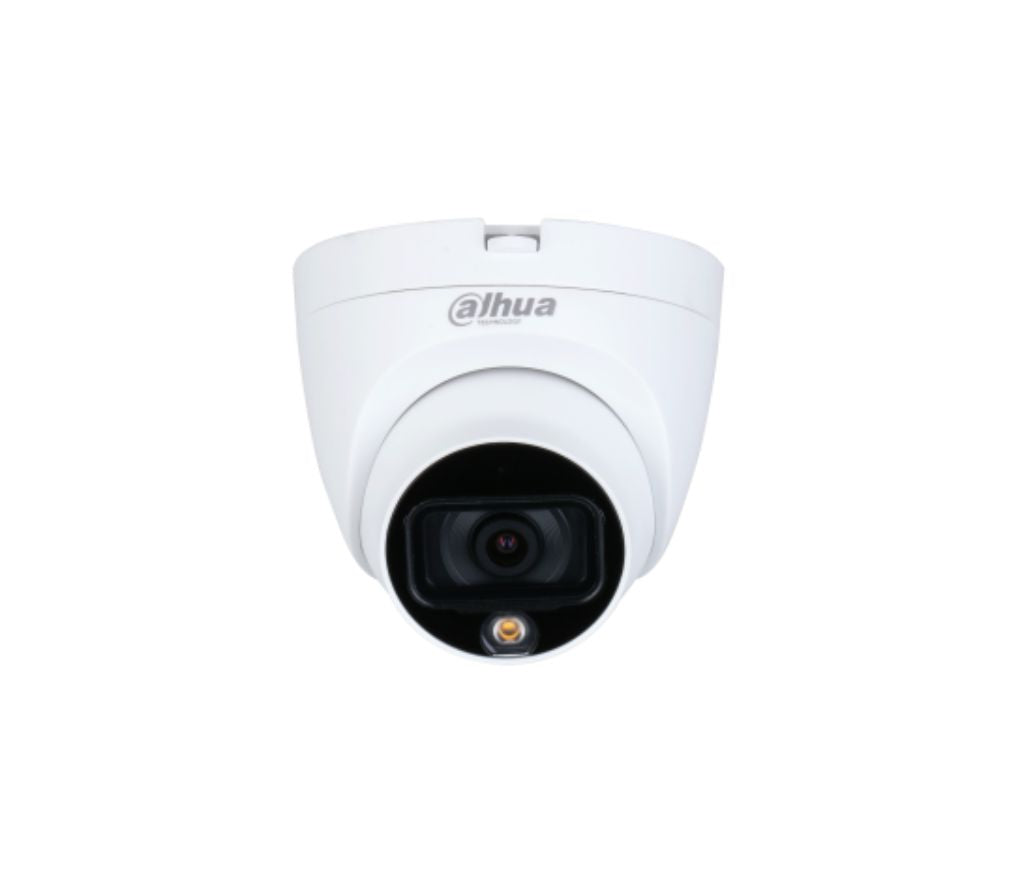

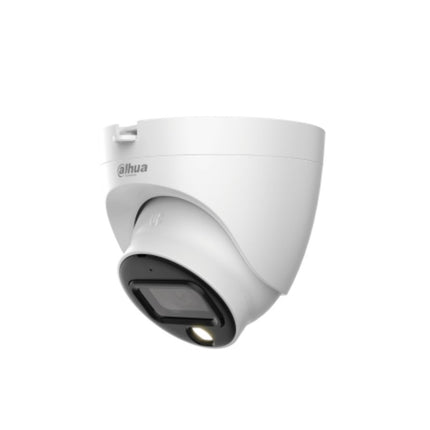

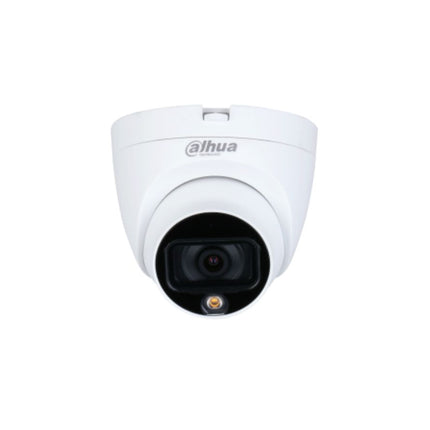

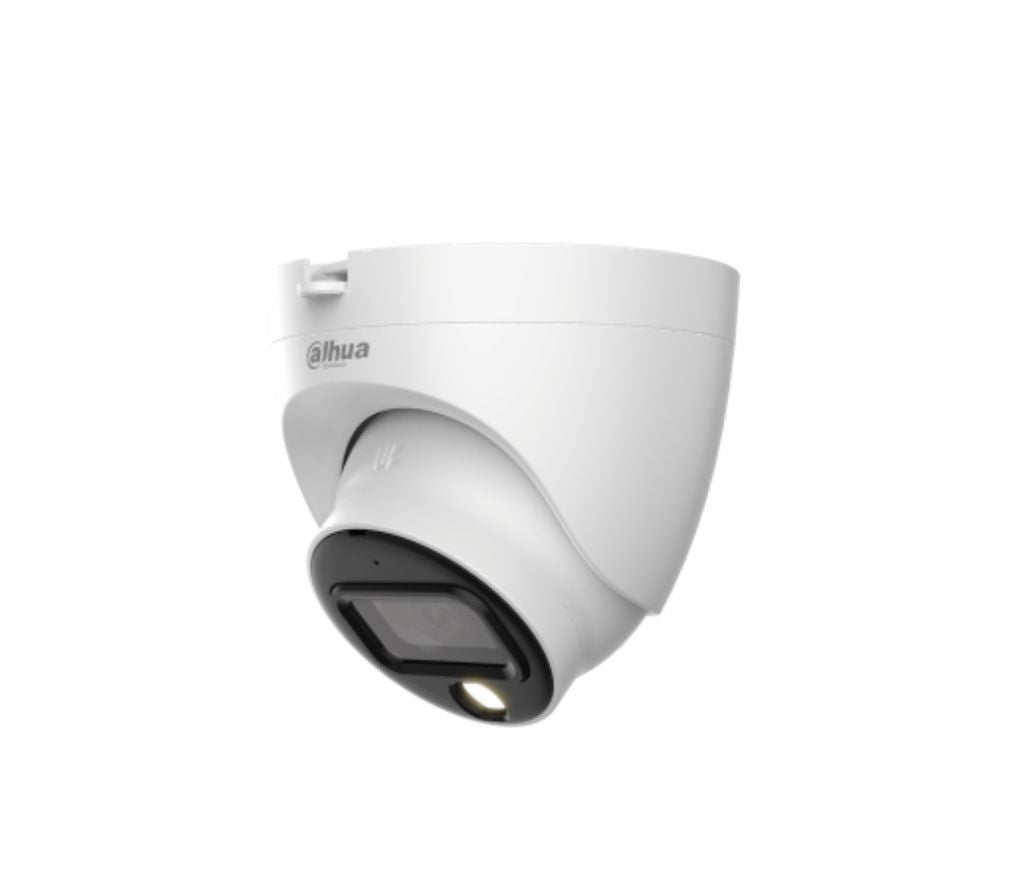

With 24/7 color cameras, you get crystal-clear footage around the clock—even in low light. That means no more blurry ...
