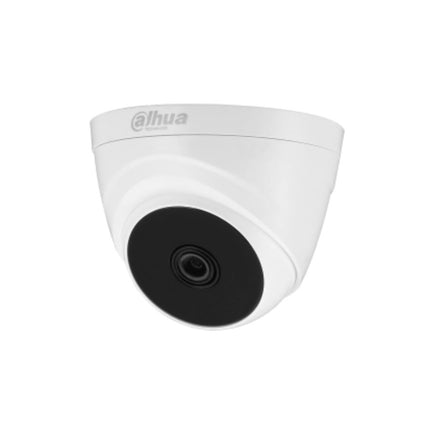

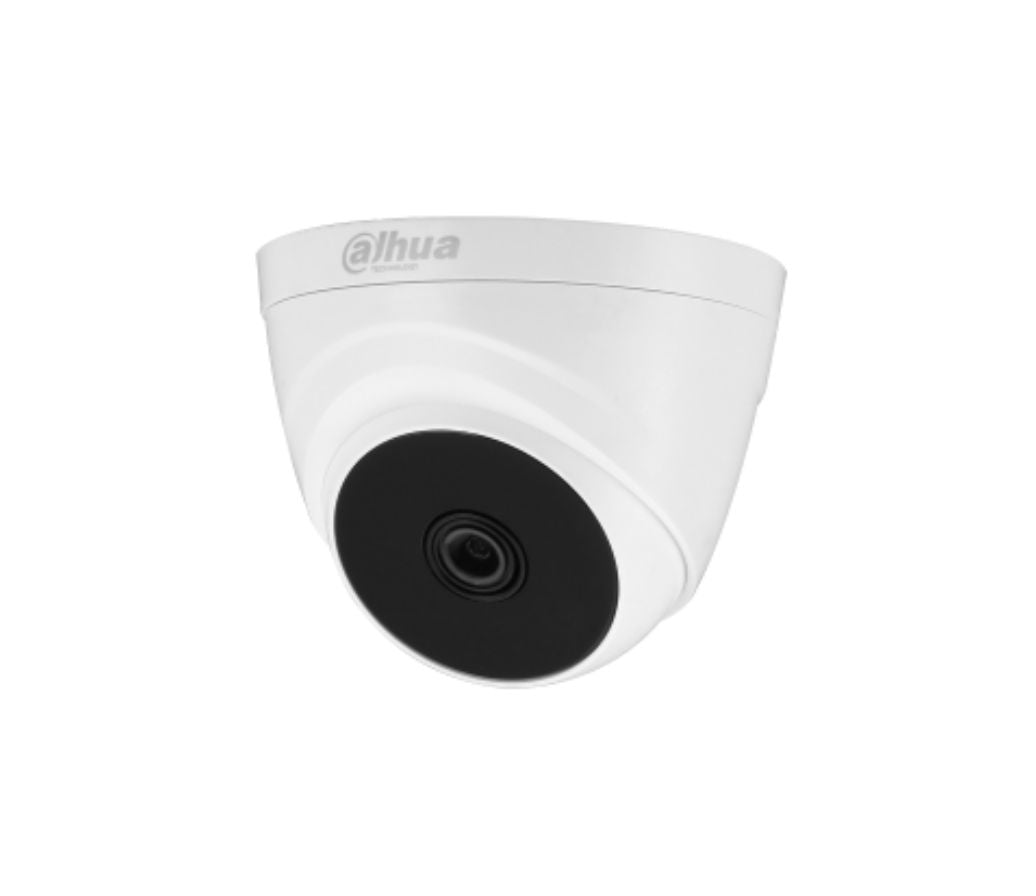

DH-HAC-T1A51N Dahua CCTV Camera HAC-T1A51 5MP HDCVI IR Eyeball * The

Description

DH-HAC-T1A51N Dahua CCTV Camera HAC-T1A51 5MP HDCVI IR Eyeball * The


This listing includes:

  • ¬†(1) ANALOG CAMERA:¬†DH-HAC-T1A51N


DH-HAC-T1A51N  view data sheet

5MP HDCVI Fixed IR Eyeball Camera

HAC-T1A51

* The parameters and datasheets below can only be applied to A51-S2 series.

* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

> Max. 25 fps@5MP (16:9 video output)

> CVI/CVBS/AHD/TVI switchable

> 3.6 mm fixed lens (2.8 mm optional)

> Max. IR length 20 m, Smart IR

> DC12V



DH-HAC-T1A51N Dahua CCTV Camera HAC-T1A51 5MP HDCVI IR Eyeball * The

Product form

SKU: 318764712077-EN1

$51.69 $46.99

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      DH-HAC-T1A51N Dahua CCTV Camera HAC-T1A51 5MP HDCVI IR Eyeball * The


      This listing includes:

      • ¬†(1) ANALOG CAMERA:¬†DH-HAC-T1A51N


      DH-HAC-T1A51N  view data sheet

      5MP HDCVI Fixed IR Eyeball Camera

      HAC-T1A51

      * The parameters and datasheets below can only be applied to A51-S2 series.

      * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

      > Max. 25 fps@5MP (16:9 video output)

      > CVI/CVBS/AHD/TVI switchable

      > 3.6 mm fixed lens (2.8 mm optional)

      > Max. IR length 20 m, Smart IR

      > DC12V



      Data sheet PDF

      Product Description

      5MP HDCVI Fixed IR Eyeball Camera

      HAC-T1A51

      * The parameters and datasheets below can only be applied to A51-S2 series.

      * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

      > Max. 25 fps@5MP (16:9 video output)

      > CVI/CVBS/AHD/TVI switchable

      > 3.6 mm fixed lens (2.8 mm optional)

      > Max. IR length 20 m, Smart IR

      > DC12V


      Specifications

      Camera

      Image Sensor

      1/2.7" CMOS

      Max. Resolution

      2880 (H) ? 1620 (V)

      Pixel

      5MP

      Scanning System

      Progressive

      Electronic Shutter Speed

      PAL: 1/25?1/100000 s

      NTSC: 1/30?1/100000 s

      Min. Illumination

      0.02 Lux/F2.0, 30IRE, 0 Lux IR on

      S/N Ratio

      More than 65 dB

      Illumination Distance

      20 m (66 feet)

      Illuminator On/Off Control

      Auto;manual

      Lens

      Lens Type

      Fixed lens / Fixed iris

      Mount Type

      M12

      Focal Length

      3.6mm (2.8mm Optional)

      Max Aperture

      F2.0

      Angle of View

      2.8 mm: 125? ? 106? ? 56?

      (diagonal ? horizontal ? vertical)

      3.6 mm: 104? ? 88? ? 46?

      (diagonal ? horizontal ? vertical)

      Focus Control

      N/A

      Close Focus Distance

      2.8 mm: 0.8 m (2.6 ft)

      3.6 mm: 1.2 m (3.9 ft)

      DORI distance

      Lens

      Detect

      Observe

      Recognize

      Identify

      2.8mm

      56.0 m

      (183.7 ft)

      22.4 m

      (73.5 ft)

      11.2 m

      (36.7 ft)

      5.6 m

      (18.4 ft)

      3.6mm

      80 m

      (262.5 ft)

      32 m

      (105.0 ft)

      16 m

      (52.5 ft)

      8 m

      (26.2 ft)

      Pan / Tilt / Rotation

      Pan/Tilt/Rotation

      Pan: 0? ? 360?

      Tilt: 0? ? 78?

      Rotation: 0? ? 360?

      Video

      Resolution

      5M (2880 ? 1620); 4M (2560 ? 1440);

      1080P (1920 ? 1080);960H (960 ? 576/960 ? 480)

      Frame Rate

      CVI:

      PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps

      NTSC:5M@25 fps; 4M@30 fps; 1080P@30 fps

      AHD:

      PAL:4M@25 fps;

      NTSC:4M@30 fps;

      TVI:

      PAL:4M@25 fps;

      NTSC:4M@30 fps;

      CVBS:

      960H;

      Video Output

      Video output choices of CVI/TVI/AHD/CVBS by one BNC port

      Day/Night

      Auto (ICR) / Manual

      OSD Menu

      Multi-language

      BLC Mode

      BLC / HLC / DWDR

      WDR

      DWDR

      Gain Control

      AGC

      Noise Reduction

      2D

      White Balance

      Auto;manual

      Smart IR

      Yes

      Mirror

      Off/On

      Privacy Masking

      Off / On (8 area, rectangle)

      Certifications

      Certifications

      CE (EN55032, EN55024, EN50130-4,EN60950-1,

      EN 62368-1:2014+A11:2017)

      FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

      Interface

      Audio Interface

      N/A

      Eelectrical

      Power Supply

      12V DC ?30%

      Power Consumption

      Max. 2.7W (12V DC, IR on)

      Environmental

      Operating Conditions

      ?40?C to +55?C (?40?F to +131?F) /Less than 95% RH

      *Start up should be done at above ?40?C (?40?F)

      Storage Conditions

      ?40?C to +55?C (?40?F to +131?F) /Less than 95% RH

      Ingress Protection & Vandal Resistance

      NA

      Construction

      Casing

      Plastic

      Dimensions

      ?85.4 mm ? 68.8 mm (?3.36 ? 2.71")

      Net Weight

      0.09 kg (0.20 lb)

      Gross Weight

      0.14 kg (0.31 lb)

      Feature Highlight
