Product Description

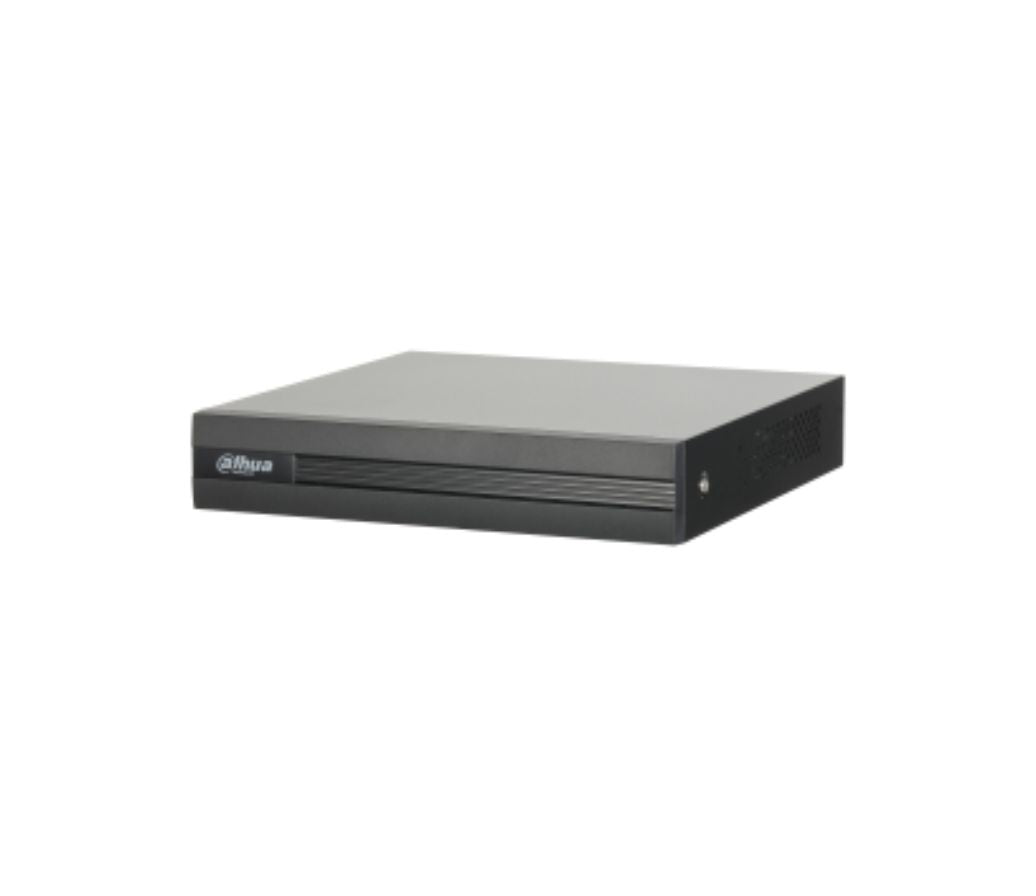

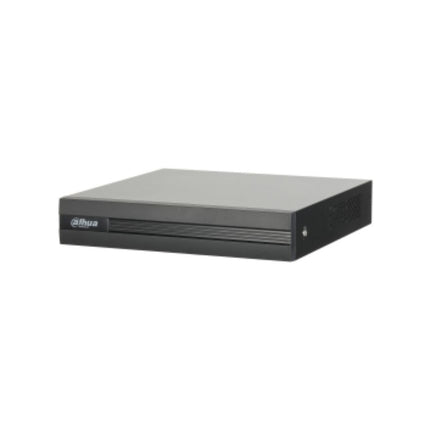

XVR1A04/08
4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder
> H.264 video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5/10 channels IP camera inputs, each channel up to 2MP/5MP; Max 20/40Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input
4/8 Channel, BNC
HDCVI Camera
1080P@25/30fps, 720P@25/30fps
AHD Camera
1080P@25/30, 720P@25/30fps
TVI Camera
1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
4CH: 4+1, each channel up to 2MP
8CH: 8+2, each channel up to 5MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Video Compression
H.264
Resolution
1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main Stream:
4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)
8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps)
Sub control:
4CH: CIF/QCIF (1~15fps)
8CH: CIF/QCIF (1~7fps)
Video Bit Rate
32Kbps ~ 4096Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression
G.711A, G.711U, PCM
Audio Sample Rate
8KHz, 16 bit Per Channel
Audio Bit Rate
64Kbps Per Channel
Display
Interface
1 HDMI ,1 VGA
Resolution
1920?1080, 1280?1024, 1280?720, 1024x768
Multi-screen Display
When IP extension mode not enabled:
4CH: 1/4
8CH: 1/4/8/9
When IP extension mode enabled:
4CH: 1/4/6
8CH: 1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface
1 RJ-45 Port (100M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 ? 18), Video Loss, Tampering and Diagnosis
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Playback
4CH: 1/4
8CH: 1/4/9
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
1 SATA Port, up to 6TB capacity
eSATA
N/A
Auxiliary Interface
USB
2 USB 2.0
RS232
N/A
RS485
N/A
Electrical
Power Supply
DC12V/1.5A
Power Consumption
(Without HDD)
<10W
Construction
Dimensions
Cooper 1U, 197mm?192mm?41mm (7.8??7.6??1.6?)
Net Weight
(without HDD)
0.55kg (1.2lb)
Gross Weight
1kg (2.2lb)
Installation
Desktop installation
Environmental
Operating Conditions
-10?C ~ +45?C (+14?F ~ +113?F), 10~ 90% RH
Storage Conditions
-20?C ~ +70?C (-4?F ~ +158?F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
Technical Specification
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 4/8 Channel, BNC
HDCVI Camera 1080P@25/30fps, 720P@25/30fps
AHD Camera 1080P@25/30, 720P@25/30fps
TVI Camera 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 4CH: 4+1, each channel up to 2MP
8CH: 8+2, each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Video Compression H.264
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main Stream:
4CH: All channel 1080N/720P/960H/D1/HD1/BCIF/CIF/
QCIF(1~25/30fps)
8CH: the 1st channel 1080N/720P(1~25/30fps), others
1080N(1~12fps)/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/
QCIF(1~25/30fps)
Sub steram:
4CH: CIF/QCIF (1~15fps)
8CH: CIF/QCIF (1~7fps)
Video Bit Rate 32Kbps ~ 4096Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Audio Compression G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
