Model
System
Compression
OS
Video
Output
Network Input
Resolution
Network Input
Network Input
Audio
Live View/
Playback
Local Input
Local Output
Compression
Decoding
Capability
Resolution
Frame Rate
Record
Simultaneous
Playback
Search
Smart Search
Function
Playback
Mode
Input
Output
Alarm
Triggering
Time slice / time / event / tag / smart search
Highlighted color to display the camera record in a certain
period of time, different colors refers to different record events
H.265S /H.265+ / H.265 / H.264
Embedded Linux
HDMI _ 1 : 3840 _ 2160 / 1920 _ 1080 / 1280 _ 1024/ 1024 _ 768
VGA: 1920 _ 1080 / 1280 _ 1024/ 1024 _ 768
RCA _ 1
RCA _ 1 (for two-way audio)
Play, pause, FF, FB, digital zoom, etc.
Manual, sensor, motion, exception, smart events
Supports IPC alarm output
Record, snap, preset, e-mail, etc.
Supports IPC alarm input
8MP/6MP/5MP/4MP/3MP/1080P/1280_1024/960P/720P/
960H/D1/CIF
8MP/6MP/5MP/4MP/3MP/1080P/1280_1024/960P/720P/
960H/D1/CIF
Interface
Protocol
Client Connection
Incoming/
Outgoing
Bandwidth
Network
RJ 45 _ 1 (10/100/1000Mbps)
NTSC:30fps; PAL:25fps
G.711(U/A)
1_8MP@30fps; 6_1080P@30fps

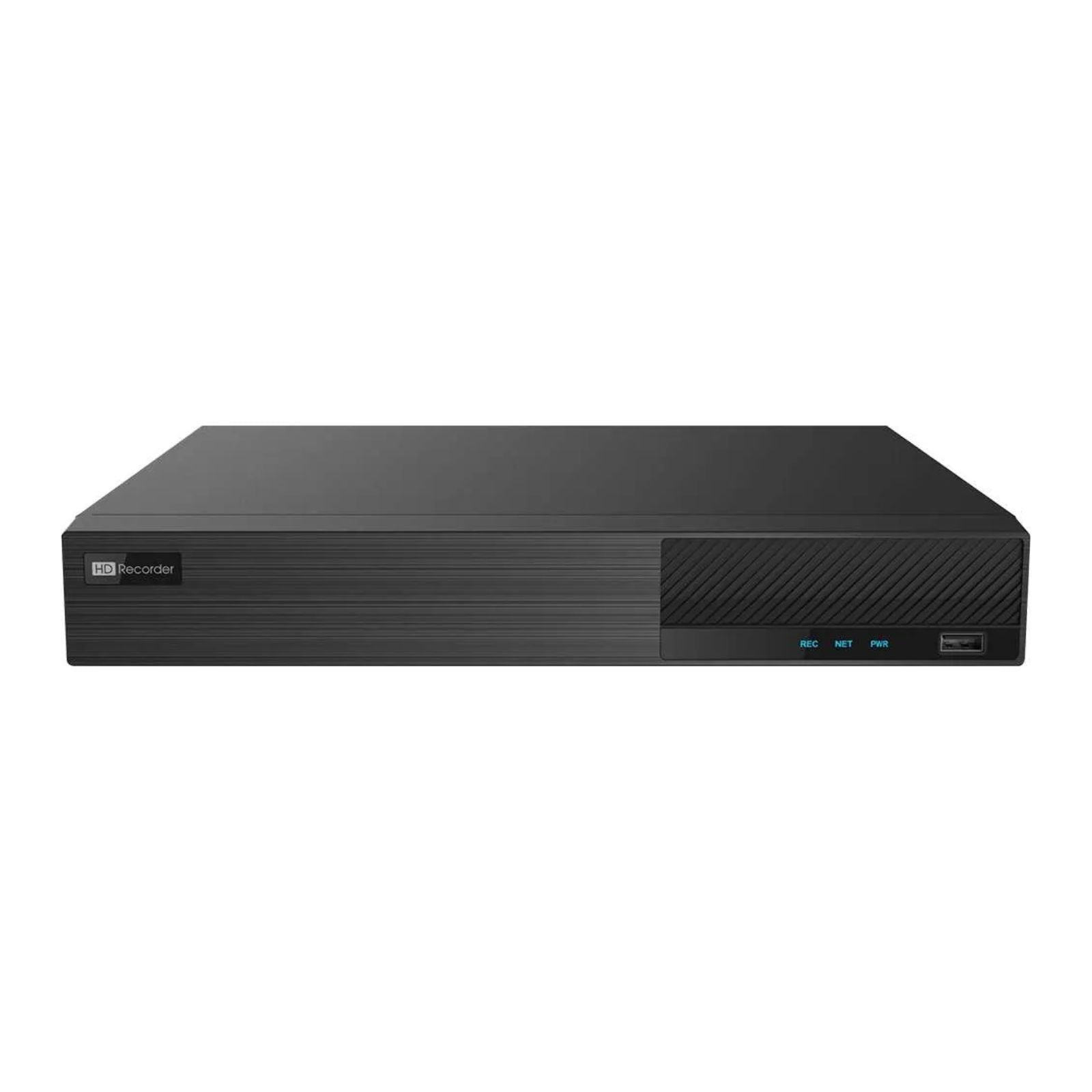

ED9516H5NV-16P-3NB
16 CH IPC audio input
Max.16 CH
16CH IPC input
144/144 (Mbps)
OS Mobile
Device
TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP,
HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP,
IGMP, ONVIF
iOS, Andriod
Max. 64 users access
*When the AI function of the IPC is enabled, the actual incoming
bandwidth(max.bitrate) is more than the set value in the NVR.
Face
Face Detection
Performance
(AI by IPC)
16 CH
No
2 CH
Face Match
Performance
Face Detection
Performance
(AI by Device)
Statistical Graph
of Information Bar graph
Human/Vehicle
Classification Video
Structure
Analysis
Yes
Other
Functions
Statistical Mode
of Information
Statistics by day, week, month, quarter as well as
customized time period
Fisheye Supports fisheye dewarping via Web Client and mobile APP
Yes Plate Recognition
(AI by IPC)
Human/Vehicle
Features
No
Storage
Backup
HDD Interface
Local Backup
Network Backup
SATA3.0 _ 2, max 10T
U disk, USB mobile HDD
Yes
USB
Remote
Controller
Port
PoE
Others
Dimensions
(mm)
² 10W ( without HDD )
USB 2.0 _ 2
-10~50 ¡C, 10% ~ 90% humidity
Optional
Power Supply
Consumption
Working
Environment
PoE Ports
Standards
Output Power
IEEE802.3AF/AT
Certificate CE, FCC
Environmental
Protection Complies with Directive EU RoHS, REACH and WEEE
Features
Support 8/16 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280_1024/960P/720P/
960H/DI/CIF IP video input
Adopt standard H.265 and H.264 high profile compression format to get
high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
operation by mouse
Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
Playback : 8/16 CH simultaneous playback
Search : time slice, time, event, tag, smart search
Support multiple VCA (Video Content Analytics) events, such as object
abandoned/missing, region intrusion, tripwire, video exception, etc.
Support POS information overlay on live view and playback
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and
configuration
8/16 PoE network ports; IPC can be directly connected to NVR; PoE
power supply supported
Dual stream technology for local storage with high definition, remote
network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS
