Data sheet PDF

Product Description

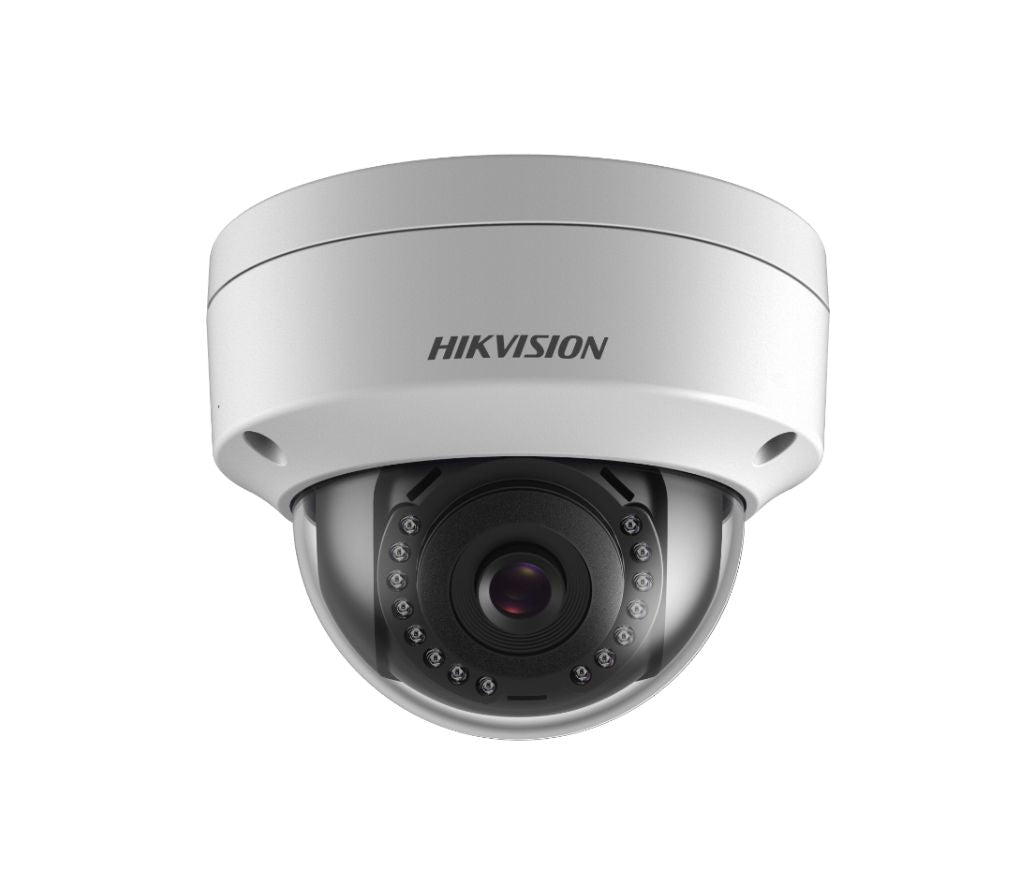

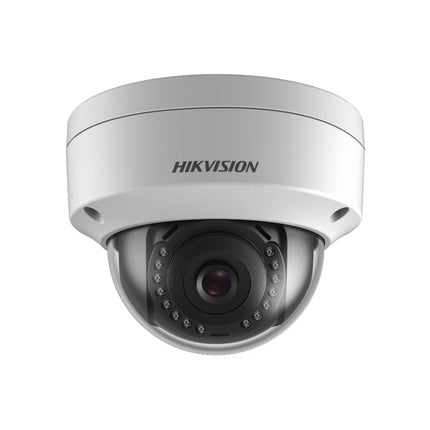

2 MP Fixed Dome Network Camera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to DWDR technology
• Water and dust resistant (IP67), vandal proof (IK10)
• EXIR 2.0: advanced infrared technology with long IR range

Specification

• Camera
• Image Sensor1/2.8" progressive scan CMOS
• Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed1/3 s to 1/100, 000 s
• Slow ShutterYes
• Day &NightIR cut filter
• Wide Dynamic RangeDigital WDR
• Angle AdjustmentPan: 0? to 355?, tilt: 0? to 70?
• DNR3D DNR
• Lens
• Lens2.8 mm, 4 mm, 6 mm
• Auto-IrisNo
• ApertureF2.0
• FocusNo
• FOV2.8 horizontal FOV 114?, vertical FOV 62?, diagonal FOV 135?,4 mm, horizontal FOV 86?, vertical FOV 46?, diagonal FOV 102?,6 mm, horizontal FOV 54?, vertical FOV 30?, diagonal FOV 62?
• Lens MountM12
• Illuminator
• IR RangeUp to 30 m
• Wavelength850 nm
• Video
• Max. Resolution1920 ? 1080
• Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 8 Mbps
• Smart Feature-Set
• Region Of Interest1 fixed region for main stream and sub-stream
• Image
• Image EnhancementBLC, 3D DNR
• Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchAuto, scheduled
• Main Stream Max. Frame Rate50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)
• Sub-Stream Max. Frame Rate50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator, and User
• ClientiVMS-4200, Hik-Connect, iVMS-5200
• Web BrowserIIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
• Alarm TriggerMotion detection, video tampering alarm, illegal login
• Interface
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Compression Standard
• H.264+Main stream supports
• H.265+Main stream supports
• General
• Firmware Version5.5.2
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Startup And Operating Conditions-30 ?C to 50 ?C (-22 ?F to 122 ?F), humidity: 95% or less (non-condensing)
• Power Supply12 VDC ? 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• MaterialMetal & Plastic
• DimensionsCamera: ? 111 mm ? 82.4 mm ( 4.4" ? 3.2"),With package: 134 mm ? 134 mm ? 108 mm (5.3" ? 5.3" ? 4.3")
• WeightCamera: Approx. 410 g (0.9 lb.),With package: Approx. 610 g (1.3 lb.)
• Power Consumption And Current12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
• Interface ProtectionIP67, IK10,TVS 2000V lightning protection, surge protection and voltage transient protection

Data sheet PDF

Product Description

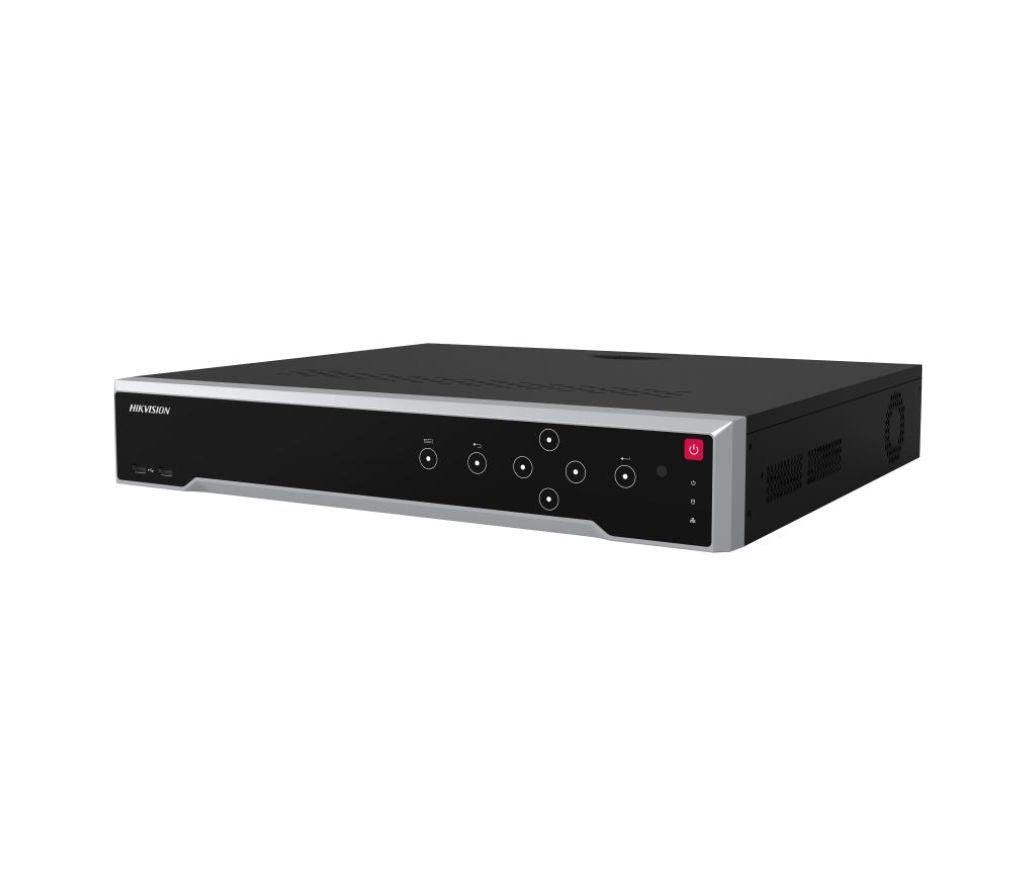

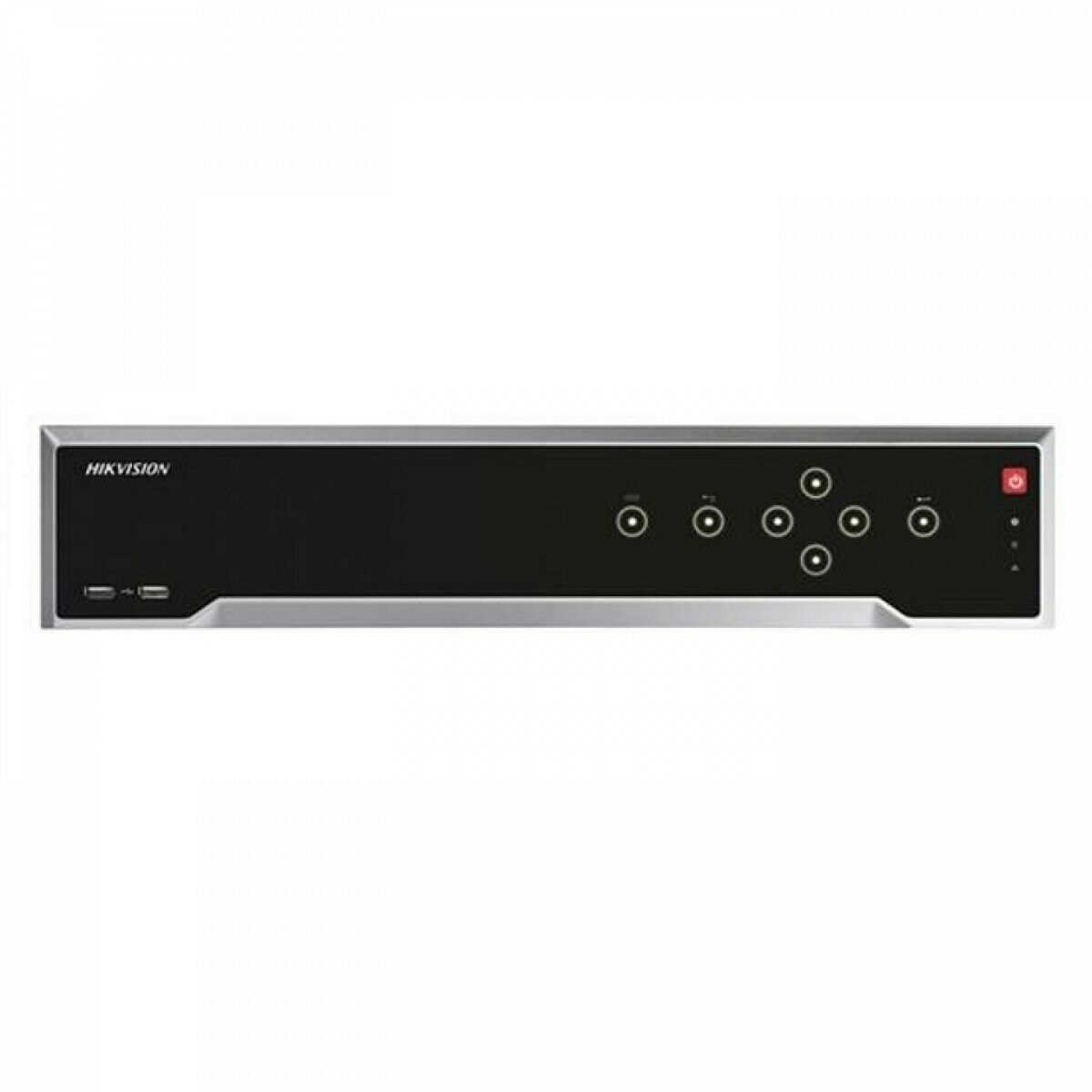

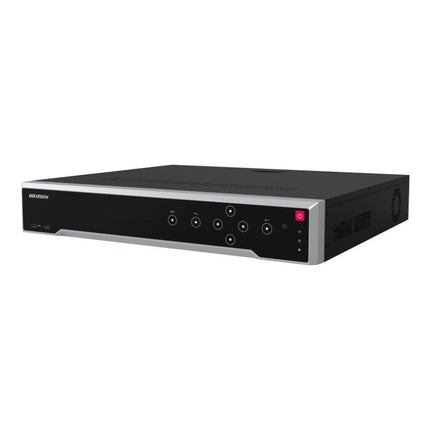

32ch 1.5U 16 PoE 4K NVR

• Up to 32ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@8 MP/4ch@4 MP/8ch@1080p decoding capacity
• Plug & play with 16 power-over-Ethernet (PoE) interfaces
• Up to 256 Mbps incoming bandwidth

Specification

• Video And Audio
• IP Video Input32ch
• Incoming Bandwidth256 Mbps
• Outgoing Bandwidth160 Mbps
• HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• Audio Output1-ch, RCA (Linear, 1 K?)
• Video Output ModeHDMI/VGA independent output
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
• Decoding
• Decoding FormatH.265/ H.265+/H.264/H.264+
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback16ch
• Decoding Capability1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4ch@4 MP (30 fps)/8ch@1080p (30 fps)
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
• Network
• Remote Connection128ch
• Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE
• Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 200 W
• StandardIEEE 802.3 af/at
• Auxiliary Interface
• Serial Interface2 RS-485 (half-duplex), 1 RS-232
• SATA4 SATA interfaces
• CapacityUp to 10 TB capacity for each HDD
• Alarm In/Out16/ 4 (16/9 is optional)
• USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
• Ctrl 12VN/A (optional to support)
• DC 12VN/A (optional to support)
• General
• Power Supply100 to 240 VAC, 50 to 60Hz
• Consumption? 20 W (without HDD and PoE off)
• Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)445 ? 400 ? 71 mm ( 17.5"? 15.7" ? 2.8")
• Weight? 5 kg (without HDD, 11 lb.)
• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• Obtained CertificationCE, KC, WEEE, REACH, ROHS, CB, LOA
