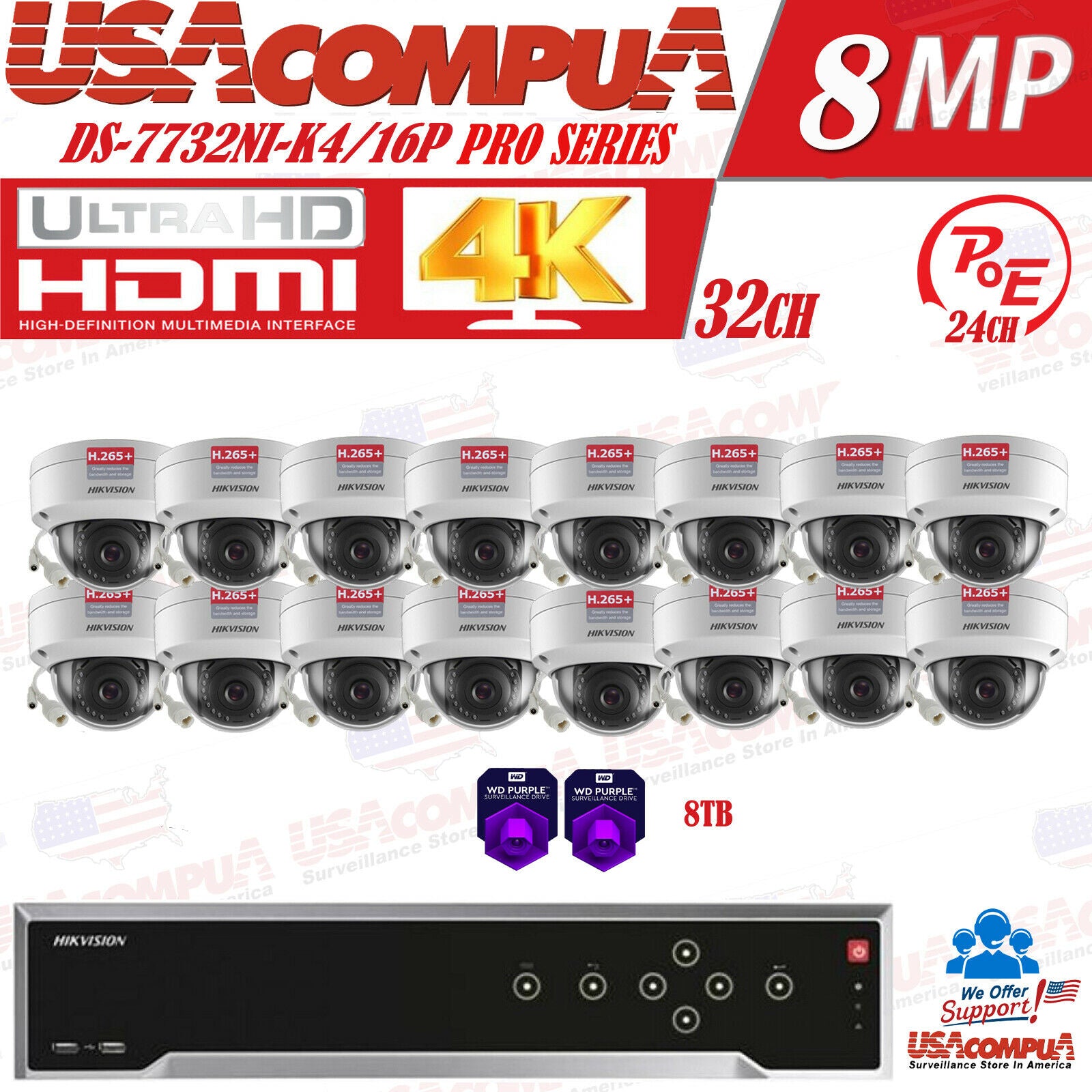

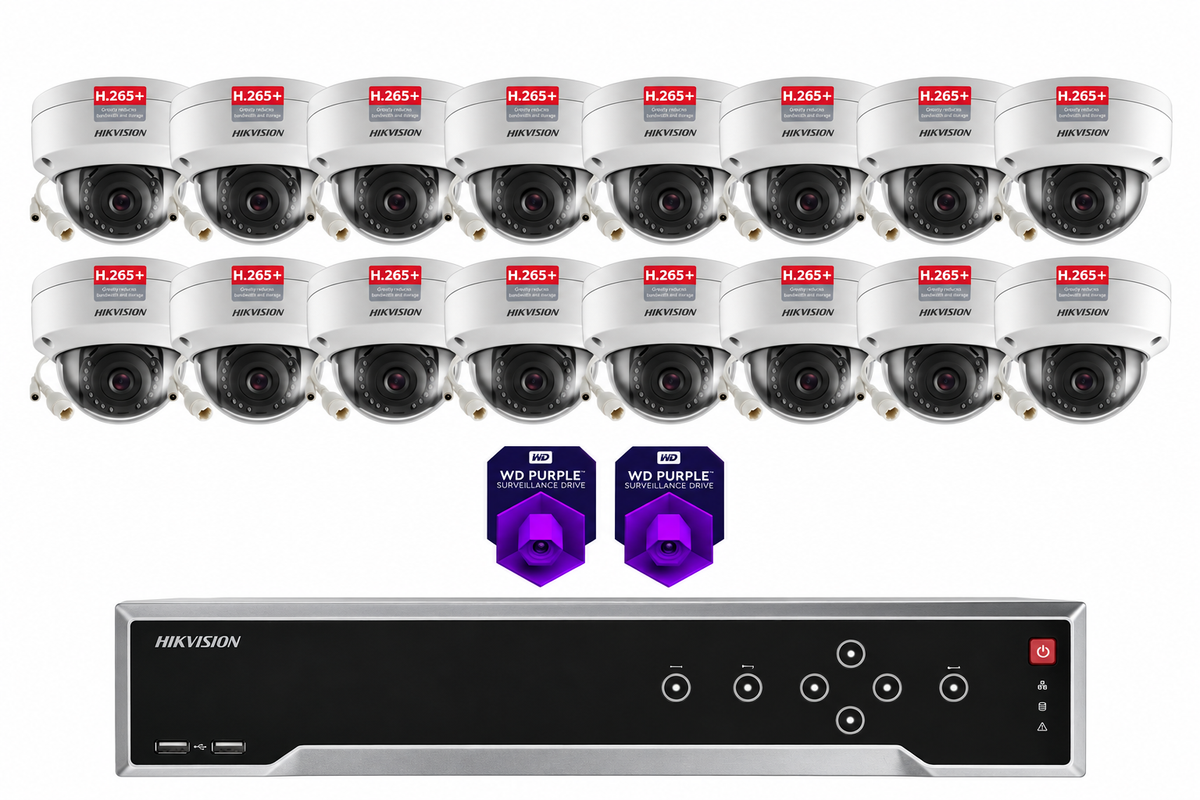

HIKVISION 32CH SECURITY SYSTEM NVR KIT PoE VANDAL PROOF 4 MEGAPIXEL WD PURPLE D1

Description

HIKVISION 32CH SECURITY SYSTEM NVR KIT PoE VANDAL PROOF 4 MEGAPIXEL WD PURPLE

HIKVISION 32CH SECURITY SYSTEM NVR KIT PoE VANDAL PROOF 4 MEGAPIXEL WD PURPLE D1

Product form

SKU: 750933698966-QP8

$1,525.94 $1,412.91

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      HIKVISION 32CH SECURITY SYSTEM NVR KIT PoE VANDAL PROOF 4 MEGAPIXEL WD PURPLE

      Total Control, Anywhere

      Total Control, Anywhere

      Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

      📑 Product Data Sheet ▸

      Data sheet PDF

      Product Description

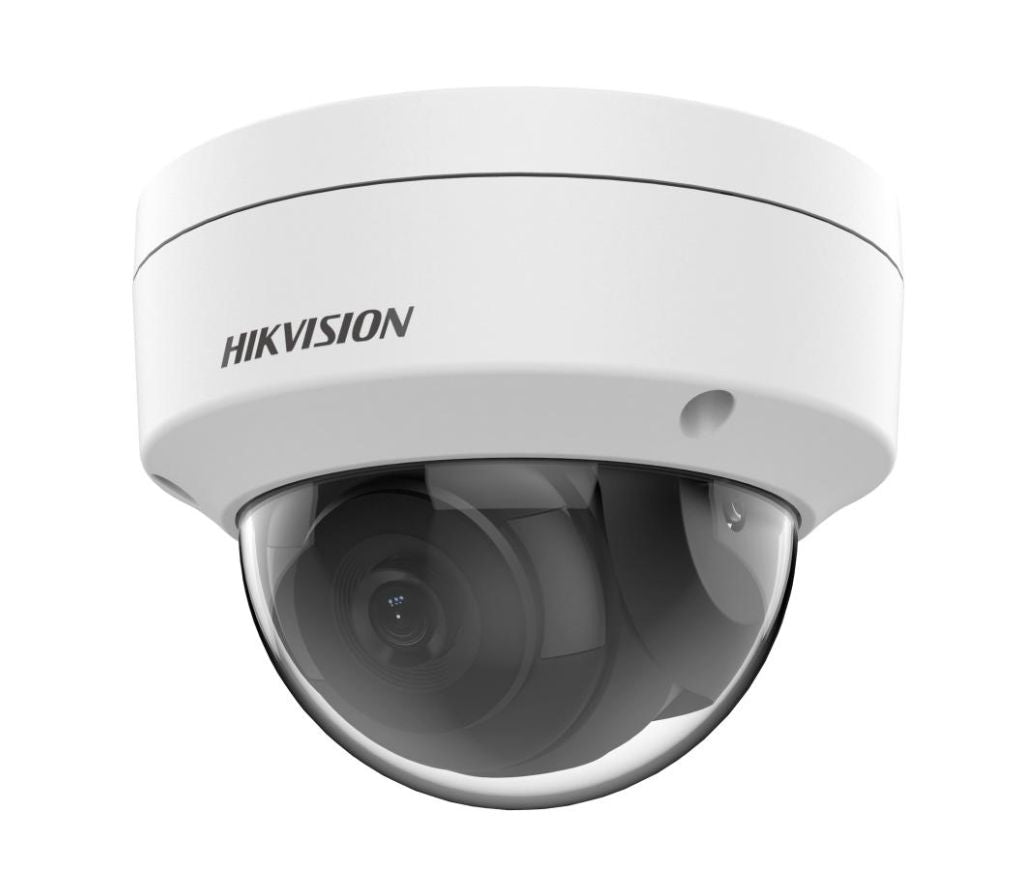

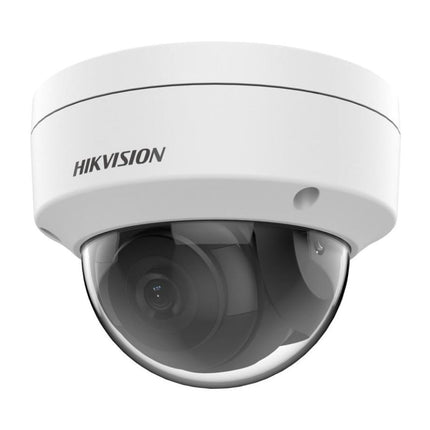

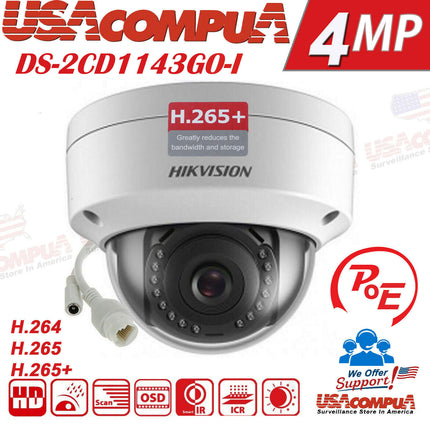

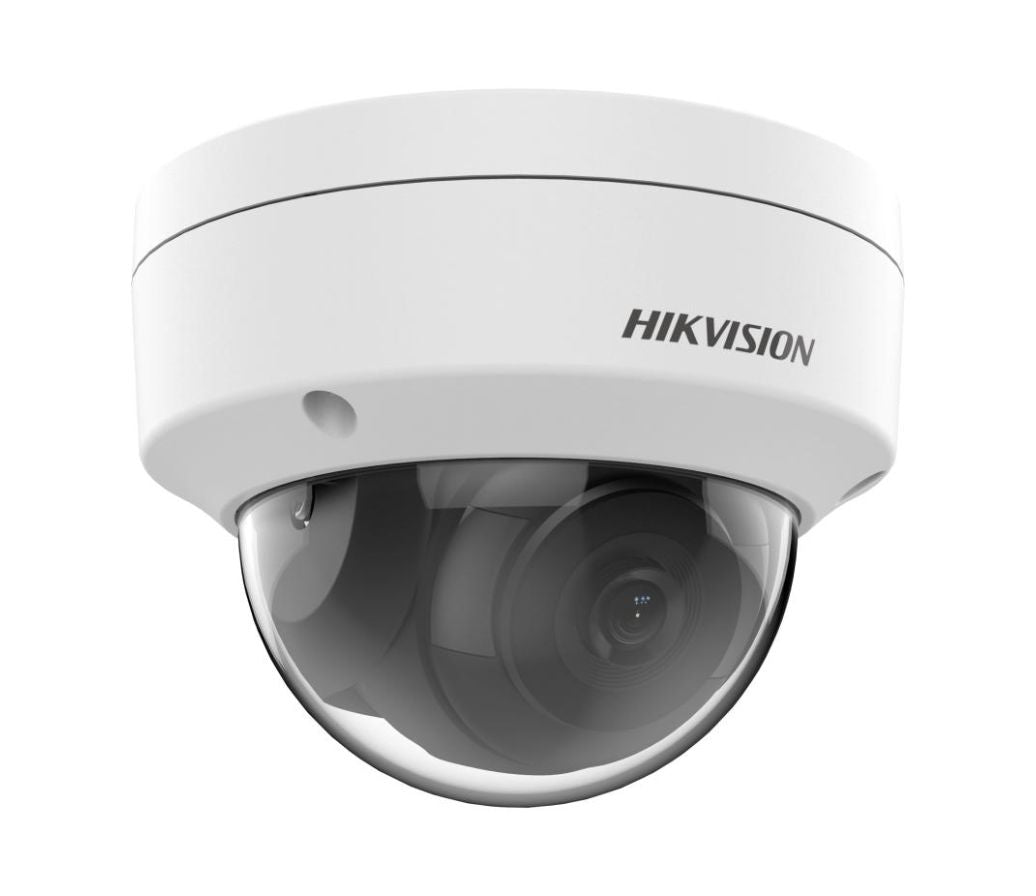

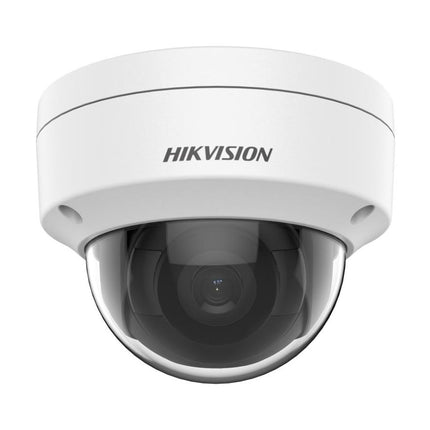

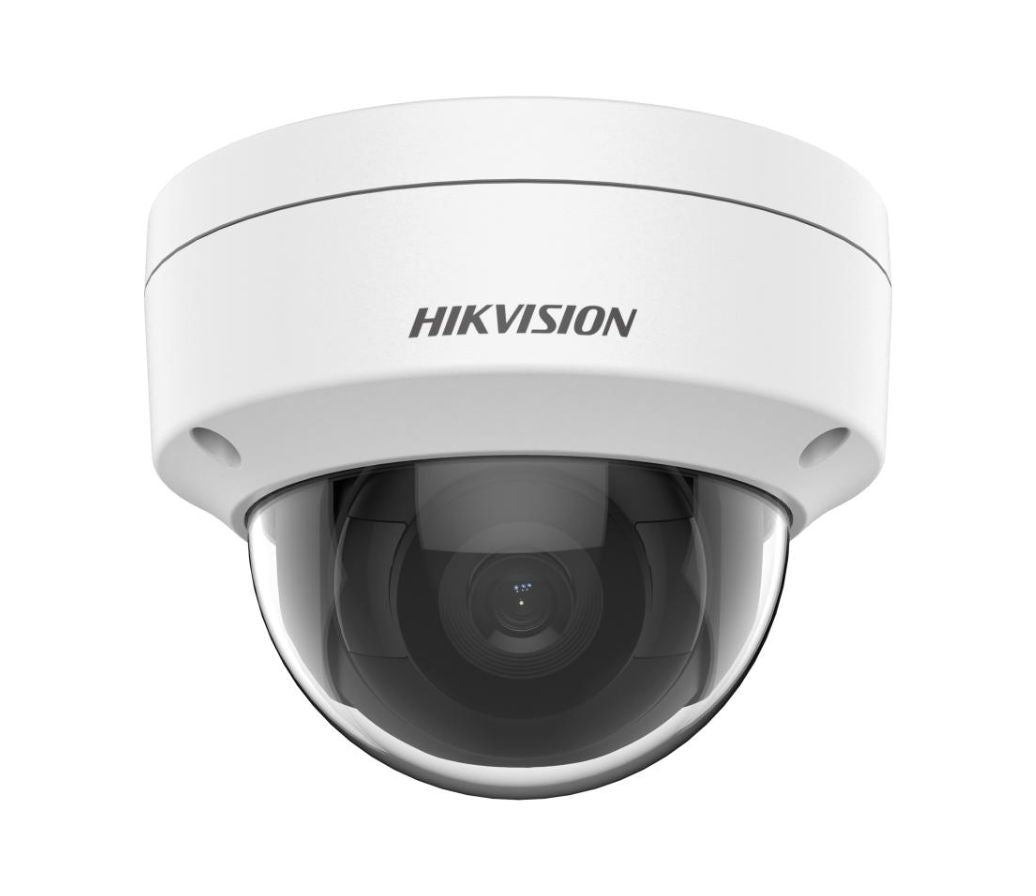

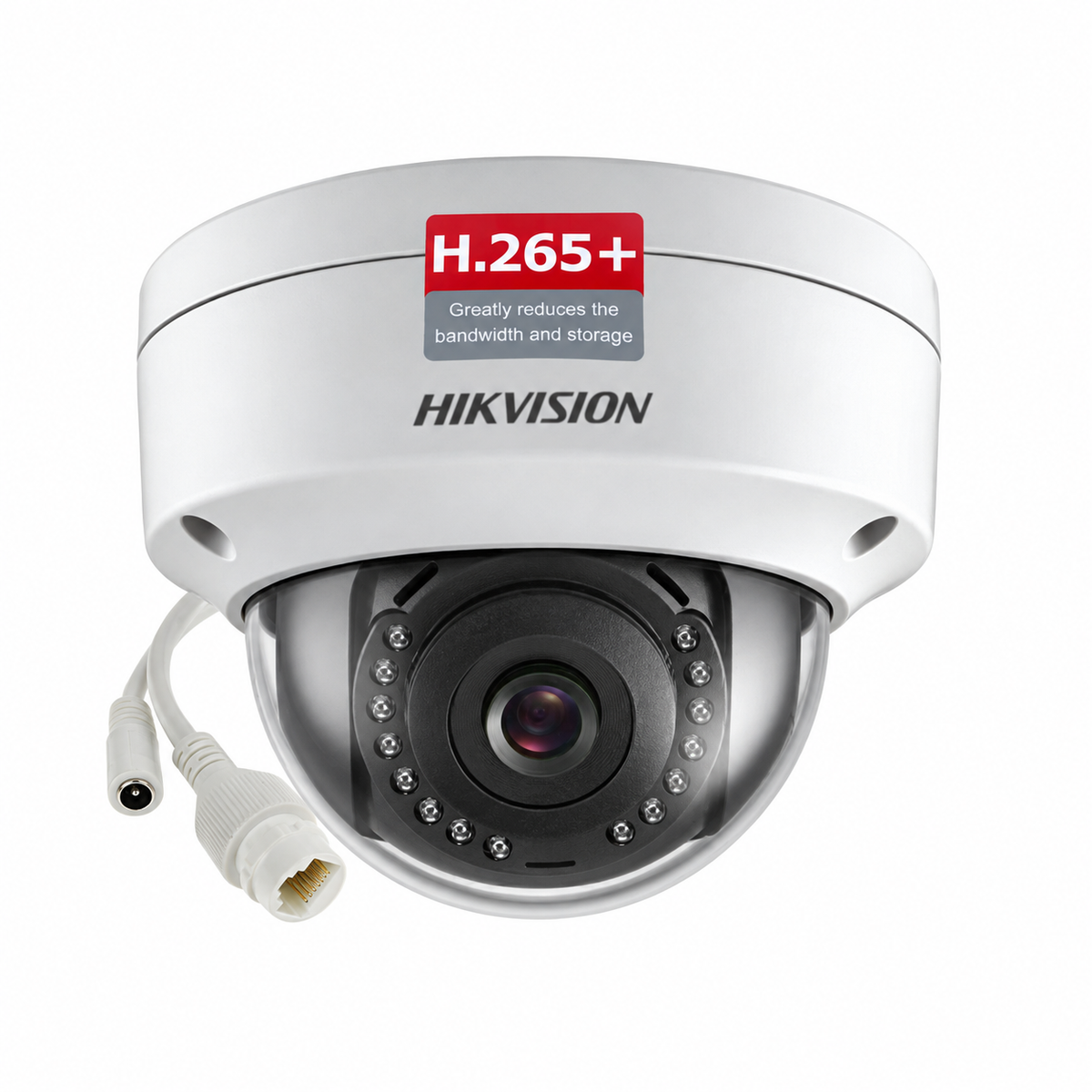

      4MP Fixed Dome Network Camera

      • High quality imaging with 4 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging even with strong back lighting due to 120 dB WDR
      • Water and dust resistant (IP67) and vandal resistant (IK10)
      • EXIR 2.0: advanced infrared technology with long IR range

      Specification

        • Camera
        • Image Sensor1/3" progressive scan CMOS
        • Max. Resolution2560 ? 1440
        • Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
        • Shutter Time1/3 s to 1/100, 000 s
        • Day & NightIR cut filter
        • Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?
        • Lens
        • Focal Length & FOV

          2.8 mm, horizontal FOV 98.0?, vertical FOV 53.1?, diagonal FOV 114.7?

          4 mm, horizontal FOV 78.7?, vertical FOV 43.1?, diagonal FOV 92.3?

        • Lens MountM12
        • FocusFixed
        • ApertureF2.0
        • Lens TypeFixed focal lens, 2.8 and 4 mm optional
        • Iris TypeFixed
        • Illuminator
        • Supplement Light TypeIR
        • Supplement Light RangeUp to 30 m
        • IR Wavelength850 nm
        • Smart Supplement LightYes
        • Video
        • Main Stream

          50 Hz: 20 fps (2560 ? 1440)

          25 fps (1920 ? 1080, 1280 ? 720)

          60 Hz: 20 fps (2560 ? 1440)

          30 fps (1920 ? 1080, 1280 ? 720)

        • Sub-Stream

          50 Hz: 25 fps (640 ? 480, 640 ? 360)

          60 Hz: 30 fps (640 ? 480, 640 ? 360)

        • Video Compression

          Main stream: H.265/H.264/H.264+/H.265+

          Sub-stream: H.265/H.264/MJPEG

        • Video Bit Rate32 Kbps to 8 Mbps
        • H.264 TypeBaseline Profile/Main Profile/High Profile
        • H.265 TypeMain Profile
        • Region Of Interest (ROI)1 fixed region for main stream
        • Network
        • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
        • Simultaneous Live ViewUp to 6 channels
        • APIOpen Network Video Interface, ISAPI
        • User/HostUp to 32 users. 3 levels: administrator, operator and user
        • ClientiVMS-4200, Hik-Connect
        • Web Browser

          Plug-in required live view: IE 10+

          Plug-in free live view: Chrome 57.0+, Firefox 52.0+

          Local service: Chrome 57.0+, Firefox 52.0+

        • Image
        • Image Settings

          Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client

          software or web browser

        • Day/Night SwitchAuto, Schedule, Day, Night
        • Wide Dynamic Range (WDR)120 dB
        • Image EnhancementBLC, 3D DNR
        • Interface
        • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
        • Event
        • Basic EventMotion detection, video tampering alarm, exception
        • LinkageUpload to FTP, notify surveillance center, send email
        • General
        • Power

          12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug

          PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

        • Dimension?111 mm ? 82.4 mm (? 4.4" ? 3.2")
        • Package Dimension134 mm ? 134 mm ? 108 mm (5.3" ? 5.3" ? 4.3")
        • WeightApprox. 360 g (0.8 lb.)
        • With Package WeightApprox. 560 g (1.2 lb.)
        • Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
        • Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
        • LanguageEnglish, Ukrainian
        • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
        • Approval
        • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
        • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
        • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
        • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

      Data sheet PDF

      Product Description

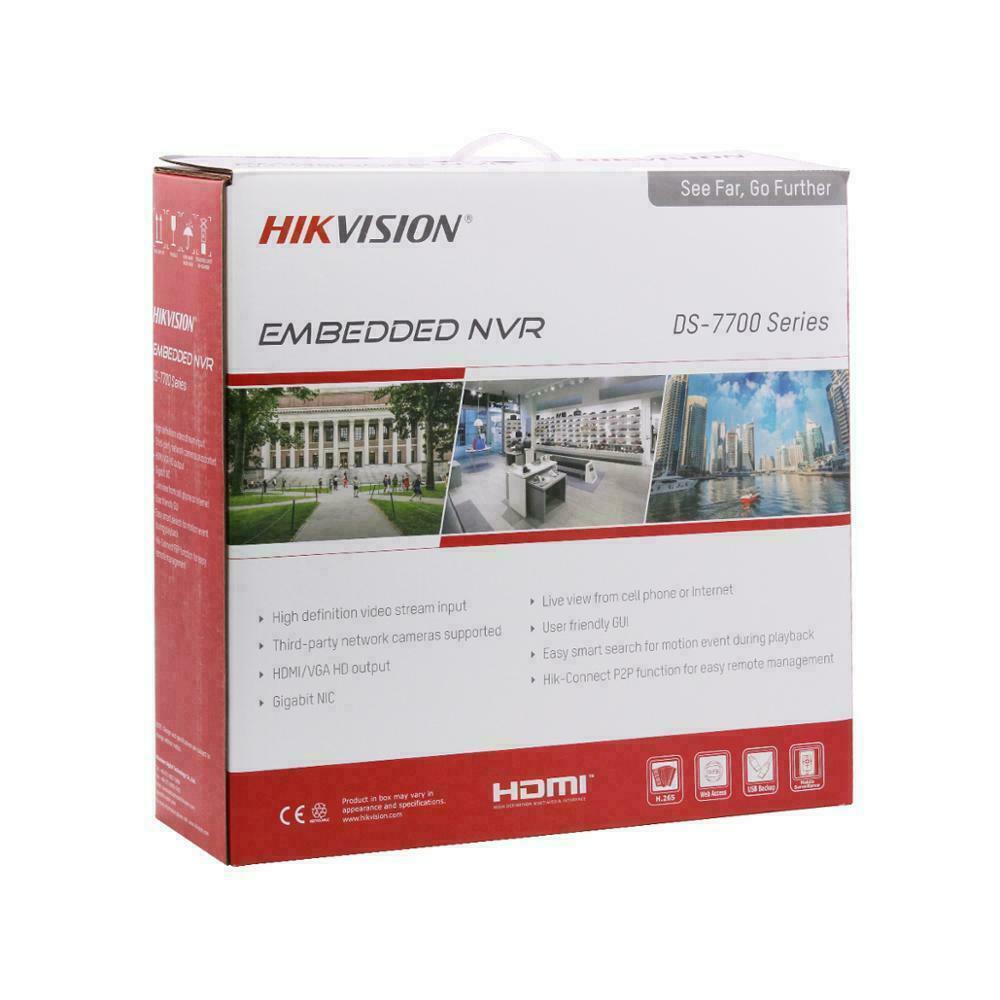

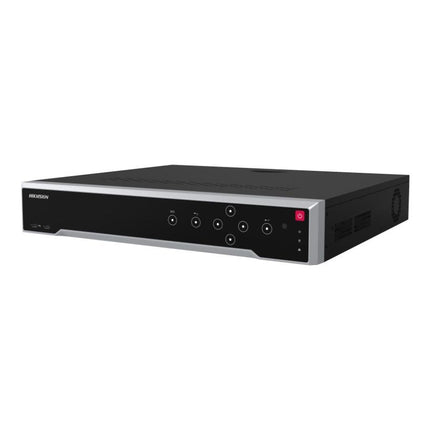

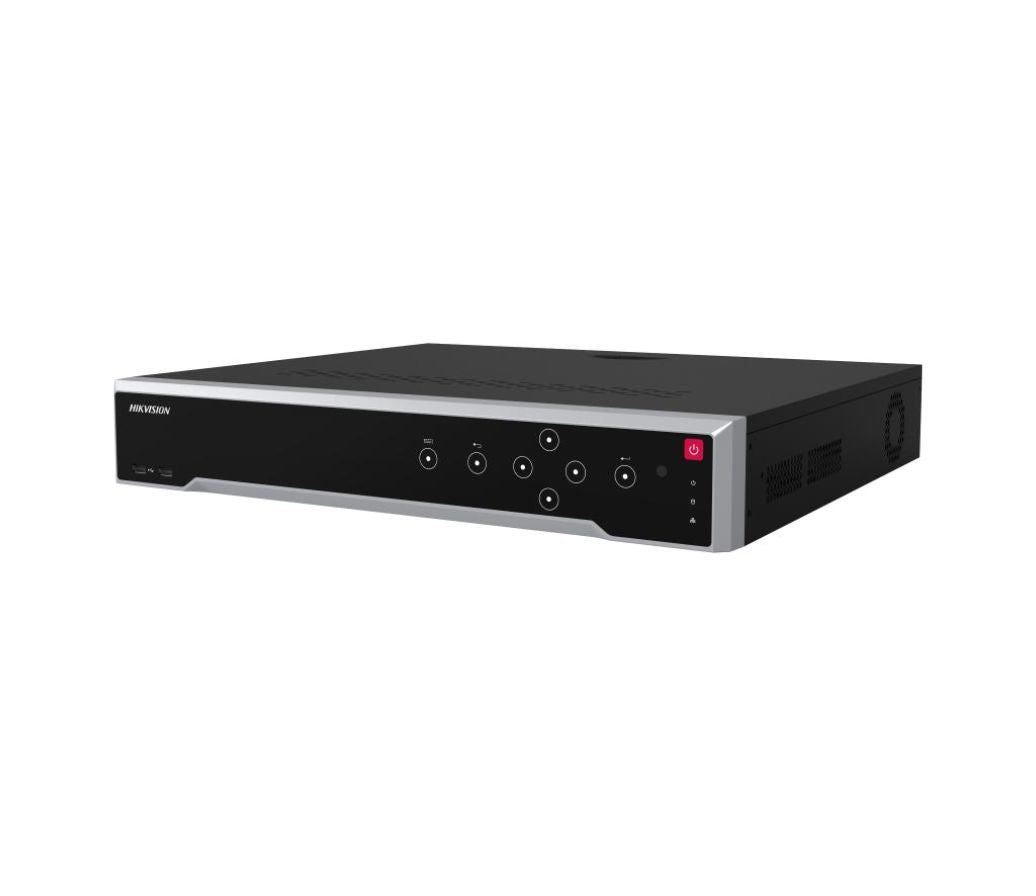

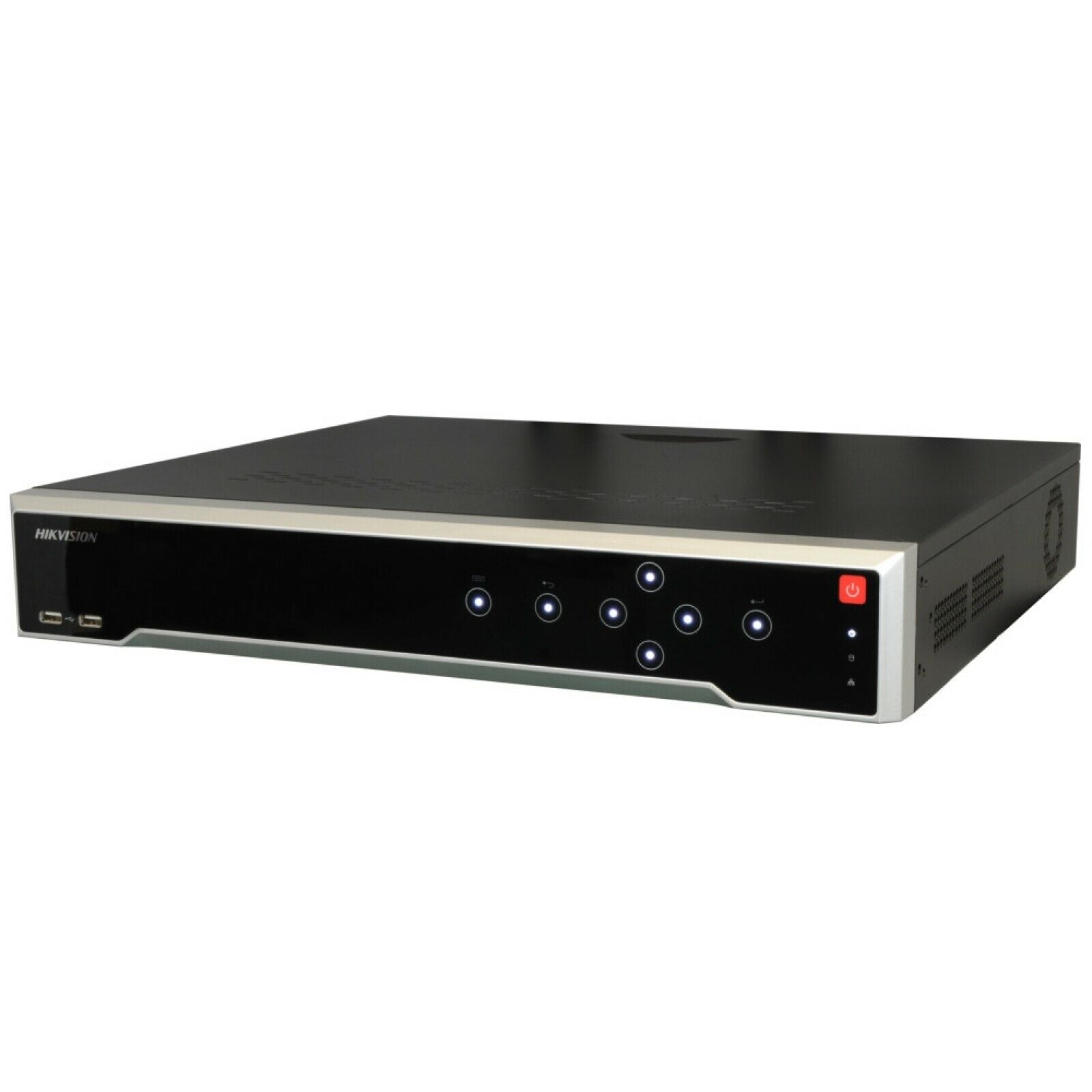

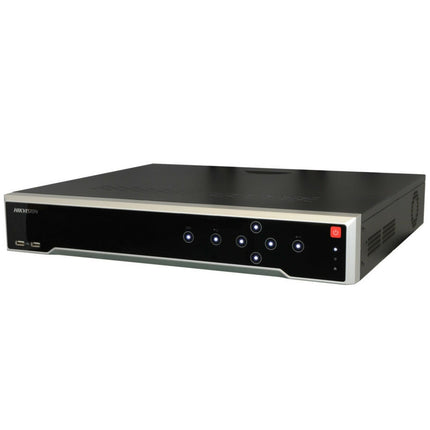

      32ch 1.5U 16 PoE 4K NVR

      • Up to 32ch IP camera inputs
      • H.265+/H.265/H.264+/H.264 video formats
      • Up to 2-ch@8 MP/4ch@4 MP/8ch@1080p decoding capacity
      • Plug & play with 16 power-over-Ethernet (PoE) interfaces
      • Up to 256 Mbps incoming bandwidth

      Specification

        • Video And Audio
        • IP Video Input32ch
        • Incoming Bandwidth256 Mbps
        • Outgoing Bandwidth160 Mbps
        • HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
        • VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
        • Audio Output1-ch, RCA (Linear, 1 K?)
        • Video Output ModeHDMI/VGA independent output
        • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
        • Decoding
        • Decoding FormatH.265/ H.265+/H.264/H.264+
        • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
        • Synchronous Playback16ch
        • Decoding Capability1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4ch@4 MP (30 fps)/8ch@1080p (30 fps)
        • Stream TypeVideo, Video & Audio
        • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
        • Network
        • Remote Connection128ch
        • Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
        • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
        • PoE
        • Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
        • Power? 200 W
        • StandardIEEE 802.3 af/at
        • Auxiliary Interface
        • Serial Interface2 RS-485 (half-duplex), 1 RS-232
        • SATA4 SATA interfaces
        • CapacityUp to 10 TB capacity for each HDD
        • Alarm In/Out16/ 4 (16/9 is optional)
        • USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
        • Ctrl 12VN/A (optional to support)
        • DC 12VN/A (optional to support)
        • General
        • Power Supply100 to 240 VAC, 50 to 60Hz
        • Consumption? 20 W (without HDD and PoE off)
        • Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
        • Working Humidity10% to 90%
        • Dimension (W ? D ? H)445 ? 400 ? 71 mm ( 17.5"? 15.7" ? 2.8")
        • Weight? 5 kg (without HDD, 11 lb.)
        • Certification
        • FCCPart 15 Subpart B, ANSI C63.4-2014
        • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
        • Obtained CertificationCE, KC, WEEE, REACH, ROHS, CB, LOA
