Data sheet PDF

Product Description

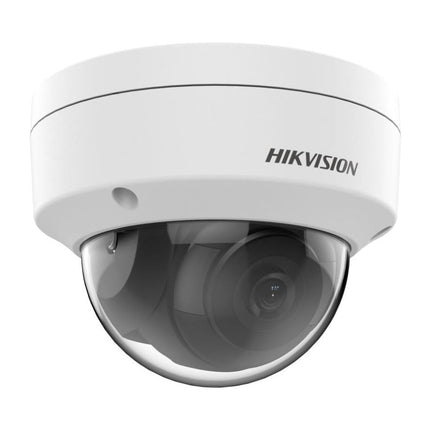

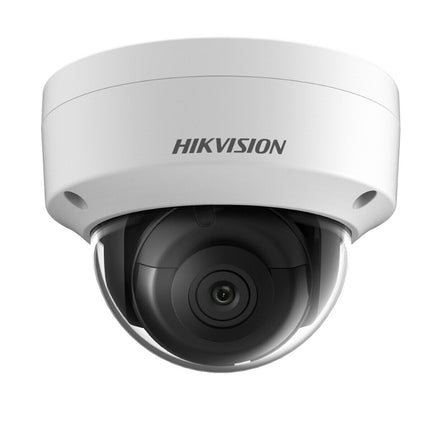

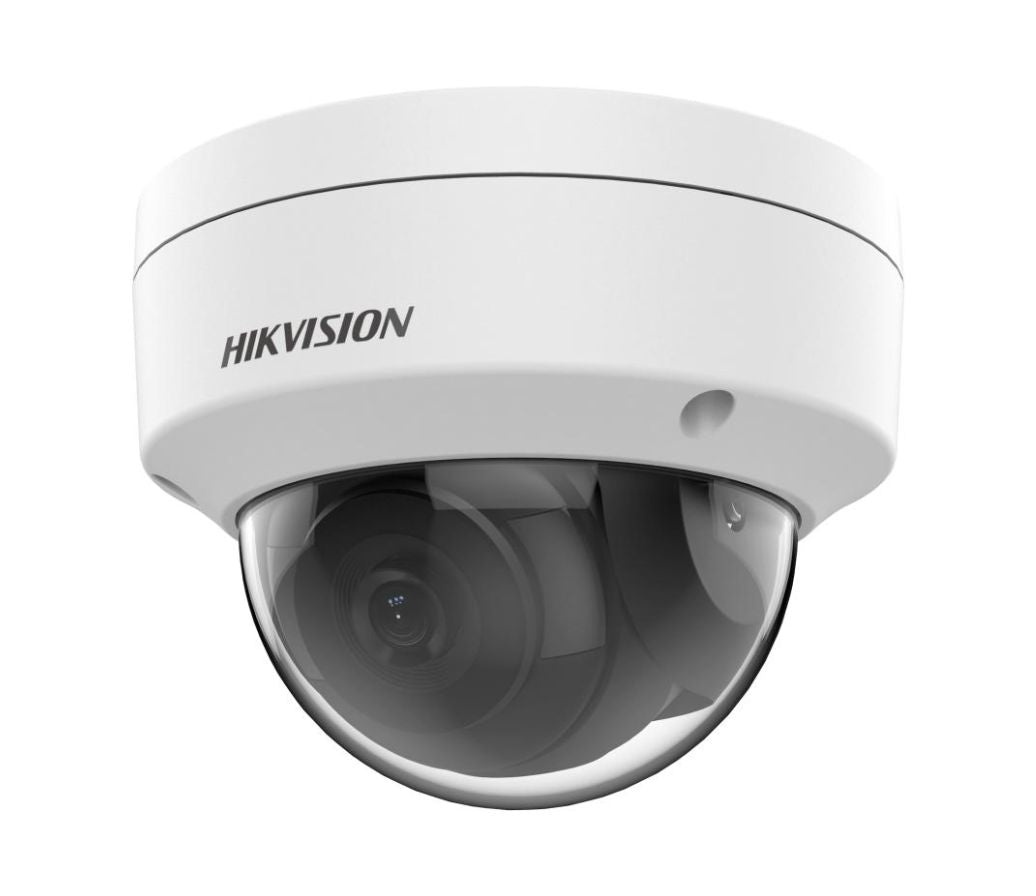

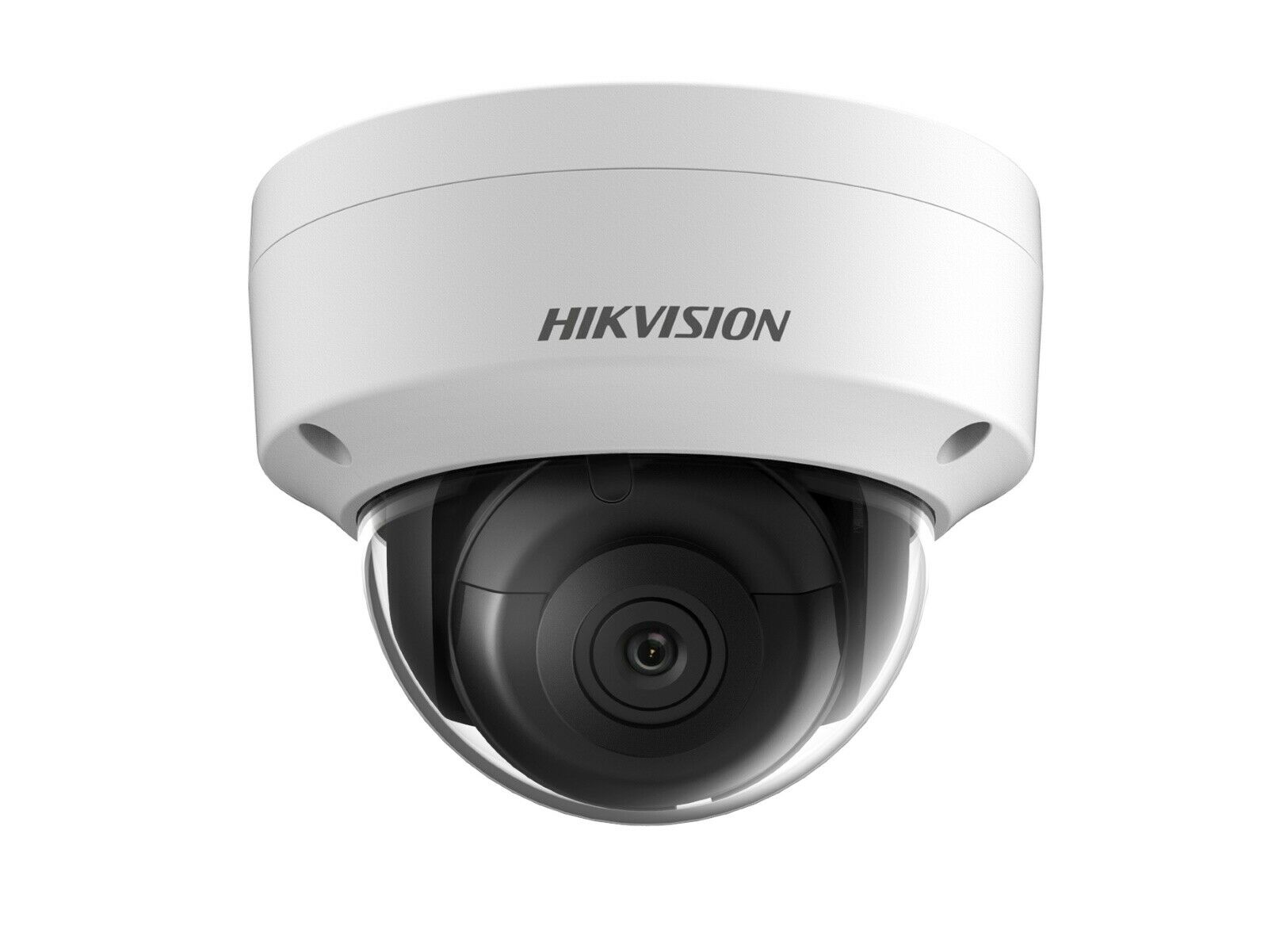

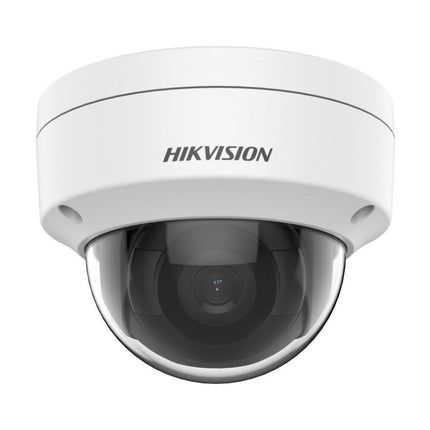

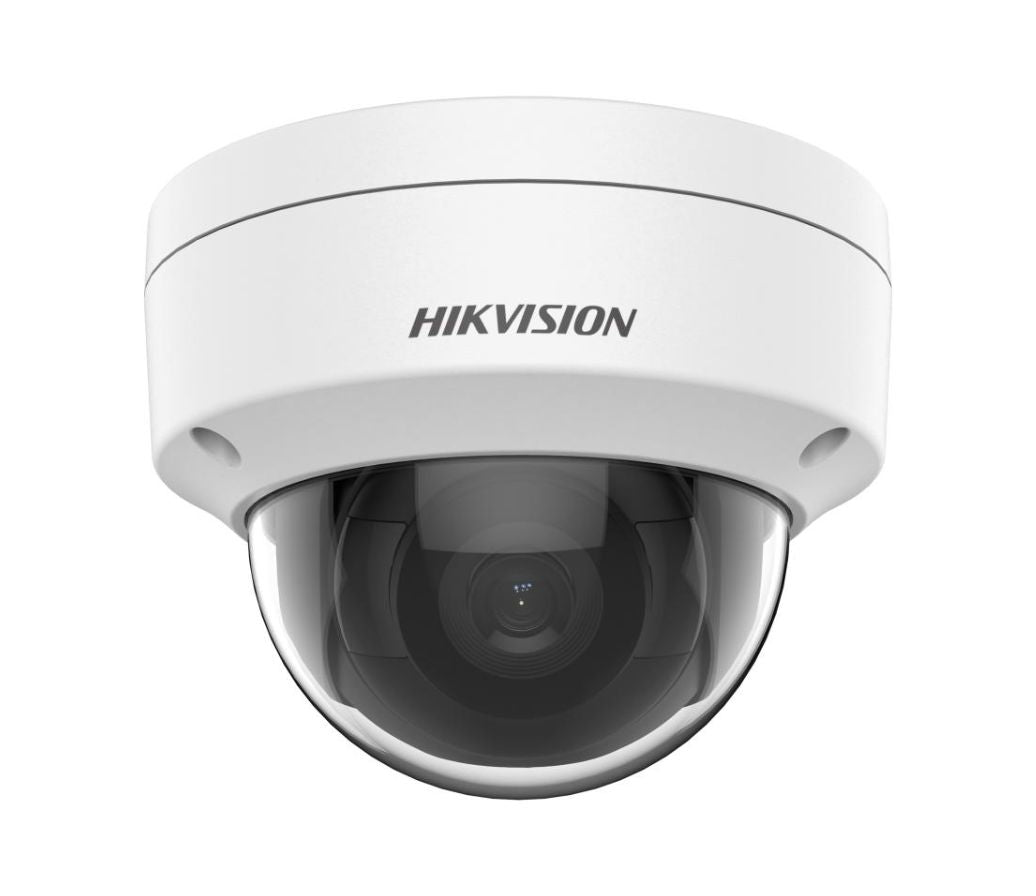

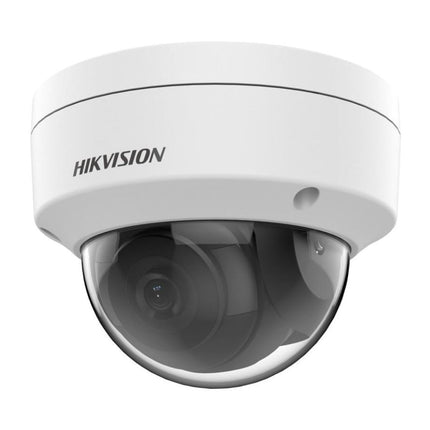

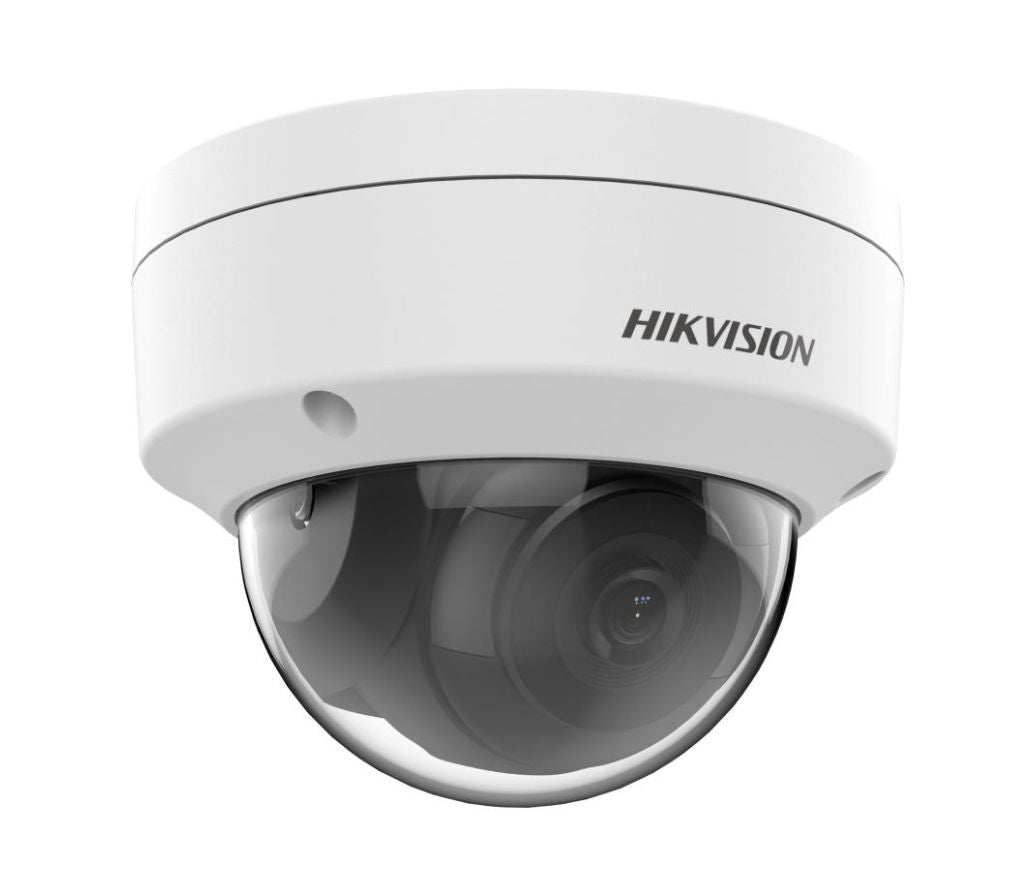

4MP Fixed Dome Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67) and vandal resistant (IK10)
• EXIR 2.0: advanced infrared technology with long IR range

Specification

• Camera
• Image Sensor1/3" progressive scan CMOS
• Max. Resolution2560 ? 1440
• Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?
• Lens
• Focal Length & FOV

  2.8 mm, horizontal FOV 98.0?, vertical FOV 53.1?, diagonal FOV 114.7?

  4 mm, horizontal FOV 78.7?, vertical FOV 43.1?, diagonal FOV 92.3?

• Lens MountM12
• FocusFixed
• ApertureF2.0
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Iris TypeFixed
• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• IR Wavelength850 nm
• Smart Supplement LightYes
• Video
• Main Stream

  50 Hz: 20 fps (2560 ? 1440)

  25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz: 20 fps (2560 ? 1440)

  30 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (640 ? 480, 640 ? 360)

  60 Hz: 30 fps (640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region for main stream
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Settings

  Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client

  software or web browser

• Day/Night SwitchAuto, Schedule, Day, Night
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, 3D DNR
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Event
• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email
• General
• Power

  12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension?111 mm ? 82.4 mm (? 4.4" ? 3.2")
• Package Dimension134 mm ? 134 mm ? 108 mm (5.3" ? 5.3" ? 4.3")
• WeightApprox. 360 g (0.8 lb.)
• With Package WeightApprox. 560 g (1.2 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Approval
• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Data sheet PDF

Product Description

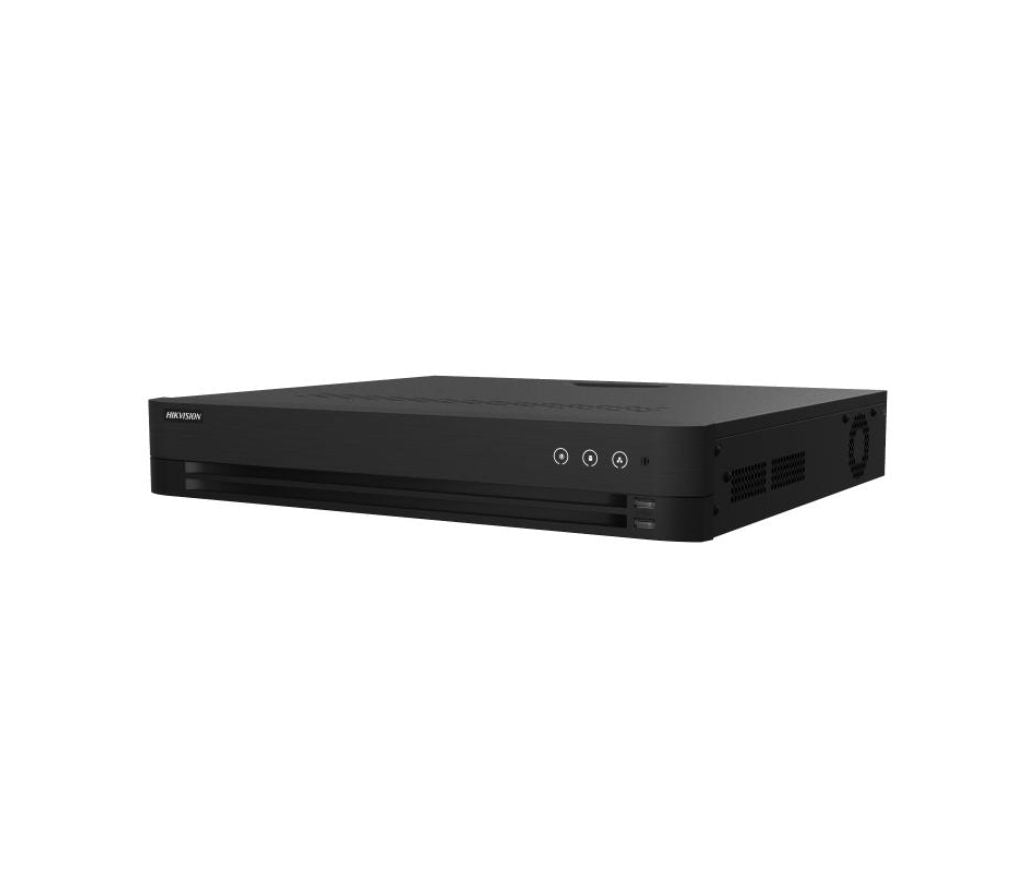

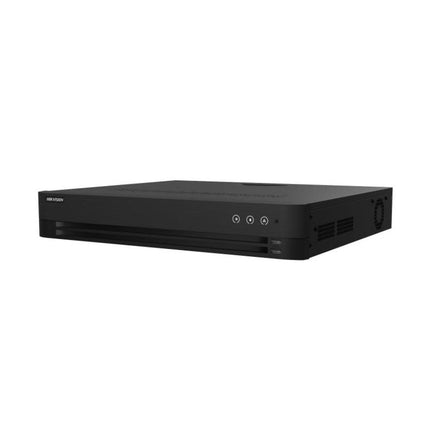

DS-7716NI-Q4/16ports NVR Key Feature ? Up to 16ch IP camera inputs ? H.265+/H.265/H.264+/H.264 video formats ? Up to 1-ch@8 MP or 6-ch@1080p decoding capacity ? Up to 160 Mbps incoming bandwidth ? 4 HDDs for continuous video recording
? Specification Video and Audio IP Video Input 16ch Up to 8 MP resolution Incoming Bandwidth 160 Mbps Outgoing Bandwidth 80 Mbps HDMI Output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output 1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz Video Output Mode HDMI/VGA simultaneous output Audio Output 1-ch, RCA (Linear, 1 K?) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k ?) Decoding Decoding Format H.265/H.265+/H.264/H.264+ Decoding Capability 1-ch@8 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. Synchronous playback 16ch Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Stream Type Video, Video & Audio Audio Compression G.711ulaw/G.711alaw/G.726 Network Remote Connection 64 Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power ? 150 W Supported standard IEEE 802.3 af/at Auxiliary Interface SATA 4, SATA interface Capacity Up to 8 TB capacity for each disk Serial Interface 1 RS-485 (half-duplex), 1 RS-232 USB Interface Front panel: 2 ? USB 2.0; Rear panel: 1 ? USB 2.0 Alarm In/Out 16/4 General Power Supply 100 to 240 VAC, 50 to 60 Hz Consumption ? 15 W (without HDD and PoE off) Working Temperature -10 ?C to 55 ?C (14 ?F to 131 ?F) Working Humidity 10 % to 90 % Dimension (W ? D ? H) 445 ? 400 ? 75 mm (17.5" ? 15.7" ? 3.0") Weight ? 5 kg (without HDD, 11 lb.) Certification FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
