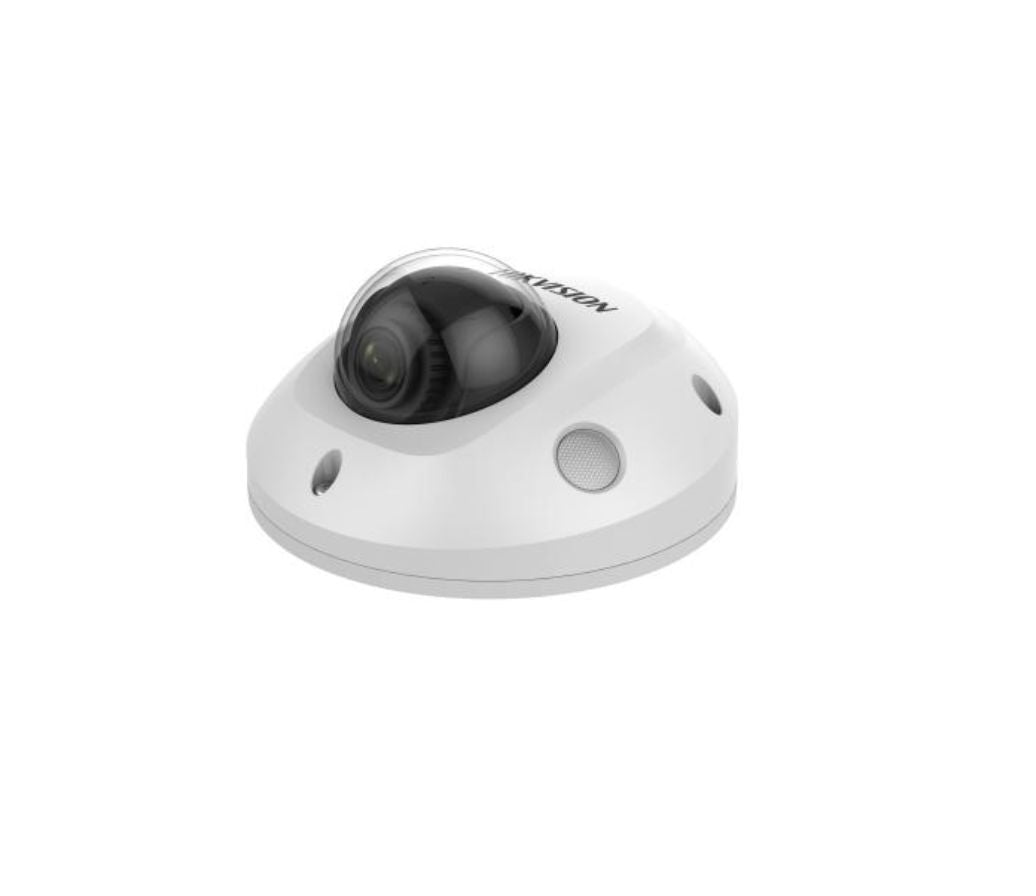

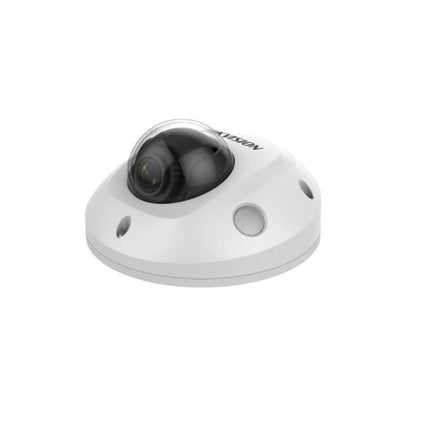

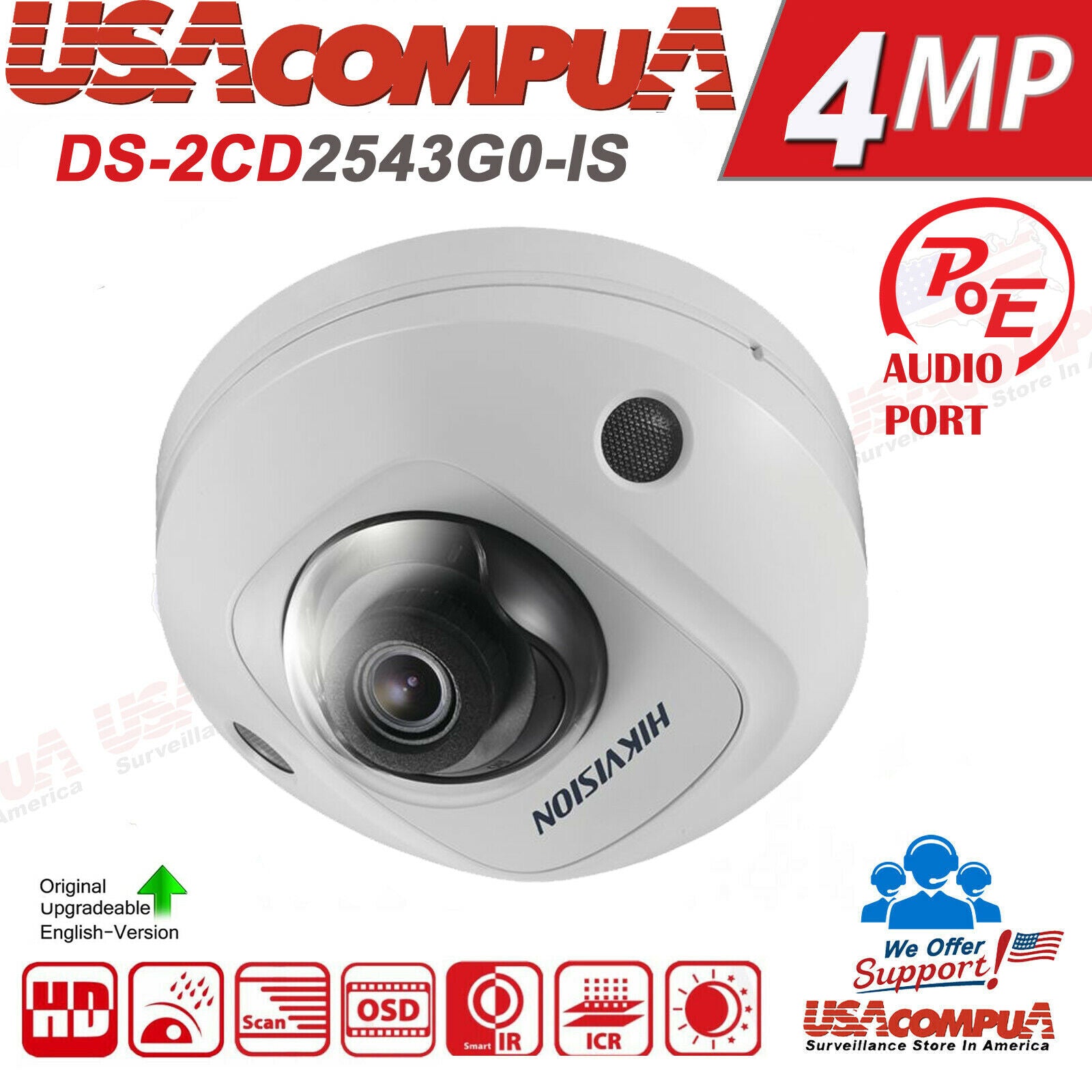

HIKVISION 4MP POE IP CAMERA DS-2CD2543G0-IWS Wireless Built-inMic H.265+

Description

HIKVISION 4MP POE IP CAMERA DS-2CD2543G0-IWS Wireless Built-inMic H.265+


This listing includes:

  • ¬†(1) IP/POE CAMERA:¬†DS-2CD2543G0-IS


DS-2CD2543G0-IS  view data sheet

4 MP Outdoor WDR Fixed Mini Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP66) and vandal proof (IK08)
  • -W: Wi-Fi connection
  • -S: audio and alarm interface available
  • Built-in microphone for real-time audio security
  • Mini size suitable for limited space


HIKVISION 4MP POE IP CAMERA DS-2CD2543G0-IWS Wireless Built-inMic H.265+

Product form

SKU: 500426845462-EN1

$117.69 $106.99

Out of stock

This item is available for pre-order!
Ships as soon as stock arrives.
    • Guaranteed secure & safe checkout.

      paypal

    Description

    HIKVISION 4MP POE IP CAMERA DS-2CD2543G0-IWS Wireless Built-inMic H.265+


    This listing includes:

    • ¬†(1) IP/POE CAMERA:¬†DS-2CD2543G0-IS


    DS-2CD2543G0-IS  view data sheet

    4 MP Outdoor WDR Fixed Mini Dome Network Camera

    • High quality imaging with 4 MP resolution
    • Efficient H.265+ compression technology
    • Clear imaging against strong back light due to 120 dB true WDR technology
    • Water and dust resistant (IP66) and vandal proof (IK08)
    • -W: Wi-Fi connection
    • -S: audio and alarm interface available
    • Built-in microphone for real-time audio security
    • Mini size suitable for limited space


    Network Video Recorders

    Data sheet PDF

    Product Description

    4 MP Outdoor WDR Fixed Mini Dome Network Camera

    • High quality imaging with 4 MP resolution
    • Efficient H.265+ compression technology
    • Clear imaging against strong back light due to 120 dB true WDR technology
    • Water and dust resistant (IP66) and vandal proof (IK08)
    • -W: Wi-Fi connection
    • -S: audio and alarm interface available
    • Built-in microphone for real-time audio security
    • Mini size suitable for limited space
    Specification
      • Camera
      • Image Sensor1/3" Progressive Scan CMOS
      • Min. IlluminationColor: 0.018 lux @(F1.6, AGC ON), 0 lux with IR on
      • Shutter Speed1/3 s to 1/100,000 s
      • Slow ShutterYes
      • Wide Dynamic Range120 dB
      • Day & NightIR Cut Filter
      • Angle AdjustmentPan: -30? to 30?, tilt: 0? to 75?, rotate: 0? to 360?
      • Lens
      • Lens Type2.8, 4, 6 mm
      • FOV

        2.8 mm, horizontal FOV: 98?, vertical FOV: 55?, diagonal FOV: 114?

        4 mm, horizontal FOV: 78?, vertical FOV: 42?, diagonal FOV: 93?

        6 mm, horizontal FOV: 48?, vertical FOV: 27?, diagonal FOV: 54?

      • ApertureF1.6
      • Lens MountM12
      • Illuminator
      • IR RangeUp to 10 m
      • Wavelength850 nm
      • Video
      • Max. Resolution2688 ? 1520
      • Main Stream

        50Hz: 25 fps (2688 ? 1520, 2560 ? 1440, 2304 ? 1296, 1920 ? 1080, 1280 ? 720)

        60Hz: 30 fps (2688 ? 1520, 2560 ? 1440, 2304 ? 1296, 1920 ? 1080, 1280 ? 720)

      • Sub-Stream

        50Hz: 25 fps (640 ? 480, 640 ? 360, 320 ? 240)

        60Hz: 30 fps (640 ? 480, 640 ? 360, 320 ? 240)

      • Third Stream

        50Hz: 25 fps (1280 ? 720, 640 ? 360, 352 ? 288)

        60Hz: 30 fps (1280 ? 720, 640 ? 360, 352 ? 240)

      • Video Compression

        Main stream: H.265/H.264

        Sub-stream: H.265/H.264/MJPEG

        Third stream: H.265/H.264

      • Video Bit Rate32 Kbps to 16 Mbps
      • H.264 TypeMain Profile/High Profile
      • H.265 TypeMain Profile
      • H.264+Main stream supports
      • H.265+Main stream supports
      • Scalable Video Coding (SVC)Support H.264 and H.265 encoding
      • Audio
      • Environment Noise FilteringYes
      • Audio Sampling Rate16 kHz, 32kHz, 44.1kHz, 48kHz
      • Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
      • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
      • Network
      • Simultaneous Live ViewUp to 6 channels
      • APIONVIF (PROFILE S, PROFILE G), ISAPI
      • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
      • User/HostUp to 32 users. 3 levels: administrator, operator and user
      • Network StorageSupport MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
      • Client

        Wired network: Hik-Connect, iVMS-4200, Hik-Central

        Wi-Fi: iVMS-4200, Hik-Central

        *Wi-Fi connection with Hik-Connect directly is not possible.

      • Web Browser

        Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

        Plug-in free live view: Chrome 45.0+, Firefox 52.0+

      • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
      • Wi-Fi
      • Encryption Mode-W: WPA, WPA2
      • Wi-Fi Protocol-W: IEEE 802.11b/g/n
      • Frequency Range-W: 2.412 GHz to 2.4835 GHz
      • Channel Bandwidth-W: 20 MHz
      • Transfer Rate

        -W:

        11b: 11 Mbps

        11g: 54 Mbps

        11n: up to 150 Mbps

      • Wireless Range-W: Up to 50 m (The performance varies based on actual environment)
      • Image
      • Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In (-S model)
      • DNR3D DNR
      • Image EnhancementBLC/3D DNR/HLC
      • Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
      • Interface
      • Audio

        -S:

        2 inputs: line in, or mic in (built-in microphone)

        1 output: line out, mono sound, terminal block

      • Alarm

        -S:

        1 input: alarm in

        1 output: alarm out (max. 12 VDC, 30 mA), terminal block

      • On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
      • Hardware ResetYes
      • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
      • Event
      • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
      • Smart EventLine crossing detection, intrusion detection, face detection
      • Face DetectionYes
      • General
      • Linkage Method

        Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email

        Trigger notification: HTTP, ISAPI, alarm output , Email

      • Firmware VersionV5.6.5
      • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
      • Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), humidity 95% or less (non-condensing)
      • Power Supply

        12 VDC ? 25%

        PoE (802.3af, class 3)

      • Power Consumption And Current

        12 VDC, 0.7 A, max. 8.5 W, ?5.5mm coaxial plug power

        PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W

      • Camera Dimension?120 mm ? 67.4 mm (?4.7" ? 2.7")
      • Camera WeightCamera: approx. 400 g (0.9 lb.)
      • Approval
      • ProtectionIngress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
