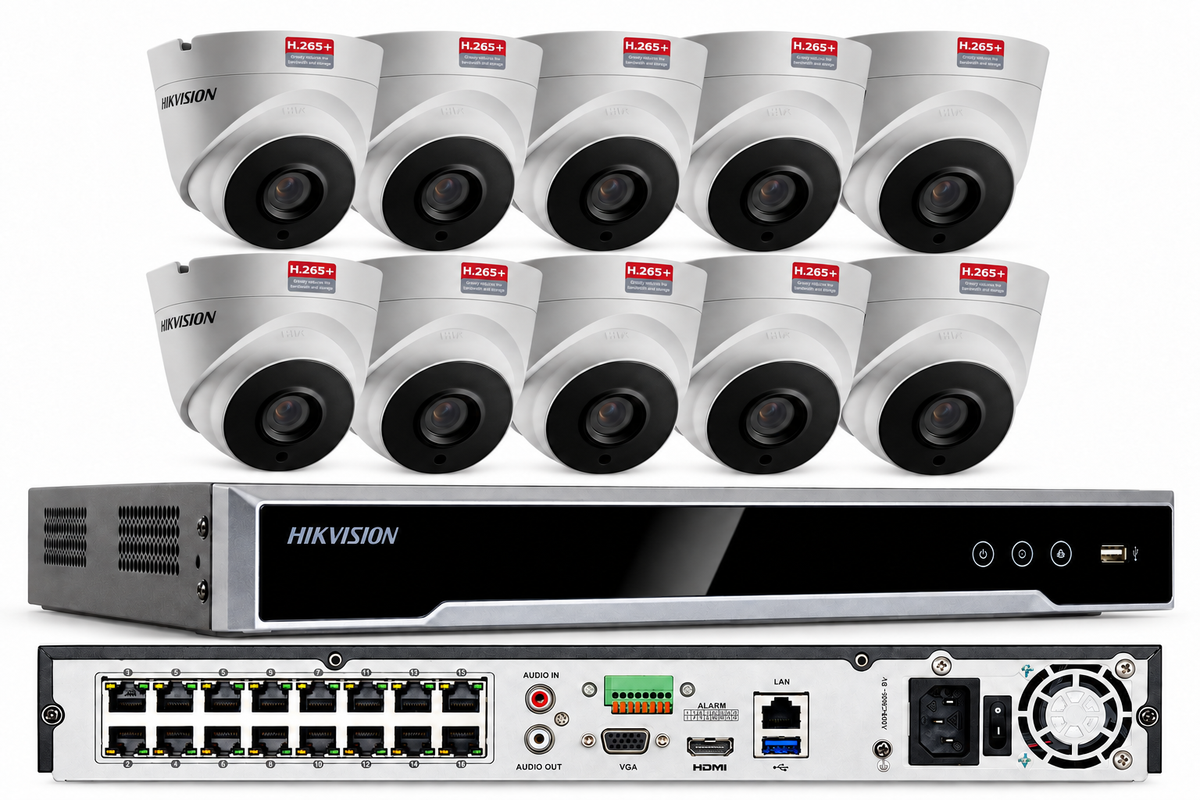

Hikvision KIT 16CH NVR 16 POE /4TB HDD /10 Cameras 4MP IP Security System H.265+

Description

Hikvision KIT 16CH NVR 16 POE /4TB HDD /10 Cameras 4MP IP Security System H.265+


This listing includes:

  •  CAMERA QUANTITY (DS-2CD1343G0-I): 4;6;8;10;12;14;16
  • HARD DRIVE OPTION FOR RECORDER DS-7616NI-Q2/16P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB

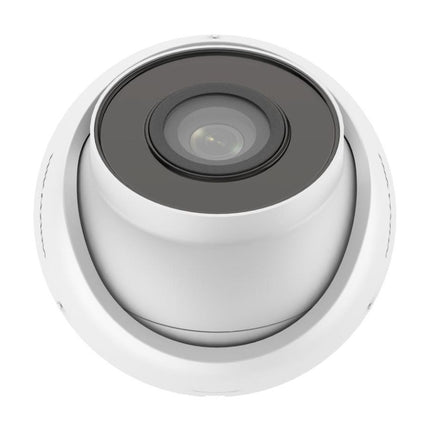

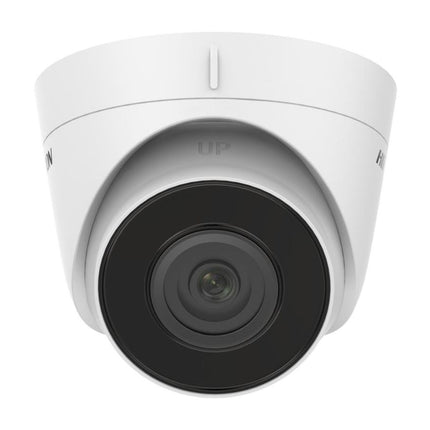

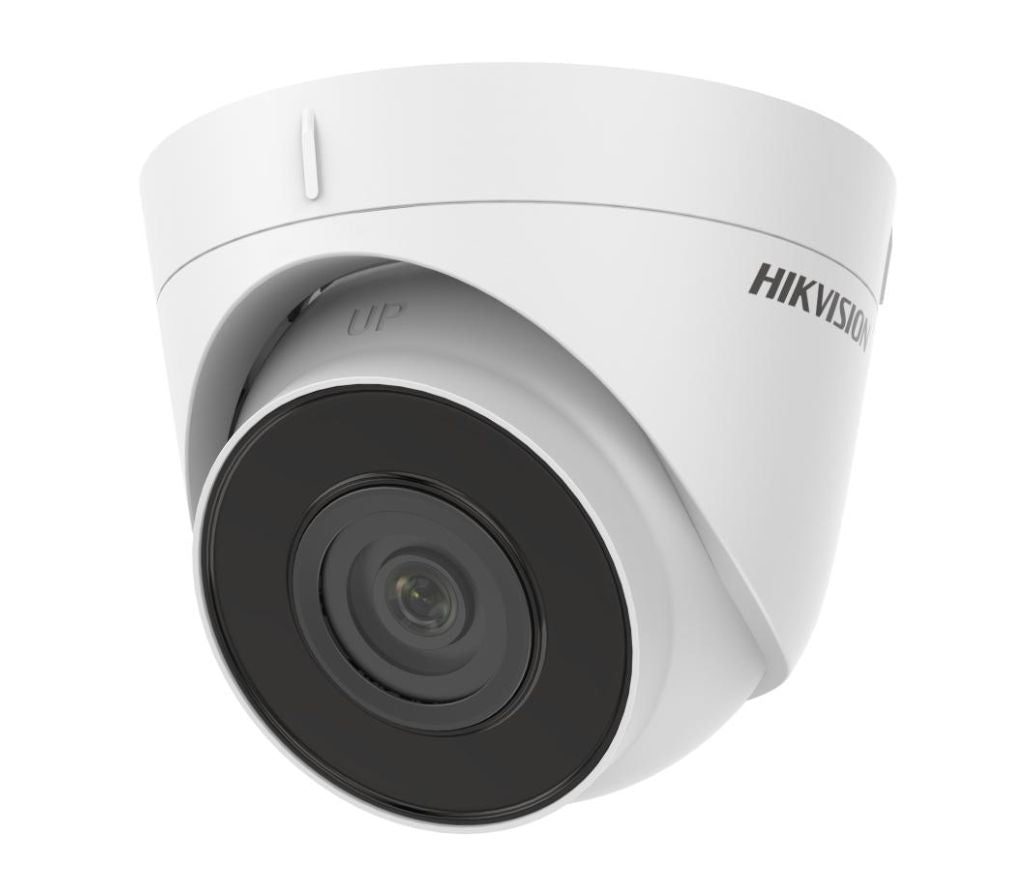

DS-2CD1343G0-I  view data sheet

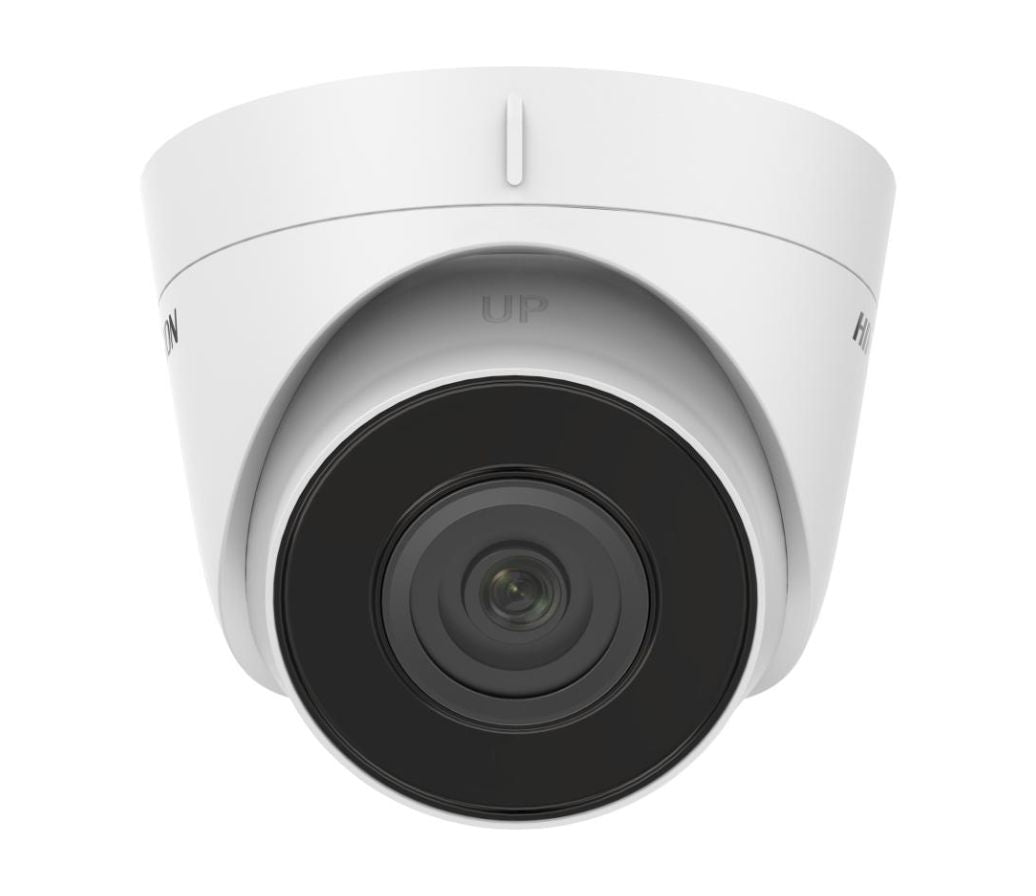

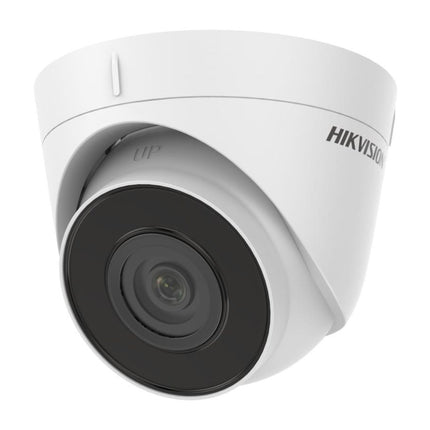

4 MP Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range
  • -UF: Built-in microphone for real-time audio security
  • -UF: Support up to 256 GB SD card storage

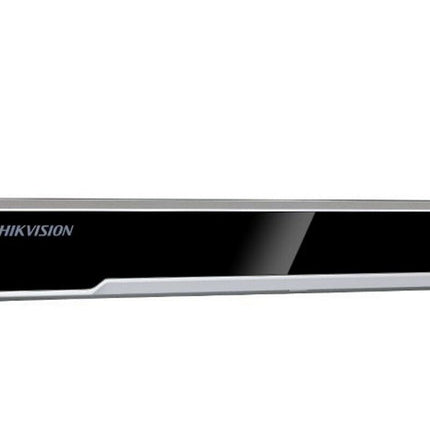

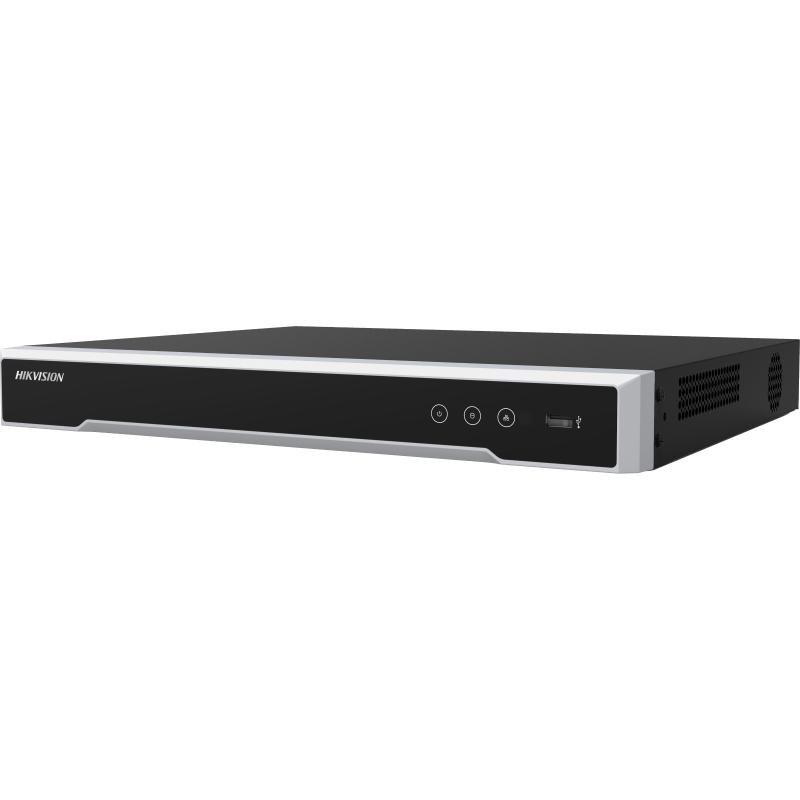

DS-7616NI-Q2/16P  view data sheet

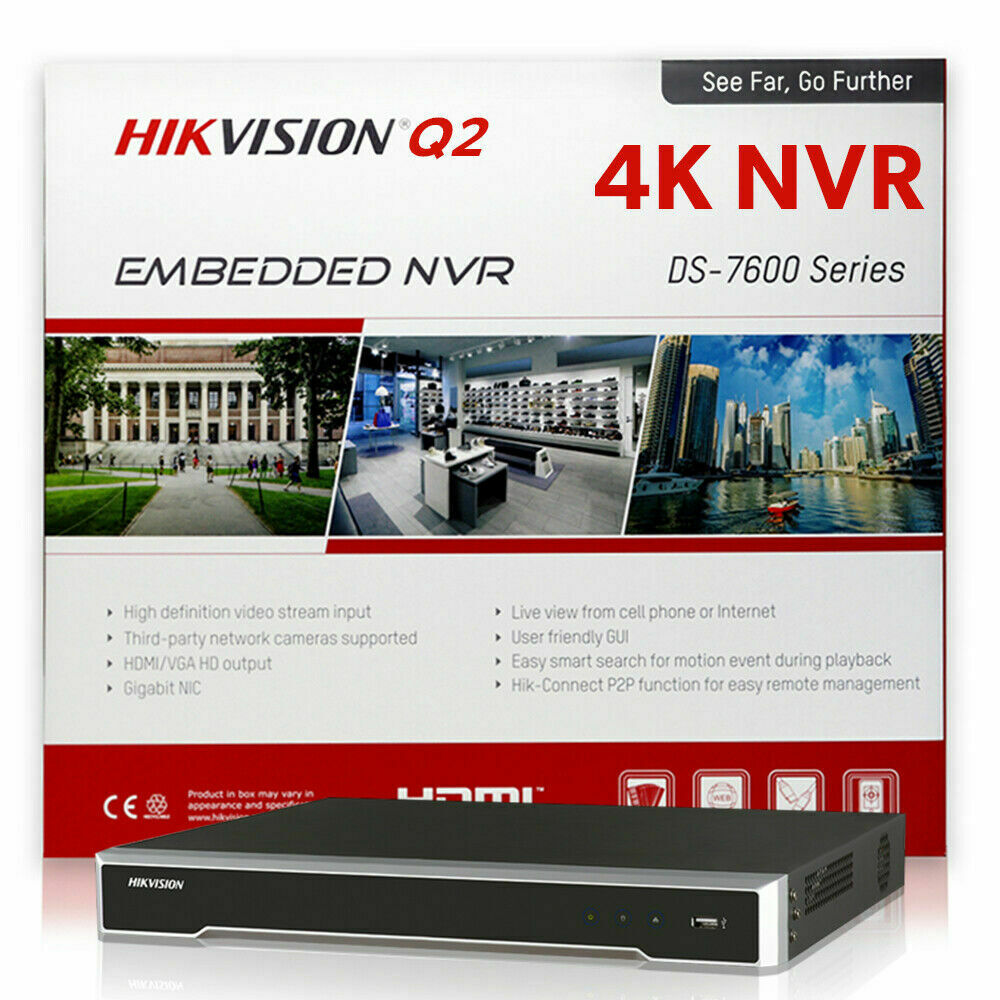

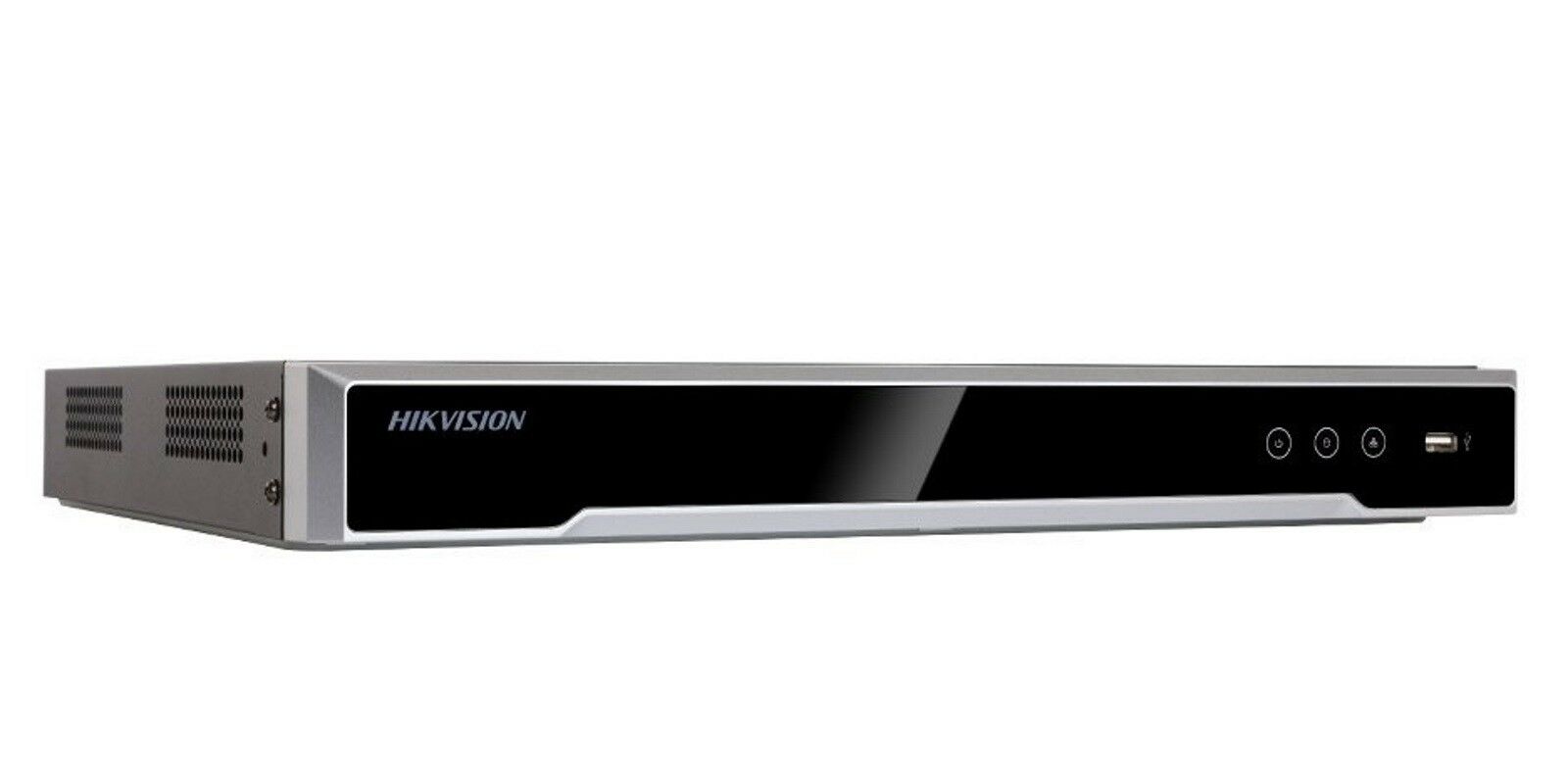

16ch 1U 16 PoE 4K NVR

  • Up to 16ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
  • Up to 160 Mbps incoming bandwidth

Hikvision KIT 16CH NVR 16 POE /4TB HDD /10 Cameras 4MP IP Security System H.265+

Product form

SKU: 396643668966-QP4

$698.66 $652.95

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      Hikvision KIT 16CH NVR 16 POE /4TB HDD /10 Cameras 4MP IP Security System H.265+


      This listing includes:

      •  CAMERA QUANTITY (DS-2CD1343G0-I): 4;6;8;10;12;14;16
      • HARD DRIVE OPTION FOR RECORDER DS-7616NI-Q2/16P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB


      DS-2CD1343G0-I  view data sheet

      4 MP Fixed Turret Network Camera

      • High quality imaging with 4 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging even with strong back lighting due to 120 dB WDR
      • Water and dust resistant (IP67)
      • EXIR 2.0: advanced infrared technology with long IR range
      • -UF: Built-in microphone for real-time audio security
      • -UF: Support up to 256 GB SD card storage


      DS-7616NI-Q2/16P  view data sheet

      16ch 1U 16 PoE 4K NVR

      • Up to 16ch IP camera inputs
      • H.265+/H.265/H.264+/H.264 video formats
      • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
      • Up to 160 Mbps incoming bandwidth
      Total Control, Anywhere

      Total Control, Anywhere

      Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

      📑 Product Data Sheet ▸

      Data sheet PDF

      Product Description

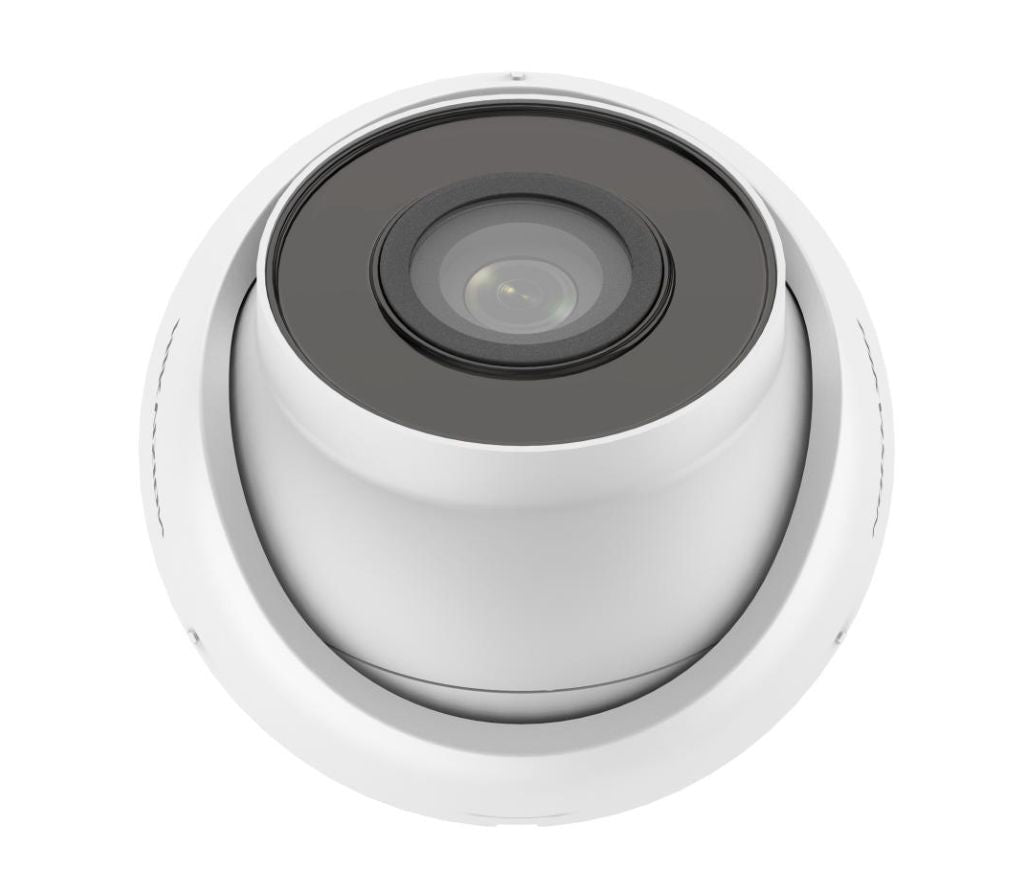

      4 MP Fixed Turret Network Camera

      • High quality imaging with 4 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging even with strong back lighting due to 120 dB WDR
      • Water and dust resistant (IP67)
      • EXIR 2.0: advanced infrared technology with long IR range
      • -UF: Built-in microphone for real-time audio security
      • -UF: Support up to 256 GB SD card storage


      Specification

        • Camera
        • Image Sensor1/3" progressive scan CMOS
        • Max. Resolution2560 ? 1440
        • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
        • Shutter Time1/3 s to 1/100,000 s
        • Day & NightIR cut filter
        • Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
        • Lens
        • Lens TypeFixed focal length, 2.8 and 4 mm optional
        • Focal Length & FOV

          2.8 mm, horizontal FOV 98.0?, vertical FOV 53.1?, diagonal FOV 114.7?

          4 mm, horizontal FOV 78.7?, vertical FOV 43.1?, diagonal FOV 92.3?

        • Lens MountM12
        • Iris TypeFixed
        • ApertureF2.0
        • Illuminator
        • Supplement Light TypeIR
        • Supplement Light RangeUp to 30 m
        • Smart Supplement LightYes
        • IR Wavelength850 nm
        • Video
        • Main Stream

          50 Hz:

          20 fps (2560 ? 1440)

          25 fps (1920 ? 1080, 1280 ? 720)

          60 Hz:

          20 fps (2560 ? 1440)

          30 fps (1920 ? 1080, 1280 ? 720)

        • Sub-Stream

          50 Hz: 25 fps (640 ? 480, 640 ? 360)

          60 Hz: 30 fps (640 ? 480, 640 ? 360)

        • Video Compression

          Main stream: H.265/H.264/H.264+/H.265+

          Sub-stream: H.265/H.264/MJPEG

        • Video Bit Rate32 Kbps to 8 Mbps
        • H.264 TypeBaseline Profile/Main Profile/High Profile
        • H.265 TypeMain Profile
        • Region Of Interest (ROI)1 fixed region for main stream
        • Audio
        • Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
        • Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
        • Audio Sampling Rate-UF: 8 kHz/16 kHz
        • Environment Noise Filtering-UF: Yes
        • Network
        • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
        • Simultaneous Live ViewUp to 6 channels
        • APIOpen Network Video Interface, ISAPI
        • User/HostUp to 32 users. 3 levels: administrator, operator and user
        • ClientiVMS-4200, Hik-Connect
        • Web Browser

          Plug-in required live view: IE 10+

          Plug-in free live view: Chrome 57.0+, Firefox 52.0+

          Local service: Chrome 57.0+, Firefox 52.0+

        • Image
        • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
        • Day/Night SwitchAuto, Schedule, Day, Night
        • Wide Dynamic Range (WDR)120 dB
        • Image EnhancementBLC, 3D DNR
        • Interface
        • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
        • On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
        • Built-In Microphone-UF: Yes
        • Reset Key-UF: Yes
        • Event
        • Basic EventMotion detection, video tampering, exception
        • Linkage

          Upload to FTP, notify surveillance center, send email

          -UF also supports: upload to memory card, trigger recording, trigger capture

        • General
        • Power

          12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug

          PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

        • Dimension?110 mm ? 85.3 mm (? 4.3" ? 3.4")
        • Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
        • WeightApprox. 320 g (0.7 lb.)
        • With Package WeightApprox. 556 g (1.2 lb.)
        • Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
        • Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
        • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
        • Approval
        • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
        • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
        • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
        • ProtectionIP67 (IEC 60529-2013)

      Data sheet PDF

      Product Description

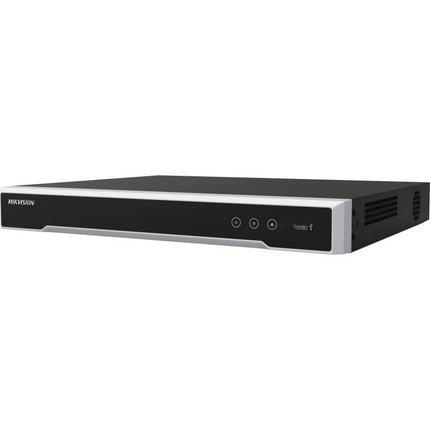

      16ch 1U 16 PoE 4K NVR

      • Up to 16ch IP camera inputs
      • H.265+/H.265/H.264+/H.264 video formats
      • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
      • Up to 160 Mbps incoming bandwidth

      Specification

        • Motion Detection 2.0
        • Human/Vehicle Analysis4
        • Video And Audio
        • IP Video Input16ch
        • HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
        • VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
        • Video Output ModeHDMI/VGA simultaneous output
        • Incoming Bandwidth160 Mbps
        • Outgoing Bandwidth80 Mbps
        • Audio Output1-ch, RCA (Linear, 1 K?)
        • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
        • Decoding
        • Decoding FormatH.265+,H.265,H.264+,H.264
        • Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
        • Synchronous Playback16ch
        • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
        • Network
        • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
        • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
        • PoE
        • Interface16ch;16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
        • Power? 150W
        • StandardIEEE 802.3 af/at
        • RAID
        • RAID TypeNo
        • Auxiliary Interface
        • SATA2 SATA interfaces
        • CapacityUp to 8TB capacity for each disk
        • USB Interface2 ? USB 2.0
        • General
        • Power Supply100-240V?, 50/60Hz, 3.2A MAX
        • Consumption? 15W
        • Working Temperature-10 to +55? C (+14 to +131? F)
        • Working Humidity10 to 90 %
        • Chassis1U chassis
        • Dimension (W ? D ? H)385 ? 315 ? 52 mm (15.2"? 12.4" ? 2.0")
        • Weight? 2.6 kg (5.7 lb)
