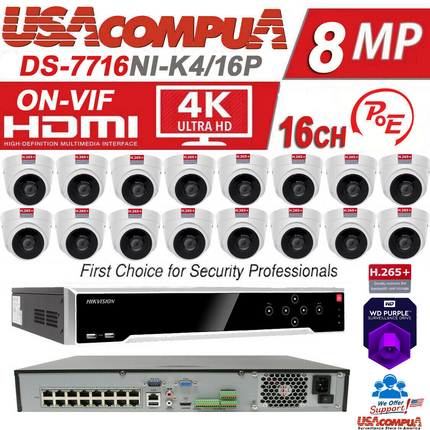

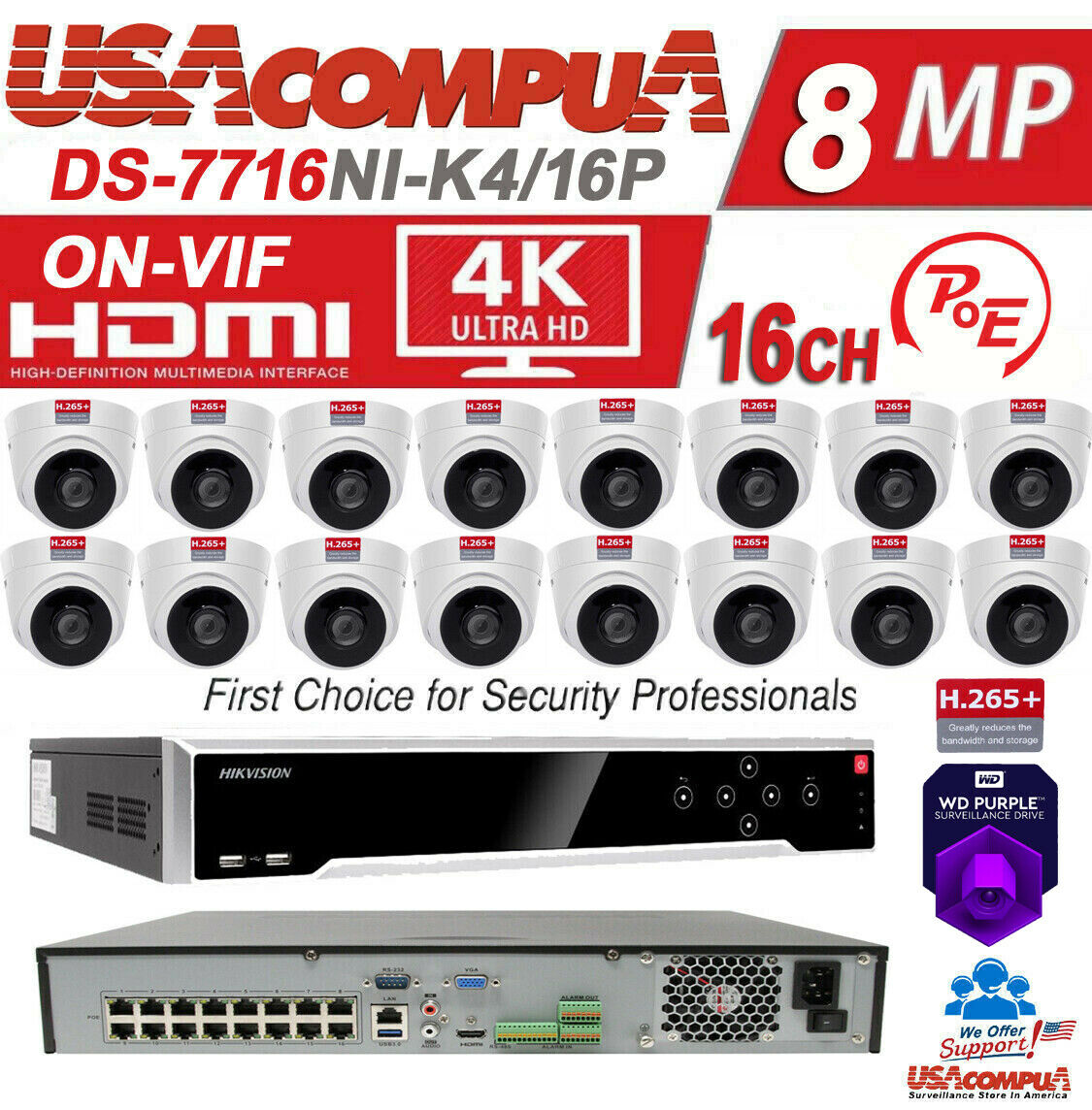

Hikvision NVR KIT 16CH DS-7716NI-K4/16P DS-2CD1343G0-I 4MP MEGAPIXEL

VendorHIKVISION
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Condition: New 30-Day Free Returns 3-Year Warranty

SKU: 396695708966-QP4

CAMERA QUANTITY Free pickup in our shop(s) Free pickup in our shop(s)

CAMERA QUANTITY Free pickup in our shop(s)

HARD DRIVE OPTION Free pickup in our shop(s)

IP/POE CAMERA Free pickup in our shop(s)

4 in stock

$1,029.19 $952.95

Guaranteed secure & safe checkout.

Why This Matters. ▸

Advanced Security, Made Simple.

Total Control, Anywhere

Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

Data sheet PDF

Product Description

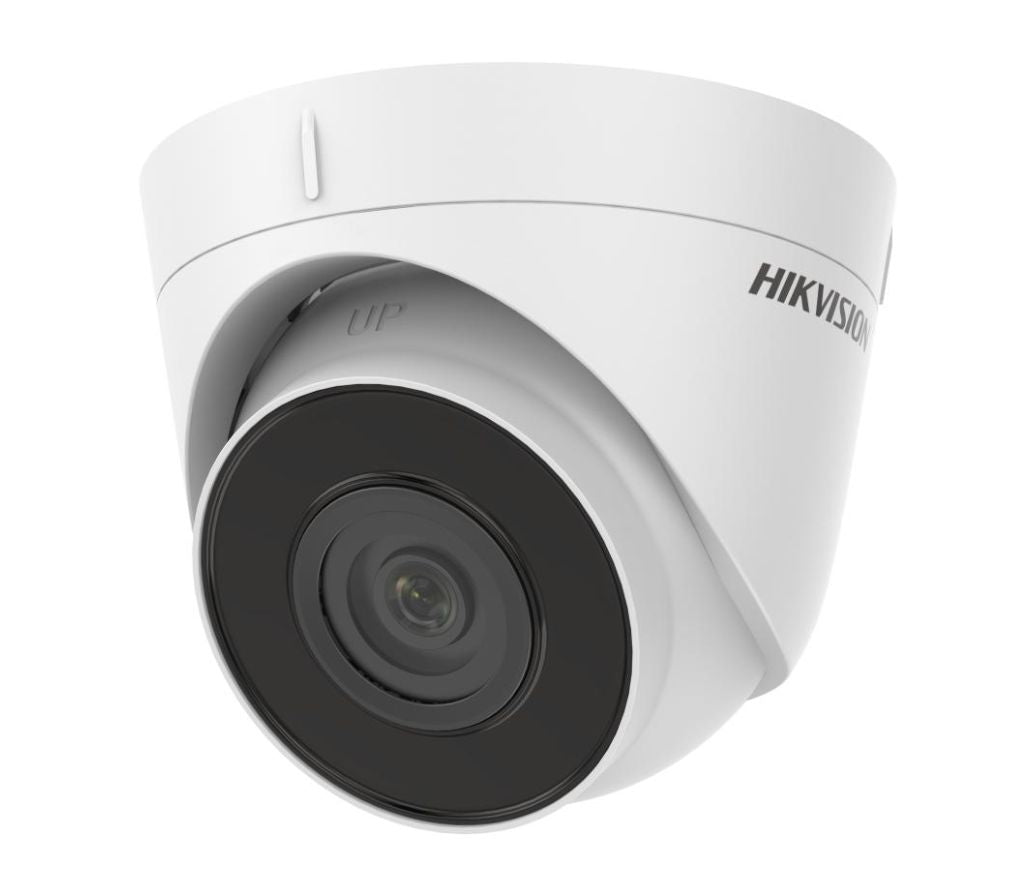

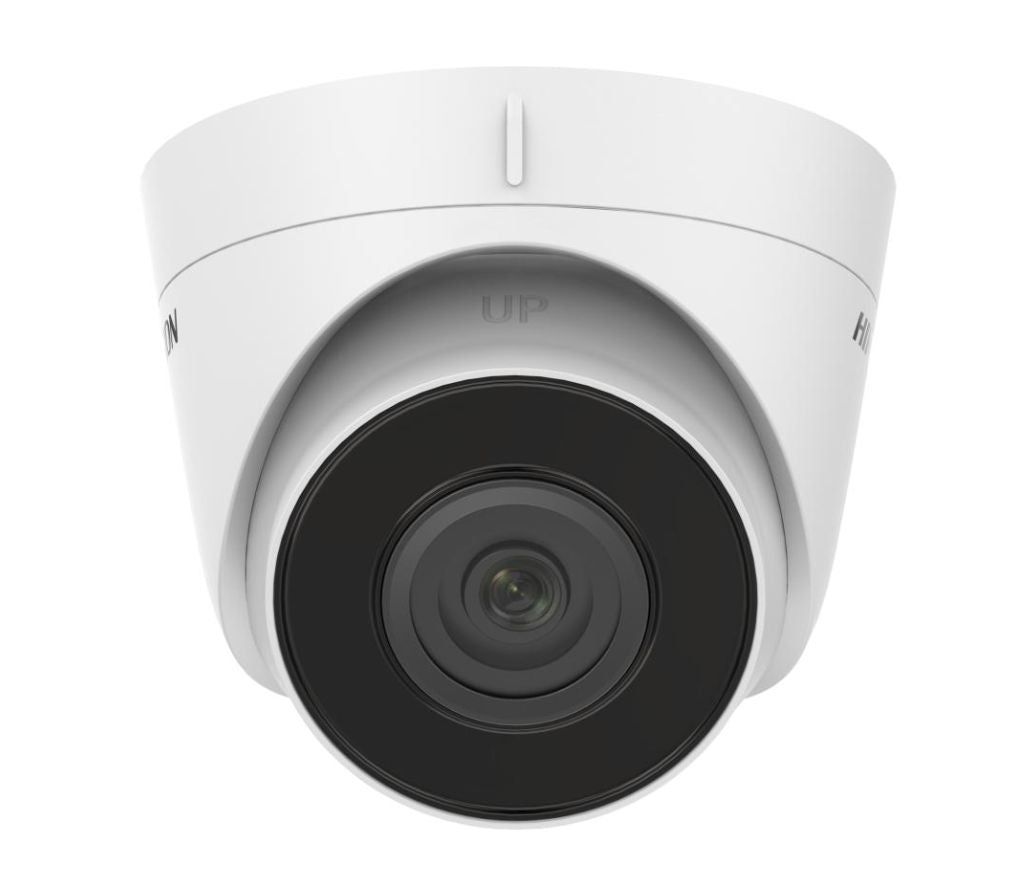

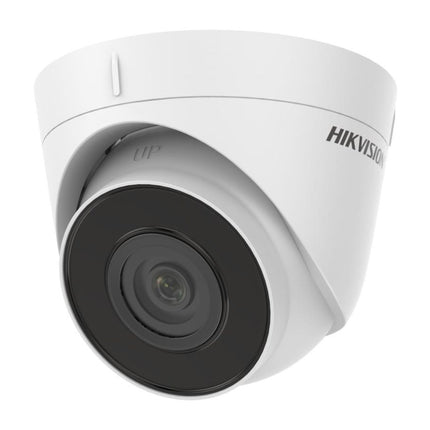

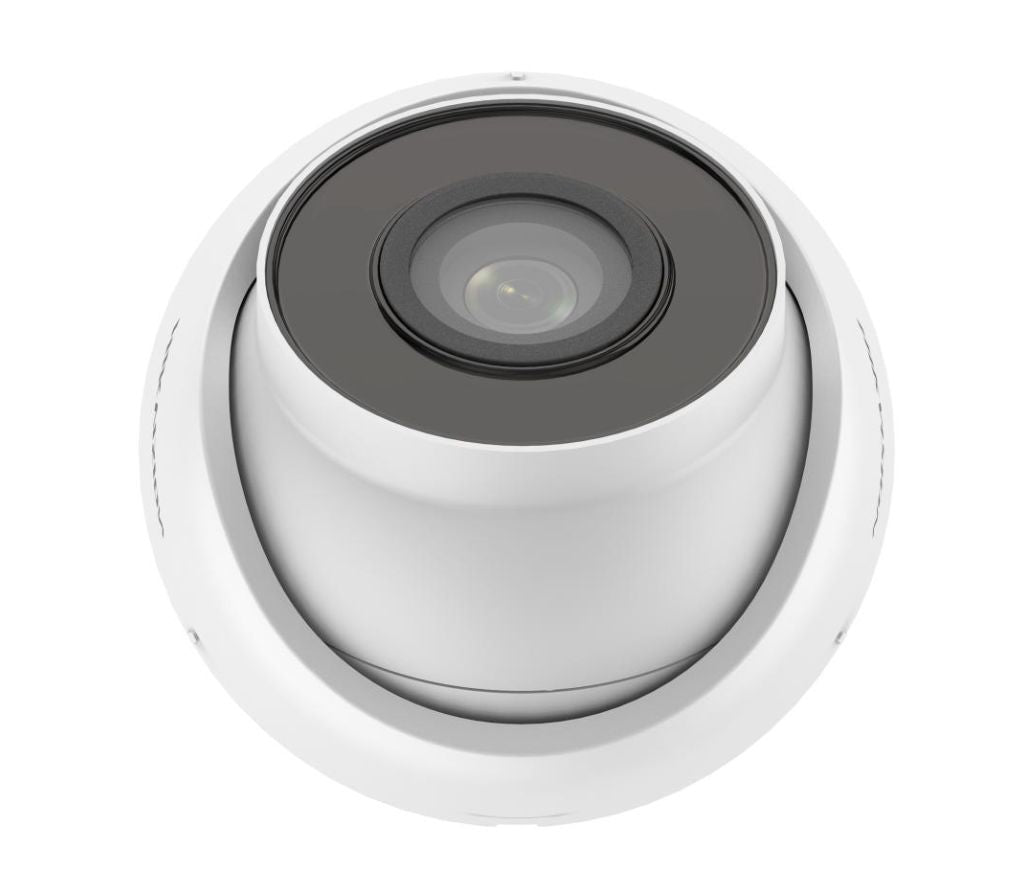

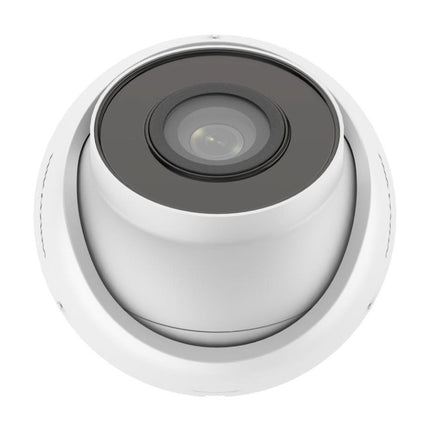

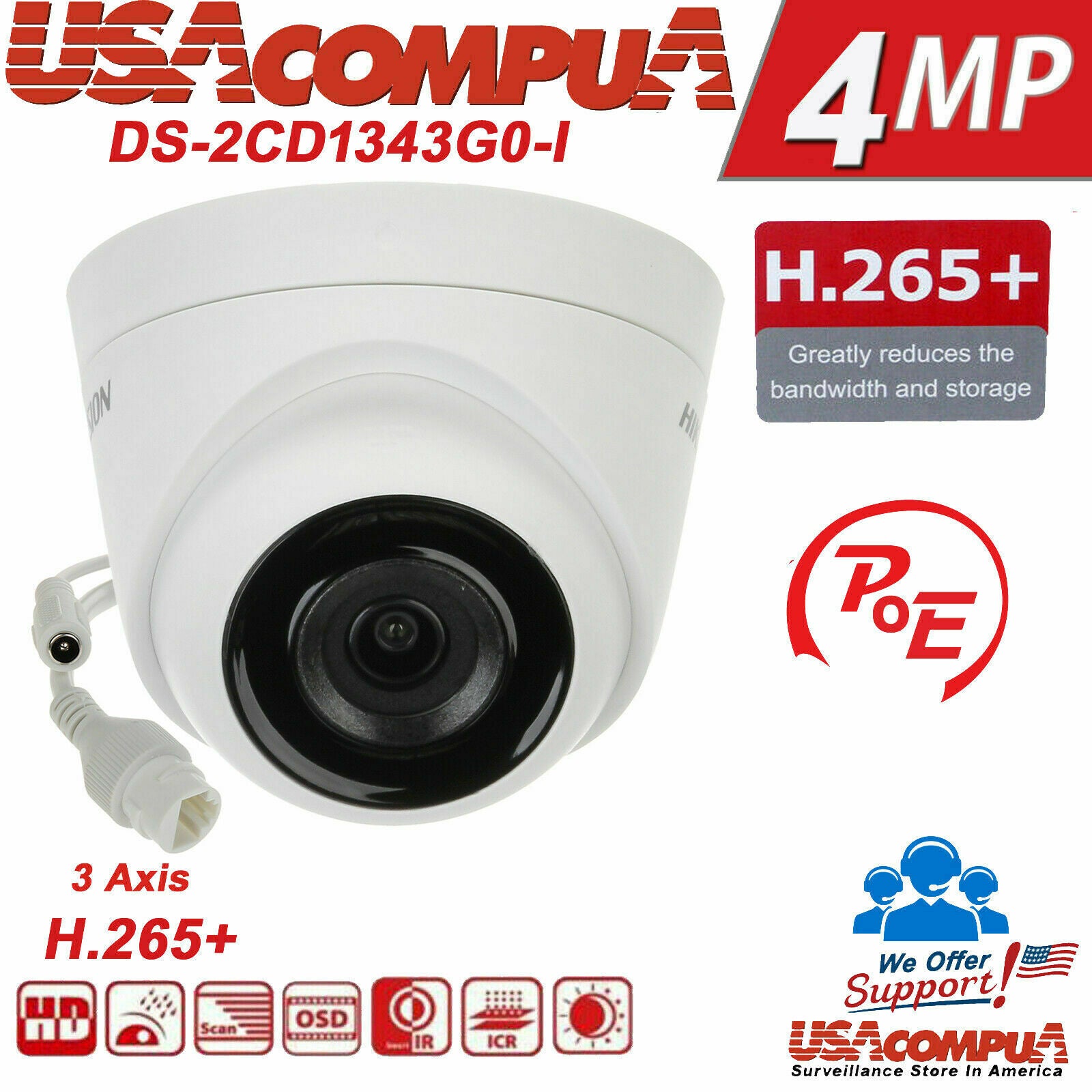

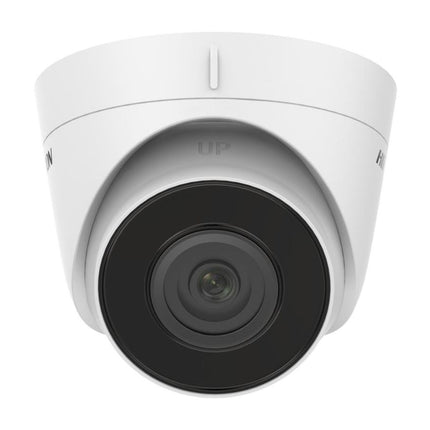

4 MP Fixed Turret Network Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
-UF: Built-in microphone for real-time audio security
-UF: Support up to 256 GB SD card storage

Specification

Camera
Image Sensor1/3" progressive scan CMOS
Max. Resolution2560 ? 1440
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?

Lens
Lens TypeFixed focal length, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98.0?, vertical FOV 53.1?, diagonal FOV 114.7?
4 mm, horizontal FOV 78.7?, vertical FOV 43.1?, diagonal FOV 92.3?
Lens MountM12
Iris TypeFixed
ApertureF2.0

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream
50 Hz:
20 fps (2560 ? 1440)
25 fps (1920 ? 1080, 1280 ? 720)
60 Hz:
20 fps (2560 ? 1440)
30 fps (1920 ? 1080, 1280 ? 720)
Sub-Stream
50 Hz: 25 fps (640 ? 480, 640 ? 360)
60 Hz: 30 fps (640 ? 480, 640 ? 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region Of Interest (ROI)1 fixed region for main stream

Audio
Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-UF: 8 kHz/16 kHz
Environment Noise Filtering-UF: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
Built-In Microphone-UF: Yes
Reset Key-UF: Yes

Event
Basic EventMotion detection, video tampering, exception
Linkage
Upload to FTP, notify surveillance center, send email
-UF also supports: upload to memory card, trigger recording, trigger capture

General
Power
12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension?110 mm ? 85.3 mm (? 4.3" ? 3.4")
Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
WeightApprox. 320 g (0.7 lb.)
With Package WeightApprox. 556 g (1.2 lb.)
Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

Data sheet PDF

Product Description

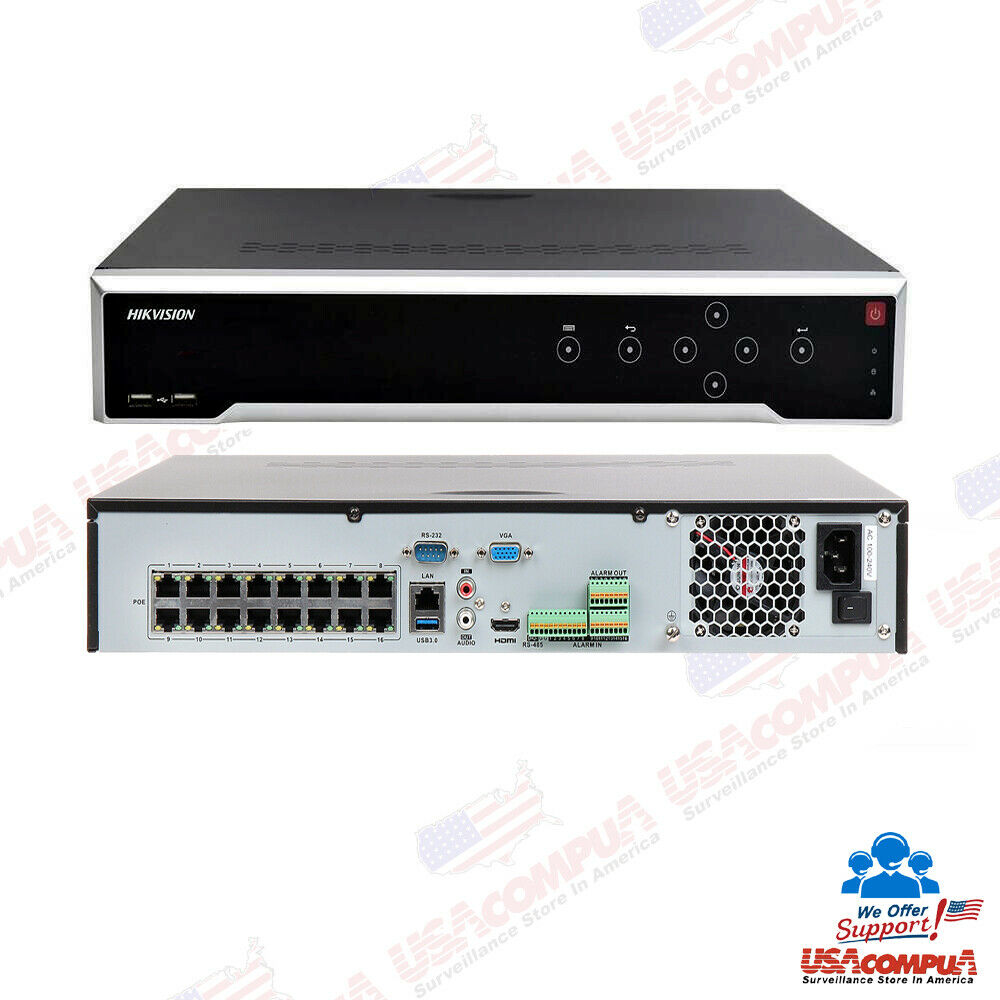

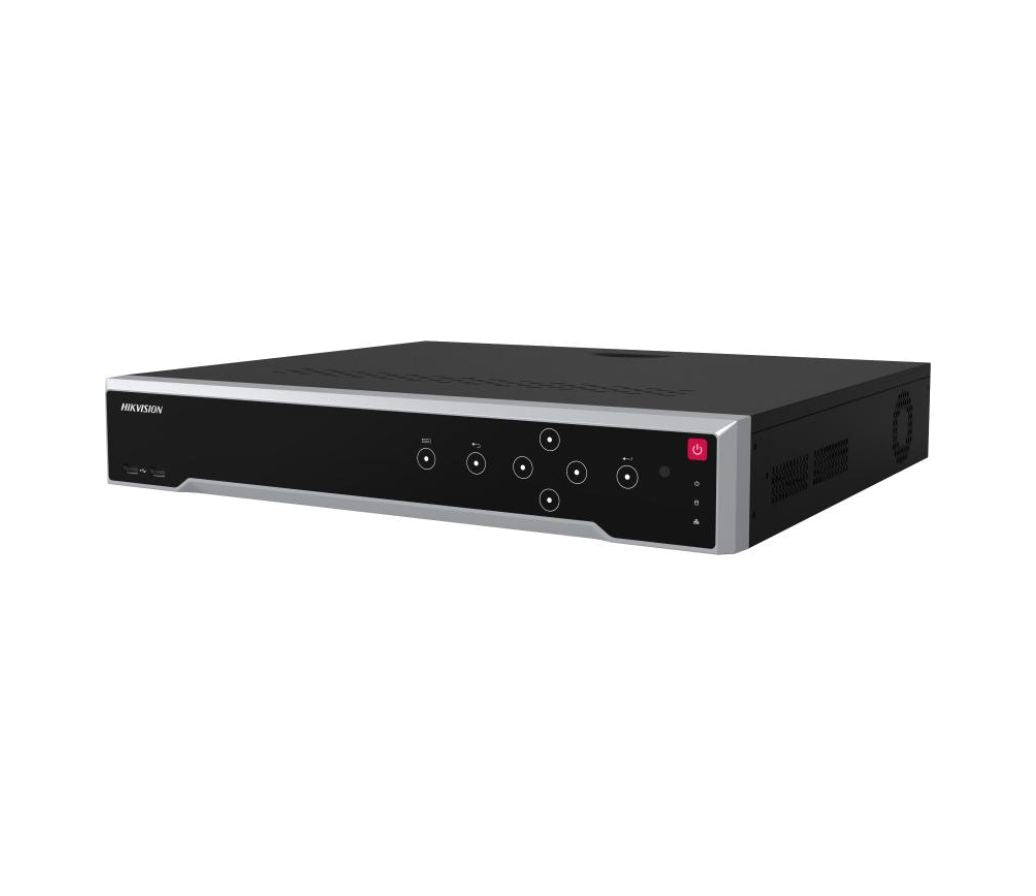

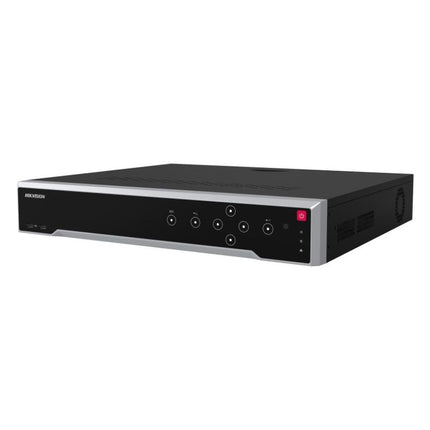

16ch 1.5U 16 PoE 4K NVR

Up to 16ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@8 MP/4ch@4 MP/8ch@1080p decoding capacity
Plug & play with 16 power-over-Ethernet (PoE) interfaces
Up to 160 Mbps incoming bandwidth

Specification

Video And Audio
IP Video Input16ch
Incoming Bandwidth160 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
Video Output ModeHDMI/VGA independent output
Audio Output1-ch, RCA (Linear, 1 K?)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)

Decoding
Decoding FormatH.265/ H.265+/H.264/H.264+
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16ch
Decoding Capability2-ch@8 MP (30 fps)/4ch@4 MP (30 fps)/8ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

Network
Remote Connection64ch
Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power? 200 W
StandardIEEE 802.3 af/at

Auxiliary Interface
Serial Interface2 RS-485 (half-duplex), 1 RS-232
SATA4 SATA interfaces
CapacityUp to 10 TB capacity for each HDD
Alarm In/Out16/ 4 (16/9 is optional)
USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
Ctrl 12VN/A (optional to support)
DC 12VN/A (optional to support)

General
Power Supply100 to 240 VAC, 50 to 60Hz
Consumption? 20 W (without HDD and PoE off)
Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
Working Humidity10% to 90%
Dimension (W ? D ? H)445 ? 400 ? 71 mm ( 17.5"? 15.7" ? 2.8")
Weight? 5 kg (without HDD, 11 lb.)

Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained CertificationCE, KC, WEEE, REACH, ROHS, CB, LOA
