Product Description

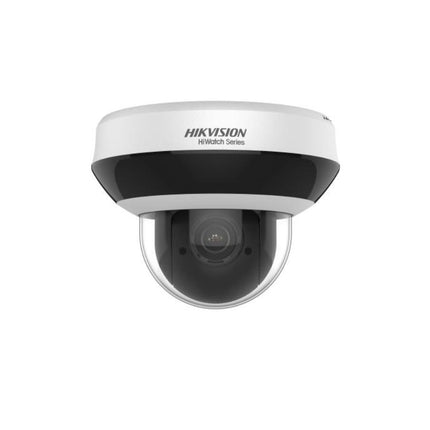

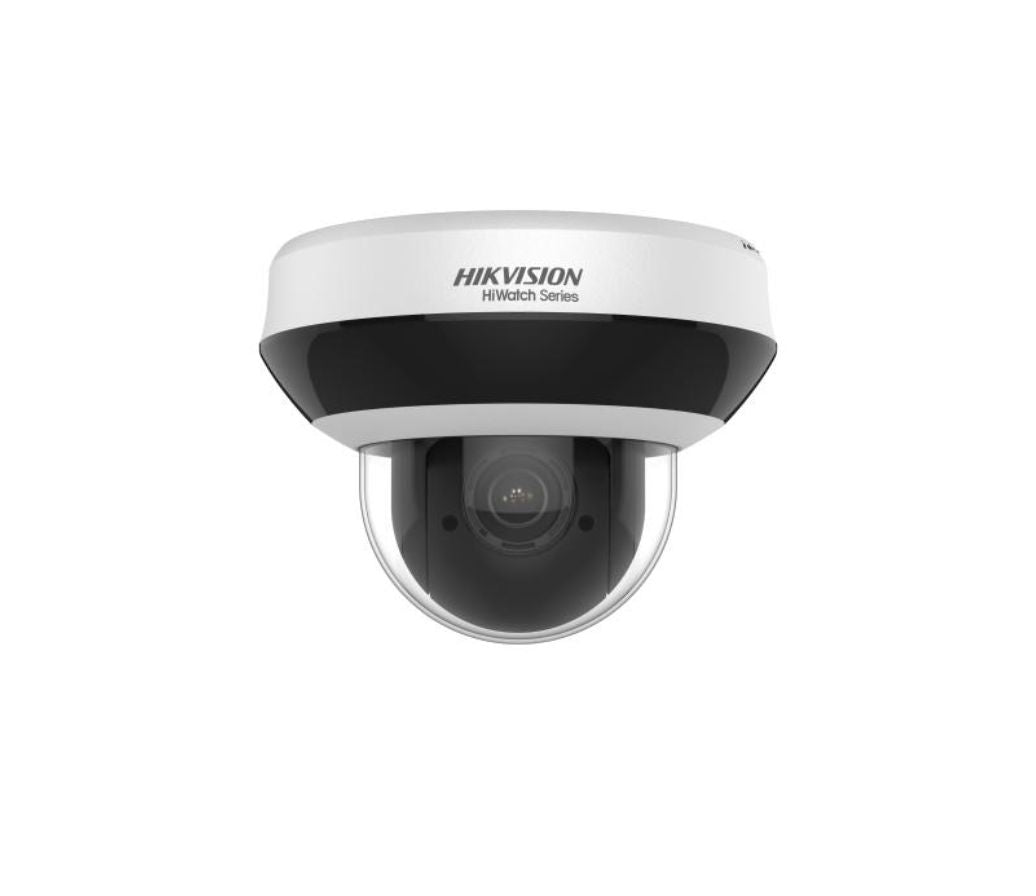

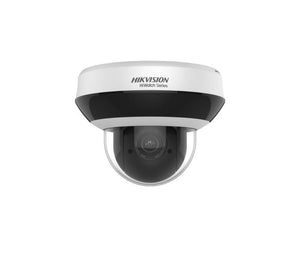

2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome

• Two-inch 4 MP camera with pan, tilt and zoom (4x) ability
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• Great night-time performance with up to 20 m enhanced IR
• Water and dust resistant (IP66), and vandal proof (IK10)





Specification

Lens

Smart Features

Network

Video


Interface

Camera Module

General

Supplement Light

PTZ

Compression Standard

• Lens
• FOVHorizontal field of view: 100? to 33? (Wide-Tele),Vertical field of view: 53? to 18? (Wide-Tele),Diagonal field of view: 119? to 37.5? (Wide-Tele)
• Focal Length2.8 mm to 12 mm, 4 ? optical zoom
• Zoom SpeedApprox. 2 s (optical lens, wide-tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.6 to F2.7
• Smart Features
• Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
• Smart DetectionFace Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
• Smart RecordANR (Automatic Network Replenishment), Dual-VCA
• ROIMain stream, sub-stream, and third stream respectively support two fixed areas.
• Network
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• ClientiVMS-4200, HikCentral Pro, Hik-Connect
• Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
• Video
• Max. Resolution2560 ? 1440
• Image
• Image Enhancement3D DNR, BLC, HLC, EIS, Regional Exposure, Regional Focus
• Sub-Stream50Hz: 25fps (704 ? 576, 640 ? 480, 352 ? 288),60Hz: 30fps (704 ? 480, 640 ? 480, 352 ? 240)
• Main Stream50Hz: 25fps (2560 ? 1440, 2048 ? 1536, 1920 ? 1080, 1280 ? 960, 1280 ? 720),60Hz: 24fps (2560 ? 1440), 30fps (2048 ? 1536, 1920 ? 1080, 1280 ? 960, 1280 ? 720)
• Third Stream

  50Hz: 25fps (704 ? 576, 640 ? 480, 352 ? 288),

  60Hz: 30fps (704 ? 480, 640 ? 480, 352 ? 240)

• Interface
• Audio Input1-ch audio input
• Audio Output1-ch audio output
• Network Interface1 RJ45 10 M/100 M Ethernet, PoE
• Built-In Microphone1 built-in microphone, picking up sounds in the radius up to 5 meters
• Camera Module
• Image Sensor1/3" progressive scan CMOS
• Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• GainAuto/Manual
• Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16?
• Privacy Mask24 programmable privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB WDR
• General
• MaterialAluminum alloy, PC, PC+ABS
• Dimensions? 130.7 mm ? 101.7 mm (? 5.15" ? 4.00")
• WeightApprox. 0.53 kg (1.17 lb)
• Protection LevelIP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power

  12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR)

  PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)

• Working Temperature-20?C to 60?C (-4?F to 140?F)
• Working Humidity? 90%
• Supplement Light
• IR Distance20 m
• Smart IRSupport
• PTZ
• Movement Range (Pan)0? to 330?
• Pan SpeedConfigurable, from 0.1?/s to 100?/s, ,Preset speed: 100?/s
• Movement Range (Tilt)From 0? to 90?
• Tilt SpeedConfigurable, from 0.1?/s to 100?/s,Preset Speed: 100?/s
• Proportional ZoomSupport
• Presets300
• Power-Off MemorySupport
• Compression Standard
• H.264+Support
• H.265+Support
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
• H.265 TypeMain Profile
• Video Bitrate32 Kbps to 16384 Kbps
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
• SVCSupport
