LTS Security System 4 Cameras KIT H.265 1080P W/ Turret /4TB HARD DISK

Description

LTS Security System 4 Cameras KIT H.265 1080P W/ Turret /4TB HARD DISK


This listing includes:

  •  CAMERA QUANTITY (CMHT2122N-28F): 1;2;3;4
  • HARD DRIVE OPTION FOR RECORDER LTD8304M-ET: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB

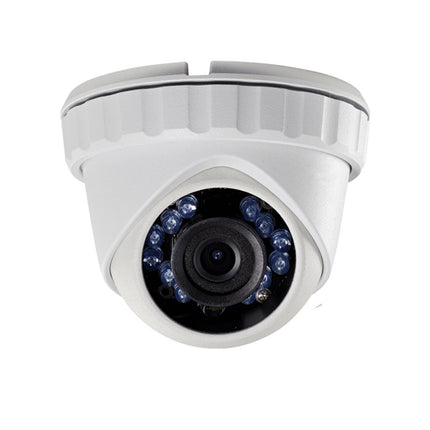

CMHT2122N-28F  view data sheet


Eco - Platinum HD-TVI Turret Camera 2.1MP - White

eco - Energy Efficient, Full HD 1080P, Platinum HD-TVI, True Day/Night, Smart IR, Up to 65ft (20m), IP66 Weatherproof

  • 2.1MP High Definition
  • Full HD 1080P
  • 1920X1080P@30fps
  • 3.6mm Fixed Lens
  • 24 IR LEDs up to 65ft
  • Outdoor/Indoor
  • DC 12V
  • IP66
  • UTC

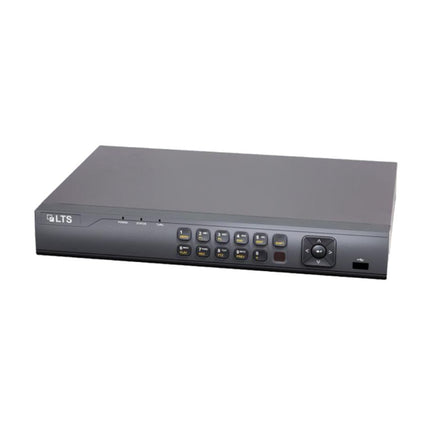

LTD8304M-ET  view data sheet

Platinum Advanced Level 4-Channel HD-TVI DVR

H.265 Pro+ / H.265 Pro / H.265 video compression, HD-TVI / AHD / CVI / CVBS / IP video input, Up to 6 channels for IP cameras (up to 6 MP), Up to 10 TB capacity per HDD

  • H.265 Pro+ / H.265 Pro / H.265 video compression
  • HD-TVI / AHD / CVI / CVBS / IP video input
  • Up to 6 IP camera input channels (up to 6 MP)
  • Up to 10 TB capacity per HDD

LTS Security System 4 Cameras KIT H.265 1080P W/ Turret /4TB HARD DISK

Product form

SKU: 800666178966-QT1

$187.90 $173.98

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      LTS Security System 4 Cameras KIT H.265 1080P W/ Turret /4TB HARD DISK


      This listing includes:

      •  CAMERA QUANTITY (CMHT2122N-28F): 1;2;3;4
      • HARD DRIVE OPTION FOR RECORDER LTD8304M-ET: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB


      CMHT2122N-28F  view data sheet


      Eco - Platinum HD-TVI Turret Camera 2.1MP - White

      eco - Energy Efficient, Full HD 1080P, Platinum HD-TVI, True Day/Night, Smart IR, Up to 65ft (20m), IP66 Weatherproof

      • 2.1MP High Definition
      • Full HD 1080P
      • 1920X1080P@30fps
      • 3.6mm Fixed Lens
      • 24 IR LEDs up to 65ft
      • Outdoor/Indoor
      • DC 12V
      • IP66
      • UTC


      LTD8304M-ET  view data sheet

      Platinum Advanced Level 4-Channel HD-TVI DVR

      H.265 Pro+ / H.265 Pro / H.265 video compression, HD-TVI / AHD / CVI / CVBS / IP video input, Up to 6 channels for IP cameras (up to 6 MP), Up to 10 TB capacity per HDD

      • H.265 Pro+ / H.265 Pro / H.265 video compression
      • HD-TVI / AHD / CVI / CVBS / IP video input
      • Up to 6 IP camera input channels (up to 6 MP)
      • Up to 10 TB capacity per HDD
      Total Control, Anywhere

      Total Control, Anywhere

      Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

      📑 Product Data Sheet

      Data sheet PDF

      Product Description

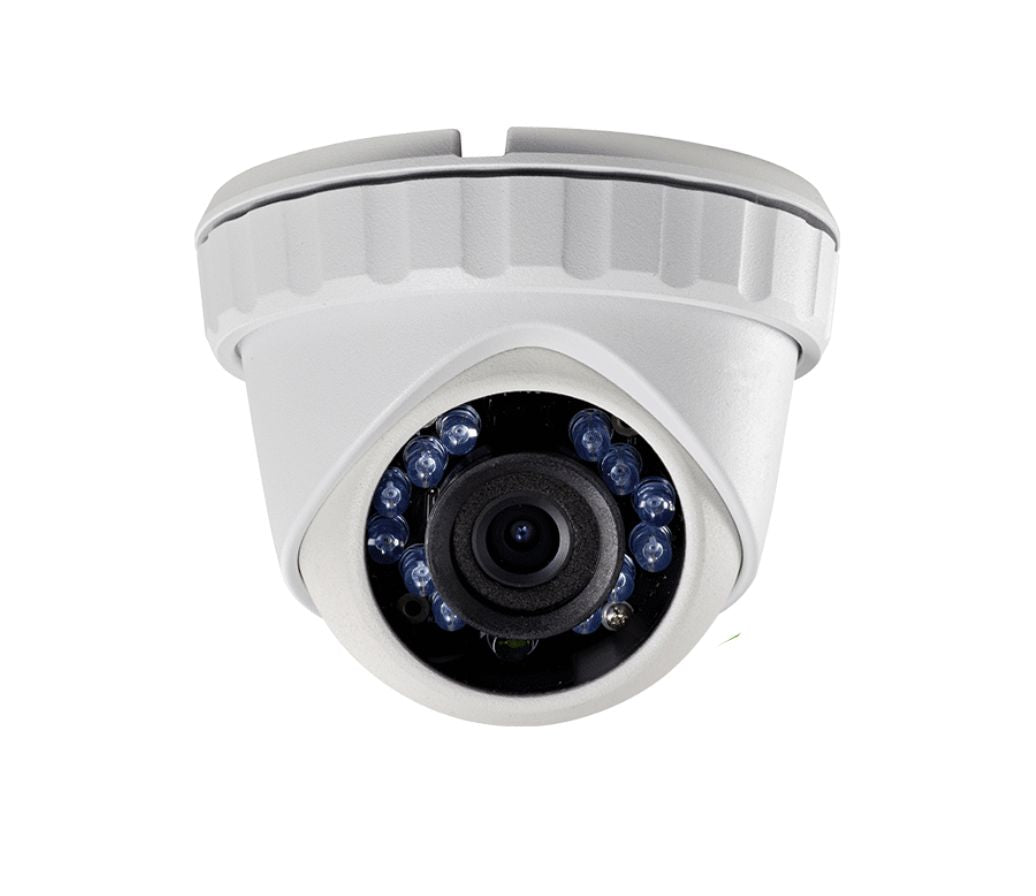

      Eco - Platinum HD-TVI Turret Camera 2.1MP - White

      eco - Energy Efficient, Full HD 1080P, Platinum HD-TVI, True Day/Night, Smart IR, Up to 65ft (20m), IP66 Weatherproof

      • 2.1MP High Definition
      • Full HD 1080P
      • 1920X1080P@30fps
      • 3.6mm Fixed Lens
      • 24 IR LEDs up to 65ft
      • Outdoor/Indoor
      • DC 12V
      • IP66
      • UTC


      SPECIFICATIONS Camera Image Sensor 1 / 2.7? Sensor Signal System NTSC/PAL(Euro Version? Effective Pixels 1930(H)*1088(V) Min. Illumination 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR Shutter speed NTSC:1/30 s(PAL:1/25 s) to 1/50,000 s Lens 3.6mm Angle of View: 90? Day & Night Synchronization Internal synchronization Video Frame Rate NTSC:1080p@30fps/PAL:1080p@25fps HD Video Output 1 HD-TVI output S / N Ratio More than 52dB Menu Camera ID On/off (0-255) AGC Support D/N Mode Color/BW/Auto/EXT White Balance Auto/User/Push/8000K/6000K/4200K/3200K/HOLD Privacy Mask On/Off, maximum 2 zones Motion Detection On/Off BLC Support On/off Language English, Chinese Function Mirror General Working Temperature /Humidity -40 ?F - 140 ?F (-40 ?C - 60 ?C) Humidity 90% or less (non-condensing) Power Supply 12V DC Power Consumption Max. 3W Weather Proof Ratings IP66 IR Range Up to 65ft(20m) Dimensions Weight 0.9lb(400g)

      Data sheet PDF

      Product Description

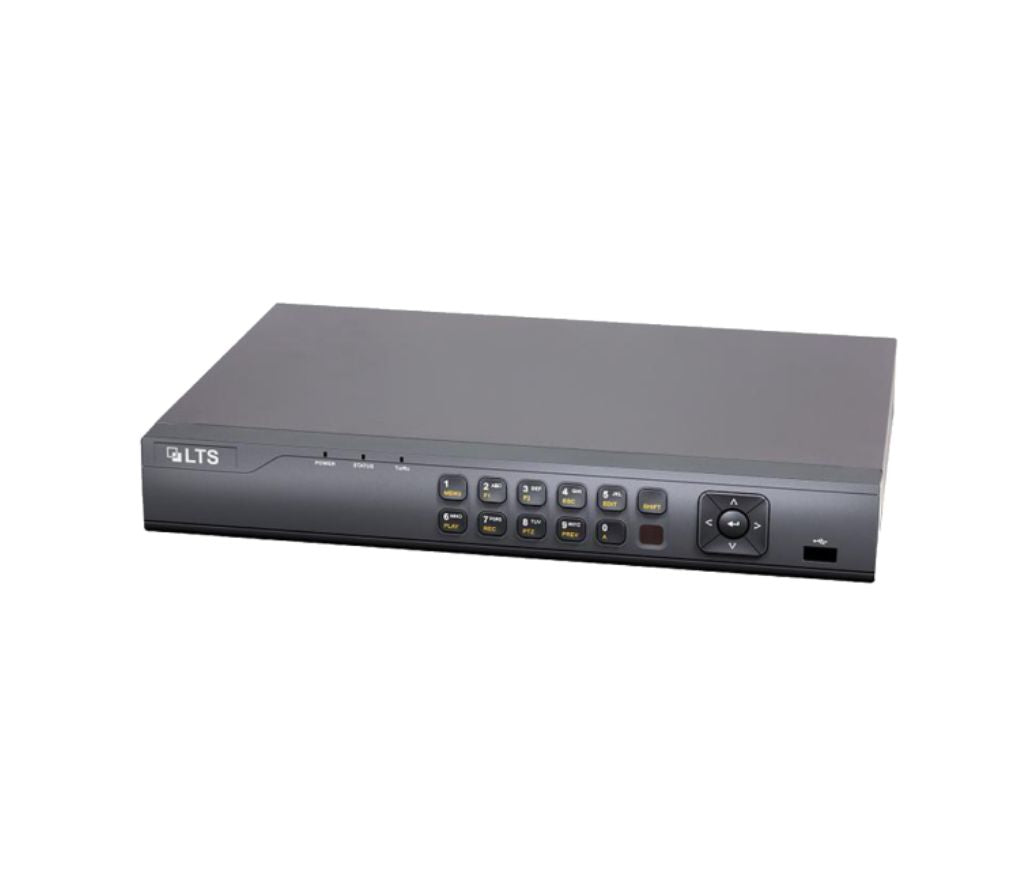

      Platinum Advanced Level 4-Channel HD-TVI DVR

      H.265 Pro+ / H.265 Pro / H.265 video compression, HD-TVI / AHD / CVI / CVBS / IP video input, Up to 6 channels for IP cameras (up to 6 MP), Up to 10 TB capacity per HDD

      • H.265 Pro+ / H.265 Pro / H.265 video compression
      • HD-TVI / AHD / CVI / CVBS / IP video input
      • Up to 6 IP camera input channels (up to 6 MP)
      • Up to 10 TB capacity per HDD


      SPECIFICATIONS
      Motion Detection 2.0
      Person / Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported

      Perimeter Protection
      Person / Vehicle Analysis Up to 2 channels
      Face Detection
      Face detection and capture 1 channel for human face capture (HD analog camera)
      Recording
      Video Compressions H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+


      Encoding Resolutions
      Main stream, 1080p lite mode disabled:
      For 4 MP stream access: 4 MP lite @ 15 fps; 1080p lite / 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N)
      For 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF @ 15 fps
      For 1080p stream access: 1080p / 720p @ 15 fps; VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
      For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)

      1080p Lite mode enabled:
      4 MP lite / 3 MP @ 15 fps; 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)

      Sub-stream: WD1 / 4CIF @ 12 fps; CIF @ 25 fps (P) / 30 fps (N)
      Video bitrate 32 Kbps to 6 Mbps
      Dual stream Supported
      Stream type Video, Video & Audio
      Audio compression G.711 u
      Audio bitrate 64 Kbps
      Video and Audio
      IP video input 1 channel (up to 5 ch)

      Enhanced IP mode on: 2 channels (up to 6 ch), each up to 4 Mbps

      Up to 6 MP resolution
      Supports H.264 / H.264+ / H.265 / H.265+ IP cameras
      Analog video input 4 channels
      BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
      HDTVI input 3, 4 MP; 1080p @ 30 / 25 fps, 720p @ 60 / 50 / 30 / 25 fps
      3 MP signal input is only available for channel 1 on LTD8304M-ET, channels 1 or 2 on LTD8308M-ETC
      AHD input 4 MP, 1080p @ 25 fps, 1080p @ 30 fps, 720p @ 25 fps, 720p @ 30 fps
      HDCVI input 4 MP, 1080p @ 25 fps, 1080p @ 30 fps, 720p @ 25 fps, 720p @ 30 fps
      CVBS input PAL / NTSC
      CVBS output 1 ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
      HDMI / VGA output 1 ch, 1920 ? 1080 / 60 Hz, 1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz,
      HDMI / VGA simultaneous output
      Audio input 1 ch, RCA (2.0 Vp-p, 1 K?)
      4 ch via coaxial cable
      Audio output 1 ch, RCA (Linear, 1 K?)
      Two-way audio 1 ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
      Synchronous playback 4 channels
      Network
      Remote Connections 32
      Network Protocols TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
      Network interfaces 1 x RJ45 10/100 Mbps self-adaptive Ethernet interface
      Wi-Fi Compatible with Wi-Fi networks using dongle through USB interface
      Auxiliary interface
      SATA 1 x SATA interface, up to 10 TB capacity for each disk
      Serial interface RS-485 (half-duplex)
      USB interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
      Alarm Channels (In/Out) N/A
      General
      Power supply 12 VDC, 1.5 A
      Consumption (without HDD) ? 18 W
      Operating Temperature 14? to 131? F (-10? to 55? C)
      Operating Humidity 10 to 90%
      Dimensions
      (W ? D ? H)
      12.4 ? 9.5 ? 1.8" (315 ? 242 ? 45 mm)
      Weight (without HDD) ? 1.16 kg (2.6 lb)
      SKU LTD8304M-ET
      RECORDER TECHNOLOGY DVR
      RECORDER CASE Compact Case
      RECORDER SERIES TurboHD
      RECORDER CHANNEL 4-Channel
