Product Description

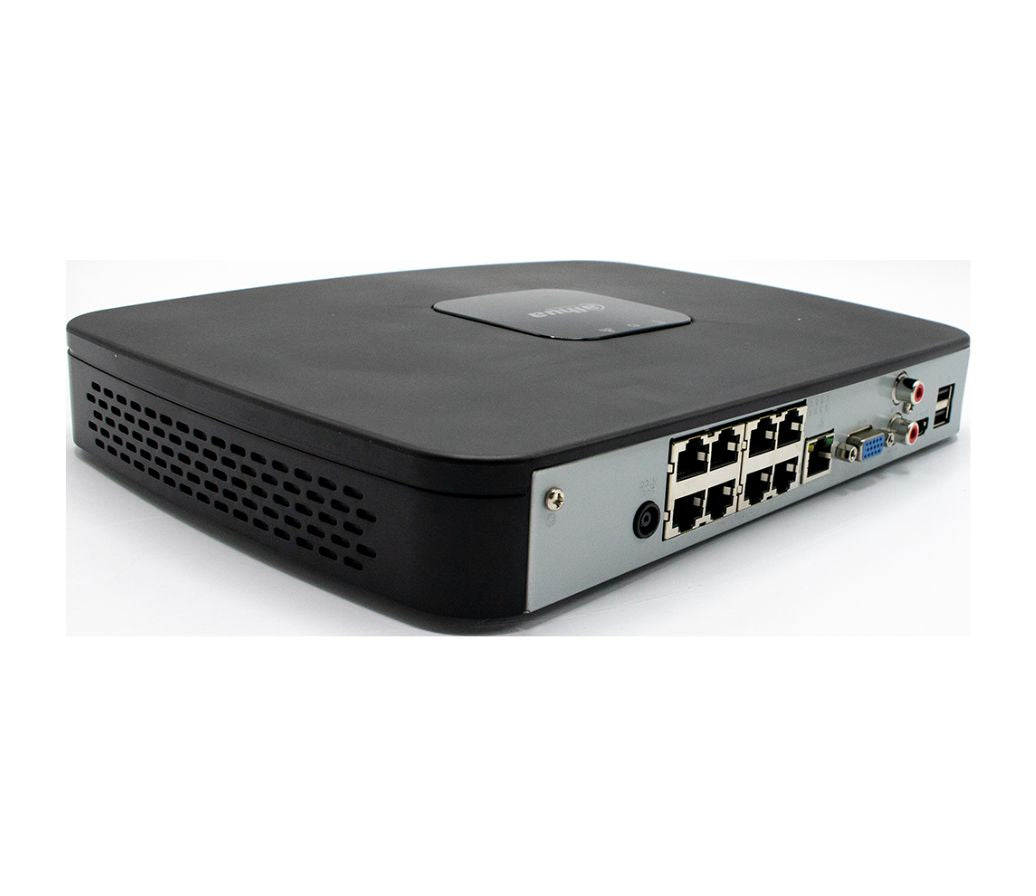

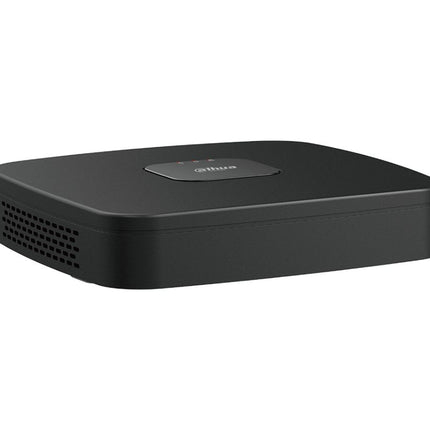

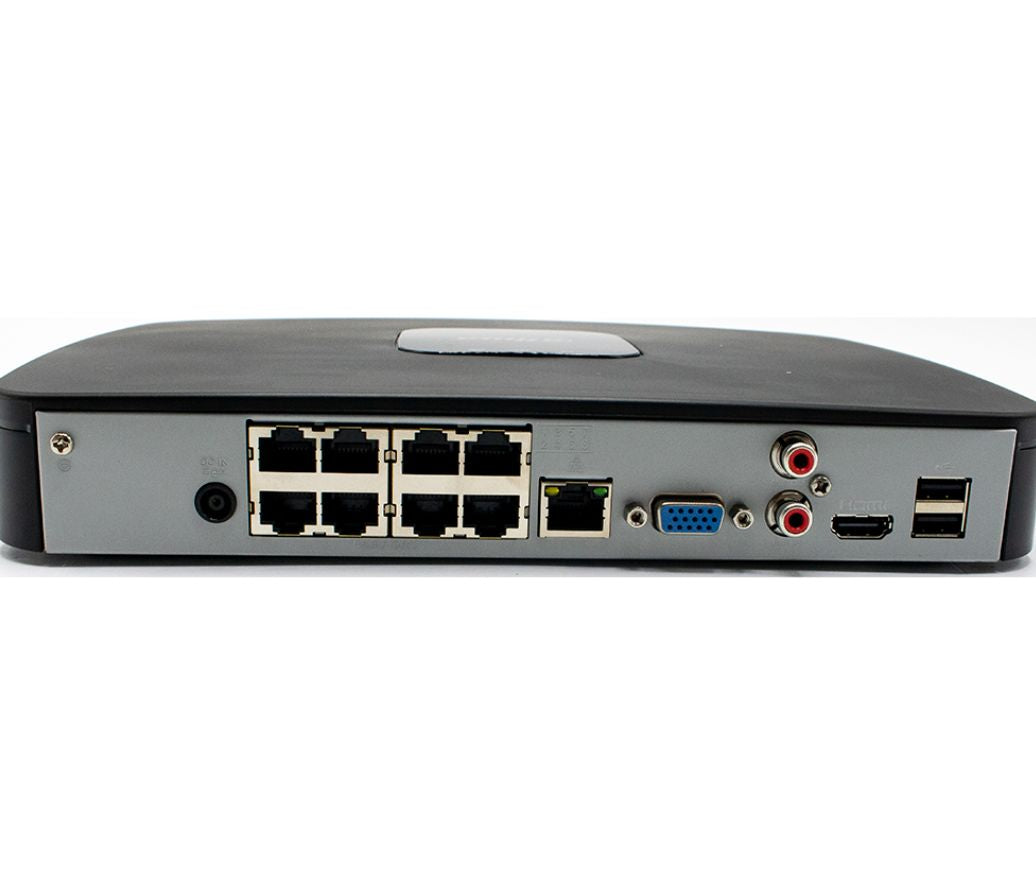

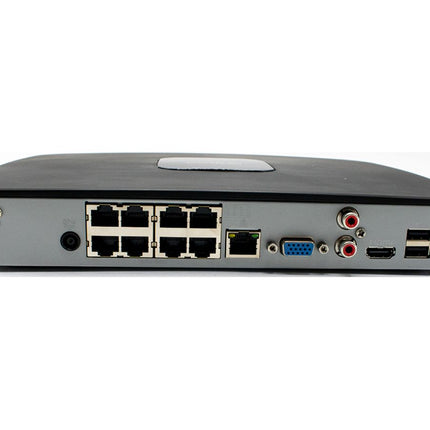

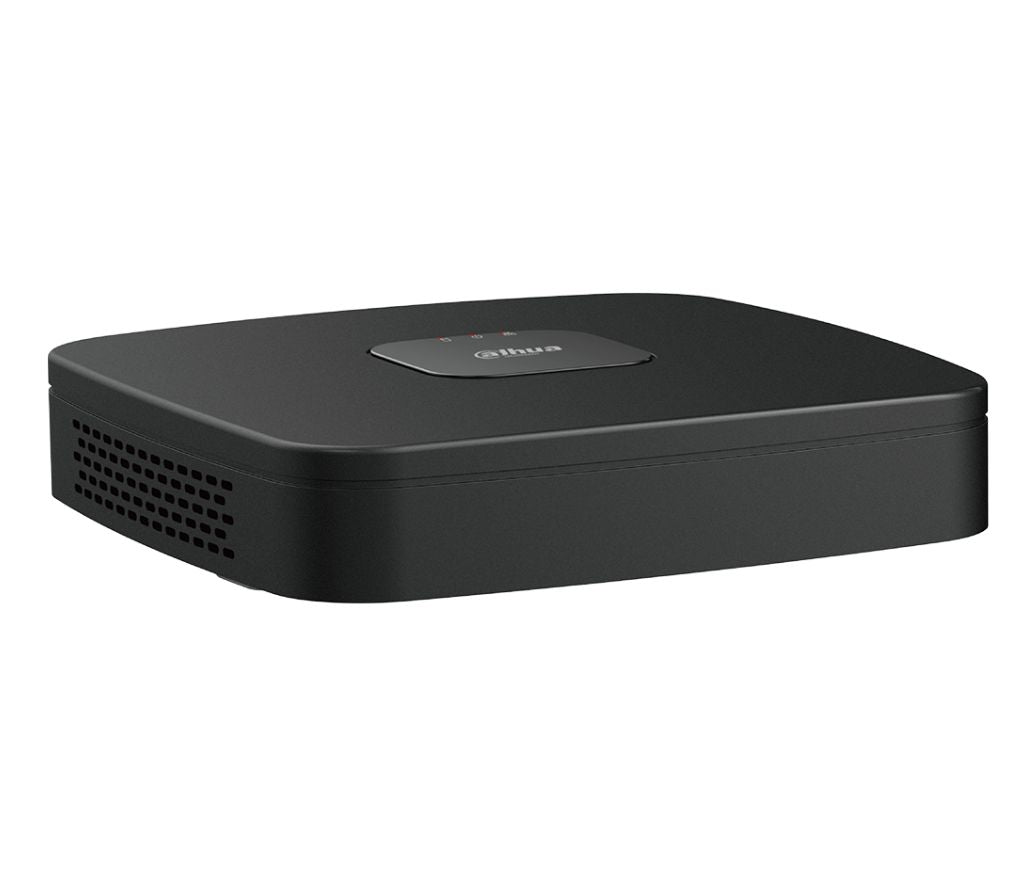

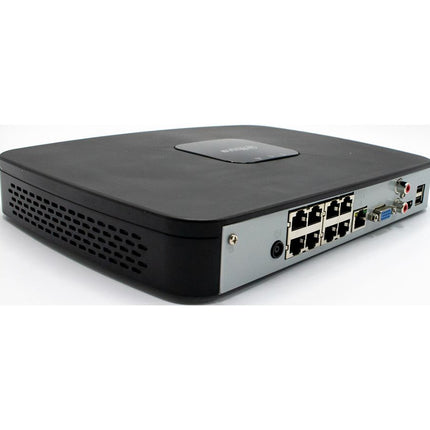

Eight-channel 4K Network Video Recorder
Dahua?s Lite Series network video recorders offer excellent performance and high recording quality for network video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and back up storage.
Designed as a cost-effective and easy to install recorder, this NVR is an ideal addition to any security system. The NVR is compatible with numerous third-party devices making it the perfect solution for security systems with or without a video management system (VMS). Its open architecture supports multi-user access and it is compatible with ONVIF S, T, and G protocols, enabling interoperability when combined with 4K cameras.
Technical Specification
System
Main Processor Industrial-grade Embedded Processor
Operating System Embedded Linux
Audio and Video
IP Camera Input Eight (8) Channels
Audio Input: One (1) Channel, RCA
Output: One (1) Channel, RCA
Analytics+ Recording?
Perimeter
Protection
Channels Eight (8)
Search By channel, time, event type
SMD+
Channels Eight (8)
Search By target classification (human or vehicle)
Display
Interface One (1) HDMI
One (1) VGA
Native Output Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
Maximum Decoding
Two (2) Channel of 8 MP at 30 fps
Four (4) Channels of 4 MP at 30 fps
Eight (8) Channels of 2 MP at 30 fps
Multi-screen Display 1/4/8/9
On-screen Display Camera Title, Time, Video Loss, Camera Lock,
Motion Detection, Recording
Recording
Video Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Audio Compression PCM, G.711A, G.711Mu, G.726
Supported IP Camera Resolution 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1
Maximum Recording Bandwidth 80 Mbps
Record Mode Manual Recording; Alarm Recording;
SMD Recording; Smart Recording
Video Detection and Alarm
General Alarms Motion detection, privacy masking, video loss,
scene changing, PIR alarm, IPC external alarm
Anomaly Alarms
Camera disconnection, storage error, disk full,
IP conflict, MAC conflict, login locked, and
cybersecurity exception
Analytics+ Alarms
Face detection, perimeter protection (intrusion
and tripwire), IVS, people counting, heat map, and
SMD alarms
Alarm Actions Recording, snapshot, audio, buzzer, log, preset,
and email
Playback and Backup
Sync Playback 1/4/8
Search Mode Time/Date, Alarm, MD and Exact Search (accurate
to one second), Smart Search
Playback Function
Play, Pause, Stop, Rewind, Fast Play, Slow Play,
Reverse, By Frame, Full Screen, Backup Selection
(video clip or file), Partial Zoom, Audio On/Off
Backup Mode USB Device, Network
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom,
Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek,
and others
Network
Ethernet One (1) RJ-45 Port (10/100 Mbps), Self-adaptive
PoE Eight (8) Ports (IEEE802.3af/at)
Network Function
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP;
Alarm Server; IP Search (Support Dahua IP camera;
DVR; NVS); P2P; Auto register
Maximum User Access 128
Mobile Operating System IOS, Android
Browser Chrome, IE 9 or later
Interoperability ONVIF Profiles S,T,G; CGI, SDK
Storage
Internal HDD One (1) SATA III Port,
Up to 10 TB capacity per HDD
HDD Mode Single
Auxiliary Interface
USB Two (2) USB 2.0 Ports (rear panel)
Electrical
Power Supply 53 VDC, 1.36 A
NVR Power Consumption < 10 W, without HDD
Total PoE Budget 25.5 W single port, 72 W total
Environmental
Operating Conditions ?10? C to +50? C (+14? F to +122? F), 10% to 93% RH
Storage Conditions 0? C to +40? C (32? F to 104? F), 30% to 85% RH
Construction
Dimensions (W x L x H) 270.0 mm x 206.50 mm x 47.50 mm
(10.63 in. x 8.12 in. x 1.80 in.)
Net Weight 0.70 kg (1.54 lb), without HDD
Gross Weight 1.80 kg (3.97 lb), without HDD
Certifications
Safety
EN62368-1
UL 62368-1
CAN/CSA C22.2 No.62368-1-14
Electromagnetic Compatibility
(EMC)
CFR 47 FCC Part 15 Subpart B
EN55032, EN55024, EN55035, EN61000-3-2,
EN61000-3-3, EN50130-4
1. The recorder Analytics+ functions are available only when connected to a Dahua network camera with
Analytics+ functionality.
Lite Series | N41C2P Series
Rev 001.003 ? 2021 Dahua Technology USA. All rights reserved. Design and specifications are subject to change without notice
Ordering Information
Type Part Number Description
Eight-channel NVR
N41C2P 8-channel Smart 1U 8 PoE 4K, No HDD
Network Video Recorder
N41C2P2 8-channel Smart 1U 8 PoE 4K, 2 TB HDD
Network Video Recorder
N41C2P4 8-channel Smart 1U 8 PoE 4K, 4 TB HDD
Network Video Recorder
N41C2P6 8-channel Smart 1U 8 PoE 4K, 6 TB HDD
Network Video Recorder
