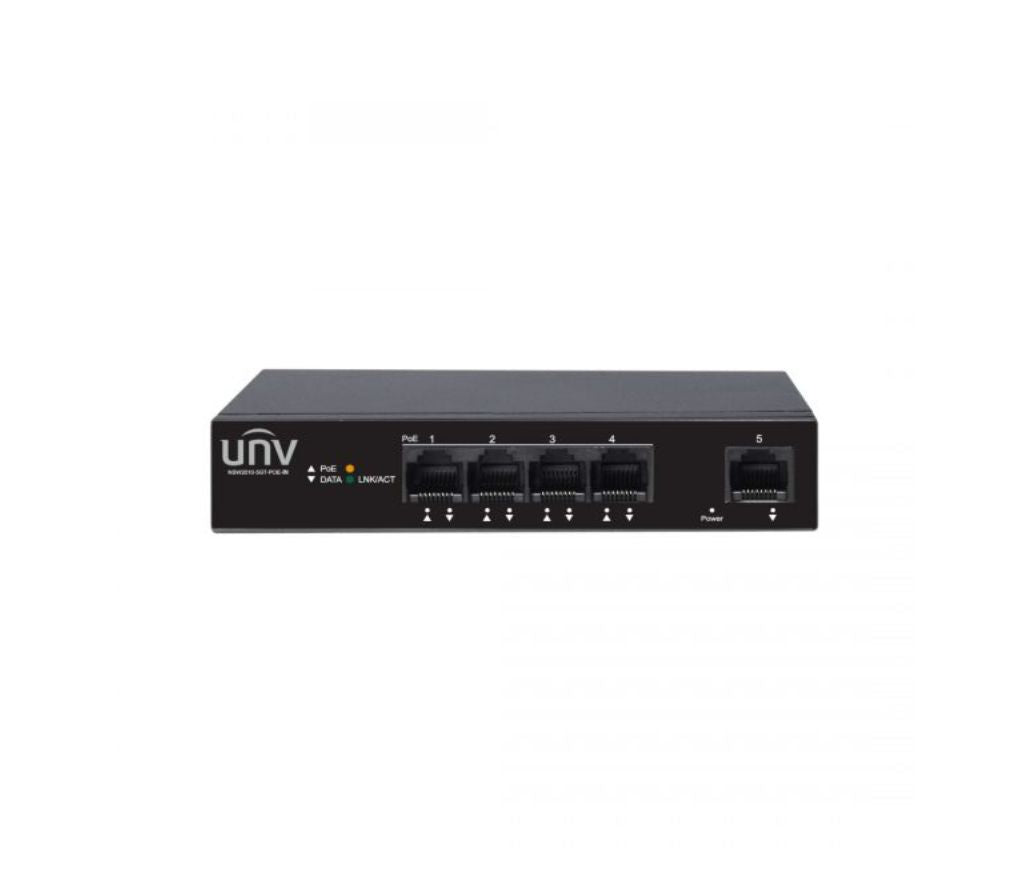

NSW2010-5GT-POE-IN

Description

NSW2010 Series


Features

Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)

Supports PoE Power up to 30W for each PoE port;

Auto detect power device; will not burned non-standard PoE device or normal PoE switch;

Supports port power supply prioritization, guarantee the continuous power supply of key nodes;

Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;

Line-speed forwarding, intelligent identification

Supports storage ? and- forward for Data exchange;

Support RJ45 Auto-MDI/MDIX




NSW2010-5GT-POE-IN

Product form

SKU: 659564704508-EN1

$139.99

Out of stock

  • Shipped today? Order within: Aug 31, 2025 15:00:00 -0400
    • Guaranteed secure & safe checkout.

      paypal

    Description

    NSW2010 Series


    Features

    Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)

    Supports PoE Power up to 30W for each PoE port;

    Auto detect power device; will not burned non-standard PoE device or normal PoE switch;

    Supports port power supply prioritization, guarantee the continuous power supply of key nodes;

    Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;

    Line-speed forwarding, intelligent identification

    Supports storage ? and- forward for Data exchange;

    Support RJ45 Auto-MDI/MDIX




    Data sheet PDF

    Product Description

    NSW2010 Series


    Features

    Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)

    Supports PoE Power up to 30W for each PoE port;

    Auto detect power device; will not burned non-standard PoE device or normal PoE switch;

    Supports port power supply prioritization, guarantee the continuous power supply of key nodes;

    Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;

    Line-speed forwarding, intelligent identification

    Supports storage ? and- forward for Data exchange;

    Support RJ45 Auto-MDI/MDIX




    Specification

    Model NSW2010-5GT-POE-IN NSW2010-10GT-POE-IN NSW2010-18GT2GP-POE-IN NSW2010-26GT2GC-POE-IN
    Ports 4?1000Mbps PoE ports (RJ45)+1?1000Mbps ports(RJ45) 8?1000Mbps PoE ports (RJ45)+2?1000Mbps ports(RJ45) 16?1000Mbps PoE ports (RJ45)+2?1000Mbps ports(RJ45)+2?1000Mbps ports?SFP? 24?1000Mbps PoE ports (RJ45)+2?1000Mbps ports(RJ45)+2?1000Mbps ports?Combo?
    Standards IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
    Switching capacity 10Gbps 20Gbps 40Gbps 56Gbps
    Forwarding performance 7.44Mpps 14.88Mpps 29.76Mpps 41.7Mpps
    Packet Buffer 1M bit 2Mbit 4M bit 4Mbit
    MAC 2K 2K 8K 8K
    Dimensions (W?D?H) 140mm x 76.7mm x 27.7mm
    (5.5"?3"?1.1") 220mm x 150mm x 44mm
    (8.7"?5.9"?1.7") 280mm x 180mm x 44mm
    (11"?7.1"?1.7") 440mm x 207mm x 44mm
    (17.3"?8.1"?1.7")
    Weight <1kg <1.24kg <4.2kg <5kg
    Input Voltage AC: 100-240V, 50/60Hz
    MAX. Power 65W 130W 200W 400W
    PoE 802.3at/af?Mode A?1/2+?3/6-
    Max. PoE Power Max capacity: 60W
    Max capacity for single port: 30W Max capacity: 120W
    Max capacity for single port: 30W Max capacity: 185W
    Max capacity for single port: 30W Max capacity: 370W
    Max capacity for single port: 30W
    Cooling Fans 0 1 1 2
    Operating Temperature 0?C ~ 40 ?C
    Storage Temperature -40 ?C ~ 70 ?C
    Operating Humidity 10% ~ 90% non-condensing
    Storage Humidity 5% ~ 90% non-condensing
    Indicator PWR(Green), LNK/ACT(Green), PoE(Orange)
    Working Mode No Default(Normal mode) : All ports can communicate with each other.
    VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
    EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
