SKU: 548764702077-EN1
$451.53 $421.99
Guaranteed secure & safe checkout.
Data sheet PDF
Product Description

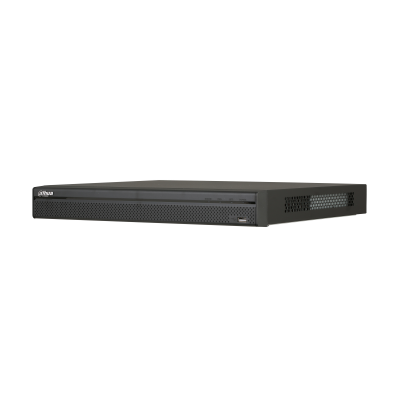

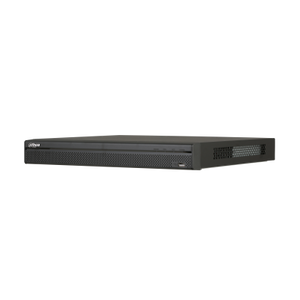

NVR5216/5232-16P-4KS2E
16/32 Channel 1U 2HDDs 16PoE 4K & H.265 Pro Network Video Recorder
> 16/32-channel IP video access
> Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
> Max 320 Mbps incoming bandwidth
> Up to 24MP resolution for live view and playback
> 1-channel fisheye dewarping (AI by NVR)
> AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
> Support IPC UPnP, 16 PoE ports
Technical Specifications
Model DH-NVR5216-16P-4KS2 DH-NVR5232-16P-4KS2
System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Video& Audio
IP Camera Input 16 channel 32 channel
Two-way Talk 1 channel Input, 1 channel Output, RCA
Display
Interface 1 HDMI (up to 3840x2160), 1 VGA
Resolution 3840x2160, 1920? 1080, 1280? 1024, 1280? 720, 1024? 768
Display Split 1/4/8/9/16 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264/MJPEG/MPEG4
Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Record Rate 320Mbps
Bit Rate 16kbps~ 20Mbps for per channel
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer &
Screen tips
Video Detection Motion Detection, MD Zones: 396(22? 18), Video Loss & Camera Blank
Alarm Input 4 channel
Relay Output 2 channel
Playback & Backup
Sync Playback 1/4/8/16 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next
camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,
Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1 RJ-45 port (10/100/1000Mbps)
PoE 16 ports (IEEE802.3af/at)
Network Function
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR,
NVS and etc.), P2P
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 2 SATA ports, up to 12TB
Auxiliary Interface
USB 2 ports (1 Rear USB3.0,1 Front USB2.0)
RS232 1 port, For PC communication&Keyboard
General
Power Supply Single, AC 100~240V, 50/60 Hz
Power
Consumption
NVR: 14.5W without HDD
PoE: Max 25.5W for single port, 130W in total
Working
Environment -10?C~+55?C / 10%~90%RH / 86~106kpa
Dimension
(W? D? H) 1U, 375mm? 327mm? 53mm
Weight 2.7KG (without HDD)
Scroll to Explore key features.
Removes unnecessary notifications
Removes unnecessary notifications
Human and Vehicle detection so you avoid false alarms which means you feel confident every alert matters. No more unnecessary pings from shadows, animals, or swaying trees—just real notifications when something important happens. It’s security that respects your attention and your time.
Record video continuously—24 hours a day, 7 days a week—without interruptionComplete Coverage: Never miss an event, even during quiet hours. Reliable Evidence: Essential for reviewing incidents with accurate timelines. Peace of Mind: Know your property is monitored at all times. Ideal for High-Risk Areas: Great for businesses, warehouses, or remote properties that require constant surveillance. Perfect for anyone needing maximum security and a full visual record of all activity.
Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.
