Product Description

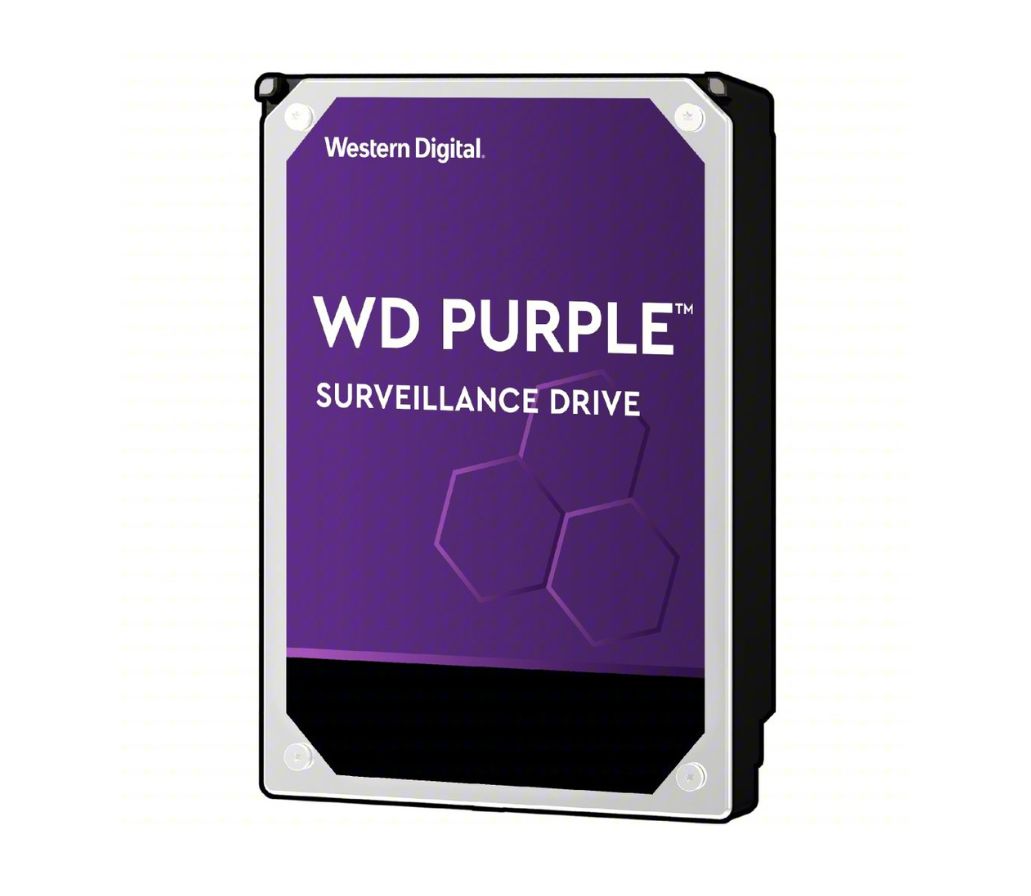

WD Purple Surveillance Hard Drive

WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that?s tested for compatibility in a wide range of security systems. Exclusive AllFrame? technology helps reduce frame loss and improve overall video playback.

Full Specifications

Features

  • Engineered for mainstream surveillance systems
  • WD AllFrame technology delivers optimizations for write-intensive, low bit-rate, high stream-count workloads typical to mainstream surveillance applications
  • Supports up to 180TB/yr workload rate and up to 16 bays
Capacity1TBForm Factor3.5-InchConnectorSATACompatibility
  • Up to 64 HD cameras
  • Up to 16 drive bays
  • AllFrame firmware technology
InterfaceSATATransfer Rateup to 110MB/sDisk Speed (RPM)5400 RPMRecording TechnologyCMRCache Size64MBWarranty3-Year Limited WarrantyDimensions (L x W x H)5.79" x 4" x 1.03"Weight0.99lbsModel NumberOperating Temperature0?C to 65?CNon-Operating Temperature-40?C to 70?CCertificationsBSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
