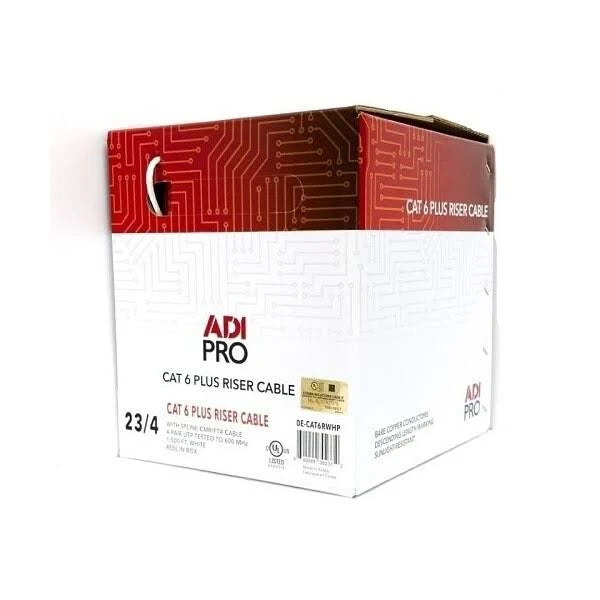

ADI PRO 0E-CAT6RWHP Cat6+ 23AWG Riser Cable 1000ft ‒ UL/ETL 550-600MHz White Reel
ADI PRO 0E-CAT6RWHP Cat6+ 23AWG Riser Cable 1000ft ‒ UL/ETL 550-600MHz White Reel
Hurry up, only 4 items left in stock.
products.product.pickup_availabilities
Description
Description
ADI PRO 0E-CAT6RWHP Cat6+ Riser Cable – What Makes It Stand Out
If you're tired of underperforming cables slowing your network, this ADI PRO Cat6+ Riser Cable is engineered to deliver reliability and high-speed performance in demanding environments. Perfect for riser runs between floors where fire safety, signal integrity, and long lengths matter.
Key Benefits
- High-frequency performance up to ~550-600 MHz – Exceeds standard Cat6 concerns so you get margin for future-proofing.
- Solid 23 AWG bare annealed copper conductors – Ensures strong, low-resistance signal paths and better handling over long runs.
- Riser / FT4) rated jacket – Meets safety codes for vertical pathways between floors. Flame retardant and RoHS compliant. :contentReference[oaicite:2]{index=2}
- Long 1000-foot reel box – Less joins, fewer weak points; good for large jobs. :contentReference[oaicite:3]{index=3}
- Warranty & certifications – UL/ETL tested, compliant with ANSI/TIA-568.2-D, plus a 30-year limited warranty for peace of mind. :contentReference[oaicite:4]{index=4}
Technical Specifications
| Spec | Details |
|---|---|
| Part Number | 0E-CAT6RWHP |
| Length | 1000 ft (≈ 304.8 m) |
| Conductor | 23 AWG, solid bare annealed copper (4 pairs, UTP) |
| Jacket Rating | CMR / FT4 – Riser |
| Nominal Diameter | 0.232 in |
| Weight (per 1000 ft) | 27.60 lbs |
| Max Pulling Force | 25 lbs |
| Min Bend Radius | 1.0 in |
| Operating Temp | −4°F to +167°F |
| Installation Temp | +32°F to +140°F |
| Tested Frequency | ~550-600 MHz (ANSI/TIA-568.2-D compliant) :contentReference[oaicite:5]{index=5} |
Why Choose This Cable?
For installers or network designers, this cable minimizes signal loss, supports high data rates (including PoE), and ensures compliance with safety standards—so you can pull long runs without compromising on performance or code. For building managers, it's a resilient, UL/ETL certified option that stands up to riser-fire code demands. And because you're getting a full 1000 ft reel, you cut down on waste and install headaches.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
ADI PRO Cat6 Plus Riser Cable — 23AWG Solid Copper
Engineered for reliable riser installations and clean pulls on large jobs — solid 23AWG copper, CMR/FT4 rated, and sweep tested to 600 MHz for extra headroom.
Reliable, Clean Runs
Solid 23AWG bare copper with FRP spline and rip-cord for neat terminations and reduced crosstalk.
Built for Riser Pathways
CMR/FT4 flame-retardant PVC jacket, sunlight resistant and RoHS compliant — code-friendly installs.
Headroom for Today & Tomorrow
TIA-568.2-D compliant and sweep tested to 600 MHz* for extra performance margin on long pulls.
Installer-Friendly
1000-ft pull box reduces joins; min. bend radius 1.0", max pull 25 lb helps avoid rework.

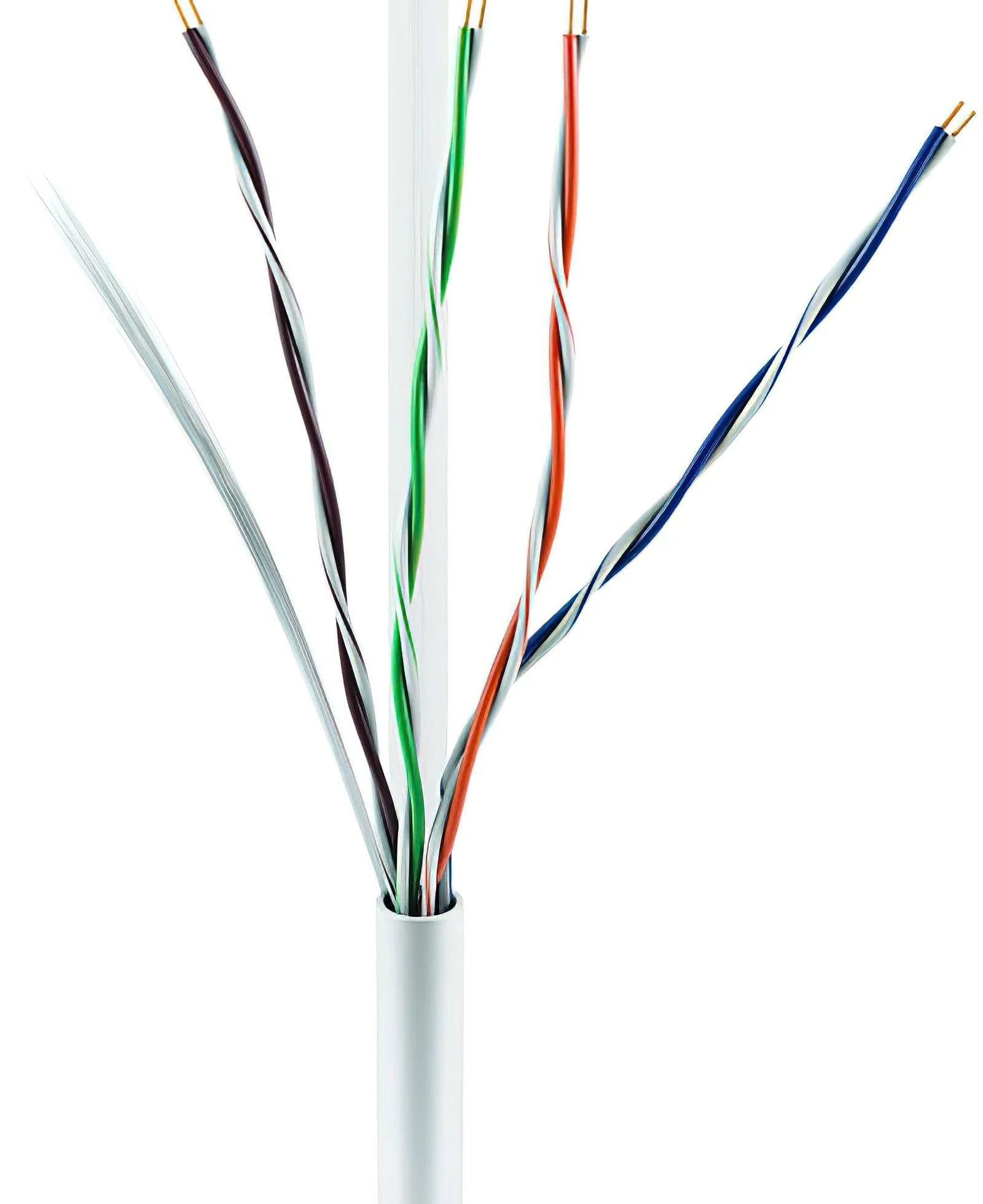

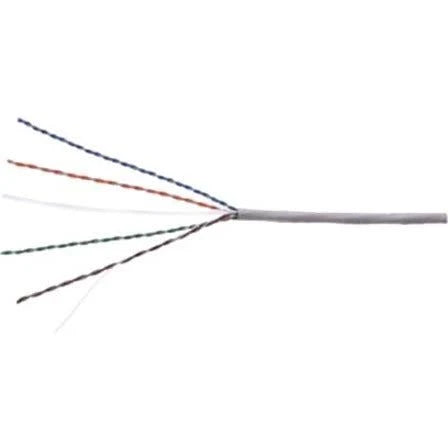

Physical Characteristics
- Conductor: 23 AWG solid bare annealed copper (4 pairs, UTP)
- Insulation: HDPE
- Color Code: Pair 1 Blue/White-Blue; Pair 2 Orange/White-Orange; Pair 3 Green/White-Green; Pair 4 Brown/White-Brown
- Spline: FRP
- Rip Cord: Longitudinal under jacket
- Jacket: PVC (Flame-Retardant, Sun-Resistant, RoHS compliant)
- Nominal OD: 0.232 in
- Net Weight (1000 ft): 27.60 lb
- Min Bend Radius: 1.0 in
- Max Pull: 25 lb
- Operating Voltage: 300 V
- Temperature: Install +32°F to +140°F; Storage/Operation −4°F to +167°F
Applications
- IEEE 802.3: 10BASE-T, 100BASE-TX, 1000BASE-T
- ANSI/TIA/EIA 854: 1000BASE-TX
- ATM: 155 Mb/s, 1.2 Gb/s
- ANSI X3.263: 100 Mb/s
- IEEE 802.3af DTE Power (PoE)
- Digital Video
Compliance
- ANSI/TIA-568.2-D • ANSI/TIA-862 (Building Automation)
- IEC 11801 Ed.2.0 (Class E) • ICEA S-102-700 (Cat 6)
- CMR / FT4 Riser (UL, c(UL)us) • UL 444
- RoHS (2011/65/EU) • ISO 9001:2008 • ISO 14001:2004 • OHSAS 18001
Electrical Characteristics
| Frequency (MHz) | Insertion Loss (dB/100m) | NEXT (dB/100m) | PS NEXT (dB/100m) | ACRF (dB/100m) | PS ACRF (dB/100m) | Return Loss (dB) |
|---|---|---|---|---|---|---|
| 1 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 20.0 |
| 4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 23.0 |
| 10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 25.0 |
| 16 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 25.0 |
| 20 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 25.0 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 21.5 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |
| 300 | 36.4 | 37.1 | 35.1 | 18.3 | 15.3 | 16.8 |
| 400 | 43.0 | 35.3 | 33.3 | 15.8 | 12.8 | 15.9 |
| 500 | 48.9 | 33.8 | 31.8 | 13.8 | 10.8 | 15.2 |
| 600 | 54.5 | 32.6 | 30.6 | 12.2 | 9.2 | 14.7 |
* Meets ANSI/TIA-568.2-D. Sweep tested to 600 MHz. Values above 250 MHz are for informational purposes only.
Frequently Asked Questions
The datasheet confirms it uses 23 AWG solid bare annealed copper conductors, ensuring reliable signal transmission. (ADI Spec Sheet)
Yes — it has a CMR (FT4) riser-rated PVC jacket, flame-retardant, sunlight-resistant, and RoHS compliant. (ADI Spec Sheet)
The cable is sweep tested to 600 MHz, exceeding Cat6 requirements (250 MHz), providing additional headroom for performance. (ADI Spec Sheet)
Yes — listed applications include IEEE 802.3af DTE Power (PoE), making it suitable for powering devices like cameras and access points. (ADI Spec Sheet)
As with standard Cat6, the recommended maximum run length is 100 meters (328 ft) for data networking. (TIA-568.2-D standard compliance)
The datasheet lists a nominal weight of 27.6 lbs per 1000 ft, making it lightweight enough for riser installations. (ADI Spec Sheet)
Installation should be done between +32°F and +140°F. Once installed, the cable operates safely from −4°F to +167°F. (ADI Spec Sheet)
The datasheet specifies a minimum bend radius of 1.0 inch, which helps avoid damaging the copper conductors during pulls. (ADI Spec Sheet)
It meets ANSI/TIA-568.2-D, ANSI/TIA-862, IEC 11801, ICEA S-102-700, UL 444, and is RoHS compliant. (ADI Spec Sheet)
Yes — applications include 10BASE-T, 100BASE-TX, and 1000BASE-T (Gigabit Ethernet), as well as digital video and ATM. (ADI Spec Sheet)
