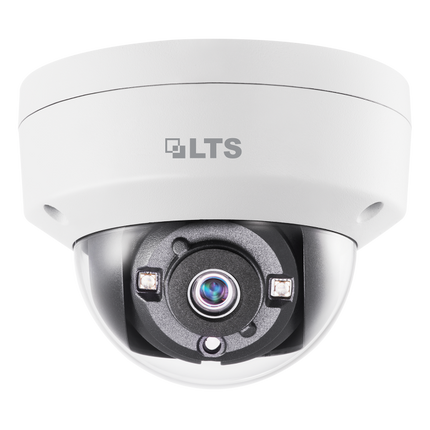

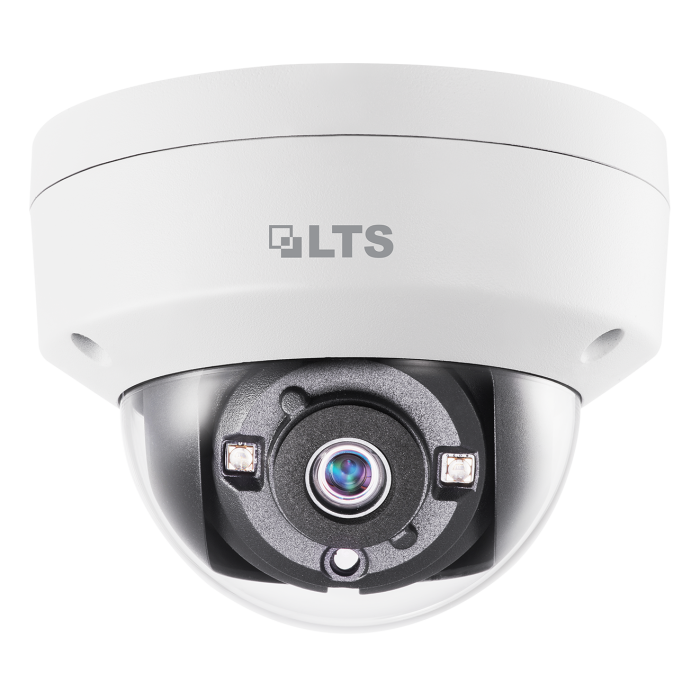

LTS CMHD7322WE-28F — 2MP Ultra-Low Light Dome Camera
When protecting what matters, you need a camera that works in every situation — bright daylight, dim corners, or pitch black at night. The LTS CMHD7322WE-28F gives you full HD clarity, wide coverage, and round-the-clock performance in a rugged dome design. It’s simple to install on existing coax wiring, tough enough for outdoor use, and smart enough to balance harsh lighting so you see the whole picture. This is peace of mind, designed to make security feel effortless.
Why Buyers Choose This Model
- 2MP Full HD Resolution — Clearly identify faces, license plates, and critical details that give you confidence in your evidence.
- Ultra-Low Light & Smart IR — Reliable coverage at night with infrared up to 98 ft (30 m), so darkness never leaves you unprotected.
- True WDR (≥130 dB) — Balanced images even in backlit entrances or glare-filled windows, helping you capture detail where others fail.
- 2.8 mm Wide Lens — A broad 104° field of view covers more space with fewer cameras, reducing costs and blind spots.
- 4-in-1 Video Output — Compatible with TVI, AHD, CVI, and CVBS, making upgrades easy without rewiring your system.
- Rugged IP67 & IK10 Build — Weather-sealed and vandal-resistant, so you don’t worry about outdoor conditions or tampering.
- OSD via UTC — Adjust settings right from your DVR, no ladders or extra labor required.
What This Helps You Avoid
Think about the frustration of reviewing footage that’s too grainy to identify anyone — or worse, a recording that turns useless the moment the lights go out. Many cameras promise “night vision” but leave you with washed-out faces or blurry motion. Harsh sunlight can blind cheaper models, creating dark shadows and missed details where it matters most.
The LTS CMHD7322WE-28F avoids those pitfalls by combining true WDR, ultra-low light sensitivity, and Smart IR technology. You don’t just get video — you get usable evidence, day or night. Add in its vandal-resistant housing and weatherproof rating, and you’re avoiding constant replacements, costly downtime, or unsafe blind spots. Instead of worrying if your cameras will fail, you get a system that keeps working so you can focus on running your life or business.
Key Specs at a Glance
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
LTB349, LTB376, LTB342-110B, LTB758, LTB347, LTB348
Technical Specifications
LTS CMHD7322WE-28F — 2MP Ultra-Low Light Dome HD-TVI Camera
Need crisp, reliable 1080p footage without overhauling your coax system? This compact dome delivers true WDR for tough lighting, ultra-low-light performance for clear night shots, and PoC-friendly 12V DC power. Installers like it because it’s fast to aim, tough as nails (IP67 & IK10), and works with TVI/AHD/CVI/CVBS — so you drop it in and get results, not headaches.
Key Features
- 2MP 1080p resolution — identify faces and plates with confidence.
- Ultra-low light + Smart IR — usable images in near-dark scenes, IR up to 98 ft (30 m).
- True WDR (≥130 dB) — handles backlight, windows, and glare for balanced detail.
- 2.8 mm fixed lens (≈104° HFOV) — wide coverage for rooms, lobbies, and storefronts.
- 4-in-1 output (TVI/AHD/CVI/CVBS) — drop-in upgrade on existing coax systems.
- Rugged build (IP67, IK10) — weather-sealed and vandal-resistant for indoor/outdoor use.
- OSD via UTC — tweak image settings from the DVR without a ladder.
Camera
Menu
Interface
General
Included / Compatible Accessories
Ideal Applications
- Retail entrances and aisles — wide view captures faces at doors and registers.
- Restaurants & lobbies — handles backlight from windows with true WDR.
- Warehouses & stock rooms — ultra-low light + Smart IR for clear night coverage.
- Schools & offices — vandal-resistant IK10 dome for public areas and hallways.
- Small businesses upgrading from analog — 4-in-1 output keeps existing coax.
- Outdoor perimeter spots — IP67 weather-sealed for rain, dust, and heat/cold.
Downloads
Frequently Asked Questions
It supports 1920 × 1080 (2 MP) resolution. In PAL mode it delivers 1080p @ 25 fps; in NTSC mode it delivers 1080p @ 30 fps. :contentReference[oaicite:1]{index=1}
In color mode, it can see as low as 0.003 lux at F1.2 (with AGC on). In darkest conditions, with IR enabled, it can go down to 0 lux. :contentReference[oaicite:2]{index=2}
It uses Matrix IR 2.0 with smart IR, giving up to ~98 ft (≈ 30 m) of IR distance. :contentReference[oaicite:3]{index=3}
Yes — the camera supports **4-in-1** switchable video output (TVI / AHD / CVI / CVBS), so it works with HD-TVI systems as well as legacy analog and other HD formats. :contentReference[oaicite:4]{index=4}
It offers true WDR of ≥ 130 dB to help balance bright and dark areas in scenes with strong backlighting. :contentReference[oaicite:5]{index=5}
The camera operates from –40 °C to +60 °C (–40 °F to +140 °F) with up to 90% non-condensing humidity. It carries IP67 (dust/water) and IK10 (vandal) protection ratings. :contentReference[oaicite:6]{index=6}
It requires 12 VDC (±25%). Its maximum power draw is up to 3.4 W. :contentReference[oaicite:7]{index=7}
Yes — it supports OSD (On-Screen Display) menus via UTC (up the coax) when used with a compatible Platinum DVR, allowing you to adjust image parameters without climbing a ladder. :contentReference[oaicite:8]{index=8}
The datasheet lists these accessories: LTB349 (inclined ceiling mount), LTB376 (pendant mount), LTB342-110B (wall mount), LTB758 (vertical pole mount), LTB347 (junction box), and LTB348 (wall mount). :contentReference[oaicite:9]{index=9}
The camera housing is made of metal. Its outer dimensions are 111 mm × 82.4 mm (Ø 4.4 in × 3.2 in), and it weighs approximately 492 g (≈ 1.08 lb). :contentReference[oaicite:10]{index=10}
