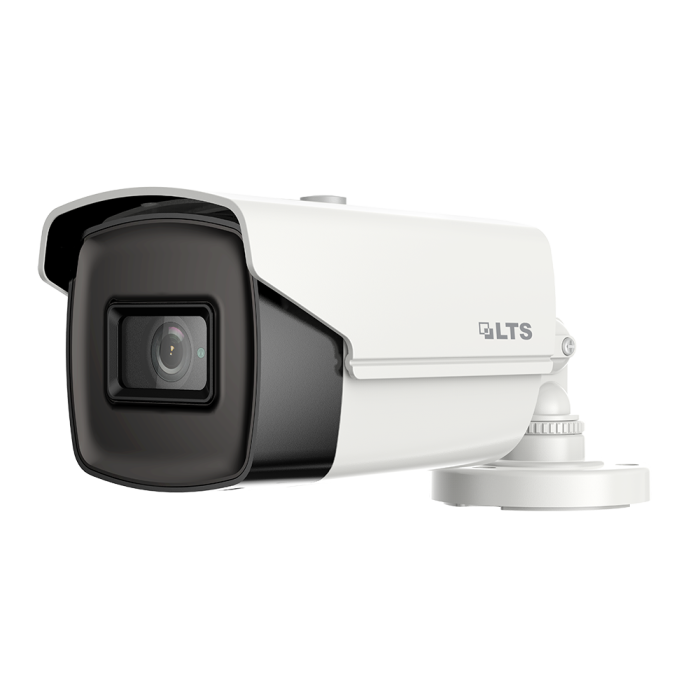

LTS CMHR9282-28F 8 MP 4-in-1 HD-TVI Bullet Camera 4K Analog Clarity, IP67 Outdoor
LTS CMHR9282-28F 8 MP 4-in-1 HD-TVI Bullet Camera 4K Analog Clarity, IP67 Outdoor
Infrared (IR)
Out of stock
Description
Description
The CMHR9282-28F is engineered to deliver true 8 MP (4K) clarity over analog coax systems — giving you sharp, usable video without needing a complete overhaul. With its wide 102.2° view and powerful IR reach (up to 197 ft), it lets you monitor more area, in more conditions, with fewer cameras. Add rugged build and multi-format flexibility, and you have a camera built for real demands.
Why buyers choose this model
People pick the CMHR9282-28F when they want to upgrade to ultra HD resolution while preserving existing coax infrastructure. It’s ideal for retrofit jobs, mixed DVR fleets, or areas that demand both brightness and night vision. The versatility, durability, and image quality make it a favorite for pro installers and discerning users alike.
Top Features & Real Benefits
- 8.29 MP progressive CMOS → 3840 × 2160 resolution — capture crisp faces, license plates, and fine detail across broad scenes.
- 2.8 mm fixed lens (102.2° HFOV) — cover wider areas with fewer units, reducing cost and complexity on big sites.
- Matrix IR 2.0, Smart IR, up to 197 ft (60 m) — reliable night vision with less washout, so distant objects remain visible in darkness.
- 4-in-1 video output (TVI / AHD / CVI / CVBS) — plug into almost any analog DVR system without worrying about compatibility.
- DWDR (105 dB), DNR, BLC, UTC control — get balanced images in tricky lighting (bright windows, shadows) and tweak settings remotely over coax.
- IP67 weather rating / wide operating temp (–40 °C to 60 °C) — built to resist rain, dust, heat, and cold, for dependable outdoor performance.
- Low light sensitivity (0.01 Lux) and 0 Lux with IR — capture usable color in low-light, then switch to IR when needed.
What this helps you avoid
Many security upgrades fail because people overestimate their existing setup or underestimate lighting challenges. With lower-res cameras, faces blur, details vanish, and even day footage can fail in contrasty light. With cheaper IR, close objects appear bright while distant ones fade out. Worse, trying to rip and replace all wiring leads to delays, disruptions, and higher cost.
The CMHR9282-28F lets you avoid those headaches. You keep your coax and DVRs, get the clarity you need, and maintain strong performance day and night. No blind zones, no fuzzy faces, no surprise compatibility issues.
What’s in the box
- CMHR9282-28F 8 MP 4-in-1 bullet camera
- LTB345 junction box for clean mounting
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
LTB345
Technical Specifications
CMHR9282-28F — Platinum 8 MP 4-in-1 Bullet HD-TVI Camera
Looking for crisp 4K-class analog video without re-wiring your site? The CMHR9282-28F delivers true 8 MP detail, long-range Matrix IR, and four switchable outputs (TVI/AHD/CVI/CVBS) so it drops into almost any coax install. A wide 102.2° view with a 2.8 mm lens helps cover more area with fewer cameras, and the IP67 build is ready for harsh outdoor conditions.
Key Features
- 8.29 MP CMOS / 3840 × 2160 — capture face- and plate-level clarity across large areas.
- 2.8 mm fixed lens (102.2° HFOV) — wide coverage reduces blind spots and camera count.
- Matrix IR 2.0 up to 197 ft (60 m) — clean night detail with smart IR to prevent washout.
- 4-in-1 output (TVI/AHD/CVI/CVBS) — easy compatibility with existing DVRs.
- DWDR, DNR, OSD via UTC — tune the image from the DVR without climbing a ladder.
- IP67 weather rating — sealed for outdoor reliability.
Camera
CVI: 8 MP @ 12.5 / 15 fps
AHD: 5 MP @ 20 fps
CVBS: 960H P/N
Menu
Interface
General
Dimensions & Weight
Accessories
Ideal Applications & Common Uses
- Parking lots and building perimeters needing long-range IR coverage.
- Retail facades and warehouse bays where a wide 2.8 mm view reduces camera count.
- Analog-over-coax upgrades where 4-in-1 video output must match mixed DVR fleets.
- Harsh outdoor placements requiring IP67 weather protection.
Downloads
Frequently Asked Questions
This camera supports four analog video standards: **TVI, AHD, CVI, and CVBS** (960H). You can switch between them via the mode button.
At 8 MP (3840×2160) the camera can operate at 12.5 or 15 frames per second in TVI mode; lower resolutions permit higher frame rates.
Color sensitivity is 0.01 Lux at F1.2 (AGC on), and 0 Lux with IR on. The built-in Matrix IR 2.0 provides illumination up to **197 ft (60 m)**.
Yes. The camera supports UTC (up the coax) control, allowing OSD menu adjustments such as brightness, DNR, mirror, smart IR, etc., from a compatible Platinum DVR.
The camera is rated to operate from –40 °C to 60 °C (–40 °F to 140 °F), with humidity up to 90% (non-condensing).
It operates on 12 V DC (±25%) and has a maximum power draw of about **5.3 W**.
Yes, it carries an **IP67** protection rating, making it suitable for outdoor installations.
The camera measures 81.9 × 86.7 × 217.9 mm (3.22" × 3.41" × 8.58") and weighs approximately 435 g (0.96 lb).
Yes — it ships with an **LTB345 junction box** for mounting.
No — this is an analog camera; it’s meant for use with DVRs via coax (BNC). It is not compatible with IP/NVR systems.
