Product Description

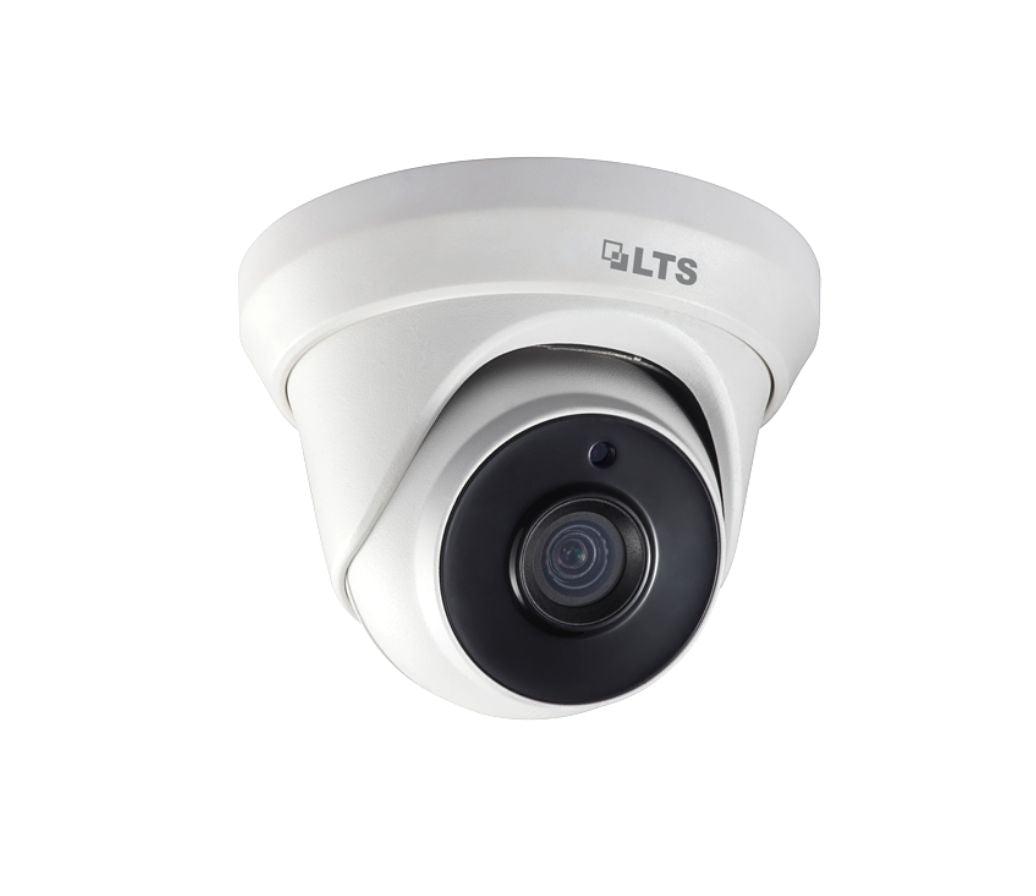

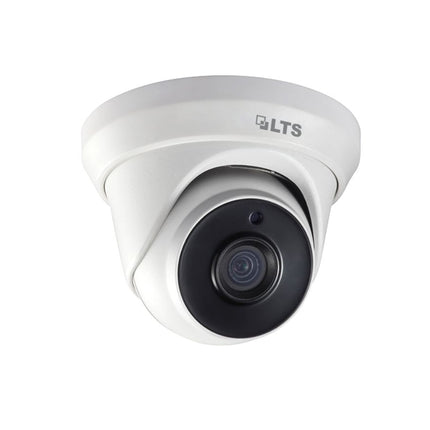

Platinum Starlight Turret HD-TVI Camera 5MP - 2.8mm

5MP, 2.8mm Fixed Lens, 2560x1944@20fps, 0.008 Lux@F1.2, IP67, 2 Matrix IR, UTC, Smart IR
DC 12V

  • High Definition Turret 5MP HD-TVI Camera
  • 2.8mm Fixed Lens
  • 2560x1944@20fps

  • 0.008 Lux@F1.2
  • IP67
  • 2 Matrix IR 2.0 LED up to 131ft
  • UTC Control to OSD Menu
  • Smart IR
  • DC 12V


SPECIFICATIONS
CAMERA
Image Sensor 1/2.7" CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.008 Lux , 0 Lux with IR
Lens 2.8mm; FoV: 91?
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 HD-TVI Output
S/N Ratio More than 62dB
MENU
AGC Support
D/N Mode Color/ BW/ SMART
White Balance ATW/ MWB
BLC Support
Function DNR, Mirror, SMART IR
GENERAL
Working Temperature
/Humidity
-40 ?F ~ 140 ?F (-40 ?C ~ 60 ?C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 3.5W
Weather Proof Ratings IP67
IR Range Up to 131ft (40m)
Dimensions 4.3 ??3.7? (110.0?93.2mm)
Weight 0.8 lbs (350g)
