Product Description

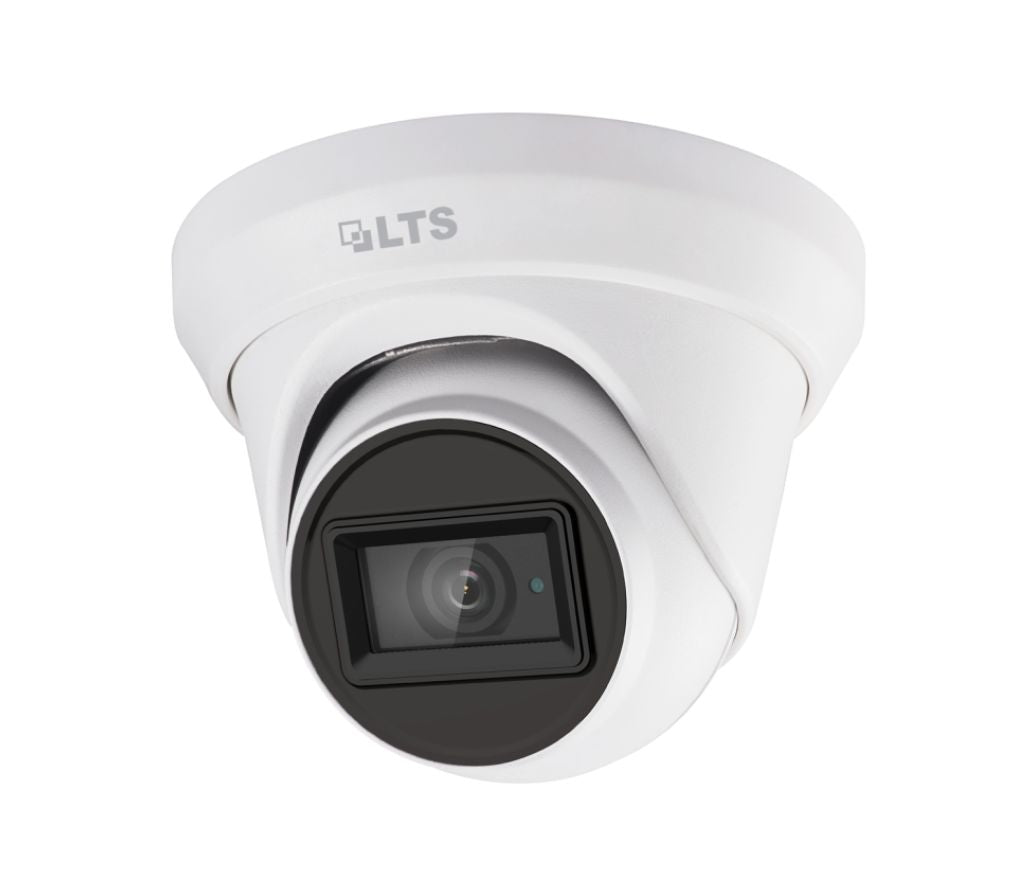

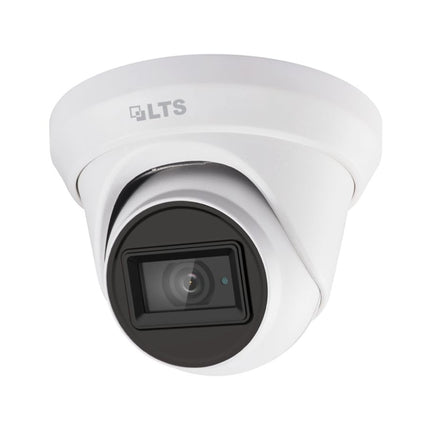

Platinum 8 MP 4-In-1 Turret HD-TVI Camera

8.29 MP 4K Ultra HD, 2.8 mm Fixed Lens, Matrix IR 2.0, Smart IR, 4-in-1 Video Output (TVI / AHD / CVI / CVBS), DWDR, DNR, IP67, OSD Menu via UTC Technology

  • 8.29 MP high performance CMOS
  • 3840 ? 2160 resolution
  • 2.8 mm fixed lens
  • Matrix IR 2.0, smart IR, up to 197 ft (60 m) IR distance
  • 4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
  • DWDR, DNR
  • IP67 protection
  • OSD Menu via UTC technology with Platinum DVR


Specification

Camera
Image Sensor 8.29 MP progressive scan CMOS
Signal System PAL / NTSC
Frame Rates TVI: 8 MP @ 12.5 fps, 8 MP @ 15 fps, 5 MP @ 20 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 2 MP @ 25 fps, 2 MP @ 30 fps
CVI: 8 MP @ 12.5 fps, 8 MP @ 15 fps
AHD: 5 MP @ 20 fps
CVBS: 960H P/N
Resolution 3840 (H) ? 2160 (V)
Min. Illumination Color: 0.01 Lux @ f 1.2, AGC on, 0 Lux with IR
Shutter Time PAL: 1/12.5 to 1/50,000 sec.
NTSC: 1/15 to 1/50,000 sec.
Lens 2.8 mm
Horizontal Field of View 102.2?(2.8 mm)
Lens Mount M16
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0?to 360?, Tilt:0?to 75?, Rotate: 0?to 360?
Synchronization Internal synchronization
Digital Wide Dynamic Range (DWDR) 105 dB
Menu
AGC Yes
Day / Night Mode Auto / Color / Black and White
White Balance Auto / Manual
Backlight Compensation (BLC) Yes
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 x HD analog output
Signal Options TVI / AHD / CVI / CVBS
General
Operating Conditions -40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ? 25%
Power Consumption Max. 5.3 W
Protection Levels IP67
Materials Enclosure: Plastic
Main body: Metal
IR Range Up to 197 ft (60 m)
Communication Up the coax, TVI output
Dimensions ? 4.32 ? 3.6" (? 109.82 ? 91.03 mm)
Weight Approx. 0.71 lb (320 g)
SKU CMHT1782-28F
CAMERA TECHNOLOGY HD-TVI
CAMERA SERIES Platinum Series
CAMERA HOUSING Turret
CAMERA RESOLUTION 8MP
