Technical Specifications

Data sheet PDF

Product Description

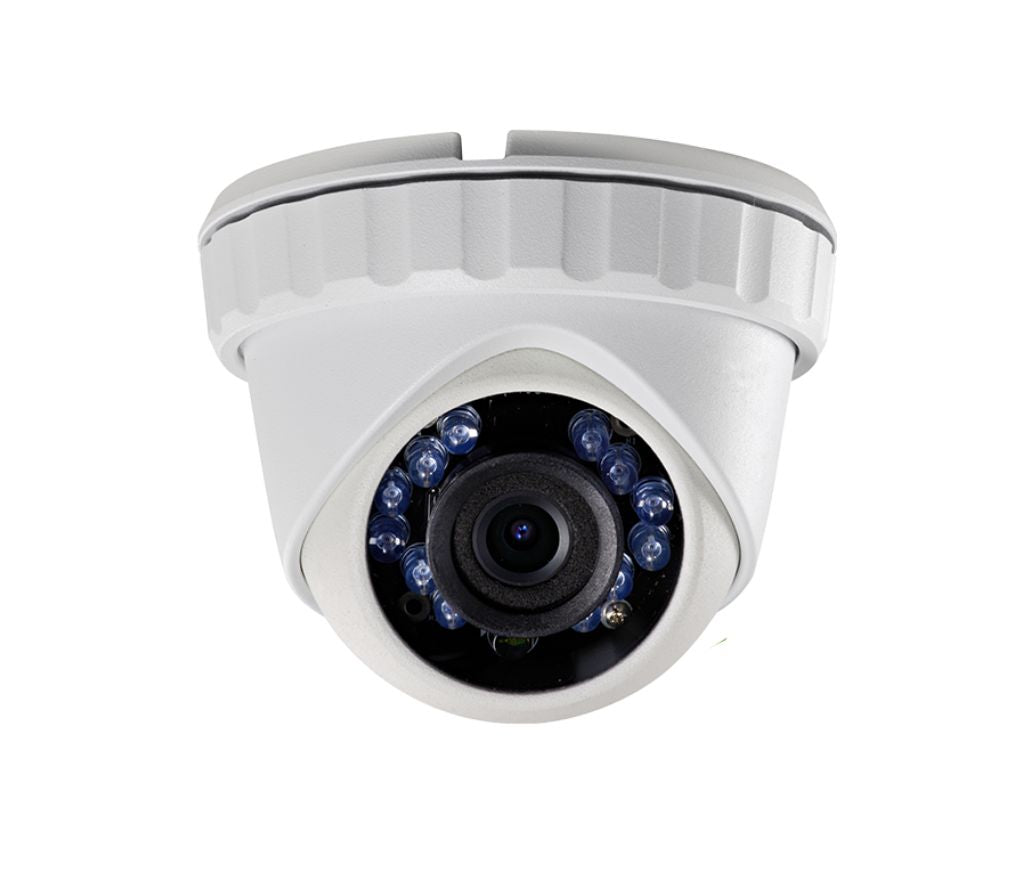

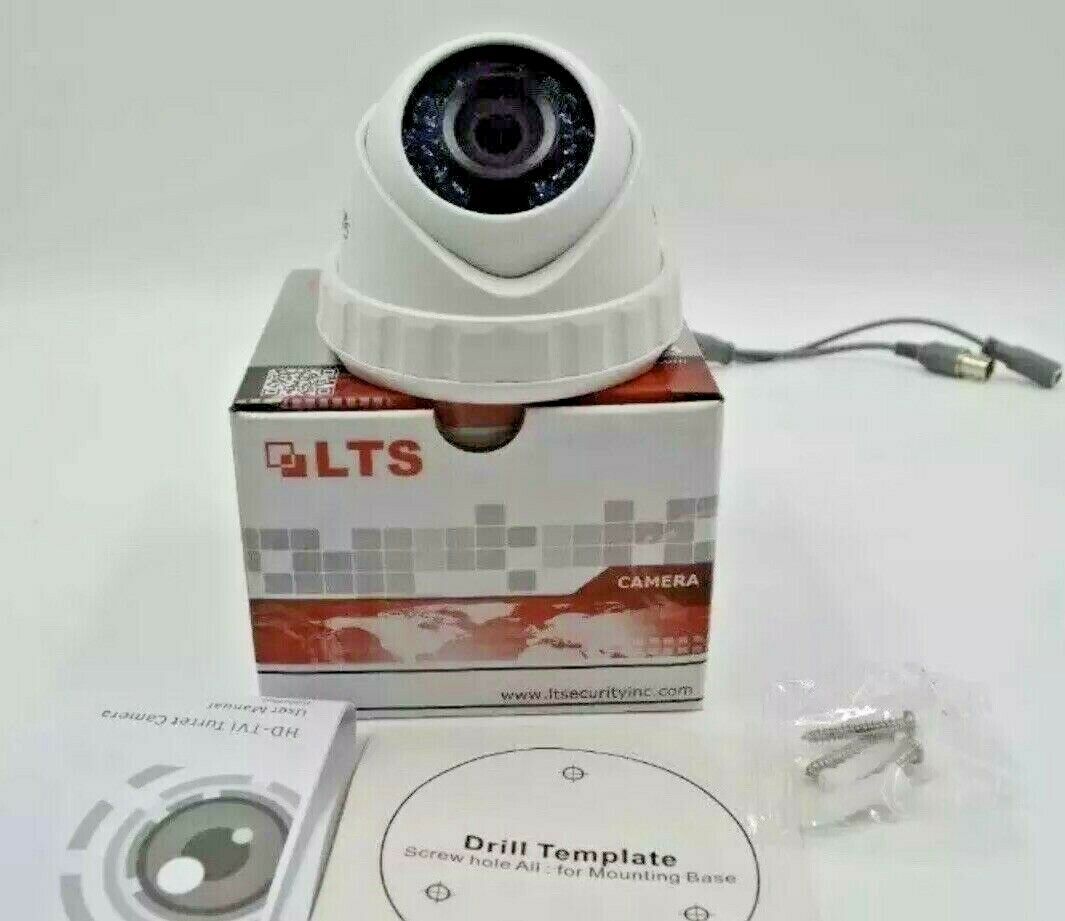

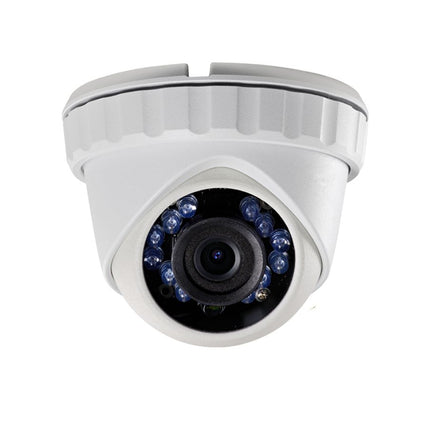

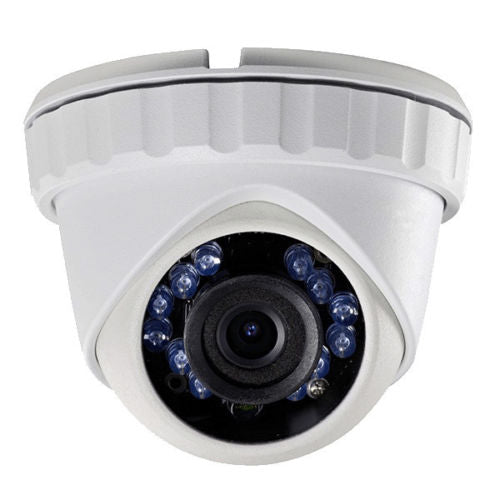

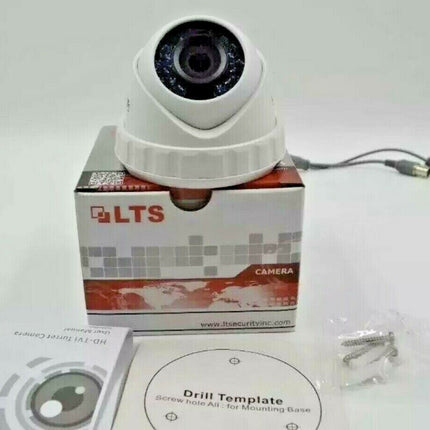

Platinum HD-TVI Turret Camera 2.1MP

2.1MP High Definition, Full HD 1080P, 1980x1080 @30fps, Angle of view 105.8?, Platinum HD-TVI, True Day/Night, Smart IR, Up to 65ft (20m), OSD Menu via UTC Technology with Platinum HD-TVI DVR, IP66 Weatherproof, TVI/AHD/CVI/960H switchable

  • 2.1MP High Definition
  • Full HD 1080P
  • 1920X1080P@30fps
  • 2.8mm Fixed Lens
  • 24 IR LEDs up to 65ft
  • Outdoor/Indoor
  • DC 12V
  • IP66
  • UTC
  • TVI/AHD/CVI/960H switchable


Specification

Camera
Image Sensor 1/2.9" CMOS
Signal System NTSC/PAL
Effective Pixels 1930(H)*1088(V)
Min. Illumination 0.01 Lux, 0 Lux with IR
Shutter Speed 1/30(1/25) s to 1/50,000 s
Lens 2.8mm
Angle of View: 105.8?
Day & Night ICR
Synchronization Internal
Video Frame Rate 1080p@30fps/1080p@25fps
HD Video Output 1 HD-TVI Output
S/N Ratio More than 52dB
Menu
AGC Support
D/N Mode Color/BW/EXT
White Balance Auto/Manual
BLC Support
Language English/Chenese
Function Digital noise reduction, Mirror
General
Working Temperature
/Humidity
-40?F - 140?F (-40?C - 60?C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 3W
Weather Proof Ratings IP66
IR Range Up to 65ft (20m)
Dimension 3.5"x2.8"
Weight 0.9lb (400g)
SKU LTCMHT2122-28F
CAMERA TECHNOLOGY HD-TVI
CAMERA SERIES Platinum Series
CAMERA HOUSING Turret
CAMERA RESOLUTION 2.1MP / 1080P
