Technical Specifications

Data sheet PDF

Product Description

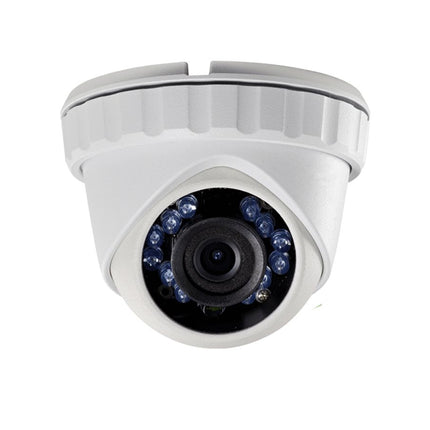

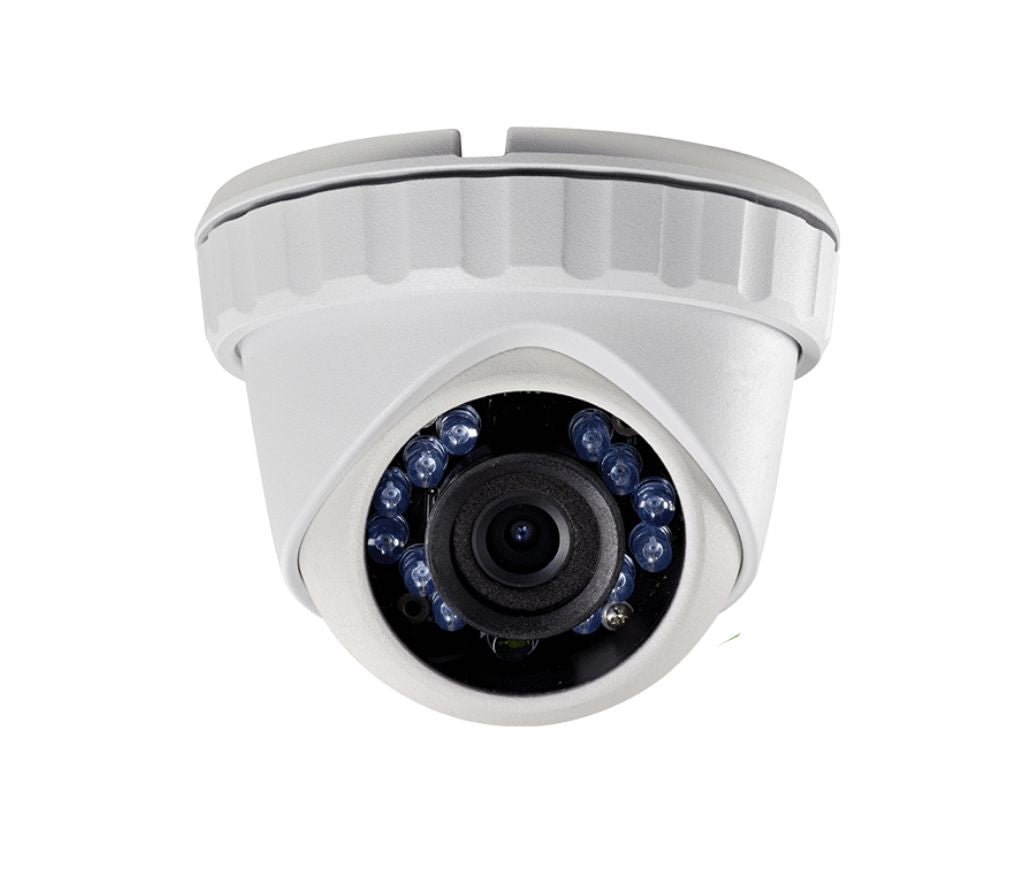

Eco - Platinum HD-TVI Turret Camera 2.1MP - White

eco - Energy Efficient, Full HD 1080P, Platinum HD-TVI, True Day/Night, Smart IR, Up to 65ft (20m), IP66 Weatherproof

  • 2.1MP High Definition
  • Full HD 1080P
  • 1920X1080P@30fps
  • 3.6mm Fixed Lens
  • 24 IR LEDs up to 65ft
  • Outdoor/Indoor
  • DC 12V
  • IP66
  • UTC


SPECIFICATIONS Camera Image Sensor 1 / 2.7? Sensor Signal System NTSC/PAL(Euro Version? Effective Pixels 1930(H)*1088(V) Min. Illumination 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR Shutter speed NTSC:1/30 s(PAL:1/25 s) to 1/50,000 s Lens 3.6mm Angle of View: 90? Day & Night Synchronization Internal synchronization Video Frame Rate NTSC:1080p@30fps/PAL:1080p@25fps HD Video Output 1 HD-TVI output S / N Ratio More than 52dB Menu Camera ID On/off (0-255) AGC Support D/N Mode Color/BW/Auto/EXT White Balance Auto/User/Push/8000K/6000K/4200K/3200K/HOLD Privacy Mask On/Off, maximum 2 zones Motion Detection On/Off BLC Support On/off Language English, Chinese Function Mirror General Working Temperature /Humidity -40 ?F - 140 ?F (-40 ?C - 60 ?C) Humidity 90% or less (non-condensing) Power Supply 12V DC Power Consumption Max. 3W Weather Proof Ratings IP66 IR Range Up to 65ft(20m) Dimensions Weight 0.9lb(400g)
