Technical Specifications

Data sheet PDF

Product Description

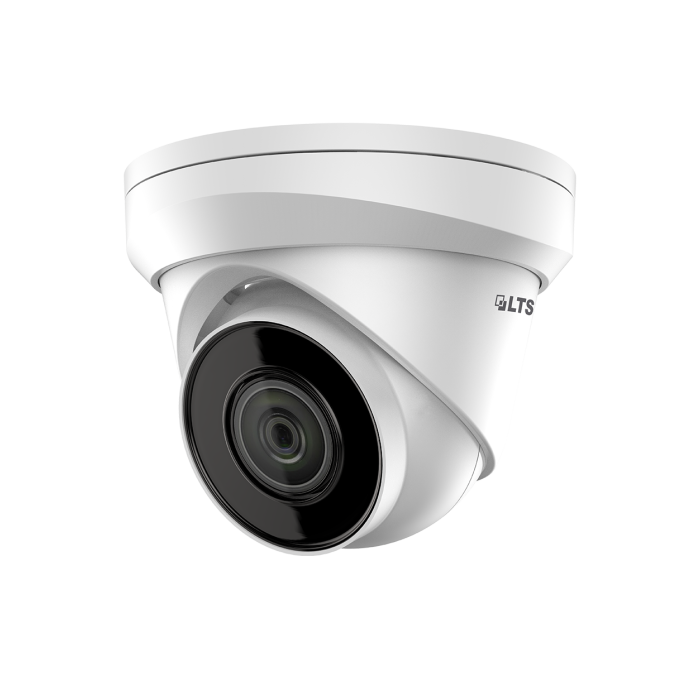

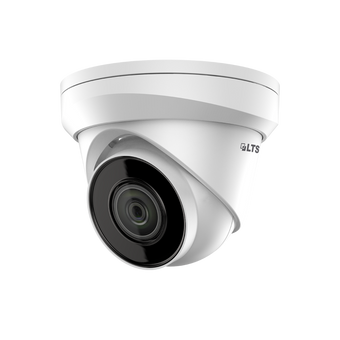

Platinum 4 MP Fixed Turret IP Camera


Platinum 4 MP Turret Network IP Camera, Matrix 2.0: Advanced Infrared Technology with Extended IR Range

  • High quality imaging with 4 MP resolution
  • High efficiency H.265+ compression technology
  • Clear imaging even with strong back lighting with 120 dB WDR
  • Water and dust resistant (IP67)
  • Matrix 2.0: Advanced infrared technology with extended IR range
  • Built-in microphone for real-time audio security
  • Supports up to 256 GB SD card storage

SPECIFICATIONS
Camera
Image Sensor 1/3" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @ (f 2.0, AGC on), B&W: 0 Lux with IR
Shutter Speed 1/3 to 1/100, 000 sec.
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night Imaging IR cut filter
Angle Adjustment Pan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
Lens
Focal Length & Field of View 2.8 mm, horizontal 98.0?, vertical 53.1?, diagonal 114.7?
Lens Mount M12
Focus Fixed
Aperture f2.0
Illuminator
IR Wavelength 850 nm
IR Range Up to 98 ft (30 m)
Video
Max. Resolution 2560 ? 1440
Main Stream 50 Hz: 20 fps (2560 ? 1440) 25 fps (2304 ? 1296, 1920 ? 1080, 1280 ? 720)
60 Hz: 20 fps (2560 ? 1440) 30 fps (2304 ? 1296, 1920 ? 1080, 1280 ? 720)
Sub-Stream 50 Hz: 25 fps (640 ? 480, 640 ? 360)
60 Hz: 30 fps (640 ? 480, 640 ? 360)
Video Compression Main stream: H.264 / H.265
Sub-stream: H.264 / H.265 / MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
H.265 Type Main Profile
H.264+ Main stream
H.265+ Main stream
Region of Interest (ROI) 1 fixed region for main stream
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User / Host Up to 32 users. 3 levels: administrator, operator and user
Network Storage NAS (NFS, SMB/CIFS), ANR
Web Browsers Plug-in required live view: Internet Explorer 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day / Night Switch Auto, Schedule, Day, Night
Image Enhancements BLC, 3D DNR
Interface
Ethernet Interface 1 x RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board Storage Built-in memory card storage supports microSD cards up to 256 GB
Built-in Microphone Yes
Hardware Reset Yes
Event Types
Basic Events Motion detection, video tampering alarm, exceptions / anomalies
General
Linkage Method Upload to FTP, notify surveillance center, send email also supports: upload to memory card, trigger recording, trigger capture
Camera Materials Metal
Camera Dimensions ? 4.3 ? 3.4" (? 110 ? 85.3 mm)
Package Dimensions 5.9 ? 5.9 ? 5.6" (150 ? 150 ? 141 mm)
Camera Weight Approx. 0.7 lb (320 g)
Package Weight Approx. 1.2 lb (556 g)
Storage Conditions -22? to 140? F (-30? to 60? C). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions -22? to 140? F (-30? to 60? C). Humidity: 95% or less (non-condensing)
General Functions Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Power Consumption and Current 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply 12 VDC ? 25% PoE: 802.3 af, Class 3
Power Interface ? 5.5 mm coaxial power plug
Certifications
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014,
EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environmental CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protections IP67 (IEC 60529-2013)
SKU LTCMIP1042W-28MA
CAMERA TECHNOLOGY IP / Network
CAMERA SERIES Platinum Series
CAMERA HOUSING Turret
CAMERA RESOLUTION 4MP
