CMIP3C82WI-28MDA Lts IP PoE Camera Platinum 8 MP Turret Hybrid Illumination

Data sheet PDF

Product Description

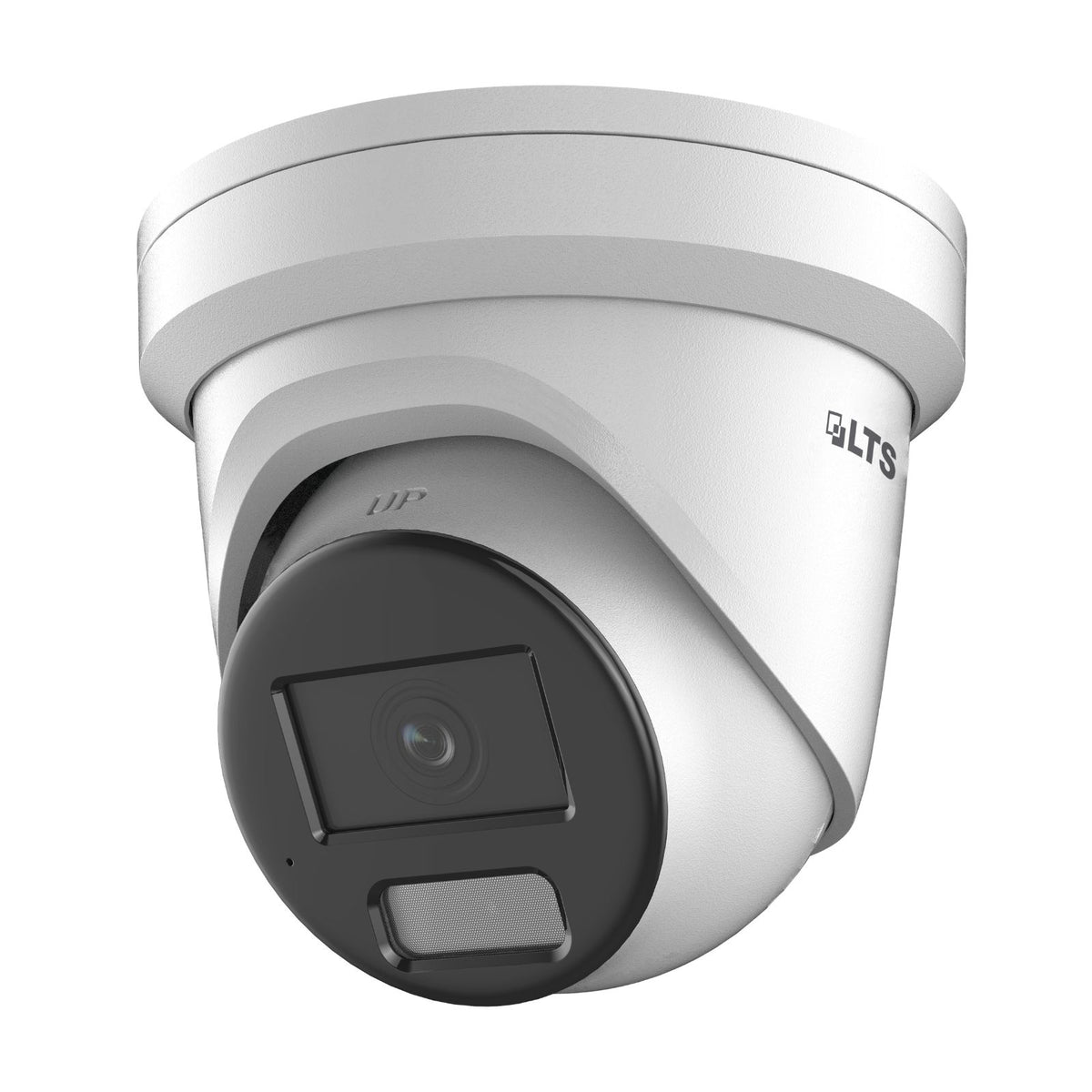

Platinum 8 MP Turret IP Camera

Platinum 8 MP Hybrid Illumination Turret Network Camera, Built-in Microphone. MD 2.0 - Human and Vehicle Detection

• High quality imaging with 8 MP resolution
• Smart Hybrid Light: Advanced technology with long range
• Clear imaging against strong back light with 130 dB WDR technology
• Efficient H.265+ compression technology
• MD 2.0: Focus on human and vehicle classification based on deep learning
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

DETAILS


• High quality imaging with 8 MP resolution
• Smart Hybrid Light: Advanced technology with long range
• Clear imaging against strong back light with 130 dB WDR technology
• Efficient H.265+ compression technology
• MD 2.0: Focus on human and vehicle classification based on deep learning
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)













Specifications
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 ? 2160
Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 sec. to 1/100,000 sec.
Day & Night IR cut filter
Angle Adjustment Pan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
Lenses
Lens Type Fixed focal lens
Focal Length & FOV 2.8 mm: horizontal 108.8?, vertical 56.4?, diagonal 134.3?
Lens Mount M16
Iris Type Fixed
Aperture F1.0
Depth of Field 3.3 m to ?
Detection, Observation, Recognition, Identification
DORI D: 292 ft (89 m), O: 115 ft (35 m), R: 55 ft (17 m), I: 26 ft (8 m)
Illuminator
Supplemental Light Type IR, White Light
Supplemental Light Range Up to 40 m
Smart Supplemental Lighting Yes
IR Wavelength 850 nm
Video
Main Stream
24 fps (3840 ? 2160)
30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
Sub-Stream 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Third Stream
10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream: H.265/ H.264 / MJPEG
Third stream: H.265 / H.264, *Third stream is supported under certain settings.
Video Bit Rates 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Compression G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw / G.711 alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 16 Kbps
to 64 Kbps (AAC-LC) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3)
Audio Sampling Rates (kHz) 8 / 16 / 32 / 44.1 / 48
Environmental Noise Filtering Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User / Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS
1.1/ 1.2 / 1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB / CIFS), Auto Network Replenishment (ANR)
Client LTS connect, NVMS, X-VMS
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Imaging
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Day / Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
SNR ? 52 dB
Wide Dynamic Range (WDR) 130 dB
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, supports MicroSD / SDHC / SDXC cards, up to 512 GB
Built-in Microphone Yes
Reset Key Yes
Event Types
Basic Events
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception / anomaly
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger
capture, send email
Smart Events
Line crossing, intrusion, region entrance, region exiting (supports alarm triggered by
specified target types (human and vehicle)), and scene change detections
VCA Functions
Face Capture Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
12 VDC ? 25%, 0.54 A, max. 6.5 W, ?5.5 mm coaxial power plug, reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max. 8 W
Materials Cover: Metal, main body: Metal
Dimensions ?5.4 ? 4.5 in.
Package Dimensions 6.7 ? 6.7 ? 6.3 in.
Weight Approx. 1.7 lbs
Package Weight Approx. 2.3 lbs
Storage Conditions -22? to 140? F. Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-22? to 140? F. Humidity 95% or less (non-condensing)
General Function Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Certifications
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019,
EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environmental CE-RoHS: 2011/65/EU
Protections IP67: IEC 60529-2013
