Technical Specifications

Data sheet PDF

Product Description

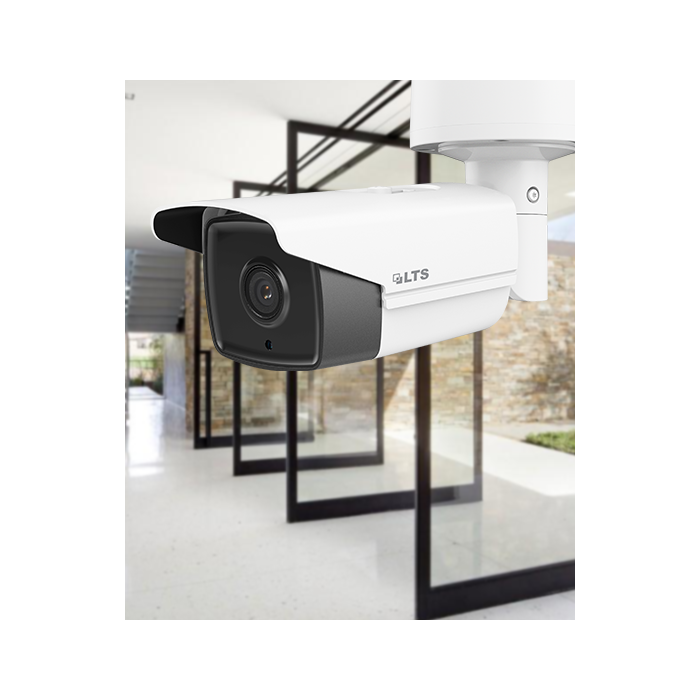

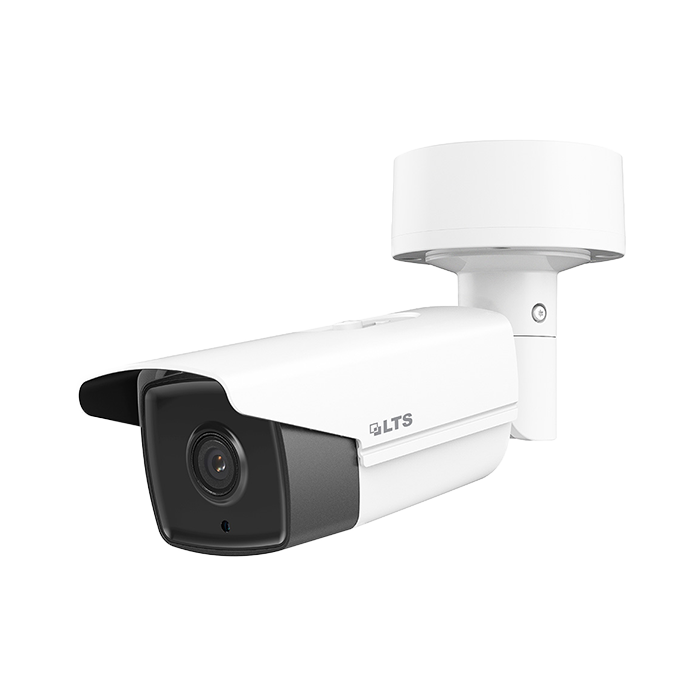

Platinum Matrix IR Bullet Network IP Camera 4MP - 2.8mm


Substitute Item: LTCMIP9342W-28MD

4MP, 2688x1520@30fps, 2.8mm, 0.018 Lux @ F1.6, Matrix IR 2.0, H.265, H.265+, H.264, H.264+ Ready, True WDR 120dB, IP67, MicroSD Slot, DC 12V, PoE, Junction Box Included

  • 4MP High Definition
  • Up to 2688x1520@30fps
  • 2.8mm Fixed Lens
  • 0.018 Lux @ F1.6
  • Matrix IR 2.0, IR Range up to 165 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120dB
  • IP67
  • MicroSD Slot up to 128GB
  • DC 12V, PoE
  • Junction Box Included

SPECIFICATIONS
Camera
Image Sensor 1/3" Progres s ive S can CMOS
Min. Illumination 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000s
Lens 2.8mm: horizontal FOV:98?, vertical FOV: 55?, diagonal FOV: 114?
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
Angle Adjustment Pan:0? ~ 360?, T ilt: 0? ~ 100?, Rotation: 0? ~ 360?
Compression Standard
Video Compression

Main stream: H.26 5/H.264
Sub stream: H.265/H.26 4/MJPEG
Third stream: H.26 5/H.264

H.264 Type Main Profile / High Profile
H.264 Zip+ Support
H.265 Main Profile
H.265+ Support
Video Bit Rate 32 Kbps ~ 16 Mbps
Max. Resolution 2560 ? 1440
Frame Rate

50Hz: 20 fps (3840 ? 2160), 25 fps (2560 ? 1920, 2560 ? 1440, 1920 ? 1080, 1280 ? 720)
60Hz: 20 fps (3840 ? 2160), 30 fps (2560 ? 1920, 2560 ? 1440, 1920 ? 1080, 1280 ? 720)

Sub Stream 50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240) 60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
Third Stream 50Hz: 25fps (1280?720, 640?360, 352?288) 60Hz: 30fps (1280?720, 640?360, 352?240)
Behavioral Analysis Line crossing detection, intrusion detection
Face Detection Yes
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger

Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error

Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General

One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter

Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity
-22 ?F ~ 140?F (-30 ?C ~ 60 ?C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ? 25%, PoE (802.3af)
Power Consumption DC 12V, 0.6A, max. 7.5W
IR Range Approx. 165ft(50 meters)
Weather Proof Ratings IP67
Dimensions ?4.13? ? 11.80? (?105 ? 299.7 mm)
Weight 2.7lbs (1200 g)
SKU LTCMIP9342W-28M
CAMERA TECHNOLOGY IP / Network
CAMERA SERIES Platinum Series
CAMERA HOUSING Bullet
CAMERA RESOLUTION 4MP
