DH-HAC-HDW1239TLQN-A-LED

Description

DH-HAC-HDW1239TLQN-A-LED


This listing includes:

  • ¬†(1) ANALOG CAMERA:¬†DH-HAC-HDW1239TLQN-A-LED


DH-HAC-HDW1239TLQN-A-LED  view data sheet

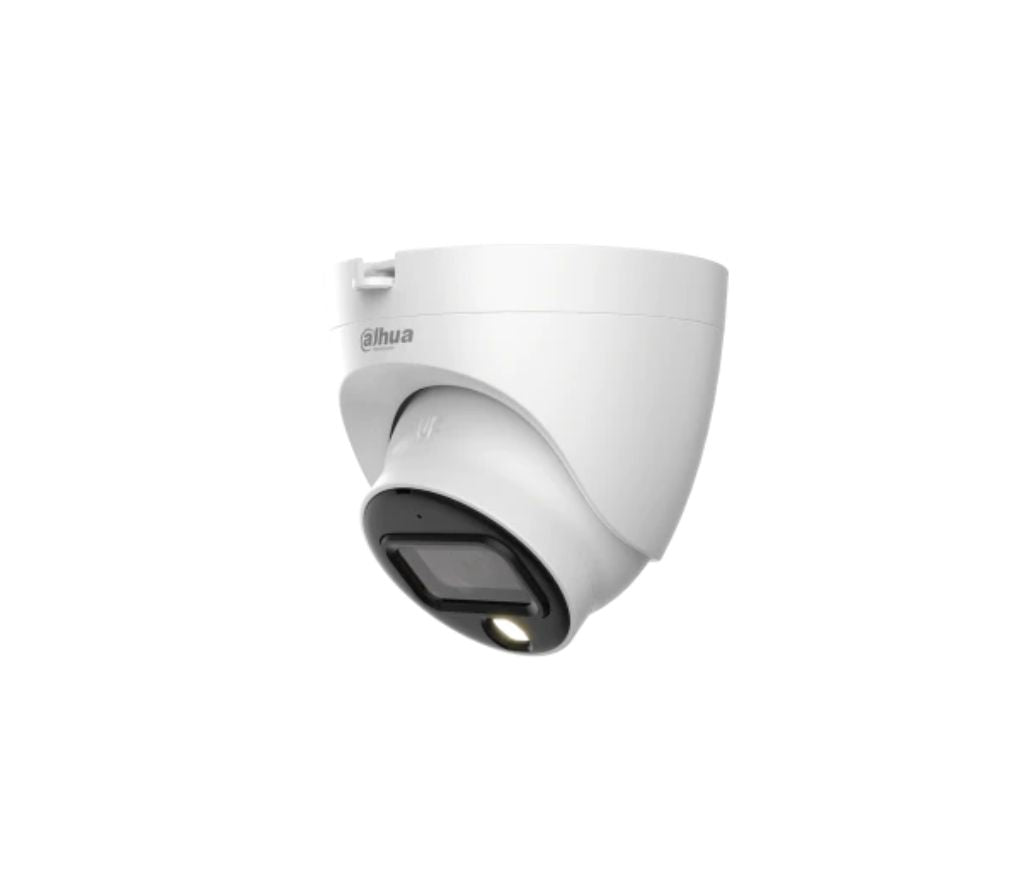

2MP Full-color HDCVI Quick-to-install Eyeball Camera

DH-HAC-HDW1239TLQ(-A)-LED

? 24/7 color imaging, Max. 30 fps@1080p

? 20 m illumination distance

? Super Adapt, 130 dB true WDR, 3D NR

? Built-in mic (-A)

? Quick-to-install eyeball saves installation time

? 3.6 mm fixed lens (2.8 mm optional)

? CVI/CVBS/AHD/TVI switchable

? IP67, DC 12 V



DH-HAC-HDW1239TLQN-A-LED

Product form

SKU: 416126842077-EN1

$83.15 $76.99

Out of stock

  • Shipped today? Order within: Aug 31, 2025 15:00:00 -0400
    • Guaranteed secure & safe checkout.

      paypal

    Description

    DH-HAC-HDW1239TLQN-A-LED


    This listing includes:

    • ¬†(1) ANALOG CAMERA:¬†DH-HAC-HDW1239TLQN-A-LED


    DH-HAC-HDW1239TLQN-A-LED  view data sheet

    2MP Full-color HDCVI Quick-to-install Eyeball Camera

    DH-HAC-HDW1239TLQ(-A)-LED

    ? 24/7 color imaging, Max. 30 fps@1080p

    ? 20 m illumination distance

    ? Super Adapt, 130 dB true WDR, 3D NR

    ? Built-in mic (-A)

    ? Quick-to-install eyeball saves installation time

    ? 3.6 mm fixed lens (2.8 mm optional)

    ? CVI/CVBS/AHD/TVI switchable

    ? IP67, DC 12 V



    Data sheet PDF

    Product Description

    2MP Full-color HDCVI Quick-to-install Eyeball Camera

    DH-HAC-HDW1239TLQ(-A)-LED

    ? 24/7 color imaging, Max. 30 fps@1080p

    ? 20 m illumination distance

    ? Super Adapt, 130 dB true WDR, 3D NR

    ? Built-in mic (-A)

    ? Quick-to-install eyeball saves installation time

    ? 3.6 mm fixed lens (2.8 mm optional)

    ? CVI/CVBS/AHD/TVI switchable

    ? IP67, DC 12 V


    Specification

    Camera Image Sensor 1/2.8" CMOS Max. Resolution 1920 (H) ? 1080 (V) Pixel 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s?1/100,000 s NTSC: 1/30 s?1/100,000 s S/N Ratio > 65 dB Min. Illumination 0.001 Lux/F1.6, 30IRE, 0 Lux LED on Illumination Distance 20 m (65.6 ft) Illuminator On/Off Control Auto; manual Illuminator Number 1 Pan/Tilt/Rotation Range Pan: 0??360? Tilt: 0??78? Rotation: 0??360? Lens Lens Type Fixed lens Mount Type M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.6 Field of View 2.8 mm: H: 107?; V: 56?; D: 127? 3.6 mm: H: 86?; V: 46?; D: 101? Iris Type Fixed iris Close Focus Distance 2.8 mm: 0.7 m (2.3 ft) 3.6 mm: 1.1 m (3.6 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 43.9 m (144 ft) 17.5 m (57.4 ft) 8.8 m (28.9 ft) 4.4 m (14.4 ft) 3.6 mm 53.7 m (176.2 ft) 21.5 m (70.5 ft) 10.7 m (35.1 ft) 5.4 m (17.7 ft) Video Frame Rate CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 ? 576H; NTSC: 960 ? 480H Resolution 1080p (1920 ? 1080); 960H (960 ? 576/960 ? 480) BLC BLC/WDR/HLC WDR 130 dB White Balance Auto; Area WB www.dahuasecurity.com Gain Control Auto; manual Noise Reduction 3D NR Smart Light Yes Mirror Off/On Privacy Masking Off/On (8 area, rectangle) Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input One channel built-in mic (-A) Power Power Supply 12 V ?30% DC Power Consumption Max 3.3 W (12 V DC, LED on) Environment Operating Temperature ?40 ?C to +60 ?C (?40 ?F to 140 ?F); < 95% (non-condensation) Storage Temperature ?40 ?C to +60 ?C (?40 ?F to 140 ?F); < 95% (non-condensation) Protection Grade IP67 Structure Casing Metal inner core + plastic cover + plastic pedestal Camera Dimensions ?97.1 mm ? 92.9 mm (?3.82" ? 3.66") Net Weight 0.22 kg (0.49 lb) Gross Weight 0.28 kg (0.62 lb)


    Feature Highlight

    Scroll to Explore key features.

    24/7 Color

    24/7 Color

    With 24/7 color cameras, you get crystal-clear footage around the clock—even in low light. That means no more blurry ...

    24/7 Color

    With 24/7 color cameras, you get crystal-clear footage around the clock—even in low light. That means no more blurry black-and-white clips that leave you guessing. You can actually see the color of a car, what someone’s wearing, or what’s really happening outside your home. There’s no need for bulky floodlights or motion sensors just to get a clear picture. These cameras capture real, full-color details that help you make faster, smarter decisions if something ever goes wrong.

    Advanced Security, Made Simple.



    See the Full Picture, Even at Night

    See the Full Picture, Even at Night

    Full Color Technology gives you crystal-clear, color video—even in complete darkness—so you can recognize faces, license plates, and details that matter most. No more grainy footage. Just total clarity, day or night.

    A few more things...

    Scroll to see essential features found in this product and many others across our lineup

    Why Choose Us?

    Frequently Asked Questions

    What makes your surveillance systems premium?+

    Our systems are built with advanced AI features, superior video quality, and long-term reliability—making them ideal for both residential and commercial security.

    Do you offer installation services?+

    Yes, we provide professional installation services in select locations. Contact our support team for availability and scheduling.

    Can I access the system remotely?+

    Absolutely. Our systems support remote viewing via secure mobile apps, allowing you to monitor your property from anywhere.

    What warranty do you offer?+

    All systems come with a standard 2-year warranty, with optional extended coverage for added peace of mind.
