DH-HAC-T2A41N Dahua CCTV Camera DH-HAC-T2A41 > 4MP HDCVI IR Eyeball ?
This listing includes:
-  (1) ANALOG CAMERA: DH-HAC-T2A41N
DH-HAC-T2A41N  view data sheet
DH-HAC-T2A41

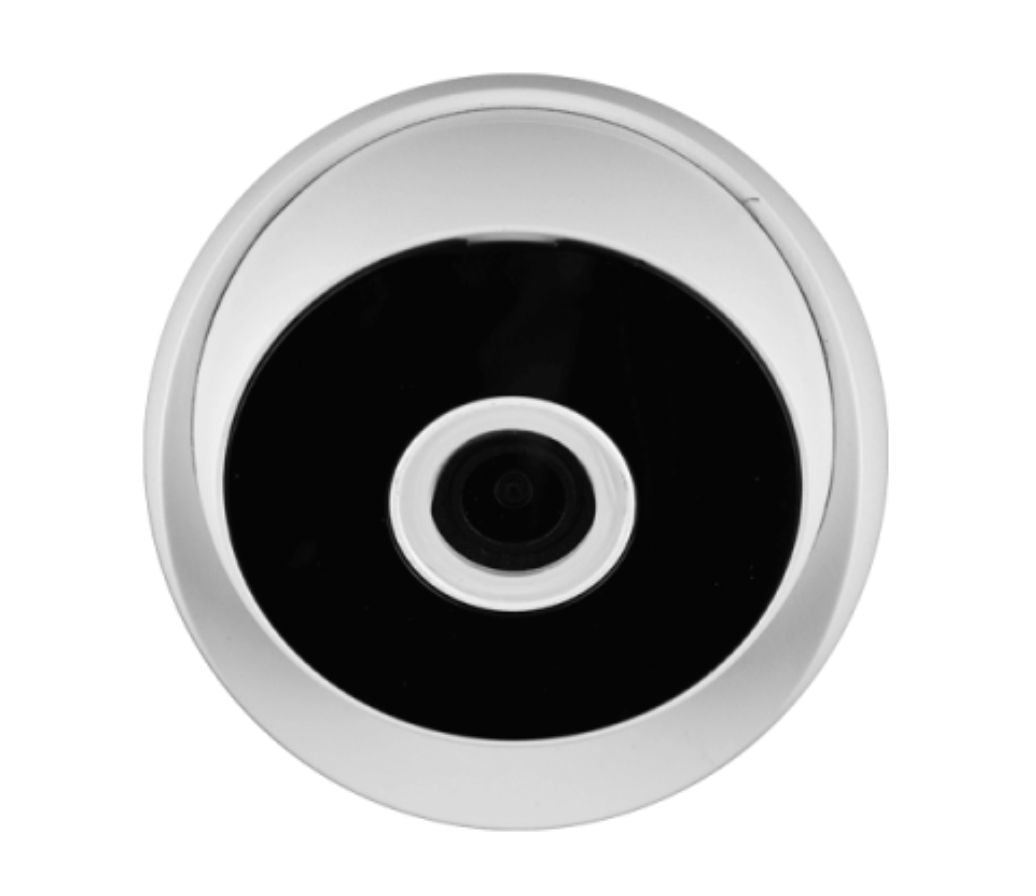

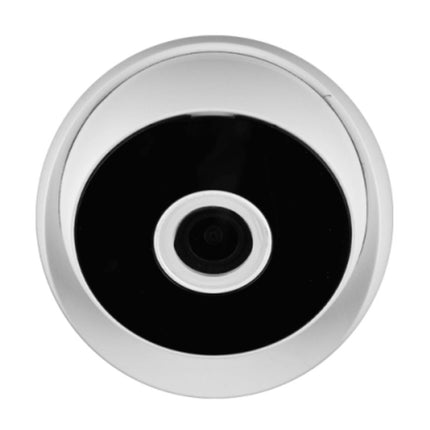

4MP HDCVI IR Eyeball Camera
? Max. 30fps@4MP
? HD and SD output switchable
? 3.6mm fixed lens (2.8mm,6mm optional)
? Max. IR length 20m, Smart IR ? IP67, DC12V
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
DH-HAC-T2A41
4MP HDCVI IR Eyeball Camera
? Max. 30fps@4MP
? HD and SD output switchable
? 3.6mm fixed lens (2.8mm,6mm optional)
? Max. IR length 20m, Smart IR ? IP67, DC12V
Specification
Camera Image Sensor 1/2.7" CMOS Effective Pixels 2560(H)?1440(V), 4MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination 0.04Lux/F2.0, 30IRE, 0Lux IR on S/N Ratio More than 65dB IR Distance Up to 20m (66feet) IR On/Off Control Auto / Manual Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 3.6mm (2.8mm,6mm Optional) Max Aperture F2.0 Angle of View H: 76.4? (97?,48.6?) V:41.6? (52?,27.9?) Focus Control N/A Close Focus Distance 1400mm (800mm,2500mm) 55.12'' (31.50?,98.43'') DORI Distance Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. DORI Definition Distance Detect 25px/m (8px/ft) 2.8mm:56m(184ft) 3.6mm: 80m(262ft) 6mm: 120m(394ft) Observe 63px/m (19px/ft) 2.8mm:22m(73ft) 3.6mm: 32m(105ft) 6mm: 48m(157ft) Recognize 125px/m (38px/ft) 2.8mm:11m(37ft) 3.6mm: 16m(52ft) 6mm: 24m(79ft) Identify 250ppm (76px/ft) 2.8mm: 6m(18ft) 3.6mm: 8m(26ft) 6mm: 12m(39ft) Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0? ~ 360? Tilt: 0? ~ 78? Rotation: 0? ~ 360? Video Resolution 4MP (2560?1440) Frame Rate 25/30fps@4MP,25/30fps@1080P Video Output 1-channel BNC high definition video output / CVBS video output (Can switch) Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto / Manual Smart IR Auto / Manual Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) Interface Audio Interface N/A Eelectrical Power Supply 12V DC ?30% Power Consumption Max. 3.9W (12V DC, IR on) Environmental Operating Conditions -40?C ~ +60?C (-40?F ~ +140?F) / Less than 95% RH * Start up should be done at above -40?C (-40?F) Storage Conditions -40?C ~ +60?C (-40?F ~ +140?F) / Less than 95% RH Ingress Protection & Vandal Resistance IP67 Construction Casing Aluminium Dimensions 94mm?94mm?78mm(3.7"?3.7"?3.07") Net Weight 0.27kg (0.60lb) Gross Weight 0.34kg (0.75lb)
