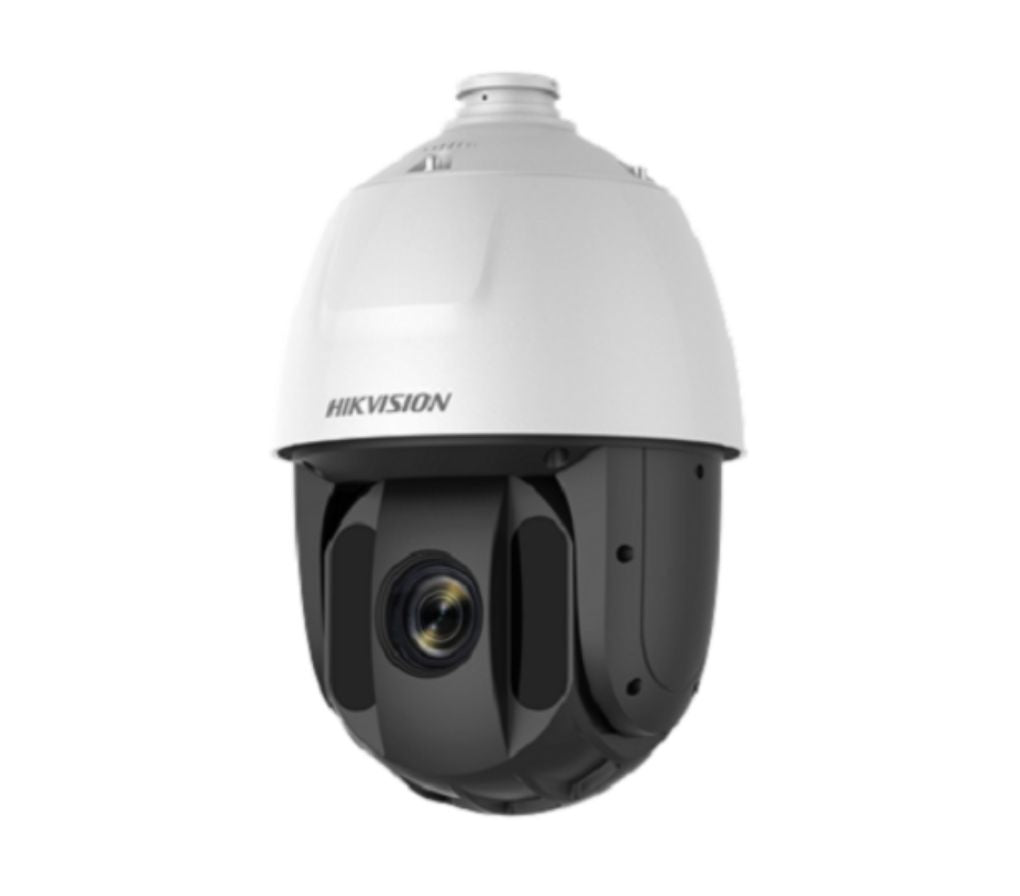

DS-2AE5225TI-A Hikvision CCTV Camera 5-inch 2 MP 25X DarkFighter IR Analog
DS-2AE5225TI-A Hikvision CCTV Camera 5-inch 2 MP 25X DarkFighter IR Analog
Infrared (IR)
Pan Tilt Zoom (PTZ)
In stock
products.product.pickup_availabilities
Description
Description
DS-2AE5225TI-A Hikvision CCTV Camera 5-inch 2 MP 25X DarkFighter IR Analog
This listing includes:
-  (1) ANALOG CAMERA: DS-2AE5225TI-A
DS-2AE5225TI-A  view data sheet
5-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 150m IR range ensures safety at night
- Water and dust resistant (IP66)
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
5-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 150m IR range ensures safety at night
- Water and dust resistant (IP66)
Camera
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Max. Resolution1920 ? 1080
- Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR
- Shutter SpeedPAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
- Day & NightIR cut filter
- Zoom25 ? optical, 16 ? digital
- Lens
- Focal Length4.8 mm to 120 mm, 25 ? optical
- FOVHorizontal FOV: 57.6? to 2.5? (wide to tele) Vertical FOV: 34.4? to 1.4? (wide to tele) Diagonal FOV: 64.5? to 2.9? (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.6 to F3.5
- Zoom SpeedApprox. 3.6 s (optical, wide to tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range150 m
- PTZ
- Movement Range (Pan)360? endless
- Movement Range (Tilt)-15? to 90? (auto flip)
- Pan SpeedPan manual speed: 0.1? to 120?/s Pan preset speed: 120?/s
- Tilt SpeedTilt manual speed: 0.1? to 80?/s Tilt preset speed: 80?/s
- Proportional PanRotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Preset FreezingYes
- Patrol Scan10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status DisplayYes
- Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off MemoryYes
- Video
- Frame Rate50 Hz: 25 fps @(1920 ? 1080) 60 Hz: 30 fps @(1920 ? 1080)
- Network
- ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image SettingsAGC, white balance
- Wide Dynamic Range (WDR)? 120 dB
- Image StabilizationEIS
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional FocusYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- Alarm2 alarm inputs, 1 alarm output
- RS-485Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power24 VAC/36 VDC, max. 30 W (IR: 10 W)
- Dimension? 208 mm ? 305 mm (? 8.19" ? 12.01")
- WeightApprox. 3.3 kg (7.28 Ib.)
- Operating Condition-30? C to 65? C (-22? F to 149? F). Humidity 90% or less
- LanguageEnglish
- Approval
- ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
Lens
Illuminator
PTZ
Video
Network
Interface
General
Approval
