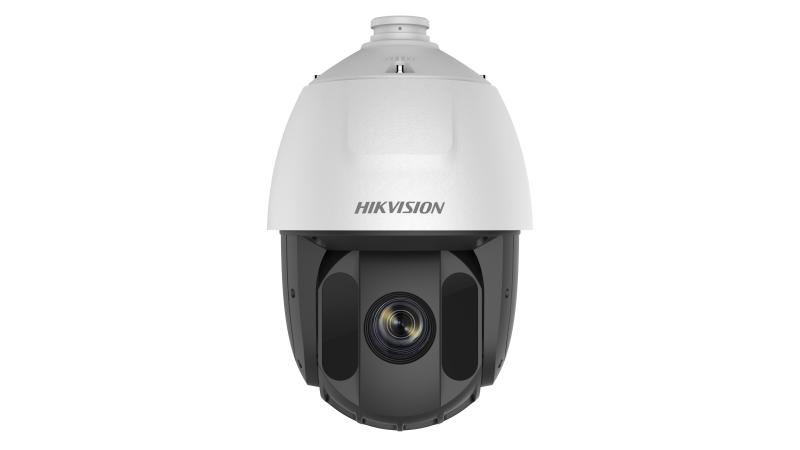

DS-2AE5232TI-A
DS-2AE5232TI-A
Infrared (IR)
Pan Tilt Zoom (PTZ)
Out of stock
Description
Description
5-inch 2 MP 32X Powered by DarkFighter Analog Speed Dome
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 32x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 150m IR range ensures safety at night
- Water and dust resistant (IP66)
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
5-inch 2 MP 32X Powered by DarkFighter Analog Speed Dome
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 32x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 150m IR range ensures safety at night
- Water and dust resistant (IP66)
Specification
Camera
Lens
Illuminator
PTZ
Video
Network
Interface
General
Approval
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 ? 1080
Min. Illumination
Color: 0.005 Lux @(F1.2, AGC ON)
B/W: 0.001 Lux @(F1.2, AGC ON)
0 lux with IR
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night
IR cut filter
Zoom
32 ? optical, 16 ? digital
Lens
Focal Length
4.8 mm to 153 mm, 32 ? optical
FOV
Horizontal FOV: 55.6? to 2.04? (wide to tele)
Vertical FOV: 32.4? to 1.14? (wide to tele)
Diagonal FOV: 63? to 2.34? (wide to tele)
Focus
Auto, semi-auto, manual
Aperture
F1.2 to F4.4
Zoom Speed
Approx. 5.6 s (optical, wide to tele)
Illuminator
Supplement Light Type
IR
Supplement Light Range
150 m
PTZ
Movement Range (Pan)
360? endless
Movement Range (Tilt)
-15? to 90? (auto flip)
Pan Speed
Pan manual speed: 0.1? to 120?/s
Pan preset speed: 120?/s
Tilt Speed
Tilt manual speed: 0.1? to 80?/s
Tilt preset speed: 80?/s
Proportional Pan
Rotation speed can be adjusted automatically according to zoom multiples
Presets
256
Preset Freezing
Yes
Patrol Scan
10 patrols, up to 32 presets for each patrol
Pattern Scan
5 patterns, record time over 10 minutes for each scan
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display
Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-Off Memory
Yes
Video
Frame Rate
50 Hz: 25 fps @(1920 ? 1080)
60 Hz: 30 fps @(1920 ? 1080)
Network
Protocols
UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings
AGC, white balance
Wide Dynamic Range (WDR)
? 120 dB
Image Stabilization
EIS
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
8 programmable privacy masks
Regional Focus
Yes
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm
2 alarm inputs, 1 alarm output
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
General
Power
24 VAC, max. 30 W (IR: 10 W)
Dimension
? 208 mm ? 305 mm (? 8.19" ? 12.01")
Weight
Approx. 3.3 kg (7.28 Ib.)
Operating Condition
-30? C to 65? C (-22? F to 149? F). Humidity 90% or less
Language
English
Approval
Protection
IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
