Hikvision DS-2CD1183G2-LIUF 8MP Smart Hybrid Light Fixed Dome Network Camera with Mic
- VendorHIKVISION
Hikvision DS-2CD1183G2-LIUF 8MP Smart Hybrid Light Fixed Dome Network Camera with Mic
- VendorHIKVISION
Hikvision DS-2CD1183G2-LIU(F) 8MP Smart Hybrid Light Fixed Dome Network Camera
The DS-2CD1183G2-LIU(F) is an 8 MP fixed dome IP camera with Smart Hybrid Light and built-in microphone, delivering clear video day and night. It supports human & vehicle detection, efficient H.265+ compression, and robust IP67/IK08 protection for reliable indoor and outdoor surveillance.
Key Features
- 8 MP imaging – 3840 × 2160 resolution for detailed coverage.
- Smart Hybrid Light – Automatic IR/white light illumination up to 30 m.
- Human & vehicle detection – Target-based analytics to reduce false alarms.
- Built-in microphone – Real-time mono audio with noise filtering.
- Efficient compression – H.265+/H.265/H.264+/H.264.
- Wide dynamic range – 120 dB WDR for complex lighting.
- Rugged design – IP67 weather resistance & IK08 vandal resistance.
- Flexible power – 12 VDC or PoE (802.3af), max 7.5 W.
- Edge storage (-F) – microSD/microSDHC/microSDXC up to 512 GB.
Technical Specifications
| Category | Details |
|---|---|
| Available Models | DS-2CD1183G2-LIU (2.8/4 mm); DS-2CD1183G2-LIUF (2.8/4 mm) |
| Image Sensor | 1/2.7" progressive scan CMOS |
| Max. Resolution | 3840 × 2160 (8 MP) |
| Shutter | 1/3 s to 1/100,000 s |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR |
| Day/Night | IR-cut filter |
| Angle Adjustment | Pan: 0°–355°; Tilt: 0°–75°; Rotate: 0°–355° |
| Lens Type | Fixed 2.8 mm or 4 mm; M12; F2.0; fixed iris |
| Field of View | 2.8 mm: H113° / V62° / D134°; 4 mm: H90° / V49° / D108° |
| DORI (approx.) | 2.8 mm: D 79 m / O 31 m / R 15 m / I 7 m; 4 mm: D 102 m / O 40 m / R 20 m / I 10 m |
| Illumination | IR & white light; Smart Supplement Light; range up to 30 m; IR wavelength 850 nm |
| Main Stream (50 Hz) | 12.5 fps @ 3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720 |
| Main Stream (60 Hz) | 15 fps @ 3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720 |
| Sub-Stream (50 Hz) | 12.5 fps @ 1280×720, 640×480, 640×360 |
| Sub-Stream (60 Hz) | 15 fps @ 1280×720, 640×480, 640×360 |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG |
| Bitrate | 32 Kbps to 16 Mbps; CBR/VBR; SVC (H.264/H.265); ROI: 1 fixed region |
| H.264 Profiles | Baseline / Main / High |
| H.265 Profile | Main |
| Audio | Mono sound; environment noise filtering; built-in microphone |
| Audio Sampling | 8 kHz / 16 kHz |
| Audio Codecs | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Bitrates | G.711u/a: 64 Kbps; G.722.1: 16 Kbps; G.726: 16 Kbps; MP2L2: 32–160 Kbps; AAC-LC: 16–64 Kbps |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| API / Interop | ONVIF Profile S/T/G (Profile G on -F only), ISAPI, SDK, Hik-Connect |
| Security | Password protection, complicated password, watermark, HTTP basic/digest/WSSE, ONVIF digest, audit log, host (MAC) authentication |
| Live View / Users | Up to 6 channels; up to 32 users (administrator/operator/user) |
| Client / Browser | iVMS-4200, Hik-Connect; plug-in live view: IE10/IE11; local service: Chrome 57+, Firefox 52+, Edge 89+ |
| Image | WDR 120 dB; SNR ≥ 52 dB; Day/Night switch: Day/Night/Auto/Schedule; BLC, HLC, 3D DNR; adjustable rotate/saturation/brightness/contrast/sharpness/gain/white balance via client/web |
| Privacy Masks | 4 programmable polygon masks |
| Interface | 1 × RJ45 10/100M Ethernet |
| On-board Storage (-F) | microSD/microSDHC/microSDXC, up to 512 GB |
| Built-in Mic | Yes |
| Reset Key | -F: Yes |
| Events | Motion detection (with human/vehicle target types), tampering, exception; linkages: upload to FTP/SD (-F), email, notify center, trigger recording (-F), trigger capture |
| Power | 12 VDC ± 25% (0.5 A, max 6 W), Ø5.5 mm coaxial plug, reverse-polarity protection; PoE IEEE 802.3af Class 3 (max 7.5 W) |
| Material | Metal & plastic |
| Dimensions | Ø 121.5 × 97.6 mm (Ø 4.78" × 3.84") |
| Package Dimensions | 150 × 150 × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 550 g (1.2 lb); with package: 800 g (1.8 lb) |
| Operating / Storage | -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing) |
| Languages | English, Ukrainian |
| General Functions | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Approvals – EMC | EN 55032:2015+A1:2020; EN 50130-4:2011+A1:2014; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32:2015; IC: ICES-003: Issue 7 |
| Approvals – Safety | UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252 (Part 1):2010 / IEC 60950-1:2005 |
| Approvals – Environment | CE-RoHS 2011/65/EU; WEEE 2012/19/EU; REACH (EC) 1907/2006 |
| Protection | IP67 (IEC 60529:2013); IK08 (IEC 62262:2002) |
| Anti-Corrosion Class | No specific protection (select model per environment; moderate/top-level categories described by manufacturer) |
Accessories & Compatible Mounts

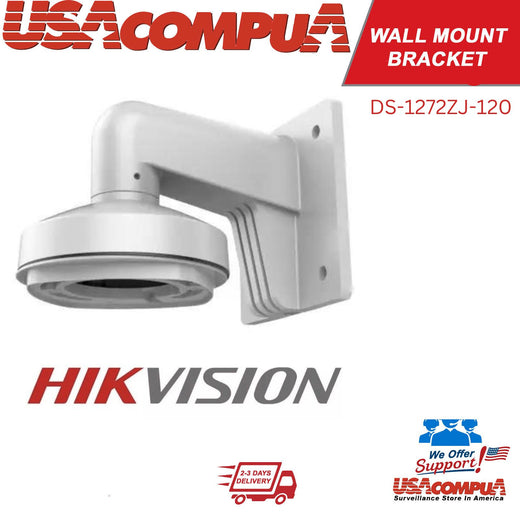

- DS-1272ZJ-120 / DS-1272ZJ-120B — Wall Mount
- DS-1271ZJ-120 — Pendant Mount
- DS-1275ZJ-SUS — Vertical Pole Mount
- DS-1276ZJ-SUS — Corner Mount

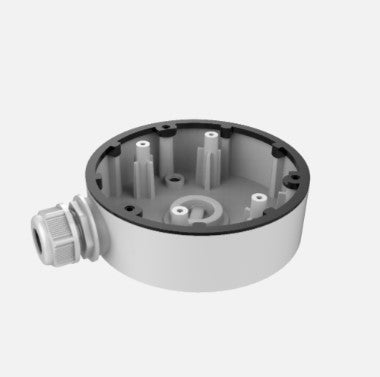

- DS-1280ZJ-DM46 — Junction Box
- DS-2210ZJ-WA-120 — Pendant Mount
- DS-2200ZJ-WA-120 / DS-2200ZJ-WAJ-120 — Wall Mount
- DS-2280ZJ-WA120 — Junction Box
Ideal Applications
- Retail, office, and commercial interiors
- Residential entryways and common areas
- Parking lots, garages, and perimeter coverage
- Warehouses and logistics facilities
Delivering 8 MP clarity, smart illumination, and rugged protection, the DS-2CD1183G2-LIU(F) is a versatile choice for modern IP surveillance.
