DS-2CD1323G0-I Hikvision 4K 4CH 4 PoE NVR 2MP Security IP Camera CCTV System
DS-2CD1323G0-I Hikvision 4K 4CH 4 PoE NVR 2MP Security IP Camera CCTV System
Hurry up, only 2 items left in stock.
products.product.pickup_availabilities
Description
Description
DS-2CD1323G0-I Hikvision 4K 4CH 4 PoE NVR 2MP Security IP Camera CCTV System
This listing includes:
- CAMERA QUANTITY (DS-2CD1323G0-I): 1;2;3;4
- HARD DRIVE OPTION FOR RECORDER DS-7604NI-Q1/4P: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
DS-2CD1323G0-I view data sheet
2 MP Fixed Turret Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to DWDR technology
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
- Enhanced safety with discreet and economical built-in microphone (IP 66)
DS-7604NI-Q1/4P view data sheet
4ch 1U 4 PoE 4K NVR
- Up to 4ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description

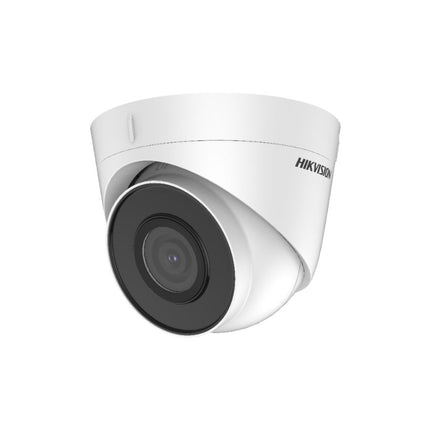

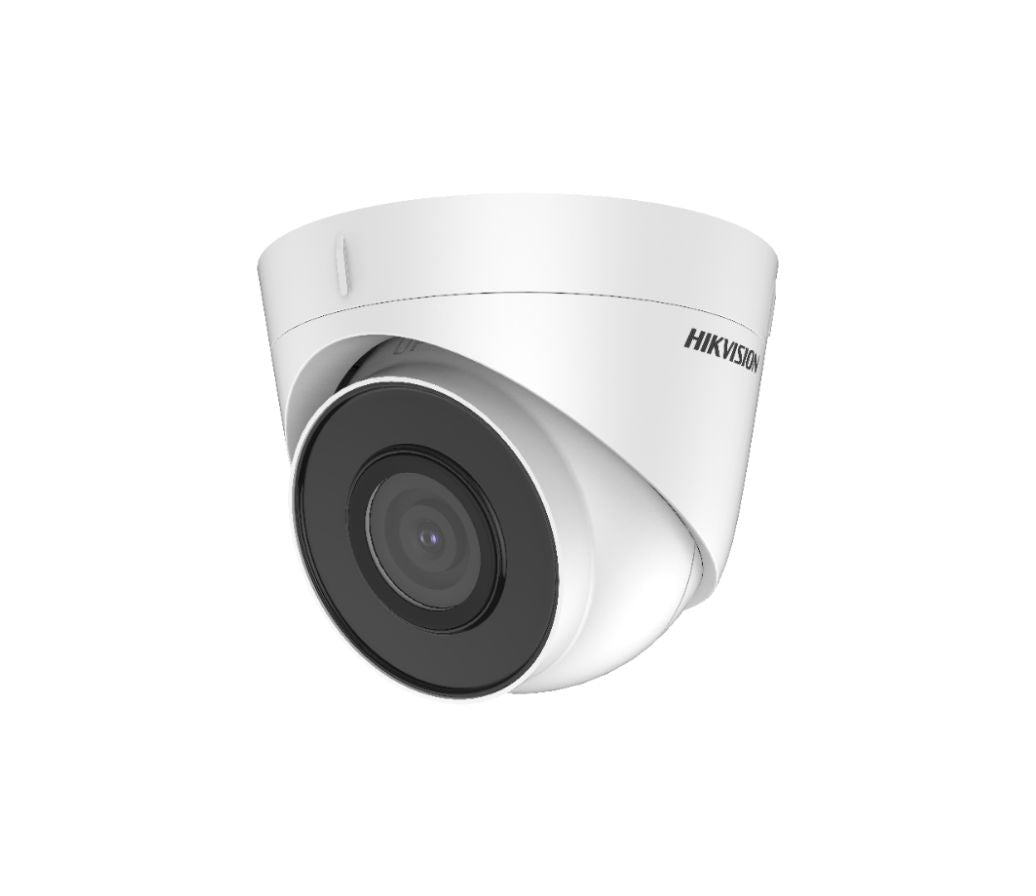

2 MP Fixed Turret Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to DWDR technology
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
- Enhanced safety with discreet and economical built-in microphone (IP 66)
Specification
- Camera
- Image Sensor1/2.8" progressive scan CMOS
- Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
- Shutter Speed1/3 s to 1/100, 000 s
- Slow ShutterYes
- Day &NightIR cut filter
- Wide Dynamic RangeDigital WDR
- Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotation: 0? to 360?
- DNR3D DNR
- Lens
- Lens2.8 mm, 4 mm, 6 mm
- Auto-IrisNo
- ApertureF2.0
- FocusNo
- FOV2.8 mm, horizontal FOV 114.5?, vertical FOV 62?, diagonal FOV 135.5?,4 mm, horizontal FOV 86?, vertical FOV 46?, diagonal FOV 102?,6 mm, horizontal FOV 54?, vertical FOV 30?, diagonal FOV 62?
- Lens MountM12
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Video
- Max. Resolution1920 ? 1080
- Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Smart Feature-Set
- Region Of Interest1 fixed region for main stream and sub-stream
- Image
- Image EnhancementBLC, 3D DNR
- Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, scheduled
- Main Stream Max. Frame Rate50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)
- Sub-Stream Max. Frame Rate50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm TriggerMotion detection, video tampering alarm, illegal login
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- General
- Firmware Version5.5.2
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Startup And Operating Conditions-30 ?C to 50 ?C (-22 ?F to 122 ?F), humidity: 95% or less (non-condensing)
- Power Supply12 VDC ? 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- MaterialMetal & Plastic
- DimensionsCamera: ? 110 mm ? 93.2 mm ( 4.3" ? 3.7"),With package: 150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
- WeightCamera: approx. 360 g (0.8 lb.),With package: approx. 610 g (1.3 lb.)
- Power Consumption And Current12 VDC, 0.4 A, max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
- Interface ProtectionIP67
Data sheet PDF
Product Description

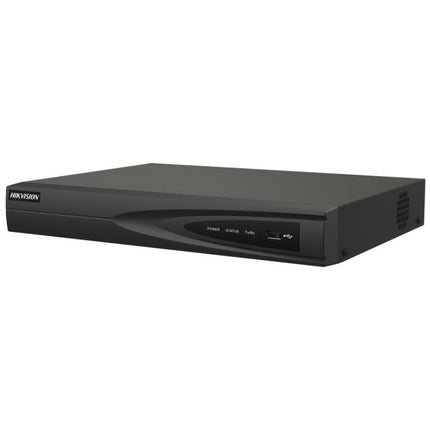

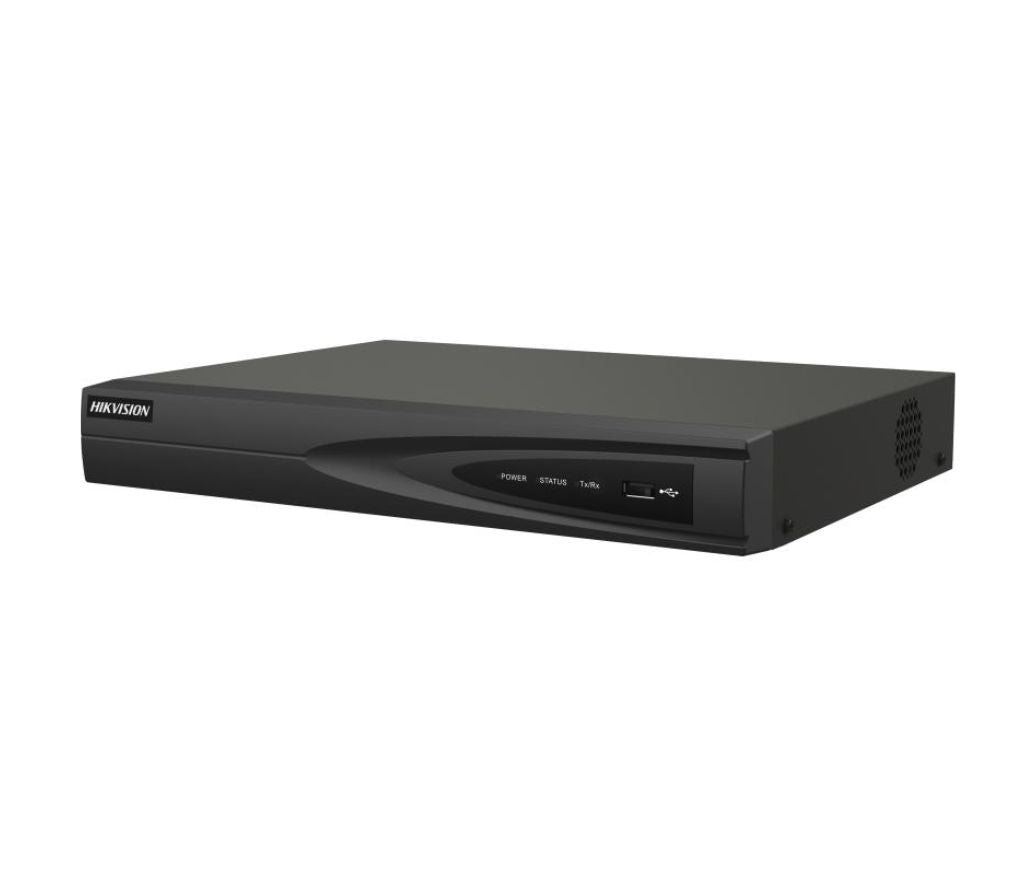

4ch 1U 4 PoE 4K NVR
- Up to 4ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis1-ch;4ch
- Recording
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Video And Audio
- IP Video Input4ch
- Incoming Bandwidth40 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K?4096x2160?/30Hz?4K (3840?2160) /30Hz, 2K?2560?1440?/60Hz?1920?1080/60Hz?1600?1200/60Hz?1280?1024/60Hz?1280?720/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K (3840 ? 2160)/30Hz, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K?4096x2160?/30Hz?4K (3840?2160) /30Hz, 2K?2560?1440?/60Hz?1920?1080/60Hz?1600?1200/60Hz?1280?1024/60Hz?1280?720/60Hz ,HDMI/VGA simultaneous output,
- VGA Output1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz;1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz ;,HDMI/VGA simultaneous output,
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
- Synchronous Playback4ch
- Network
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power? 50 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 8 TB capacity for each disk
- USB Interface2 ? USB 2.0
- Alarm In/OutN/A (4/1 is optional)
- General
- Power Supply48 VDC, 1.35 A
- Consumption? 10 W (without HDD, and PoE off)
- Working Temperature-10 to +55? C (+14 to +131? F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)320 ? 240 ? 48 mm (12.4" ? 9.4" ? 1.9")
- Weight? 1 kg (without HDD, 2.2 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
