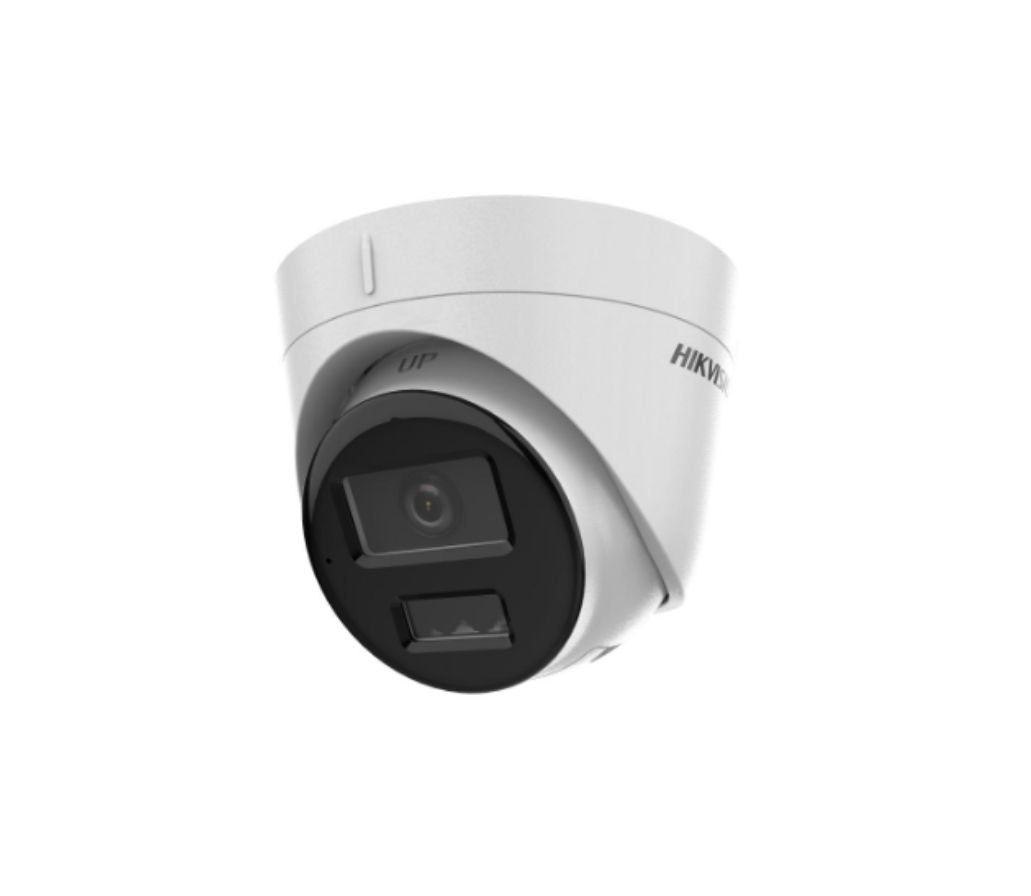

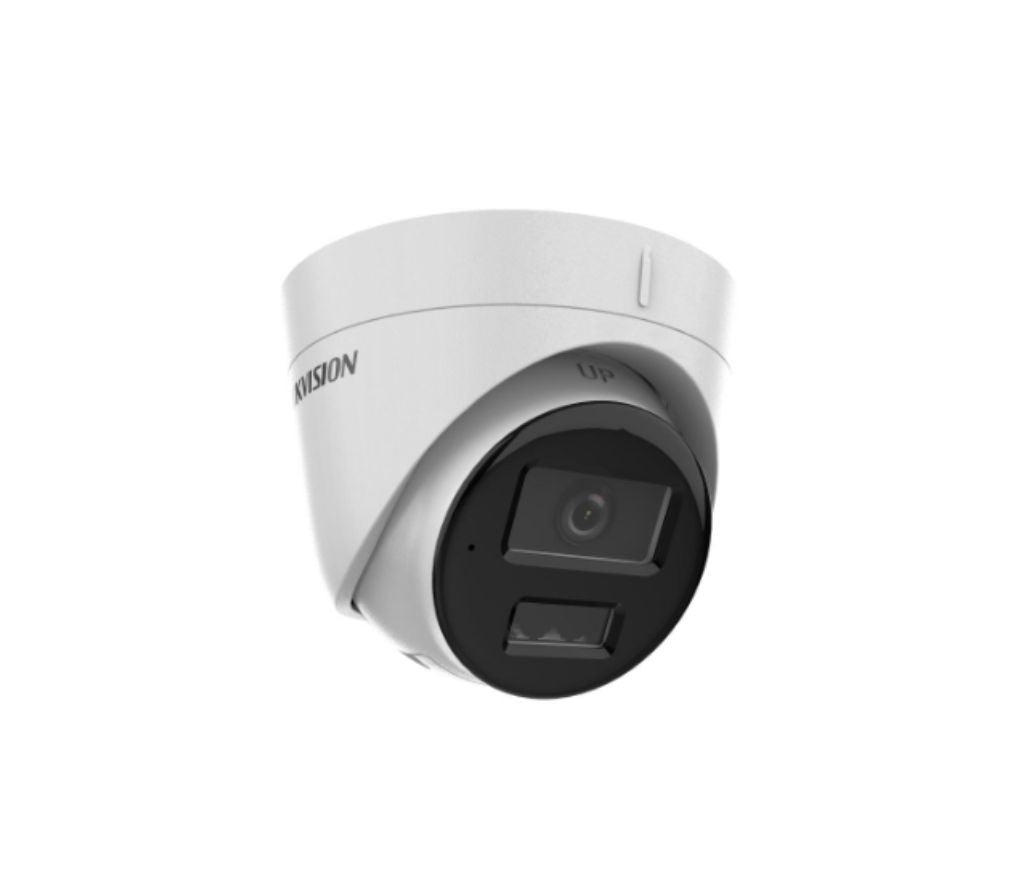

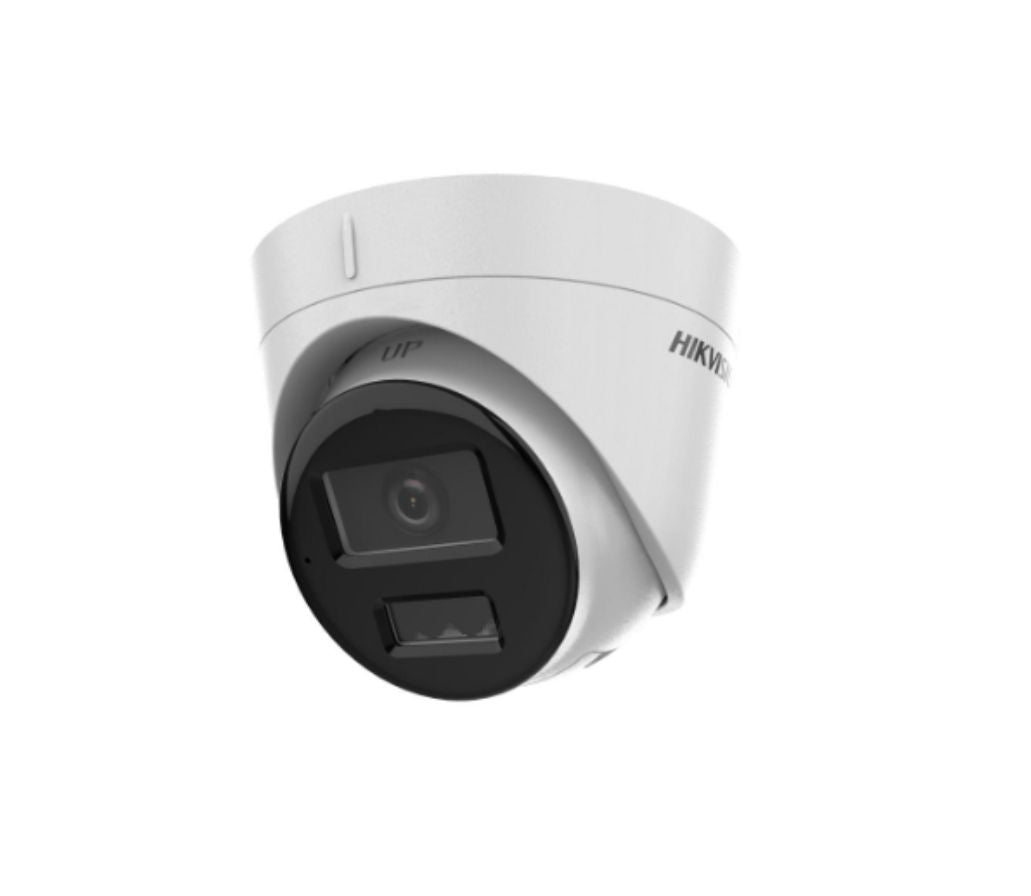

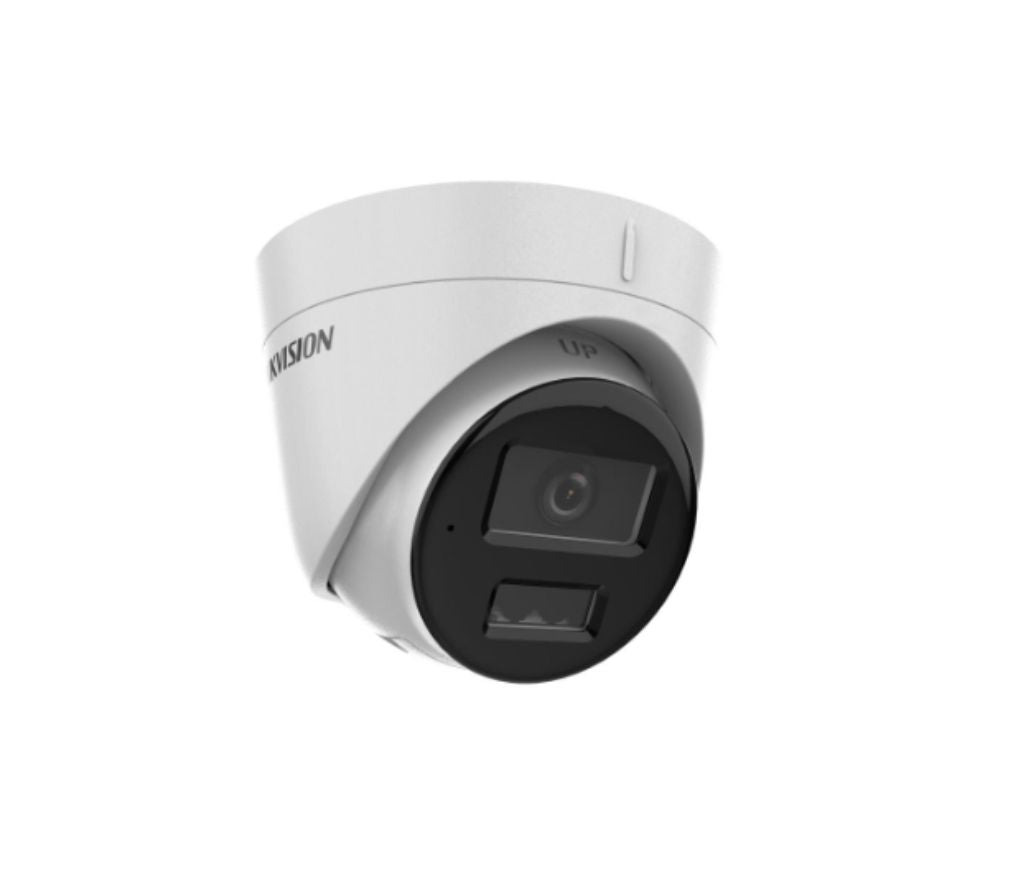

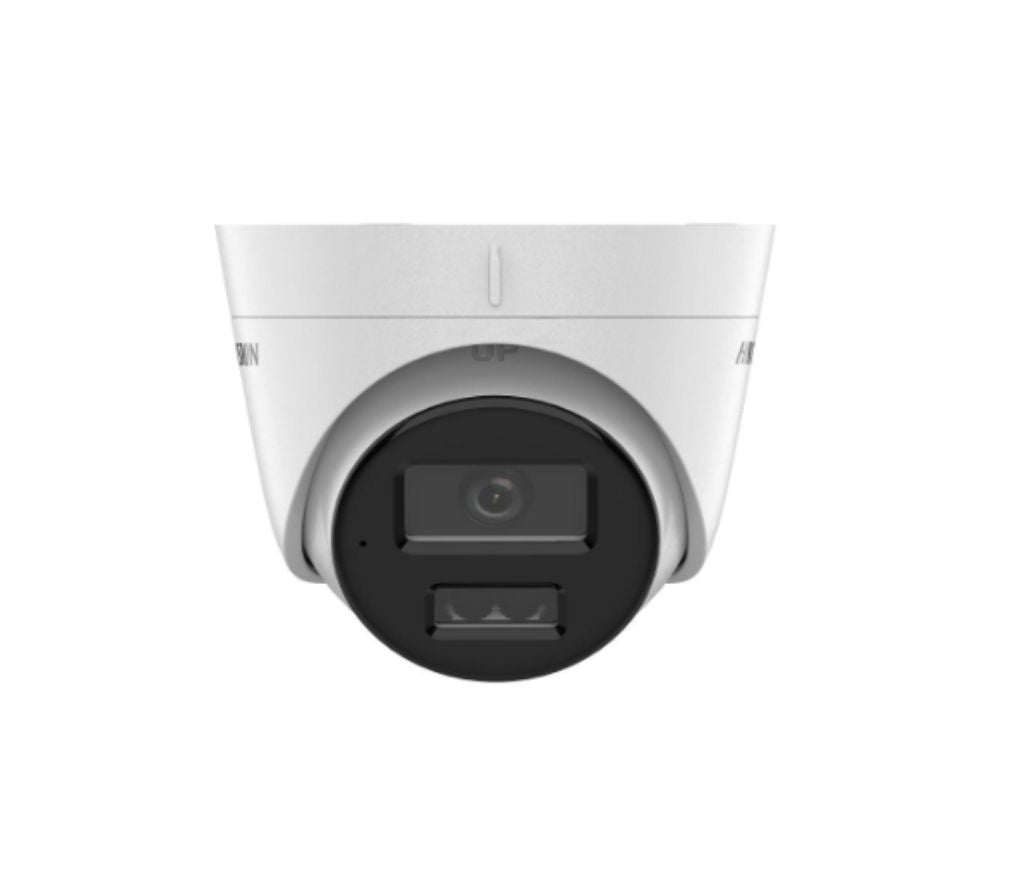

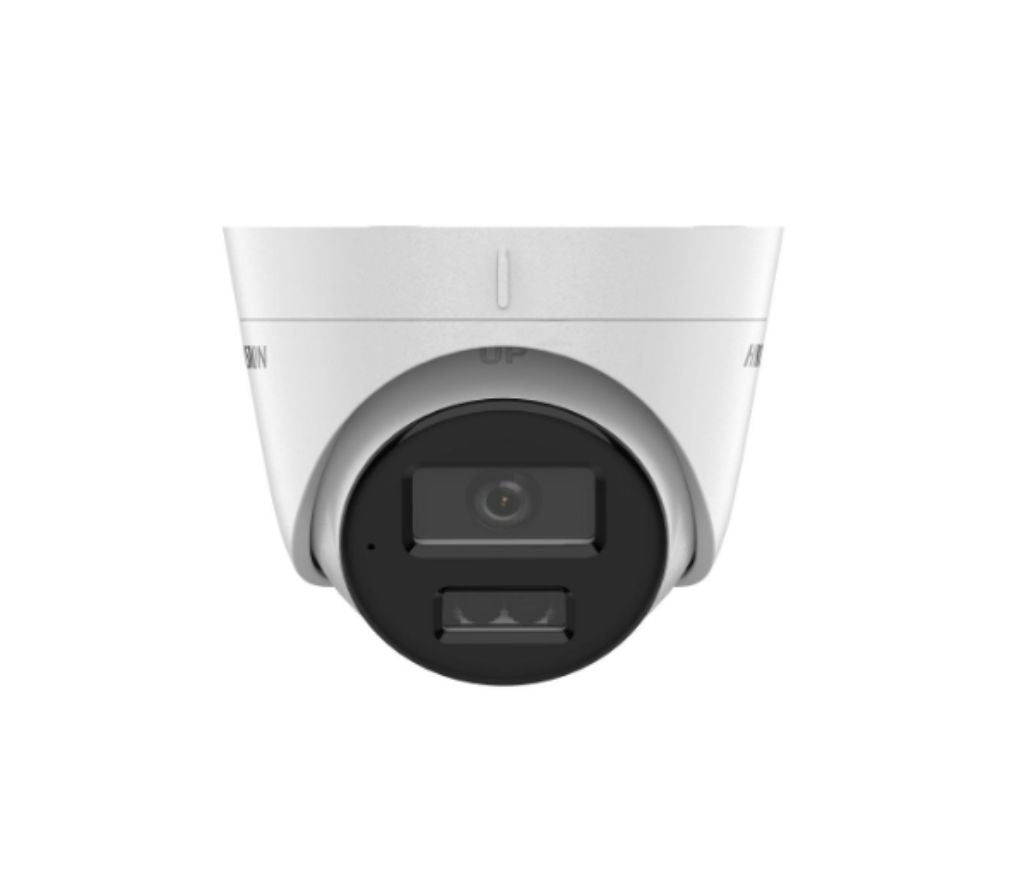

Hikvision DS-2CD1323G2-LIU(F)
2 MP Fixed Turret Network Camera
Key Features
- High quality imaging with 2 MP resolution
- Supports Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Efficient H.265+ compression technology
- On-board storage up to 512 GB (SD card, optional)
- Water and dust resistant (IP67)
Specifications
Camera
Image Sensor | 1/2.9" Progressive Scan CMOS |
Max. Resolution | 1920 × 1080 |
Shutter Time | 1/3 s to 1/100,000 s |
Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON), B/W: 0 Lux with IR |
Day & Night | IR cut filter |
Angle Adjustment | Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360° |
Lens
Lens Type | Fixed, 2.8 mm or 4 mm options |
Focal Length & FOV | 2.8 mm: H 103° V 56° D 121° / 4 mm: H 83° V 44° D 99° |
Lens Mount | M12 |
Aperture | F1.6 |
DORI Distance
2.8 mm | D: 45 m, O: 18 m, R: 9 m, I: 4 m |
4 mm | D: 56 m, O: 22 m, R: 11 m, I: 5 m |
Illuminator
Type | IR & White Light |
Range | Up to 30 m |
Smart Light | Yes |
IR Wavelength | 850 nm |
Video
Main Stream | 1080p @ 25/30 fps |
Sub-Stream | 640×480 / 640×360 @ 25/30 fps |
Compression | H.265+/H.265/H.264+/H.264, MJPEG |
Bit Rate | 32 Kbps to 8 Mbps |
ROI | 1 fixed region for main stream |
Audio
Audio Type | Mono, built-in microphone |
Noise Filtering | Yes |
Sampling Rate | 8 kHz / 16 kHz |
Compression | G.711u/a, G.722.1, G.726, MP2L2, PCM, AAC-LC |
Image Settings & Enhancements
- Digital WDR (DWDR)
- BLC, HLC, 3D DNR
- Rotate mode, brightness, contrast, sharpness, gain, white balance
- Up to 4 programmable privacy masks
- SNR ≥ 52 dB
Network
Interface | 1 RJ45 10/100 Mbps Ethernet |
Protocols | TCP/IP, DHCP, DNS, RTP, RTSP, NTP, IPv4/IPv6, FTP, SMTP, QoS |
Users | Up to 32, 3 levels (admin/operator/user) |
Client | iVMS-4200, Hik-Connect |
Simultaneous Live View | Up to 6 channels |
Events & Alarms
- Motion detection (with human/vehicle filtering)
- Video tampering alarm
- Exception events
- Linkage: FTP upload, SD recording (-F), email, notify CMS, trigger capture
General
Power | 12 VDC ±25% (max 5 W) / PoE (802.3af, Class 3, max 6.5 W) |
Housing | Metal & Plastic |
Dimensions | Ø110 × 89.2 mm (4.3" × 3.5") |
Weight | 340 g (0.7 lb) |
Operating Temp | -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤95% |
Protection | IP67 |
Anti-Corrosion Classification
- Top-level protection: For harsh environments (coastlines, docks, chemical plants)
- Moderate protection: For coastal areas (~2 km inland), acid rain zones
- No specific protection: Suitable for normal environments (this model)
Accessories
- DS-1272ZJ-110-TRS – Wall mount
- DS-1275ZJ-SUS – Vertical pole mount
- DS-1276ZJ-SUS – Corner mount
- DS-1280ZJ-S – Junction box
- DS-1281ZJ-S – Inclined ceiling mount
Available Models
- DS-2CD1323G2-LIUF (2.8 mm)
- DS-2CD1323G2-LIUF (4 mm)
- DS-2CD1323G2-LIU (2.8 mm)
- DS-2CD1323G2-LIU (4 mm)
Approvals
FCC, CE, RCM, IC, UL, CB, CE-LVD, BIS, CE-RoHS, WEEE, Reach
