DS-2CD1383G0-IUF Hikvision w/ audio IP PoE Camera 4K Built-in Mic Turret 8

Data sheet PDF

Product Description

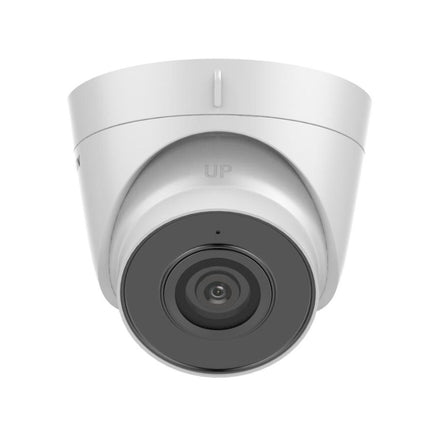

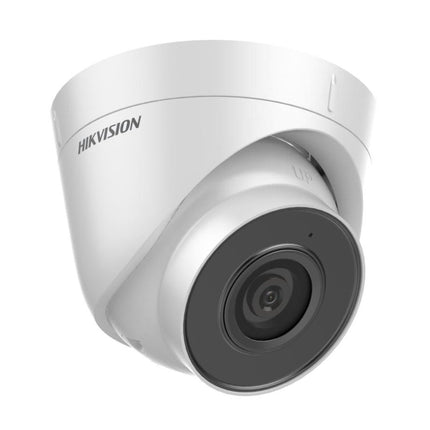

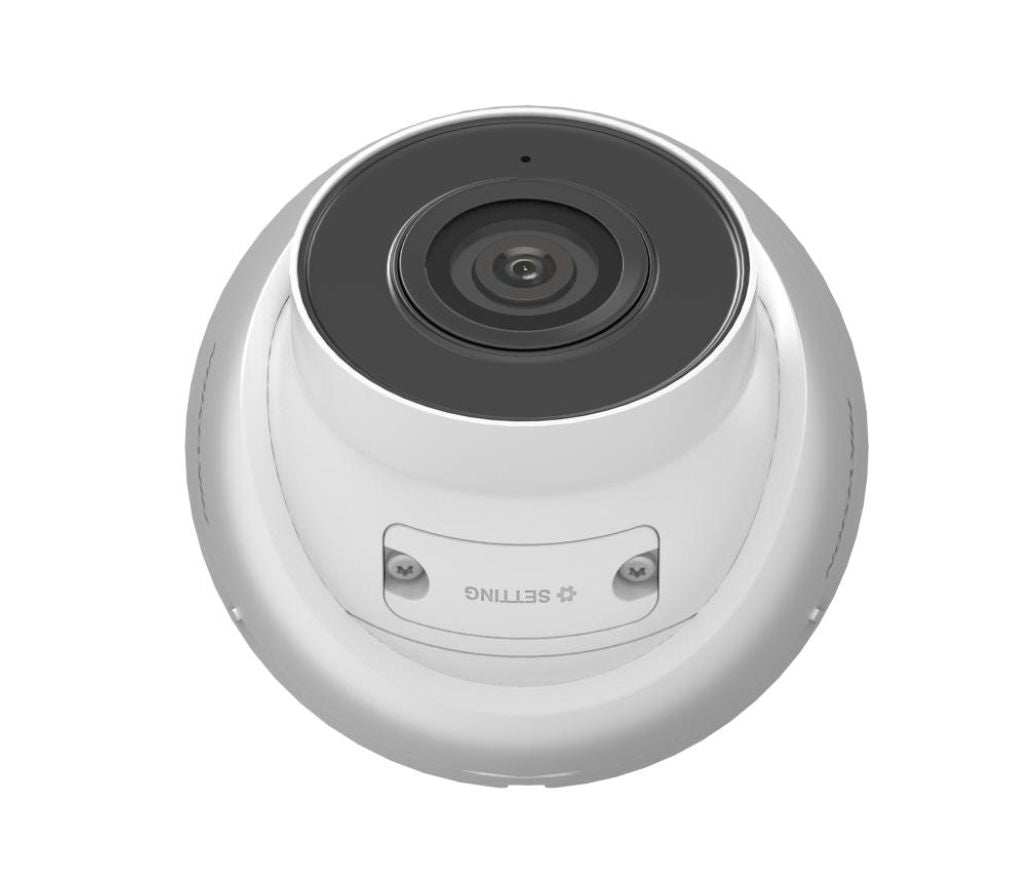

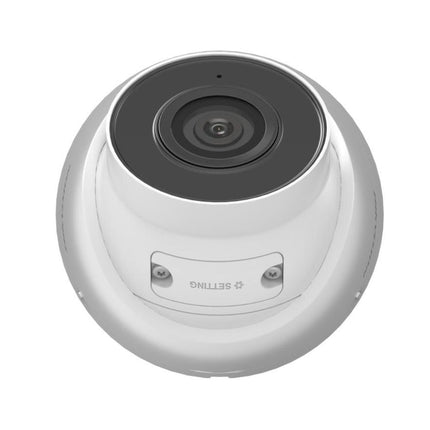

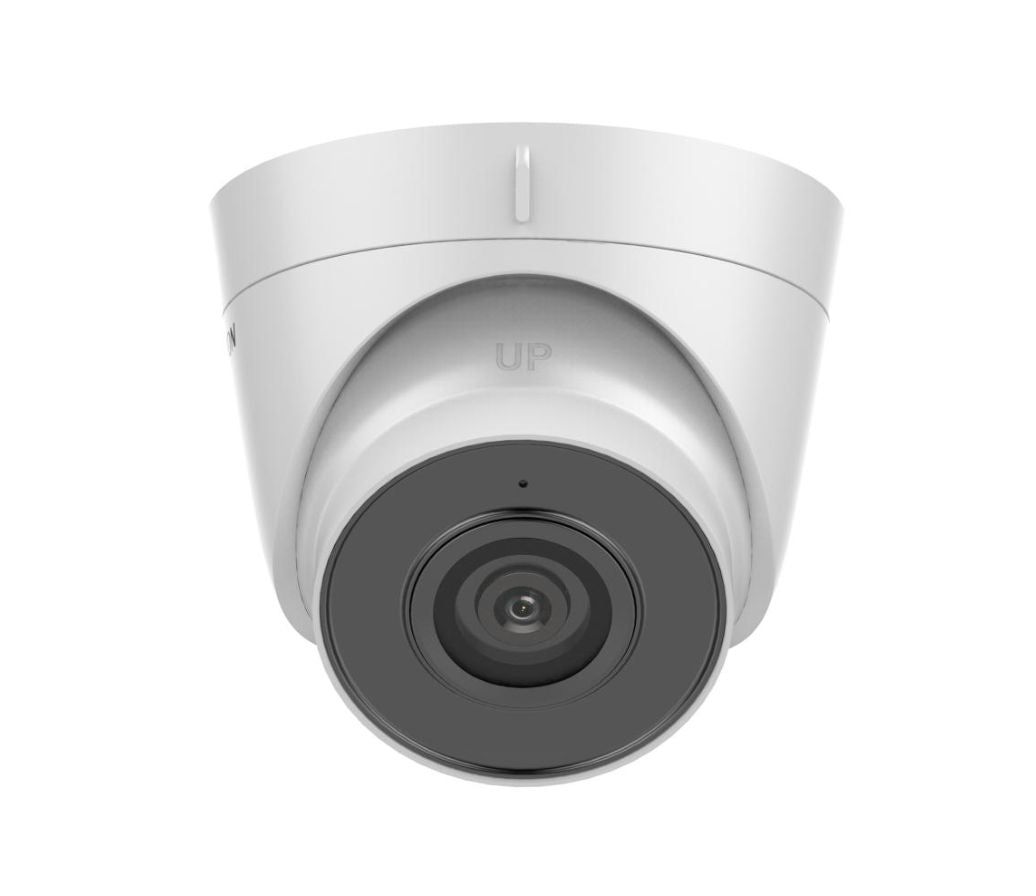

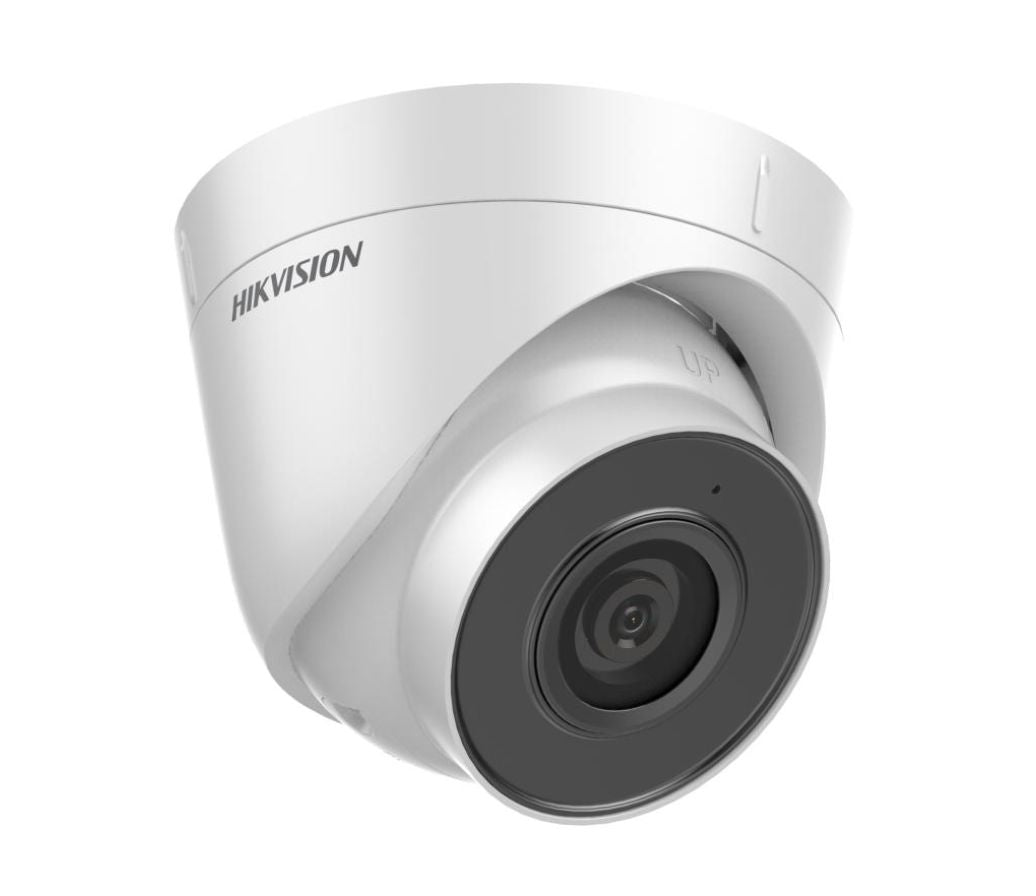

4K Built-in Mic Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range
• Built-in microphone for real-time audio security
• Support on-board storage up to 256GB (SD card slot)

Specification

• Camera
• Image Sensor1/1.7? Progressive Scan CMOS
• Max. Resolution4000 ? 3000
• Min. Illumination

  Color: 0.05 Lux @ (F2.2, AGC ON),

  B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR

• Shutter Time1 s to 1/100,000 s
• Day & NightIR Cut Filter
• Lens
• Focal Length & FOV1.29 mm, Horizontal FOV: 180?, vertical FOV: 180?
• Lens MountM12
• ApertureF2.2
• Illuminator
• Supplement Light Type3 IR LEDs, each LED is independently controlled
• Supplement Light RangeUp to 15 m
• IR Wavelength850 nm
• Video
• Main Stream

  50 Hz: 20 fps (4000 ? 3000), 25fps (3000 ? 3000, 2560 ? 2560)

  60 Hz: 20 fps (4000 ? 3000), 30fps (3000 ? 3000, 2560 ? 2560)

• Sub-Stream

  50 Hz: 20 fps (720 ? 720, 640 ? 480)

  60 Hz: 20 fps (720 ? 720, 640 ? 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/ Main Profile /High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)

  H.265 and H.264 support

• Region Of Interest (ROI)4 fixed regions for main stream
• Fisheye Display
• Mount TypeSupport table, wall, and ceiling mounting
• Decoding ModeSupport hardware decoding and software decoding
• Display Mode

  18 display modes in total

  Software decoding:

  Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere, cylinder

  Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ

  Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder

  Hardware decoding:

  Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

  Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

  Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-160 Kbps(MP2L2)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• User/HostUp to 32 users. 3 user levels, administrator, operator and user
• SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Network StorageMicroSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200, Hik-Central
• Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
• Image
• Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, defog, 3D DNR
• Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24bit bmp format
• Interface
• Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Audio

  2 built-in microphones, 1 built-in speaker, mono sound

  -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)

• Alarm1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
• Reset Key

  Yes

• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflicted, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

  Audio exception detection

• Deep Learning Function
• People Counting

  Counts people entering, exiting and passing by separately

  Supports real-time uploading and uploading by statistic cycle

  Sends email reports on daily, weekly, monthly or annually basis

  Supports target filtering by height

• Heat Map

  A graphic description of visits (calculated by people number or by dwell time) in a configured area.

  Two heap map report types are available, space heat map and time heat map line chart

• Intersection Analysis

  Detects and analyze flow in an intersection-like scene, and generate reports

  Support one intersection of up to 10 ways

• General
• Power

  12 VDC?20%, 1 A, max. 12.5 W

  -S model: two-core terminal block

  Without ?S model: ? 5.5 ? 2.1 mm coaxial power plug

  PoE (802.3at, class 4, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W

• Dimension

  Without ?V model: 167.4 ? 152.8 ? 46.8 mm (6. 6" ? 6\" ? 1.8\")

  With ?V model: 167 ? 152.8 ? 55 mm (6. 6 ? 6\" ? 2.2\") "

• WeightApprox. 1400 g (3.09 lbs)
• Startup And Operating Conditions-40 ?C to +60 ?C (-40 ?F to +140 ?F), Humidity 95% or less (non-condensing)
• General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Heater

  Yes

• Approval
• ProtectionIP67, IK10
