Product Description

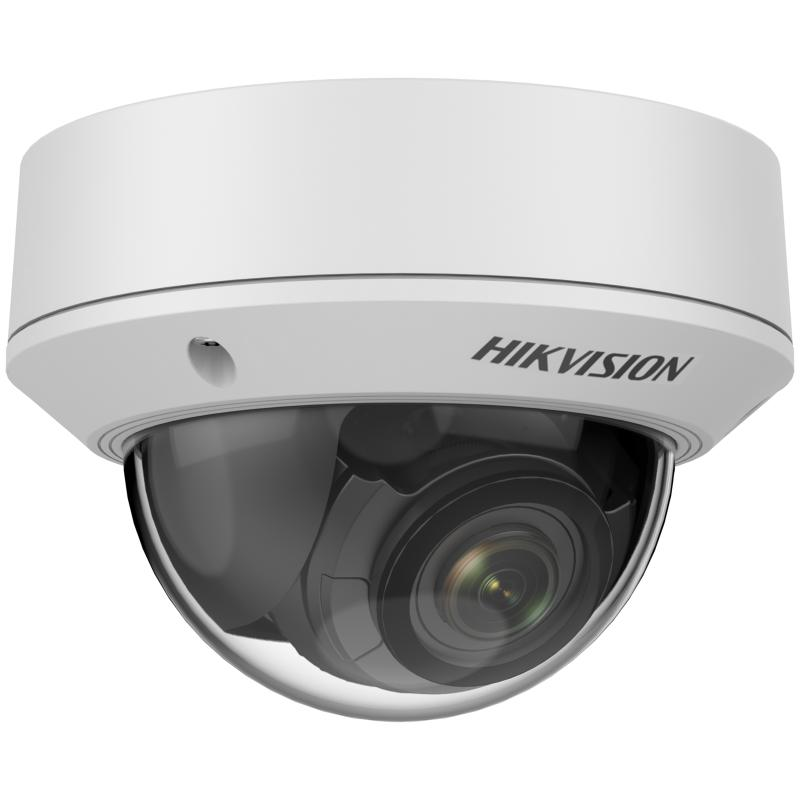

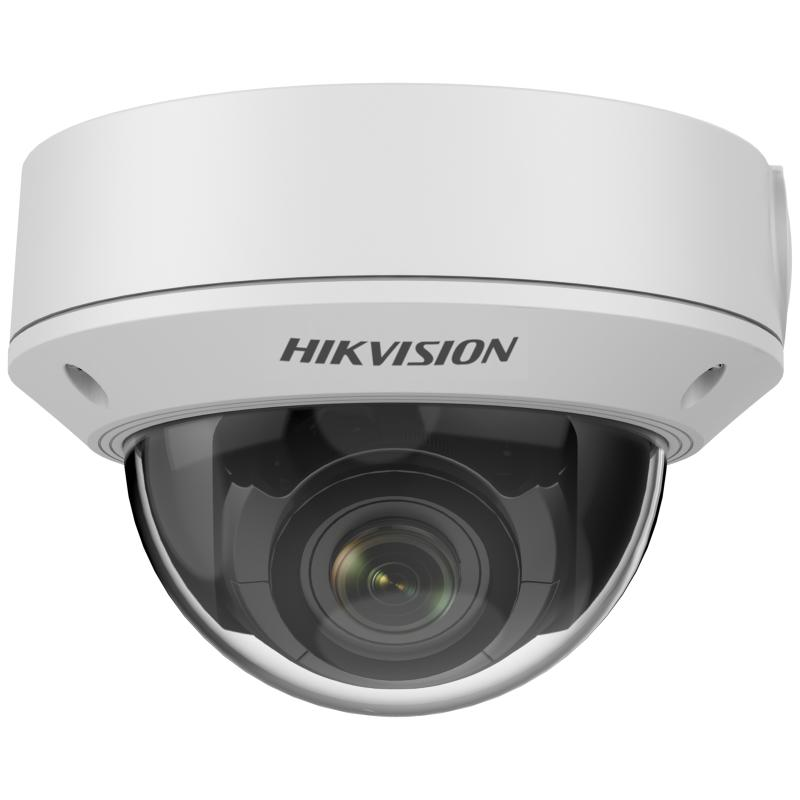

4 MP Varifocal Dome Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Up to 256 GB memory card slot for storage
• 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
• Water and dust resistant (IP67) and vandal proof (IK10)
• EXIR 2.0: advanced infrared technology with long IR range

Specification

Camera

Lens

Illuminator

Video

Audio

Network


Interface

Event

General

Approval

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2560 ? 1440
• Min. Illumination

  Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR

• Shutter Speed1/3 s to 1/100,000 s
• Wide Dynamic Range120 dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 355?, tilt: 0? to 70?, rotation: 0? to 355?

• Lens
• Lens TypeVarifocal Lens, motoried lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm: horizontal FOV 102? to 31?, vertical FOV 54? to 17?, diagonal FOV 123? to 35?
• Lens Mount?14
• Iris TypeFixed
• ApertureF1.6

• Illuminator
• IR Wavelength850 nm
• IR RangeUp to 30 m

• Video
• Main Stream

  50 Hz: 20 fps (2560 ? 1440)

  25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz: 20 fps (2560 ? 1440)

  30 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)

  1 fixed region for main stream

• Audio
• Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate-S: 8 kHz/16 kHz
• Environment Noise Filtering-S: Yes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View

  Up to 6 channels

• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchAuto, Schedule, Day, Night
• Image EnhancementBLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
• Audio

  -S:

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium

• Alarm

  -S: 1 input,1 output, max. 12 VDC, 30 mA

• Reset KeyYes

• Event
• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

• General
• Power

  12 VDC ? 25%, 0.8 A, max. 10 W, ?5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W

• Camera MaterialMetal
• Camera Dimension?141 mm ? 99.9 mm (?5.6" ? 3.9")
• Package Dimension140 mm ? 140 mm ? 154 mm (5.5" ? 5.5" ? 6.1")
• Camera WeightApprox. 820 g (1.8 lb.)
• With Package WeightApprox. 1200 g (2.6 lb.)
• Storage Conditions-30 ?C to 60 ?C (22 ?F to +140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (22 ?F to +140 ?F). Humidity 95% or less (non-condensing)
• Language

  English, Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• Electrical Safety ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
