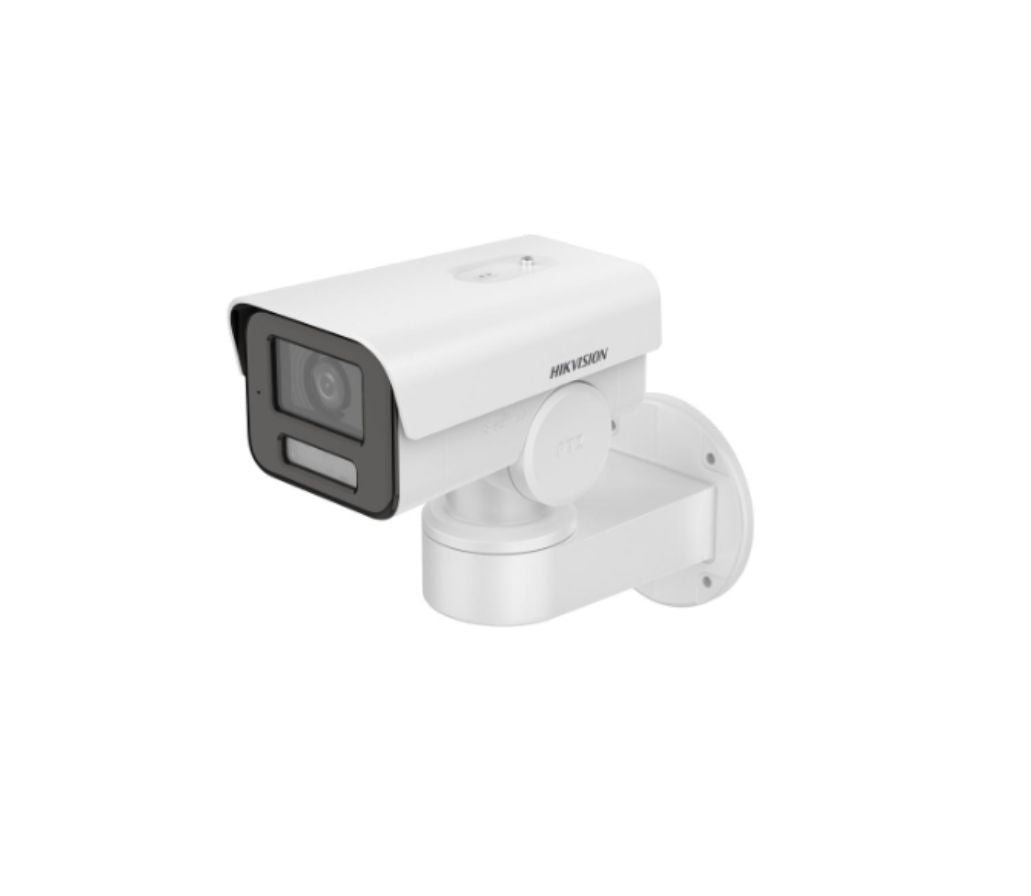

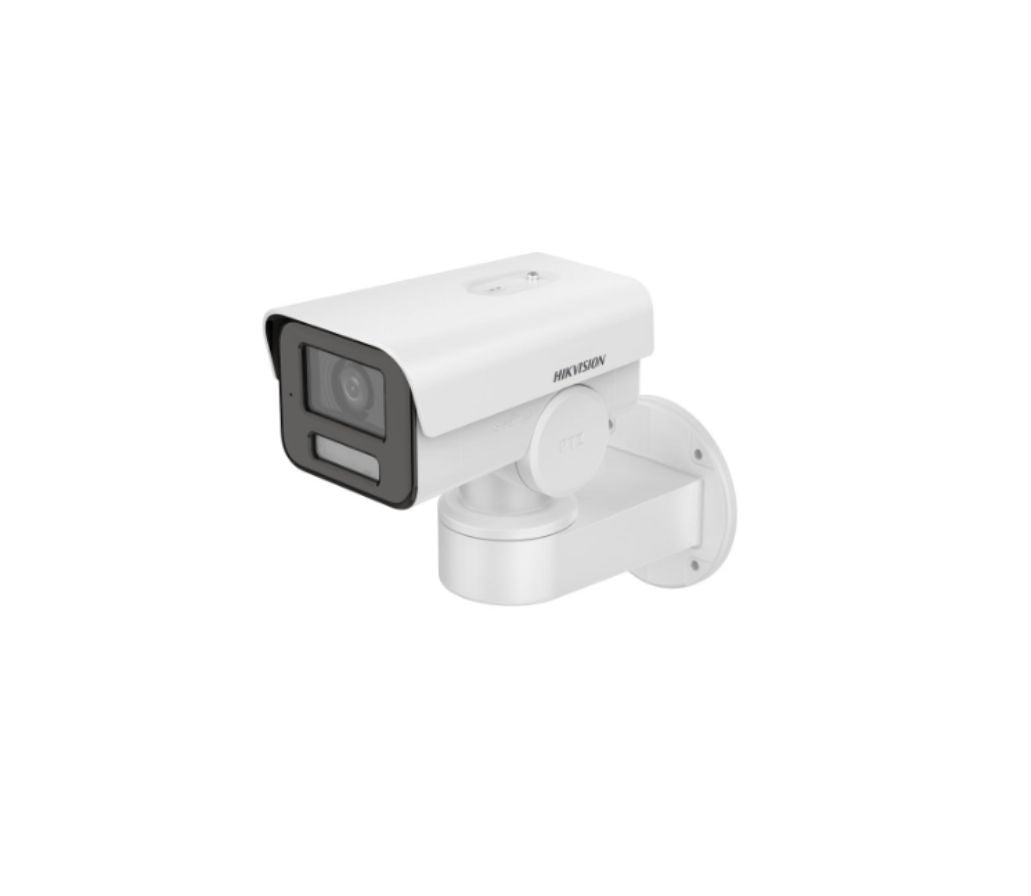

DS-2CD1A43G0-IZU Hikvision 4 MP Varifocal PT Bullet
DS-2CD1A43G0-IZU Hikvision 4 MP Varifocal PT Bullet
Infrared (IR)
Motorized
Out of stock
Description
Description
DS-2CD1A43G0-IZU Hikvision 4 MP Varifocal PT Bullet
This listing includes:
-  (1) IP/POE CAMERA: DS-2CD1A43G0-IZU
DS-2CD1A43G0-IZU  view data sheet
4 MP Varifocal PT Bullet Network Camera
- High quality imaging with 4 MP resolution
- Pan, tilt and zoom ability that enables the camera to capture larger and interested areas
- Water and dust resistant (IP66)
- EXIR 2.0, advanced infrared technology with long IR distance
- Efficient H.265+ compression technology
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4 MP Varifocal PT Bullet Network Camera
- High quality imaging with 4 MP resolution
- Pan, tilt and zoom ability that enables the camera to capture larger and interested areas
- Water and dust resistant (IP66)
- EXIR 2.0, advanced infrared technology with long IR distance
- Efficient H.265+ compression technology
Specification
Camera
Lens
DORI
Illuminator
Video
Audio
Network
Interface
Event
General
Approval
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 ? 1440
- Min. IlluminationColor: 0.007 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: -100? to 100?,tilt: -20? to 45?
- Lens
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 96.7? to 29.7?, vertical FOV 51.7? to 16.7?, diagonal FOV 114.3? to 34?
- Lens Mount?14
- Iris TypeFixed
- ApertureMax. F1.6
- DORI
- DORI
Varifocal lens:
Wide: D: 64 m, O: 25 m, R: 12 m, I: 6 m
Tele: D: 200 m, O: 75 m, R: 40 m, I: 20 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 50 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 20 fps (2560 ? 1440), 25 fps (1920 ? 1080, 1280 ? 720)
60 Hz: 20 fps (2560 ? 1440), 30 fps (1920 ? 1080, 1280 ? 720)
- Sub-Stream
50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
- User/Host
Up to 32 users
3 levels: Administrator, Operator and User
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)120 dB WDR
- SNR? 52 dB
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image SettingsMirror, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Privacy Mask4 regions of privacy mask
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-In MicrophoneYes
- Reset KeyYes
- Event
- Basic EventMotion detection, video tampering alarm, exception
- LinkageUpload to FTP/memory card, notify surveillance center,send email, trigger recording, trigger capture
- General
- Power
12 VDC ? 25%, 0.91 A, max. 11 W,?5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W
- MaterialFront cover: metal, body: plastic, bracket: plastic
- Dimension197.1 mm ? 105 mm ? 225.4 mm (7.8" ? 4.1" ? 8.9")
- Package Dimension300 mm ? 266 mm ? 172 mm (11.8" ? 10.4" ? 6.8")
- WeightApprox. 900 g (2 lb.)
- With Package WeightApprox. 1520 g (3.3 lb.)
- Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, password protection, password reset via e-mail
- Approval
- EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015,FCC: 47 CFR Part 15, Subpart B
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
