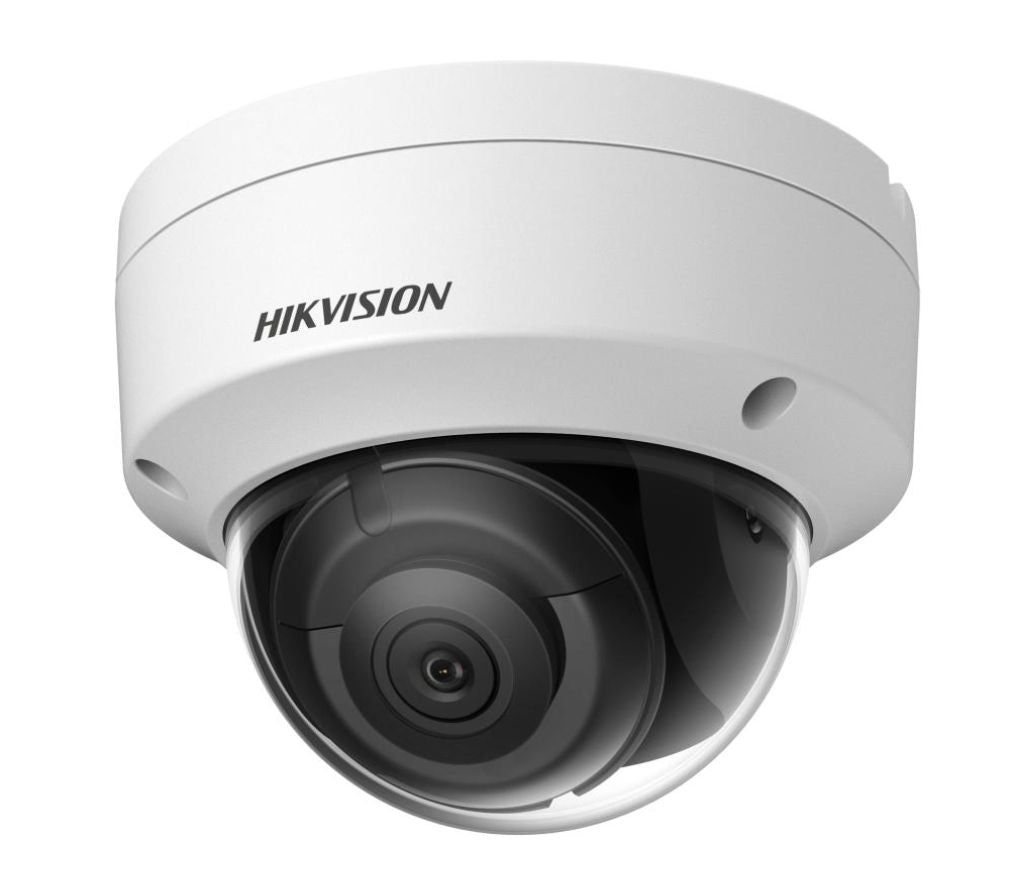

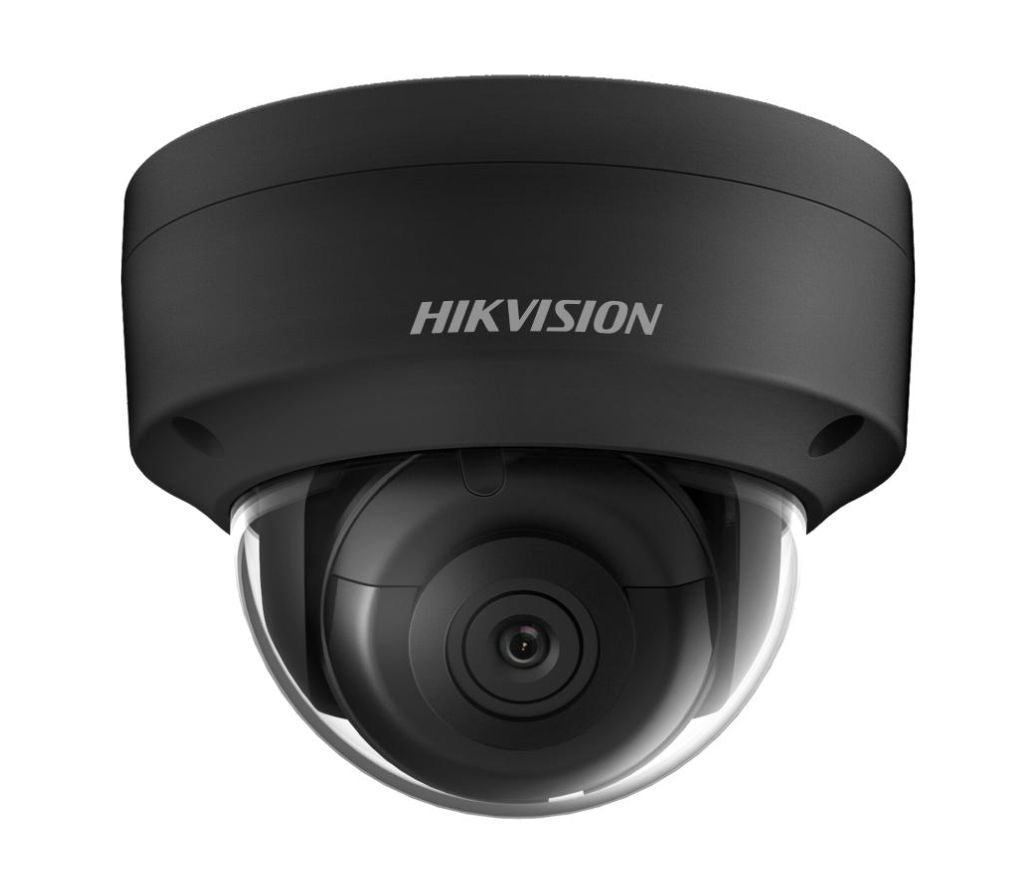

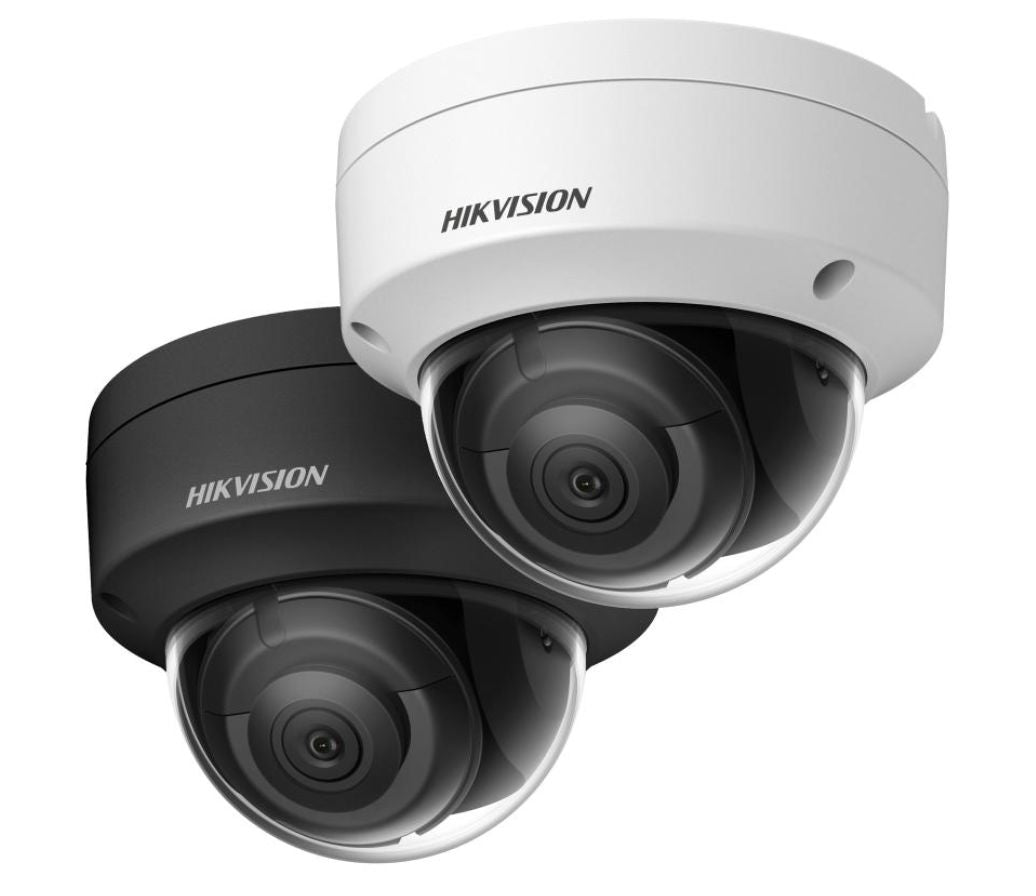

DS-2CD2143G2-IS Hikvision w/ audio IP PoE Camera 4 MP AcuSense Dome
DS-2CD2143G2-IS Hikvision w/ audio IP PoE Camera 4 MP AcuSense Dome
Human and Vehicle Detection
Infrared (IR)
One Way Audio
Out of stock
Description
Description
DS-2CD2143G2-IS Hikvision w/ audio IP PoE Camera 4 MP AcuSense Dome
This listing includes:
-  (1) IP/POE CAMERA: DS-2CD2143G2-IS
DS-2CD2143G2-IS  view data sheet
4 MP AcuSense Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Focus on human and vehicle targets classification
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4 MP AcuSense Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Focus on human and vehicle targets classification
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 ? 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?, rotate: 0? to 355?
- Lens
- Lens TypeFixed focal length, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 103?, vertical FOV 55?, diagonal FOV 122?
4 mm, horizontal FOV 84?, vertical FOV 45?, diagonal FOV 100?
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- DORI
- DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)
60 Hz: 30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)
- Sub-Stream
50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
- Third Stream
50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)Yes
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate-S: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
- Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering-S: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR? 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board StorageBuilt-in microSD, up to 512 GB
- Audio-S: 1 input (line in), two-core terminal block , max. input amplitude: 3.3 vpp, input impedance: 4.7 K?, interface type: non-equilibrium; 1 output (line out), two-core terminal block , max.output amplitude: 3.3 vpp, output impedance: 100 ?, interface type: non-equilibrium, mono sound
- Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
- Reset KeyYes
- Event
- Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
Face detection
- LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
- General
- Power
12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Dimension?110.8 ? 84.7 mm (?4.4? ? 3.3?)
- Package Dimension134 ? 134 ? 108 mm (5.3? ? 5.3? ? 4.3?)
- WeightApprox. 530 g (1.2 lb.)
- With Package WeightApprox. 720 g (1.6 lb.)
- Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
