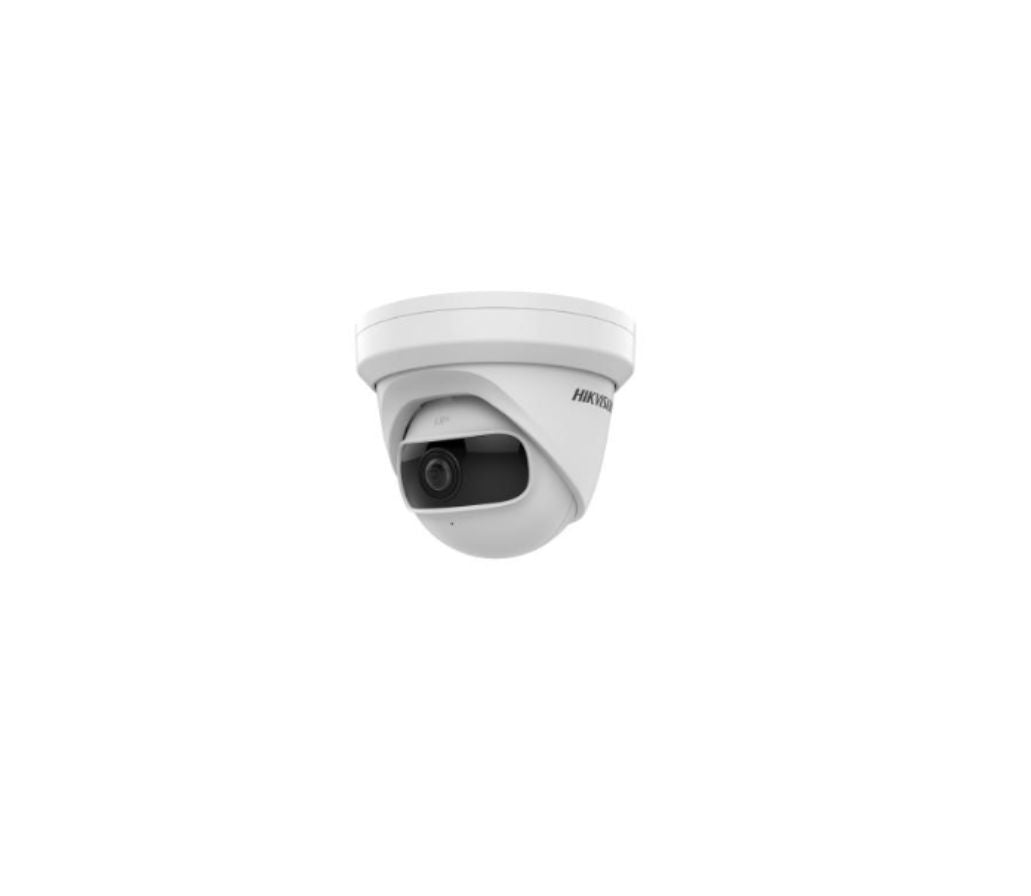

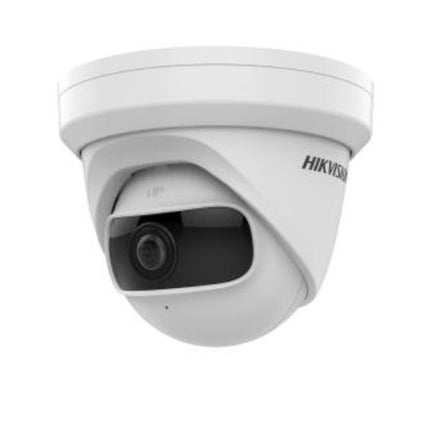

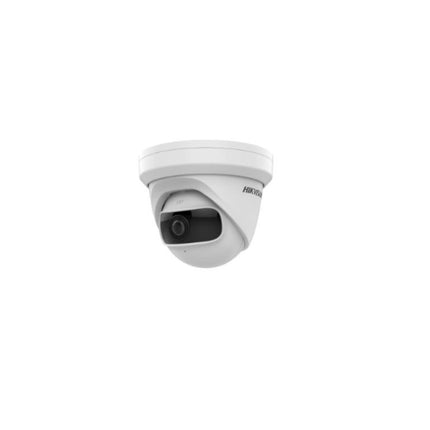

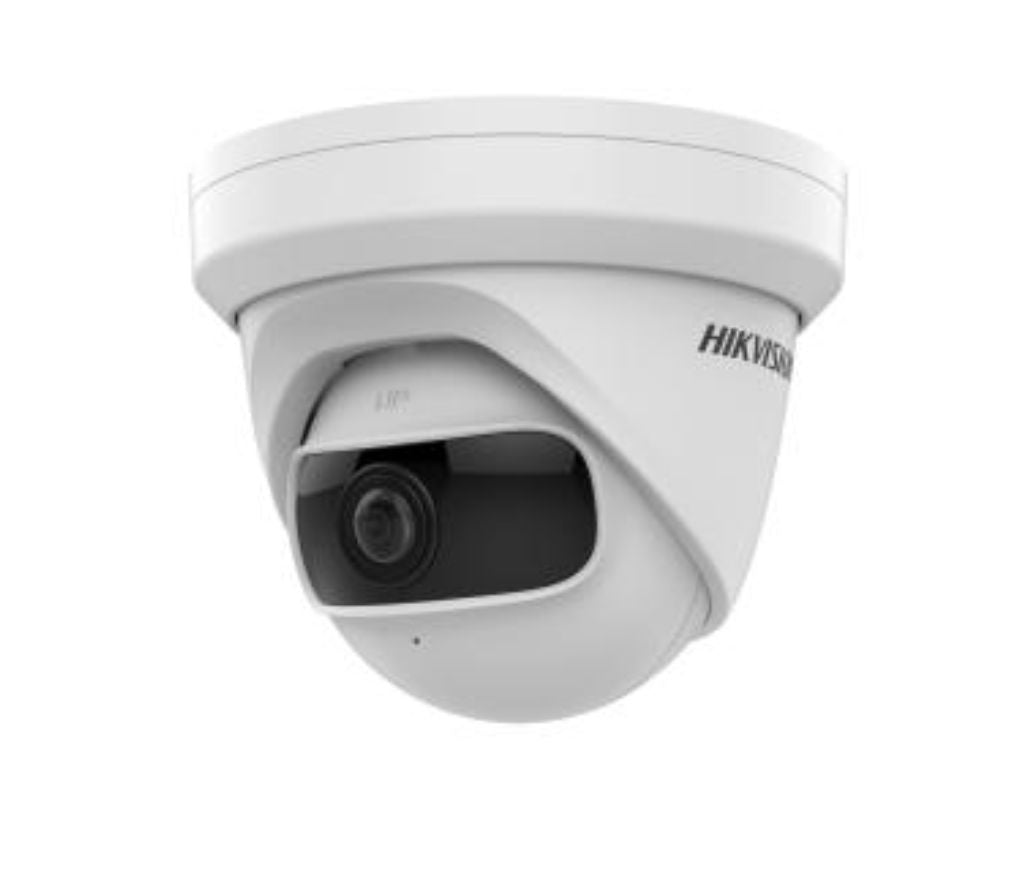

DS-2CD2345G0P-I Hikvision IP PoE Camera 4 MP Super Wide Angle Turret

Data sheet PDF

Product Description

4 MP Super Wide Angle Fixed Turret Network Camera

• High quality imaging with 4 MP resolution
• 180?super wide field of view
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Distortion correction
• Robust structure design with full metal materials







Specification

Camera

Lens

Illuminator

Video

Network


Interface

Event

General

Approval

• Camera
• Image Sensor1/2.7" Progressive Scan CMOS
• Min. Illumination

  Color: 0.028 Lux @ (F2.0, AGC ON)

  B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR

• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
• Lens
• Lens TypeFixed lens, 1.68 mm
• FOV1.68 mm, horizontal FOV: 180? , vertical FOV: 101? , diagonal FOV: 180?
• ApertureF2.0
• Lens MountM12
• Illuminator
• IR RangeUp to 10 m
• Wavelength850 nm
• Video
• Max. Resolution2688 ? 1520
• Main Stream

  50Hz: 25fps (2688 ? 1520, 2304 ? 1296, 1920 ? 1080, 1280 ? 720)

  60Hz: 24fps (2688 ? 1520), 30fps (2304 ? 1296, 1920 ? 1080, 1280 ? 720)

• Sub Stream

  50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240)

  60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)

• Video Compression

  Main stream: H.265+/H.264+/H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding support
• Region Of Interest (ROI)1 fixed region for main stream, sub-stream and third stream
• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/HostUp to 32 users, 3 levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Image
• Day/Night SwitchDay/Night/Auto/Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Interface
• On-Board StorageBuilt-in micro SD slot, up to 256 GB
• Hardware ResetReset via reset button on camera body, web browser and client software
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
• General
• Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Storage Conditions-10 ?C to 40 ?C (14 ?F to 104 ?F), humidity 95% or less (non-condensing)
• Startup And Operating Conditions-10 ?C to 40 ?C (14 ?F to 104 ?F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ? 25%, ? 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
• Power Consumption And Current12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
• Camera Dimension

  Camera: ? 127.3 ? 104.1 mm (? 5" ? 4.1\")

  With package: 150 ? 150 ? 141 mm (5.9 ? 5.9\" ? 5.6\")

• Camera Weight

  Camera: Approx. 520 g (1.1 lb.)

  With package: Approx. 700 g (1.5 lb.)

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
