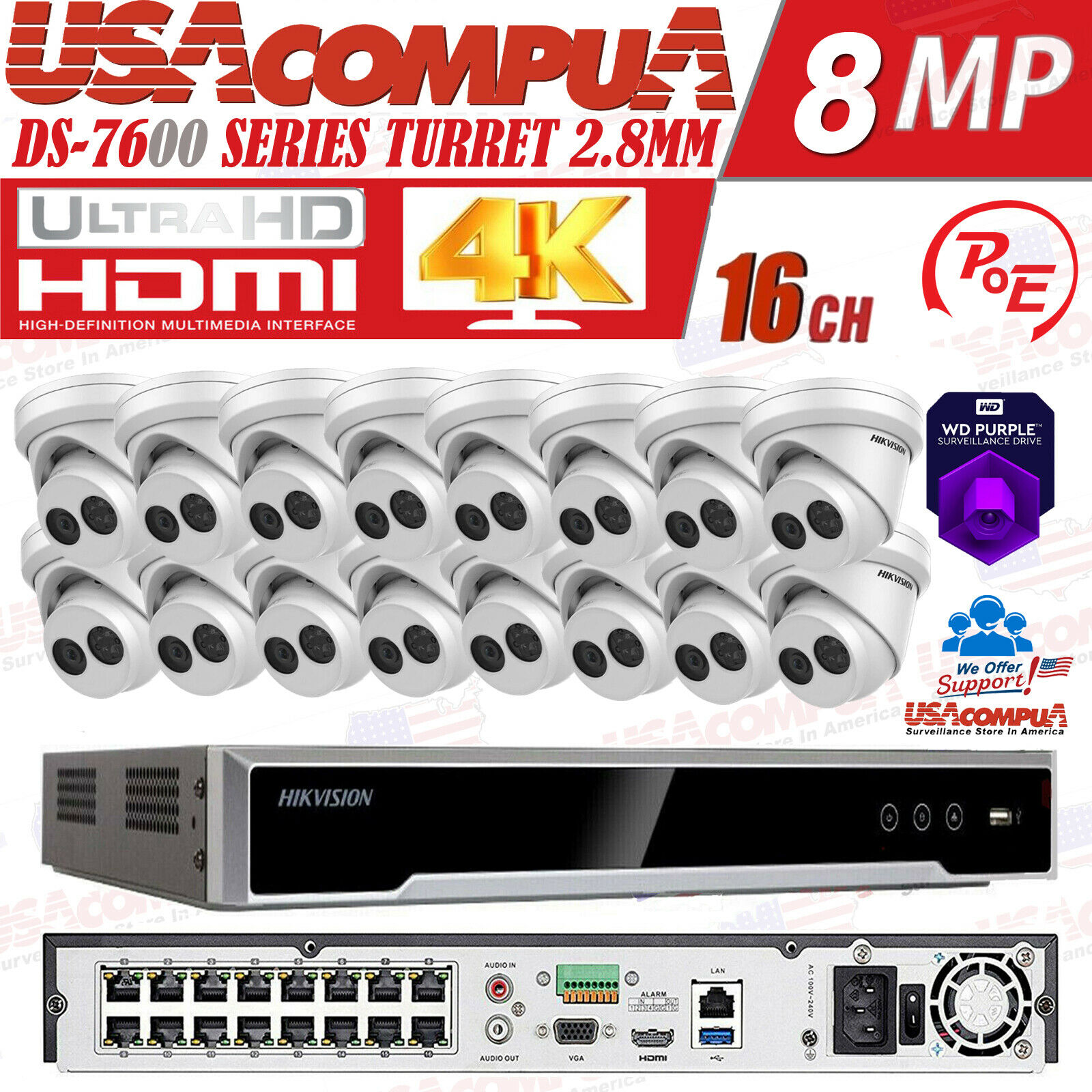

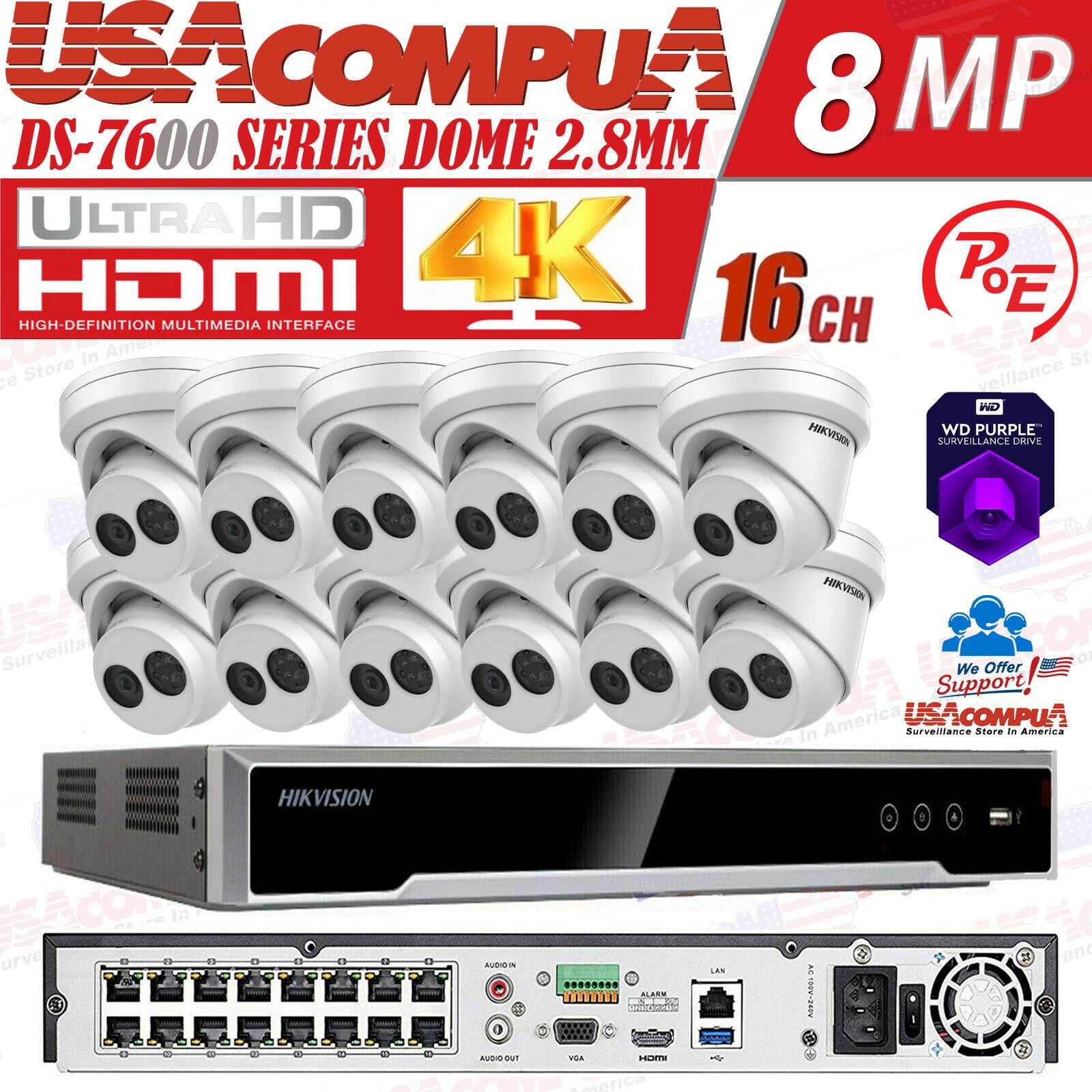

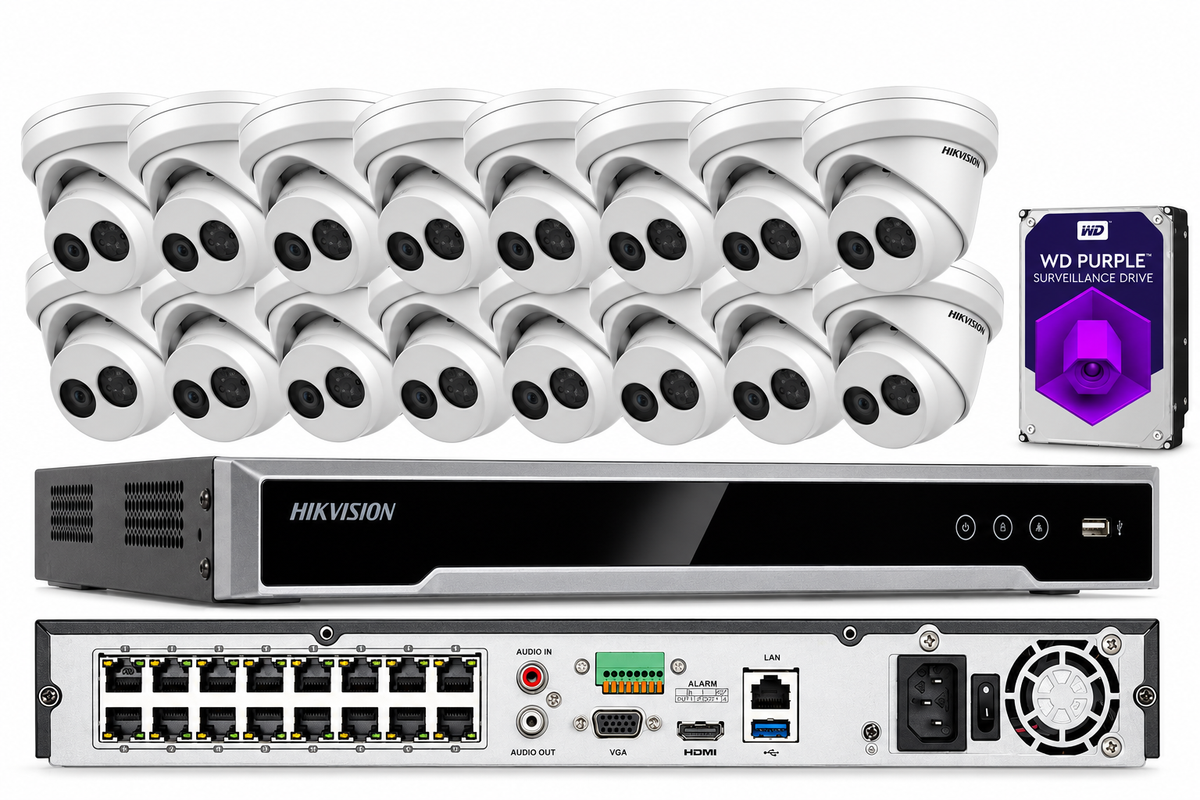

DS-2CD2383G0-IU & DS-7616NI-Q2 Hikvision 16CH 16POE NVR 4MP Turret Mic IP Camera

Data sheet PDF

Product Description

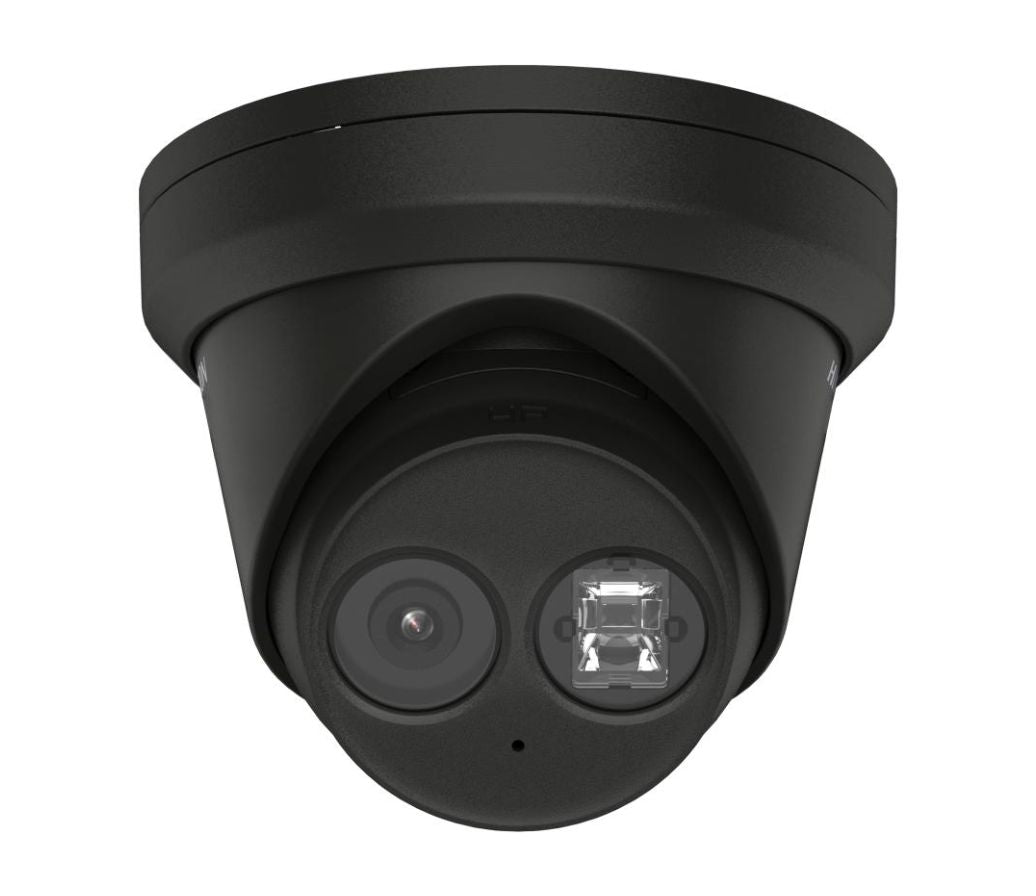

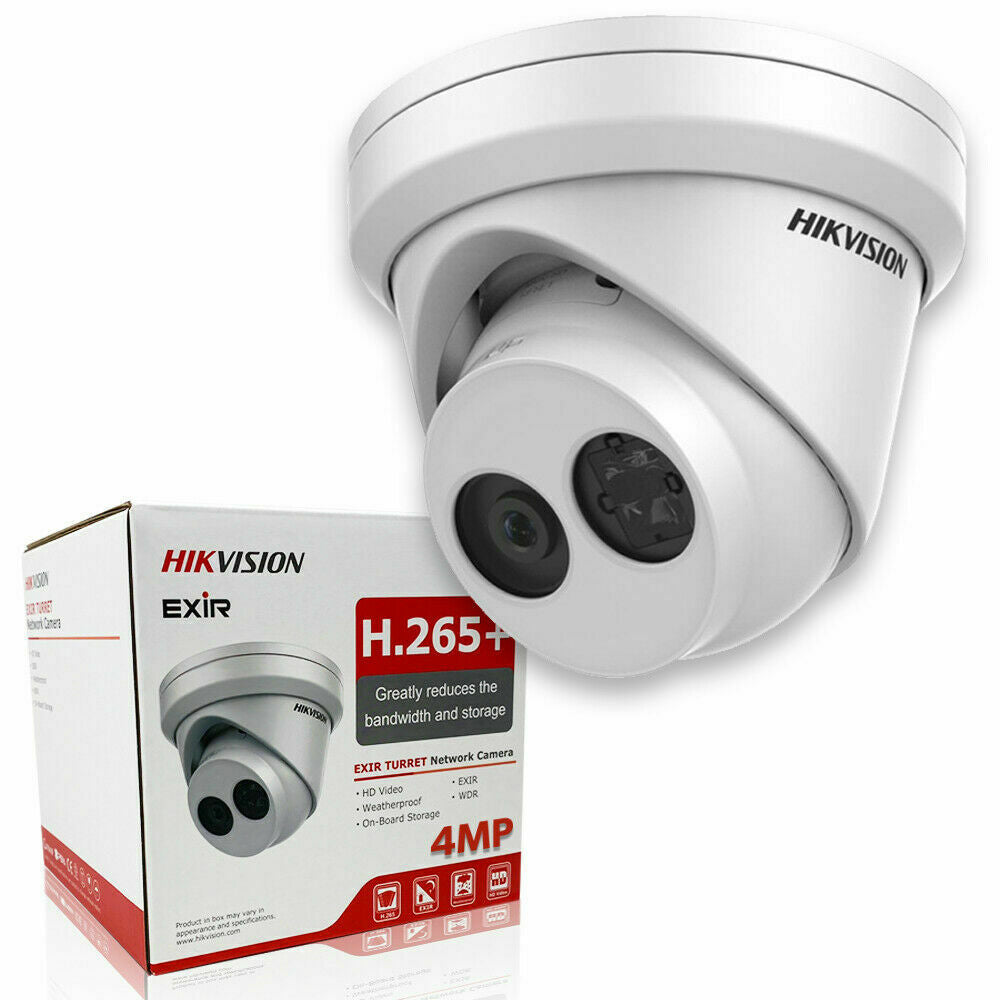

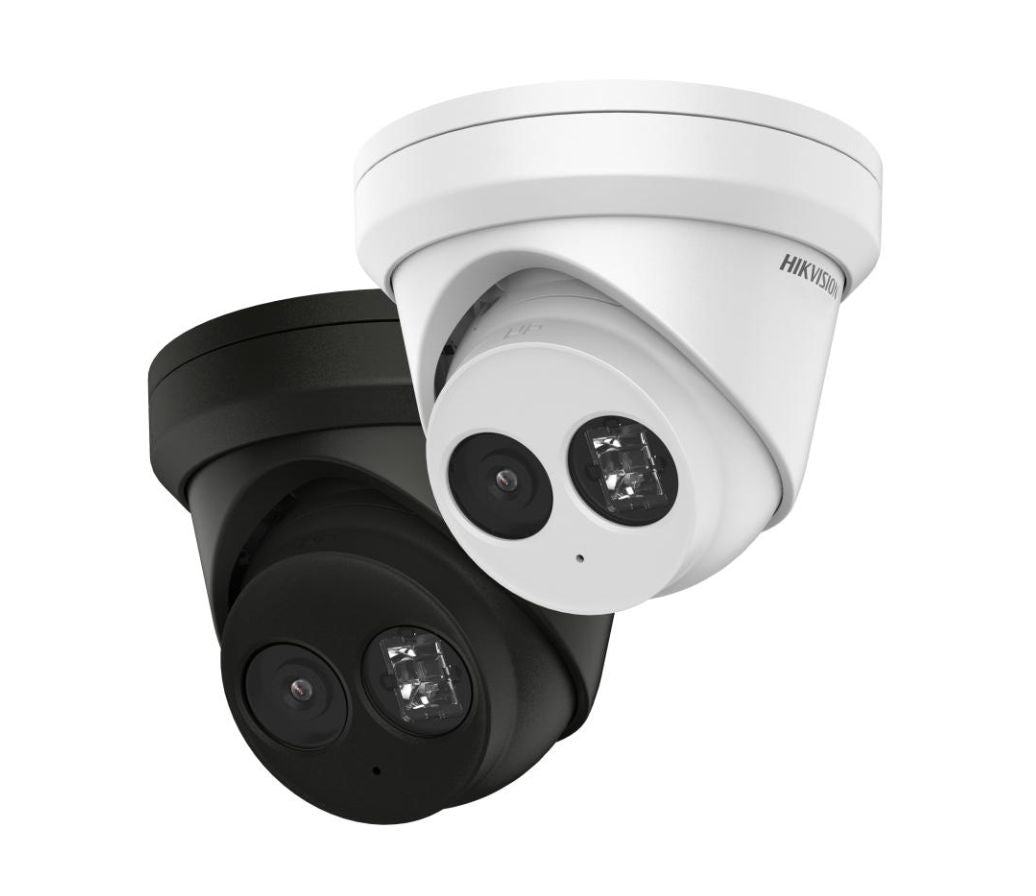

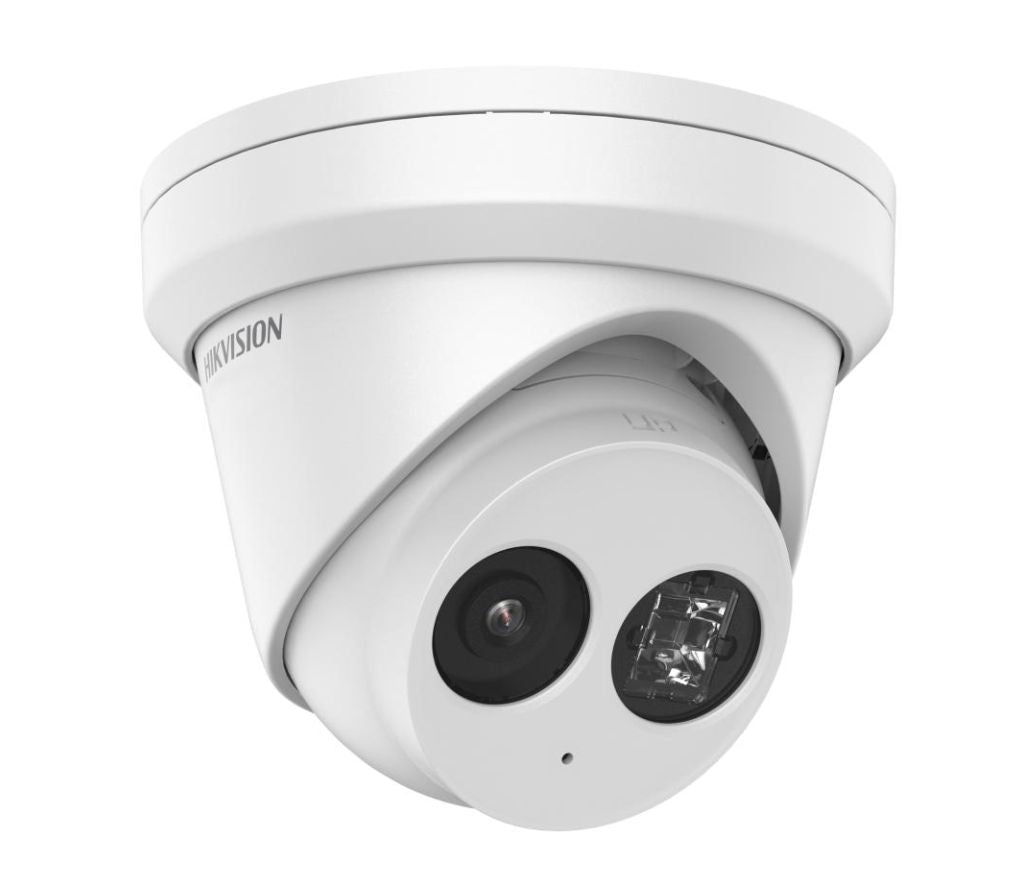

8 MP AcuSense Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 360?,tilt: 0? to 75?,rotate: 0? to 360?
• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 107?, vertical FOV 57?, diagonal FOV 128?

  4 mm, horizontal FOV 87?, vertical FOV 46?, diagonal FOV 105?

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6
• DORI
• DORI

  2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

  4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm
• Video
• Main Stream

  50 Hz: 20 fps (3840 ? 2160) 25 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720); 60 Hz: 20 fps (3840 ? 2160) 30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360),

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

• Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
• Audio
• Audio Type-U: Mono sound
• Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR? 52 dB
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask4 programmable polygon privacy masks
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Built-In Microphone-U: Yes
• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
• General
• Power

  12 VDC ? 25%, 0.5 A, max. 6 W,?5.5 mm coaxial power plug,reverse polarity protection,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W

• Dimension

  ?127.3 mm ? 95.9 mm (?5.0 ? 3.8\")"

• Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
• WeightApprox. 600 g (1.3 lb.)
• With Package WeightApprox. 891 g (2.0 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Language

  33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionHeartbeat,anti-flicker,password reset via email,pixel counter
• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013

Data sheet PDF

Product Description

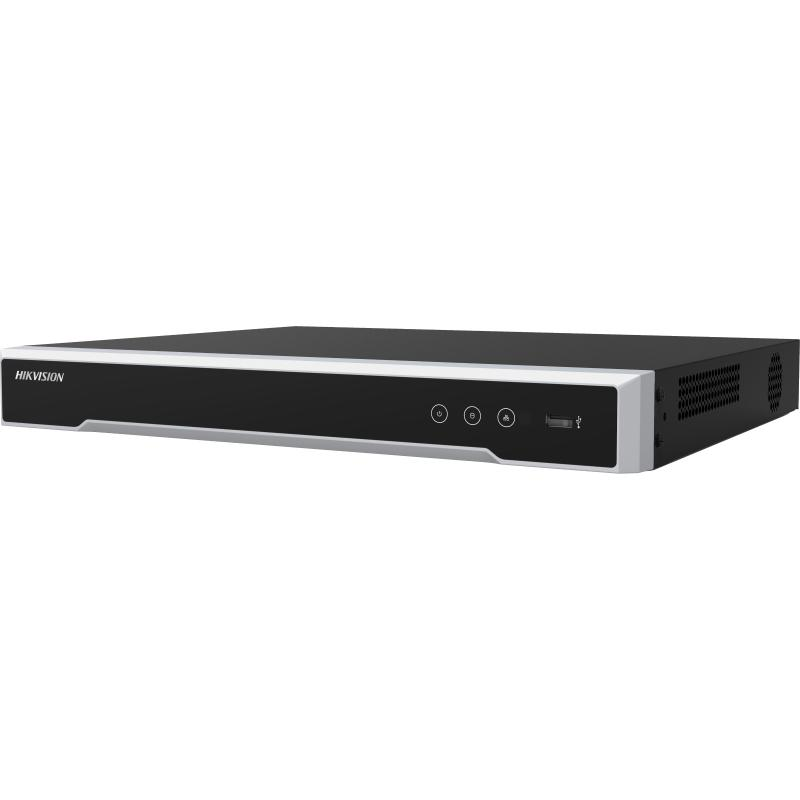

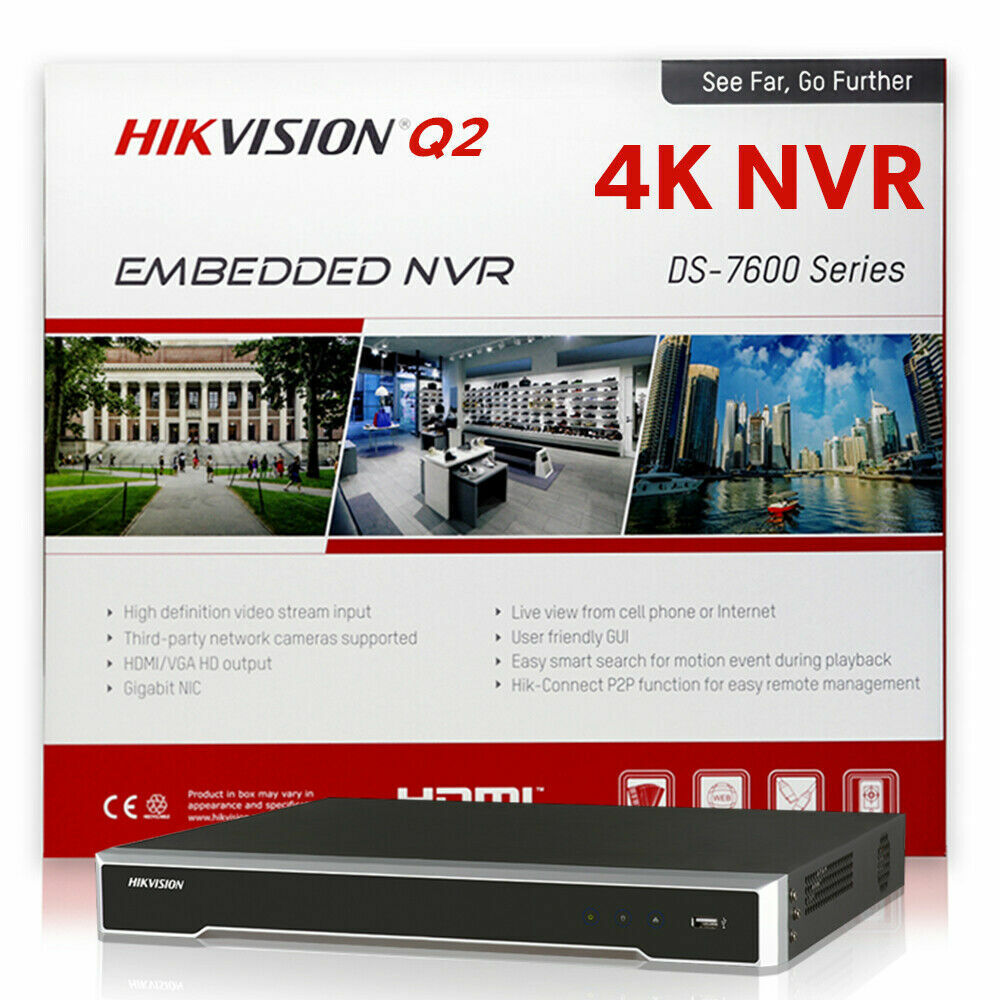

16ch 1U 16 PoE 4K NVR

• Up to 16ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 160 Mbps incoming bandwidth

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis4
• Video And Audio
• IP Video Input16ch
• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
• Decoding
• Decoding FormatH.265+,H.265,H.264+,H.264
• Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
• Synchronous Playback16ch
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Network
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE
• Interface16ch;16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 150W
• StandardIEEE 802.3 af/at
• RAID
• RAID TypeNo
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8TB capacity for each disk
• USB Interface2 ? USB 2.0
• General
• Power Supply100-240V?, 50/60Hz, 3.2A MAX
• Consumption? 15W
• Working Temperature-10 to +55? C (+14 to +131? F)
• Working Humidity10 to 90 %
• Chassis1U chassis
• Dimension (W ? D ? H)385 ? 315 ? 52 mm (15.2"? 12.4" ? 2.0")
• Weight? 2.6 kg (5.7 lb)
