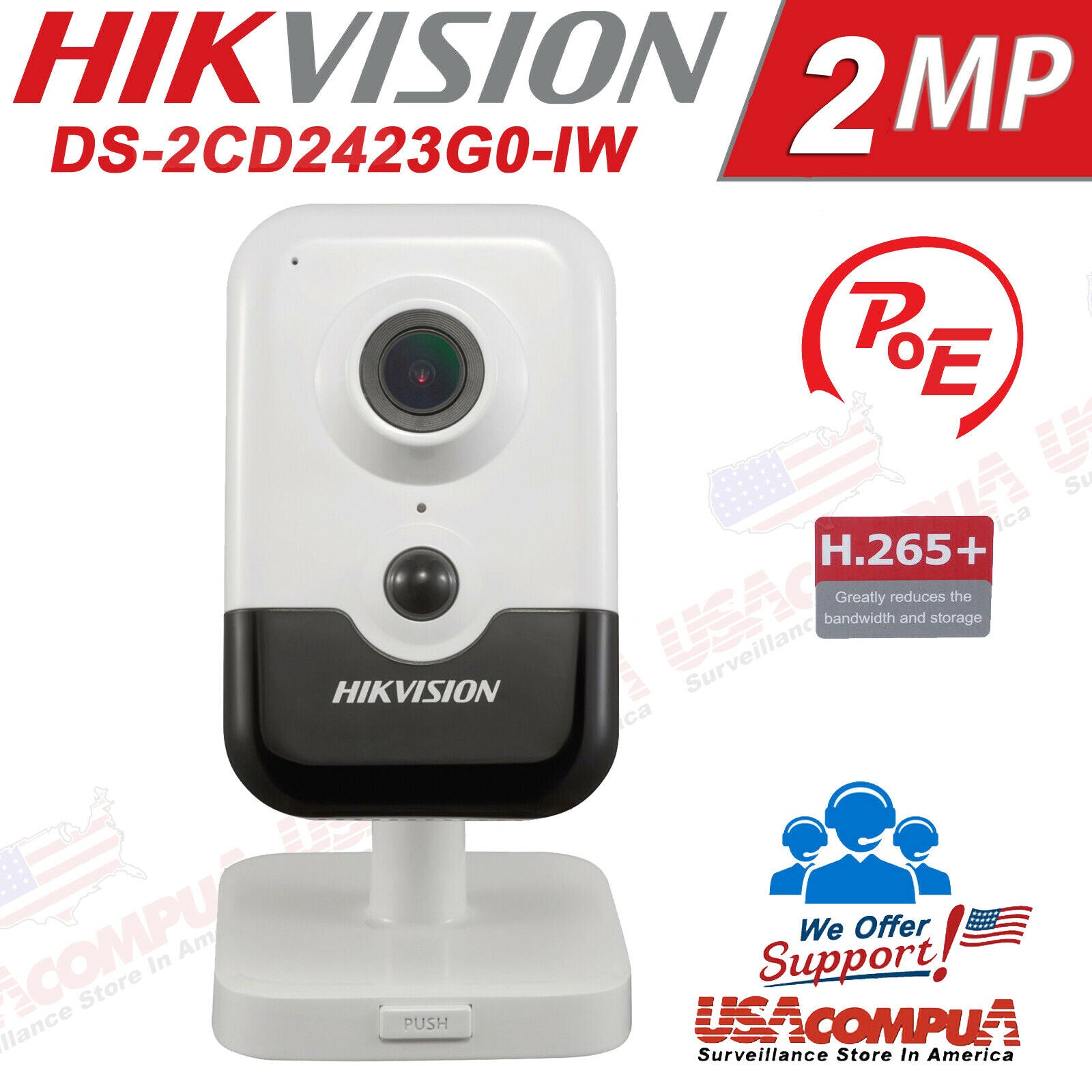

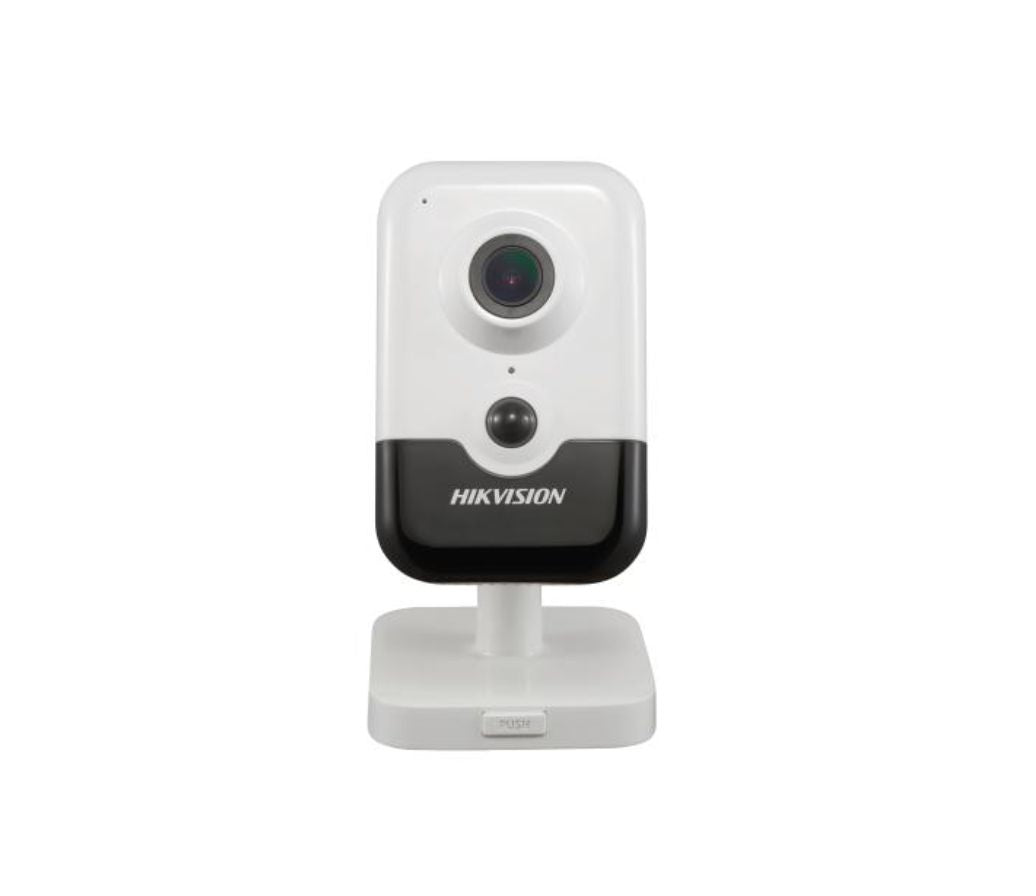

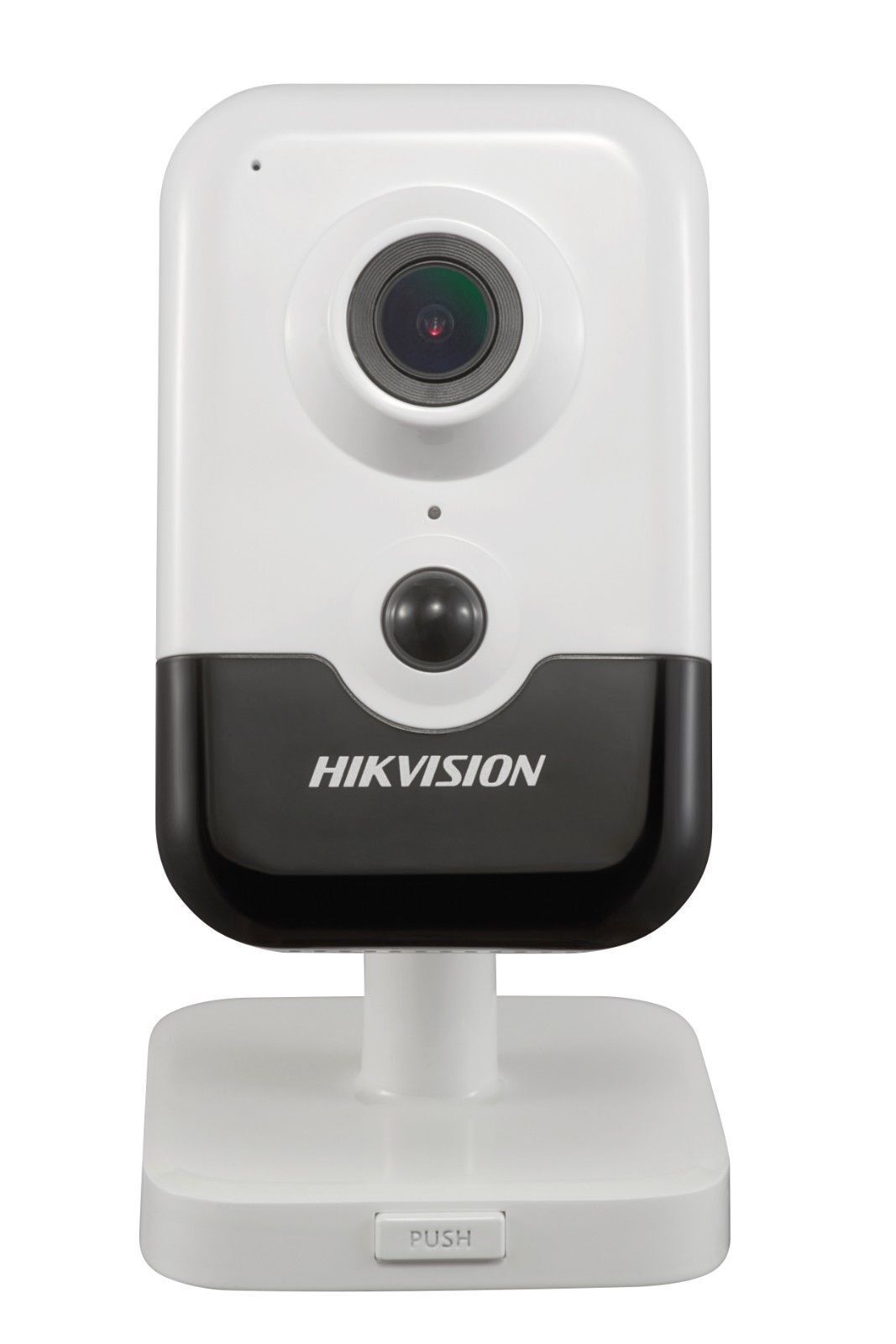

DS-2CD2423G0-IW Hikvision Wi-Fi 2MP Cube Network Camera PIR (2.8mm) IR Fixed
DS-2CD2423G0-IW Hikvision Wi-Fi 2MP Cube Network Camera PIR (2.8mm) IR Fixed
Infrared (IR)
Out of stock
Description
Description
DS-2CD2423G0-IW Hikvision Wi-Fi 2MP Cube Network Camera PIR (2.8mm) IR Fixed
This listing includes:
-  (1) IP/POE CAMERA: DS-2D2423G0-IW
DS-2D2423G0-IW  view data sheet
2 MP Indoor WDR Fixed Cube Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Provides real-time security via built-in two-way audio
- Detects human body through passive infrared is sensitive to body temperature (PIR)
- -W: Wi-Fi connection
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
2 MP Indoor WDR Fixed Cube Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Provides real-time security via built-in two-way audio
- Detects human body through passive infrared is sensitive to body temperature (PIR)
- -W: Wi-Fi connection
specification
- C?mara
- Sensor De Imagen1/2.7" Progressive Scan CMOS
- Iluminaci?n M?nimaColor: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- Velocidad De Obturaci?n1/3 s to 1/100,000 s
- Obturador LentoYes
- Wide Dynamic Range120dB
- D?a Y NocheIR Cut Filter
- Ajuste De ?nguloPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?
- Lente
- Lente2.8/4 mm
- FOV2.8 mm, horizontal FOV: 114?, vertical FOV: 62?, diagonal FOV: 135?,4 mm, horizontal FOV: 86?, vertical FOV: 46?, diagonal FOV: 102?
- AperturaF2.0
- Montura Del LenteM12
- Iluminador
- Rango IR10 m
- Longitud De Onda850nm
- V?deo
- Max. Resoluci?n1920 ? 1080
- Main Stream50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)
- Sub-Stream50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
- Third Stream50Hz: 25fps (1920 ? 1080, 1280 ? 720, 640 ? 360, 352 ? 288),60Hz: 30fps (1920 ? 1080, 1280 ? 720, 640 ? 360, 352 ? 240)
- Compresi?n De VideoMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- V?deo Bitrate32 Kbps to 16 Mbps
- Tipo H.264Main Profile/High Profile
- Tipo H.265Main Profile
- H.264 +Main stream supports
- H.265 +Main stream supports
- Codificaci?n De Video Escalable (SVC)Support H.264 and H.265 encoding
- Audio
- Filtro De Ruido AmbientalYes
- Frecuencia De Muestreo De Audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Compresi?n De AudioG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
- Velocidad De Bits De Audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Red
- Vista En Vivo Simult?neaUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- ProtocolosTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Usuario/OperadorUp to 32 users,3 levels: Administrator, Operator and User
- SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Almacenamiento En RedSupport MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClienteiVMS-4200, Hik-Connect, Hik-Central
- Navegador WebPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Activador De AlarmaMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
- Wi-Fi
- Modo De Encriptaci?nWPA, WPA2
- Protocolo De Wi-FiIEEE 802.11b/g/n
- Rango De Frecuencia2.412 GHz to 2.4835 GHz
- Canal De Ancho De Banda20M/40M
- Ratio De Transferencia11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
- Alcance Inal?mbrico50 m
- Imagen
- Interruptor D?a/NocheDay/Night/Auto/Schedule
- DNR3D DNR
- Mejora De La ImagenBLC/3D DNR/HLC
- Configuraci?n De ImagenRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Transducer
- ?ngulo PIRHorizontal: 90?, Vertical: 80?
- Rango PIR10 m
- Interfaz
- Audio1 built-in mic, 1 built-in speaker, mono sound
- Almacenamiento A BordoBuilt-in Micro SD/SDHC/SDXC slot, up to 128G
- Restablecimiento De HardwareYes
- Interfaz De Comunicaci?n1 RJ45 10M/100M self-adaptive Ethernet port
- Evento
- Evento B?sicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Evento InteligenteLine crossing detection, intrusion detection, face detection
- Detecci?n De RostroYes
- General
- M?todo De EnlaceTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
- Versi?n Del Firmware5.6.3
- Idioma Del Cliente Web32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Funci?n GeneralAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Condiciones De Inicio Y Funcionamiento-10 ?C to +40 ?C (14 ?F to +104 ?F), Humidity 95% or less (non-condensing)
- Fuente De Alimentaci?n12 VDC ? 25%, PoE (802.3af, class 3)
- Consumo De Energ?a Y Corriente12 VDC, 0.5 A, max. 6 W, ? 5.5 mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
- Dimensi?n De La C?mara102.8 mm ? 65.2 mm ? 32.6 mm (4.1" ? 2.6" ? 1.3")
- Peso De La C?maraCamera: Approx. 128 g (0.3 lb.)
