Hikvision DS-2CD2563G2-IS 6MP AcuSense IP67 IK08 Mini Dome IP Camera with Smart Human & Vehicle Detection
Hikvision DS-2CD2563G2-IS 6MP AcuSense IP67 IK08 Mini Dome IP Camera with Smart Human & Vehicle Detection
Human and Vehicle Detection
Infrared (IR)
One Way Audio
Out of stock
Description
Description

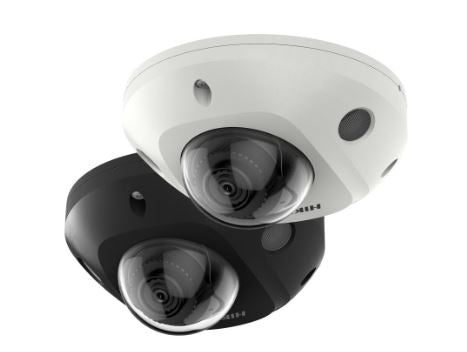

Hikvision DS-2CD2563G2-IS 6MP AcuSense Mini Dome Network Camera
If you’ve ever reviewed footage and thought, “I wish that was clearer,” this camera was built to solve that. The Hikvision DS-2CD2563G2-IS delivers sharp 6MP (3200 × 1800) resolution combined with AcuSense deep learning that focuses on people and vehicles — not random movement. That means fewer false alerts and more meaningful notifications. Add strong night vision, wide dynamic range, and rugged IP67/IK08 protection, and you get reliable performance in real-world conditions.
Whether you're protecting a storefront, office entrance, warehouse, or perimeter, this compact dome gives you the clarity and confidence to make better security decisions.
Why Buyers Choose This Model
- 6MP Resolution (3200 × 1800) — Capture sharper details so you can clearly identify faces, vehicles, and activity without second-guessing footage.
- AcuSense Human & Vehicle Classification — Reduces false alarms by filtering out irrelevant motion, so you only get alerts that actually matter.
- 120 dB Wide Dynamic Range (WDR) — Maintains detail in bright entrances and dark shadows, giving you balanced images in difficult lighting.
- IR Night Vision up to 30 m — Reliable visibility in complete darkness, providing 24/7 coverage without blind spots.
- H.265+ Compression — Saves storage space and bandwidth while maintaining high image quality, lowering long-term storage costs.
- IP67 Weatherproof Rating — Built to withstand rain, dust, and harsh outdoor environments without compromising performance.
- IK08 Vandal Resistance — Tough housing helps deter tampering and withstand impact in high-traffic areas.
- Flexible Lens Options (2.8mm or 4mm) — Choose wide coverage (105° FOV) or more focused monitoring (78° FOV) depending on your layout.
- Audio & Alarm Interface (-IS Version) — Integrate microphones or alarm systems for enhanced situational awareness.
- microSD Support up to 512GB — Local storage option for added redundancy and flexibility.
What This Helps You Avoid
Think about how frustrating it is to receive constant motion alerts — only to find out it was wind, shadows, or passing animals. That wasted time adds up. Or reviewing footage where a bright doorway completely washes out the subject’s face.
With AcuSense filtering, 120 dB WDR, and 6MP clarity, this camera dramatically reduces those headaches. You avoid missed details in high-contrast scenes. You avoid storage overload from inefficient compression. And you avoid the uncertainty of low-quality night footage.
Instead of reacting to noise, you respond to real events — clearly and confidently.
Technical Highlights
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
DS-1276ZJ-SUS (B), DS-1280ZJDM46 (B), DS-1272ZJ-120, DS-1280ZJ-DM46, DS-1275ZJ-SUS, DS-1275ZJ-SUS (B), DS-1271ZJ-120 (B), DS-1276ZJ-SUS, DS-1271ZJ-120
Accessories & Mounts Available
Hikvision DS-1272ZJ-120 Black Aluminum Wall Mount with Internal Cable Routing
In stock
Choose your option
Hikvision DS-1280ZJ-DM46 Aluminum Junction Box for Indoor & Outdoor Camera Mounting
In stock
Choose your option
DS-1275ZJ-SUS Hikvision Vertical pole mount Horizontal Stainless Steel
In stock
Choose your option
Technical Specifications
Hikvision DS-2CD2563G2-IS (2.8/4mm) – 6MP AcuSense Fixed Mini Dome Network Camera
If you want clean, usable footage and alerts you can actually trust, the DS-2CD2563G2-IS is built for that. It combines sharp 6MP imaging (3200 × 1800) with AcuSense deep learning classification, helping the camera focus on people and vehicles—so you’re not reacting to every shadow or moving branch. Add 120 dB WDR for harsh lighting and IR up to 30 m for night coverage, and you get reliable protection day and night. It’s also IP67 and IK08 rated, so it’s ready for real-world outdoor installs and high-traffic areas.
Ideal Applications (Common Uses)
- Entrances and lobbies where backlight is common (120 dB WDR)
- Parking areas and drive lanes needing human/vehicle-focused alerts (AcuSense classification)
- Outdoor perimeters requiring weather protection (IP67)
- Public-facing or high-traffic areas where tamper resistance matters (IK08)
- Day/night monitoring where IR coverage is needed up to 30 m
Key Features
- High quality imaging with 6 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal resistant (IK08)
Camera
Lens
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
Illuminator
Video
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Audio
Network
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Interface
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Event
General
PoE: IEEE 802.3af, Class 3, max. 7 W
Protection
Typical Application (Anti-Corrosion Level)
Available Model
Accessories (Optional)
Downloads
Frequently Asked Questions
The DS-2CD2563G2-IS provides a maximum resolution of 3200 × 1800, delivering full 6 MP imaging. This allows for highly detailed video capture that helps clearly identify faces, objects, and movement within the scene. The camera supports multiple stream resolutions including 2688 × 1520, 1920 × 1080, and 1280 × 720 for flexible deployment. With frame rates up to 25 fps at 50 Hz and 30 fps at 60 Hz on the main stream, it ensures smooth and clear footage for real-time monitoring and playback.
Yes, the camera is designed for strong low-light performance. It can capture color video at 0.005 Lux (F1.6, AGC ON) and switches to black and white at 0 Lux when using its built-in IR illumination. The infrared range extends up to 30 meters (98 feet), using an 850 nm wavelength. This ensures clear visibility in complete darkness, making it suitable for 24/7 surveillance applications.
The DS-2CD2563G2-IS uses Hikvision AcuSense technology powered by deep learning algorithms to classify human and vehicle targets. Instead of triggering alerts for all motion, the system focuses specifically on people and vehicles. This significantly improves alarm efficiency and effectiveness by reducing false alarms caused by environmental factors. It also supports line crossing and intrusion detection with target type filtering for more accurate event notifications.
The camera is available with either a 2.8 mm or 4 mm fixed focal lens. The 2.8 mm lens provides a horizontal field of view of 105°, vertical 55°, and diagonal 127°, offering wider coverage. The 4 mm lens provides a narrower field of view at 78° horizontal, 38° vertical, and 96° diagonal. This allows installers to select the appropriate viewing angle based on coverage requirements.
According to the DORI (Detect, Observe, Recognize, Identify) distances, performance varies by lens. With the 2.8 mm lens, detection reaches up to 76 meters, observation up to 30 meters, recognition up to 15 meters, and identification up to 7 meters. With the 4 mm lens, detection extends to 115 meters, observation 45 meters, recognition 23 meters, and identification 11 meters. These ranges help determine suitability for entrances, perimeters, and parking areas.
Yes, the camera is rated IP67 for water and dust resistance, meaning it is protected against harsh weather conditions. It is also rated IK08 for vandal resistance, providing added durability against impact. The operating temperature range is -30°C to 60°C (-22°F to 140°F) with humidity up to 95% (non-condensing). These specifications make it suitable for both indoor and outdoor installations.
The camera supports H.265, H.264, H.265+, and H.264+ on the main stream. The sub-stream supports H.265, H.264, and MJPEG, while the third stream supports H.265 and H.264 under certain settings. It also includes scalable video coding (SVC) for both H.264 and H.265 encoding. The video bit rate ranges from 32 Kbps to 16 Mbps, allowing flexibility in balancing image quality and storage usage.
Yes, the -IS version includes audio and alarm interfaces. It supports multiple audio compression formats including G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, and AAC-LC. Audio sampling rates range from 8 kHz to 48 kHz, and environment noise filtering is supported. The camera also provides one alarm input and one alarm output (max. 12 VDC, 30 mA).
The DS-2CD2563G2-IS includes a built-in memory card slot that supports microSD cards up to 512 GB. It also supports network storage options including NAS (NFS, SMB/CIFS) and auto network replenishment (ANR). These options provide flexible storage solutions for standalone or network-based systems. This ensures reliable recording even if the network connection is temporarily interrupted.
The camera can be powered by 12 VDC ± 25% with a maximum consumption of 6 W. It also supports Power over Ethernet (PoE) under IEEE 802.3af, Class 3, with a maximum of 7 W. This gives installers flexibility to power the device using a single Ethernet cable when PoE infrastructure is available. Reverse polarity protection is included for added safety.
